Quick Answer: Tukey HSD Test Result

The worked example compares G3 final grade across four studytime groups. The one-way ANOVA was statistically significant, F(3, 645) = 15.876, p < .001, so post hoc pairwise comparisons were justified. The median-centered Levene / Brown-Forsythe variance context was not significant, p = .380, so the equal-variance context looked reasonable for Tukey HSD.

The Tukey HSD Test showed that 4 of the 6 pairwise comparisons were significant at alpha .05. Studytime group 1, students studying less than 2 hours, had the lowest mean G3 score, M = 10.844. Studytime group 3, students studying 5 to 10 hours, had the highest mean, M = 13.227, followed closely by studytime group 4, students studying more than 10 hours, M = 13.057. The strongest difference was between studytime group 1 and group 3, mean difference = 2.382, q = 8.796, adjusted p < .001.

What Is the Tukey HSD Test?

The Tukey HSD Test is a multiple-comparison procedure used after ANOVA when a researcher wants to know exactly which group means differ. ANOVA tells whether at least one group mean is different, but it does not identify the specific pairs. Tukey HSD fills that gap by comparing every pair of group means with one familywise error-controlled procedure.

The name HSD means Honestly Significant Difference. In a balanced design, Tukey HSD compares each absolute mean difference with a single critical difference. In an unequal sample size design, the Tukey-Kramer version adjusts the standard error for each pair using the two sample sizes in that pair. Because the studytime groups in this example have unequal sample sizes, the Tukey-Kramer logic is the correct interpretation.

The Tukey HSD Test is closely connected to one-way ANOVA, ANOVA assumptions, p-values, confidence intervals, and effect size. It should not be treated as a replacement for ANOVA. It is a follow-up procedure that gives pairwise detail after the omnibus test.

When Should You Use Tukey HSD?

Use the Tukey HSD Test when the dependent variable is numeric, the independent variable has three or more groups, and the main research question involves all pairwise comparisons among group means. It is especially useful after a one-way ANOVA because it keeps the familywise Type I error rate under control when multiple pairs are tested.

If equal variances are clearly violated, Tukey HSD may not be the best post hoc test. In that situation, compare with unequal-variance procedures such as Games-Howell or Tamhane’s T2. For assumption checking, see Levene’s test, Brown-Forsythe test, balanced ANOVA, and ANOVA in SPSS.

Tukey HSD Formula and Tukey-Kramer Formula

For equal group sizes, the Tukey HSD critical difference is calculated using the Studentized range critical value, the ANOVA mean square error and the common group sample size.

When sample sizes are unequal, the Tukey-Kramer denominator changes by pair. This is the version used in the Python and R reports for this example.

Hypotheses and Decision Rule for Tukey HSD

The Tukey HSD Test evaluates each pair of group means. For any pair, the null hypothesis says the two population means are equal. The alternative hypothesis says the two population means are different.

Dataset and Variables Used

The worked example uses the student performance dataset structure commonly used in Salar Cafe statistical guides. The dependent variable is G3, the final grade. The grouping variable is studytime, which has four ordered categories. This makes it a suitable example for one-way ANOVA followed by Tukey HSD Test post hoc comparisons.

ANOVA and Assumption Context Before Tukey HSD

The ANOVA result is the first decision point. The between-group sum of squares was 465.078, the within-group sum of squares was 6298.189, and the within-group mean square error was 9.765. The omnibus ANOVA result was F(3, 645) = 15.876, p < .001, which supports moving to post hoc pairwise interpretation.

The variance context also supports Tukey HSD interpretation. The median-centered Levene / Brown-Forsythe context was F = 1.026, p = .380. Because this p-value is greater than .05, the equal-variance assumption does not show a serious warning in this example. The robust Welch and Brown-Forsythe tests were also significant, which confirms that the group mean pattern is not limited to the ordinary ANOVA table.

Tukey HSD Pairwise Results

The table below summarizes the Tukey-Kramer pairwise comparisons. A comparison is significant when the adjusted p-value is below .05, the simultaneous confidence interval does not include zero, and the q statistic is above the Tukey critical q value of 3.642648.

SPSS Output Interpretation for Tukey HSD Test

The SPSS output confirms the complete workflow: descriptive statistics by studytime group, homogeneity of variances, one-way ANOVA, robust tests, Tukey HSD multiple comparisons and homogeneous subsets. The SPSS one-way ANOVA command used G3 as the dependent variable and studytime as the grouping factor, with Tukey post hoc comparisons at alpha .05.

SPSS Descriptive Statistics

SPSS ANOVA and Homogeneity Results

The SPSS homogeneity output showed non-significant Levene-style tests. Based on the mean, Levene’s statistic was .985, p = .400. Based on the median, the statistic was 1.026, p = .380. These values do not indicate a serious variance problem for Tukey HSD interpretation.

The ANOVA table showed SSbetween = 465.078, SSwithin = 6298.189, dfbetween = 3, dfwithin = 645, MSbetween = 155.026, MSwithin = 9.765, and F = 15.876, p < .001. This confirms that the group means are not all equal.

SPSS Tukey HSD Multiple Comparisons

The SPSS multiple-comparisons table marks significant mean differences with an asterisk. Studytime 1 differed significantly from studytime 2, 3 and 4. Studytime 2 differed significantly from studytime 3. The comparisons between studytime 2 and 4 and between studytime 3 and 4 were not significant. This matches the Python and R post hoc summaries.

Python Chart-by-Chart Interpretation

The Python charts show the Tukey HSD result from several angles: simultaneous confidence intervals, group means and letters, q statistics, mean differences versus HSD thresholds, pairwise decision matrix, adjusted p-values, ANOVA variance decomposition and distribution context.

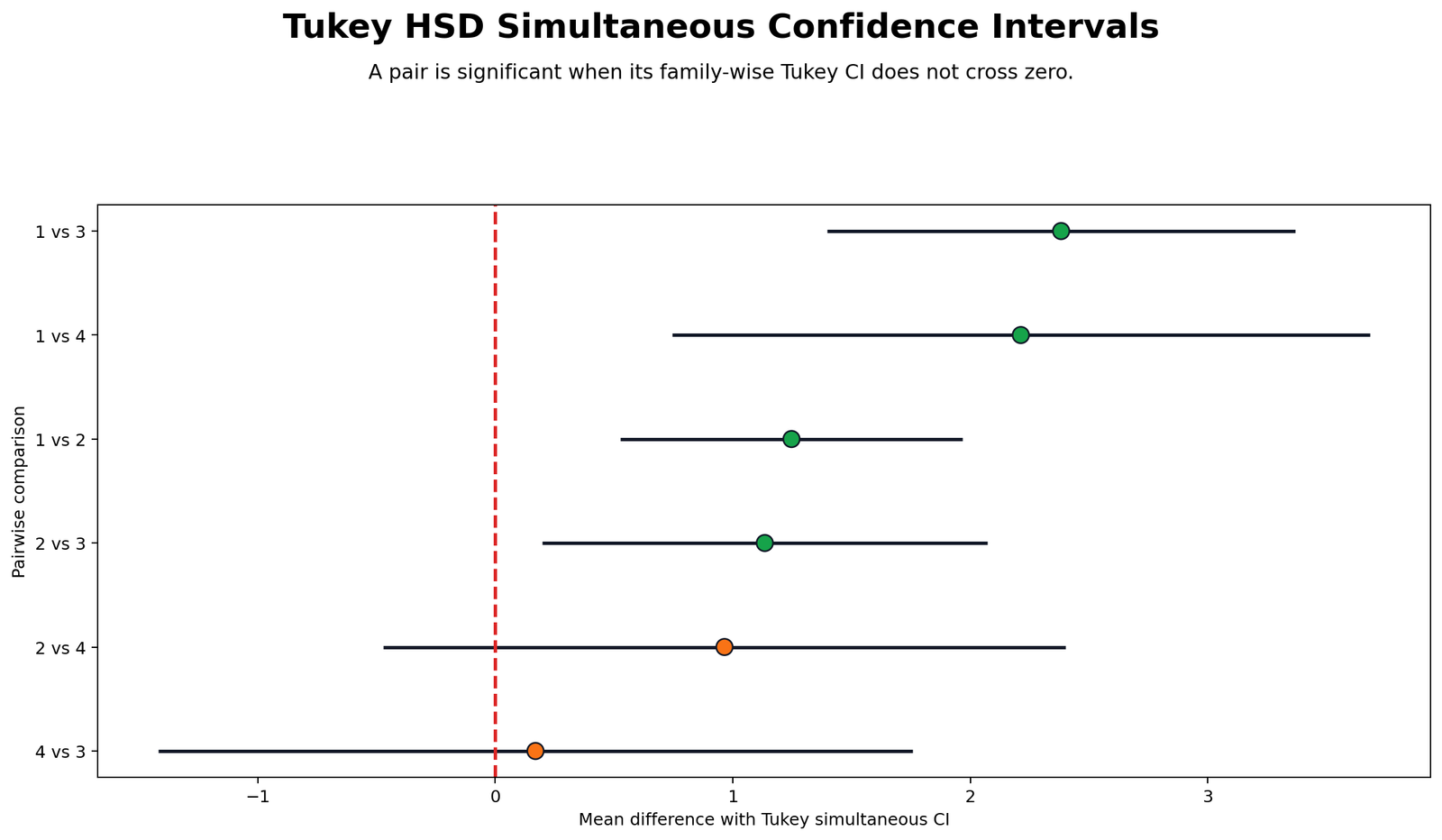

Python Chart 1: Tukey HSD Simultaneous Confidence Interval Forest

This forest chart shows each pairwise mean difference with its simultaneous confidence interval. A Tukey comparison is significant when the interval stays completely away from zero. The intervals for studytime 1 versus 2, studytime 1 versus 3, studytime 1 versus 4, and studytime 2 versus 3 exclude zero, so they are significant at alpha .05.

The intervals for studytime 2 versus 4 and studytime 4 versus 3 cross zero. Those two comparisons are not statistically significant. This chart gives the clearest visual answer because it shows both the size and uncertainty of each post hoc difference.

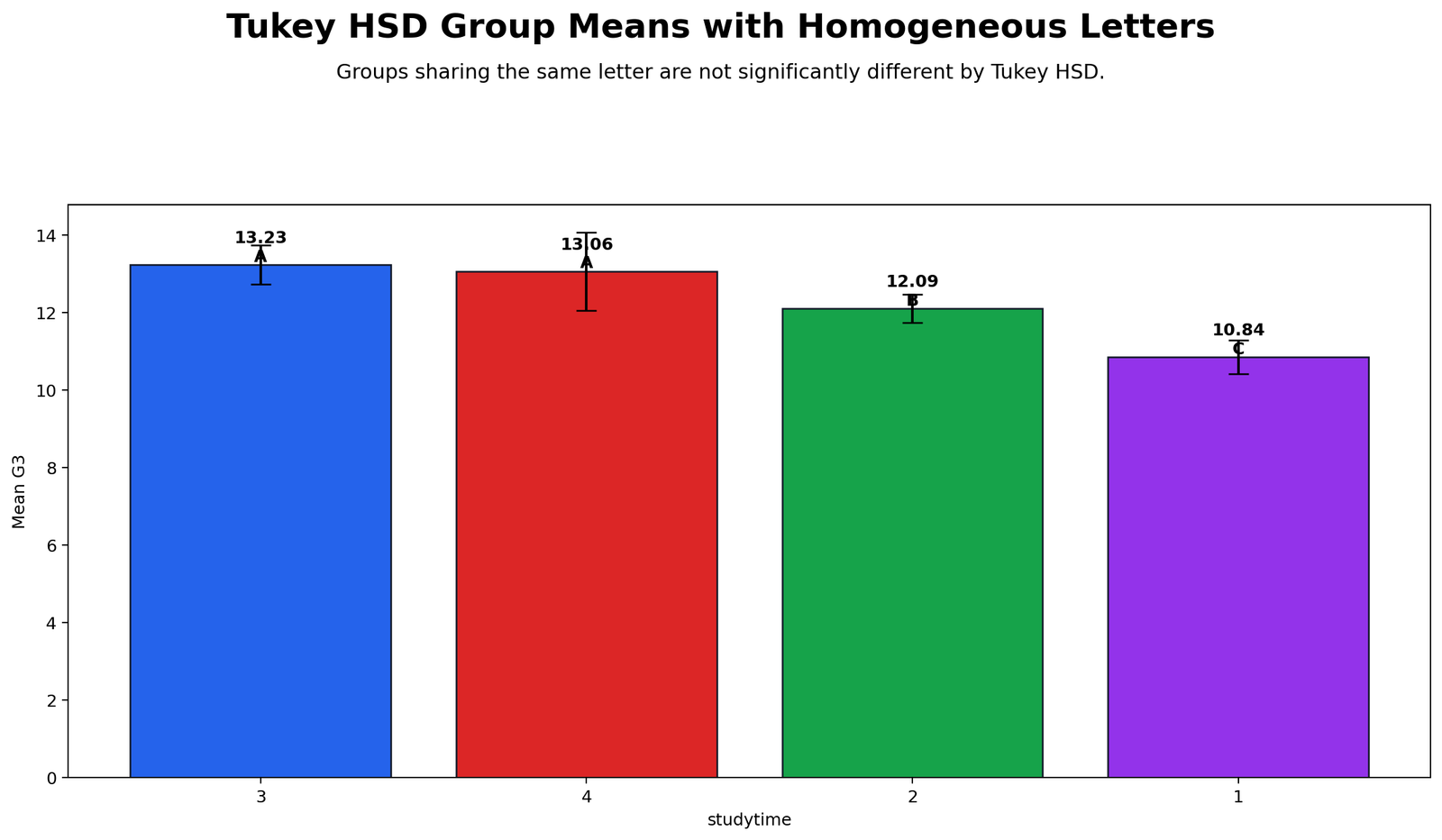

Python Chart 2: Group Means and Homogeneous Letters

The group means chart shows a clear upward pattern from studytime group 1 to the higher studytime groups. Group 1 has the lowest mean, group 2 is higher, and groups 3 and 4 are the highest. The sample sizes are unequal, with group 4 much smaller than groups 1 and 2, which is why Tukey-Kramer pair-specific standard errors are important.

The letters summarize the post hoc grouping visually. The main interpretation is that the low studytime group is separated from the higher-performing groups, while the two highest means are close to each other. The chart should be read together with the pairwise table because compact letters are a summary, while the pairwise table gives the exact adjusted p-values and confidence intervals.

Python Chart 3: Tukey q Statistic Ranking

The q statistic ranking chart compares each observed q value with the Tukey critical q value. The strongest comparison is studytime 1 versus studytime 3, with q = 8.796. Studytime 1 versus 2, studytime 1 versus 4, and studytime 2 versus 3 also exceed the critical value of 3.643.

Studytime 2 versus 4 and studytime 4 versus 3 fall below the critical q line. This explains why those two comparisons are not significant even though their raw mean differences are not exactly zero. In Tukey HSD, the question is whether the difference is large enough relative to the familywise critical threshold.

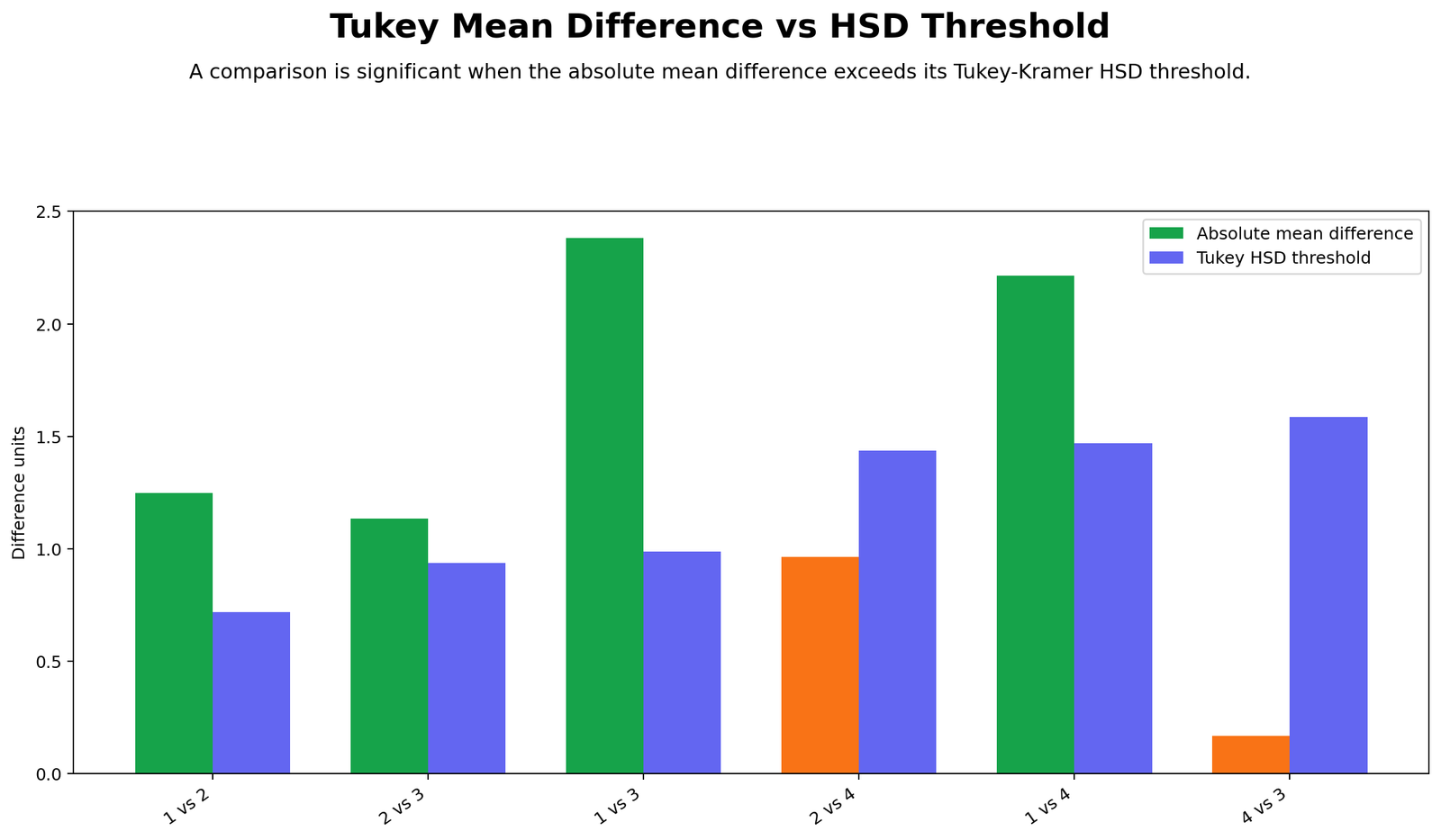

Python Chart 4: Mean Difference Versus HSD Threshold

This chart compares the observed mean difference for each pair with the required Tukey-Kramer threshold. Because the sample sizes are unequal, the threshold changes by pair. Pairs involving group 4 often have wider thresholds because group 4 has only 35 observations.

The significant comparisons are the pairs where the observed difference is larger than the HSD threshold. The non-significant group 2 versus group 4 comparison has a mean difference of about 0.965, which is below its threshold of about 1.436. The group 4 versus group 3 comparison has an even smaller difference, about 0.170, far below its threshold.

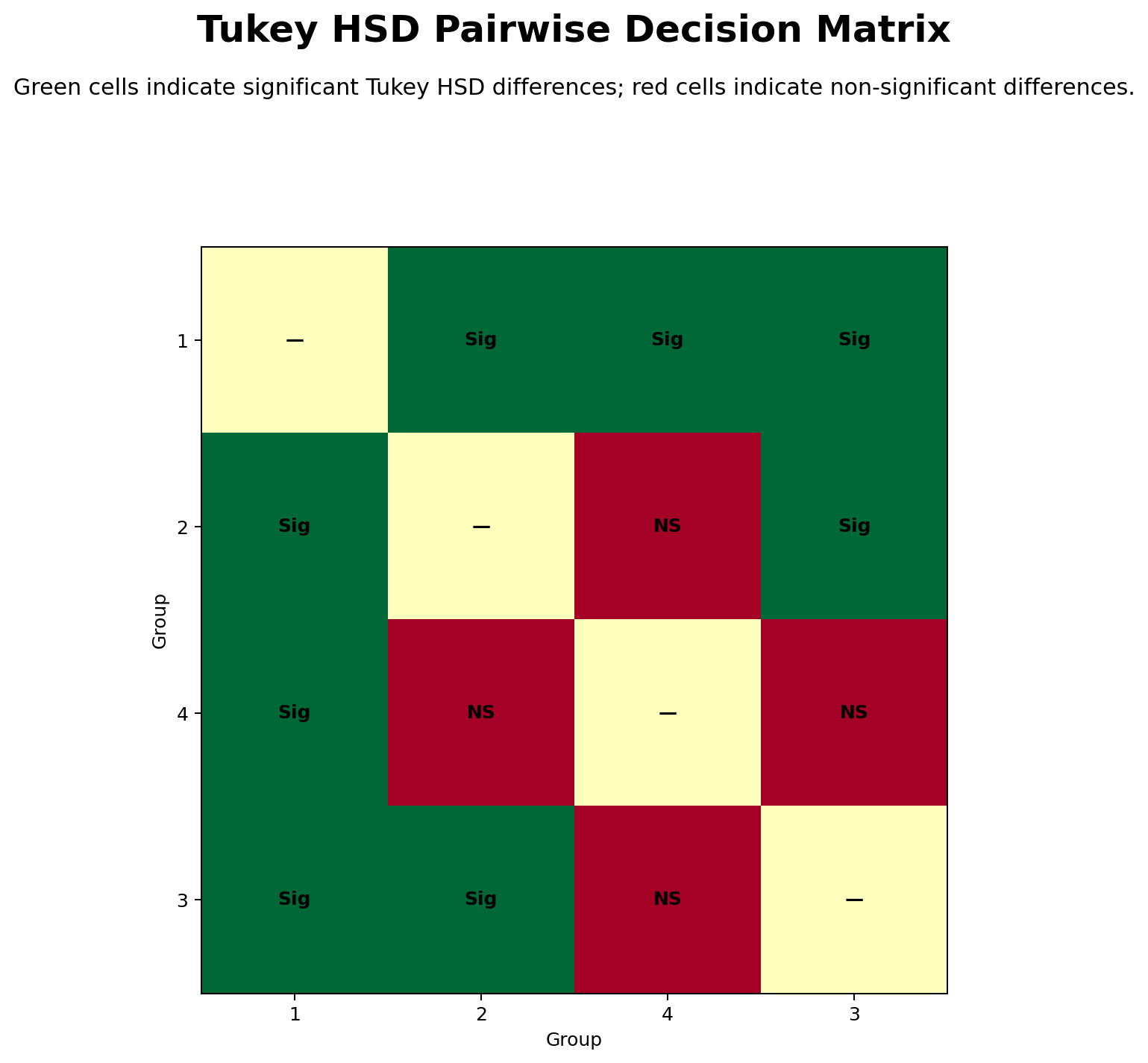

Python Chart 5: Tukey Pairwise Decision Matrix

The decision matrix turns the pairwise table into a quick significance map. Significant cells show where Tukey HSD rejected equal means. The matrix highlights that studytime group 1 differs from all other groups and that group 2 differs from group 3.

The matrix also prevents overstatement. It shows that group 2 and group 4 are not significantly different and that group 3 and group 4 are not significantly different. This is important because a simple line chart of means might tempt readers to rank every group as significantly different, which is not supported by the Tukey result.

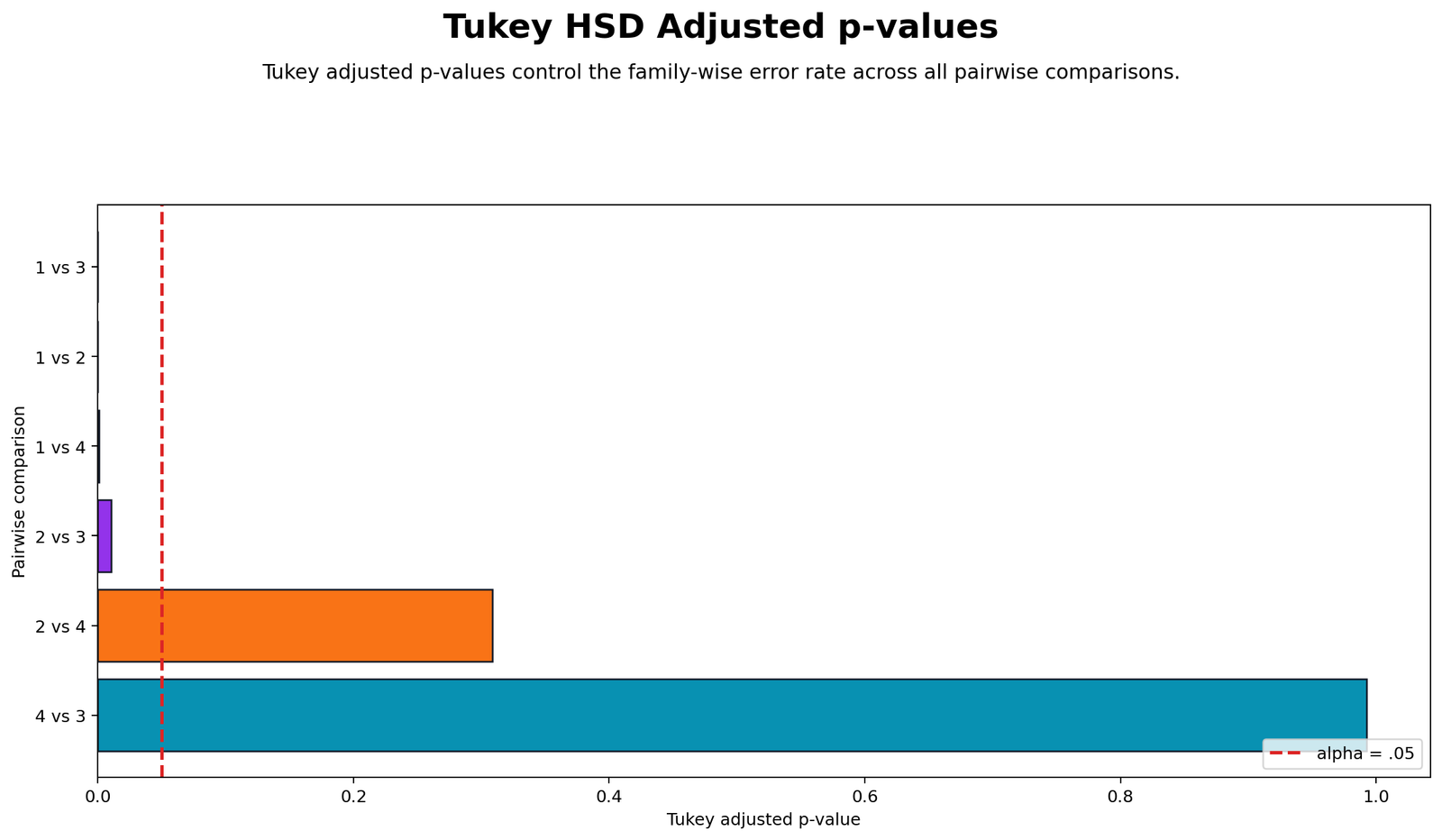

Python Chart 6: Tukey Adjusted p-values

The adjusted p-value chart shows which comparisons stay below the .05 line after Tukey adjustment. Studytime 1 versus 3 has the smallest adjusted p-value, followed by studytime 1 versus 2, studytime 1 versus 4, and studytime 2 versus 3. These are the four significant comparisons.

The non-significant comparisons have much larger adjusted p-values: studytime 2 versus 4 is about .308, and studytime 4 versus 3 is about .993. These high values show that the observed differences are not strong enough after familywise adjustment.

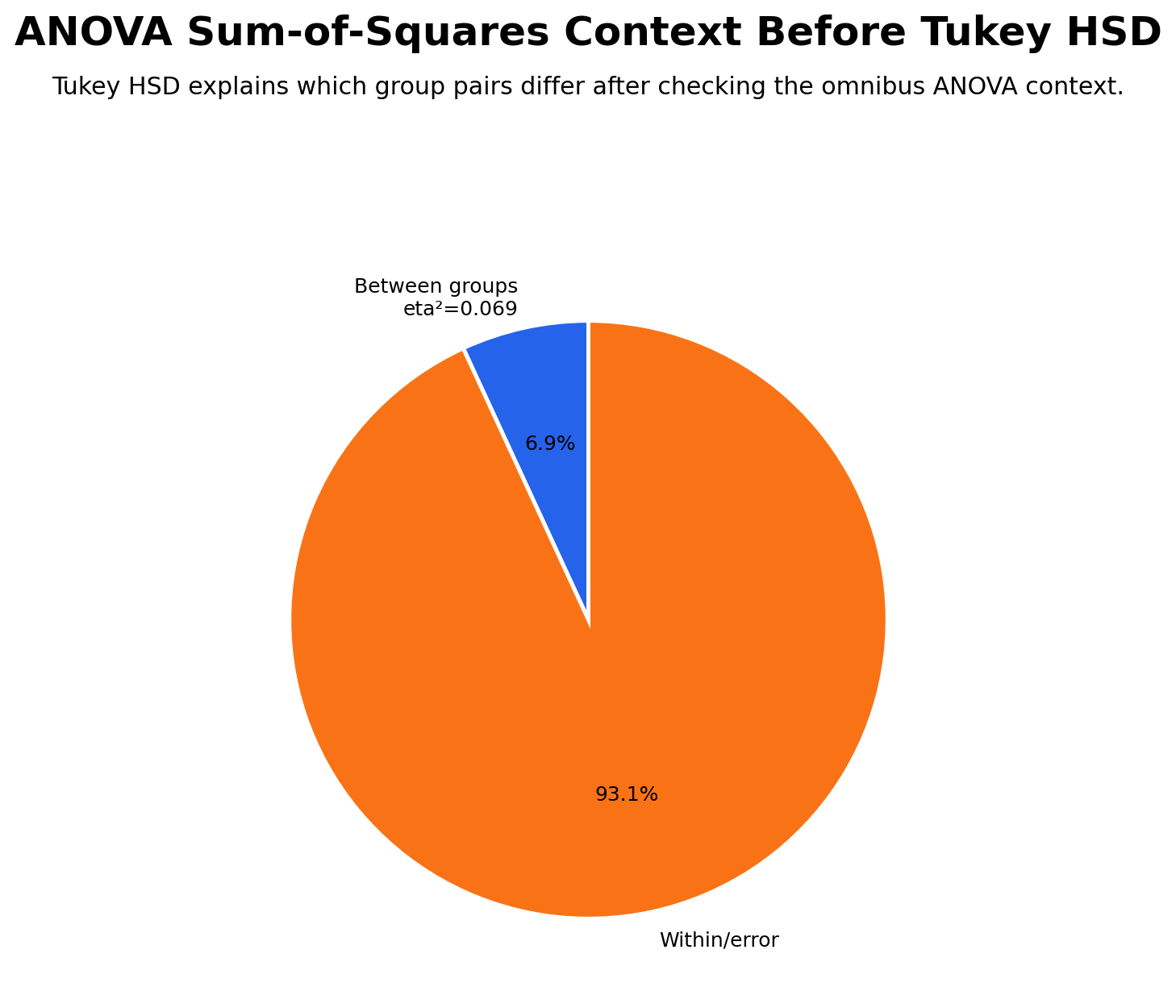

Python Chart 7: ANOVA Variance Decomposition

The ANOVA variance decomposition chart explains why the Tukey HSD test was needed. The between-group component is large enough relative to the within-group error to produce F = 15.876 and p < .001. This means the studytime group means are not all equal.

The chart also shows that much variation remains within the groups. Eta squared is about .069, so the studytime factor explains a meaningful but not overwhelming part of the final grade variation. Tukey HSD then identifies which specific pairs contribute to that overall ANOVA result.

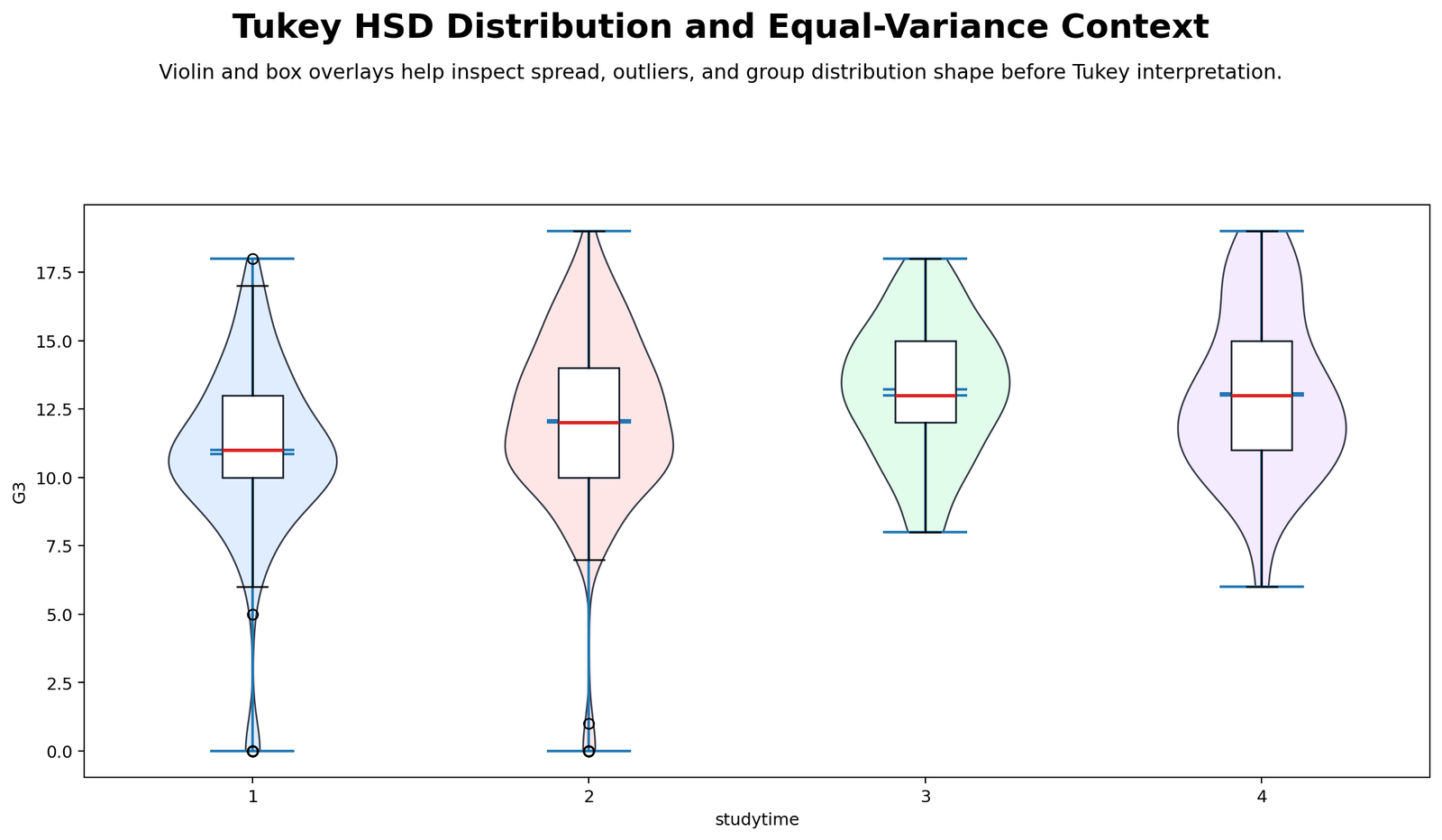

Python Chart 8: Distribution Context Violin and Box Plot

The distribution context chart shows why post hoc tests are interpreted with both means and spread. The higher studytime groups tend to have higher grade distributions, but the distributions still overlap. This overlap is normal in real data and explains why not every pairwise difference becomes statistically significant.

The group 1 distribution sits lower overall, which supports the significant differences involving group 1. Groups 3 and 4 appear close in central tendency, which supports the non-significant Tukey comparison between them. This chart gives practical context to the numerical Tukey table.

R Chart-by-Chart Validation

The R charts validate the same Tukey HSD interpretation using a separate workflow. The R output confirms the ANOVA result, equal-variance context, group means, q statistics, adjusted p-values and pairwise decisions.

R Chart 1: Tukey HSD Simultaneous Confidence Interval Forest

The R confidence interval forest repeats the same evidence as the Python chart. Four intervals exclude zero and two intervals include zero. This validates the conclusion that four pairwise differences are statistically significant after Tukey adjustment.

The R chart also makes the direction of the differences clear. Comparisons involving studytime group 1 show the largest reliable gaps, especially the comparison between group 1 and group 3.

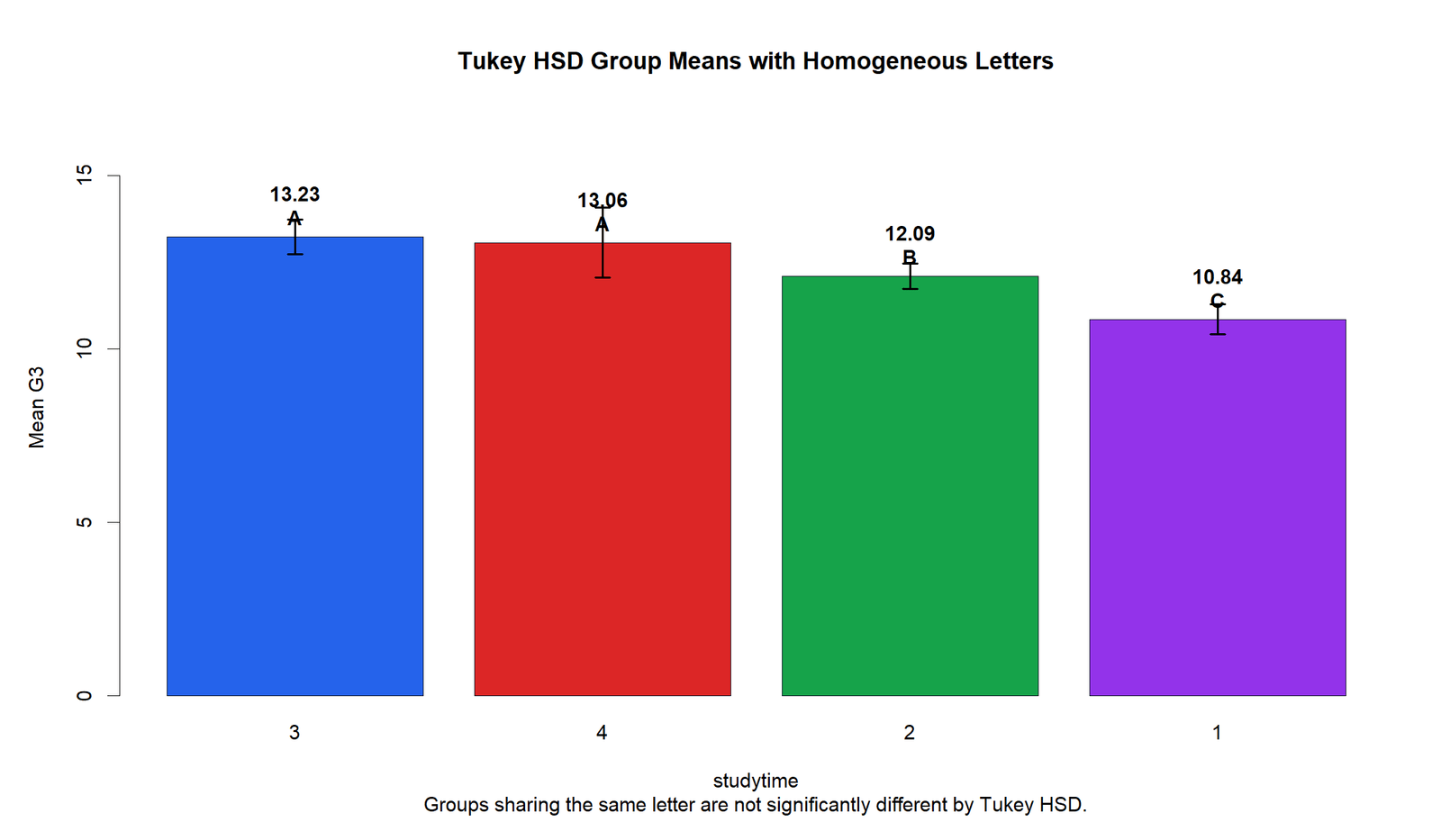

R Chart 2: Group Means and Homogeneous Letters

The R group means chart confirms the same pattern: group 1 has the lowest mean, group 2 is higher, and groups 3 and 4 are highest. The overall story is not simply “more studytime always means a separate mean.” The Tukey result shows where the statistically reliable gaps actually occur.

This chart is useful for readers who need a fast visual summary before reading the pairwise table. The chart should be paired with the adjusted p-value table for exact reporting.

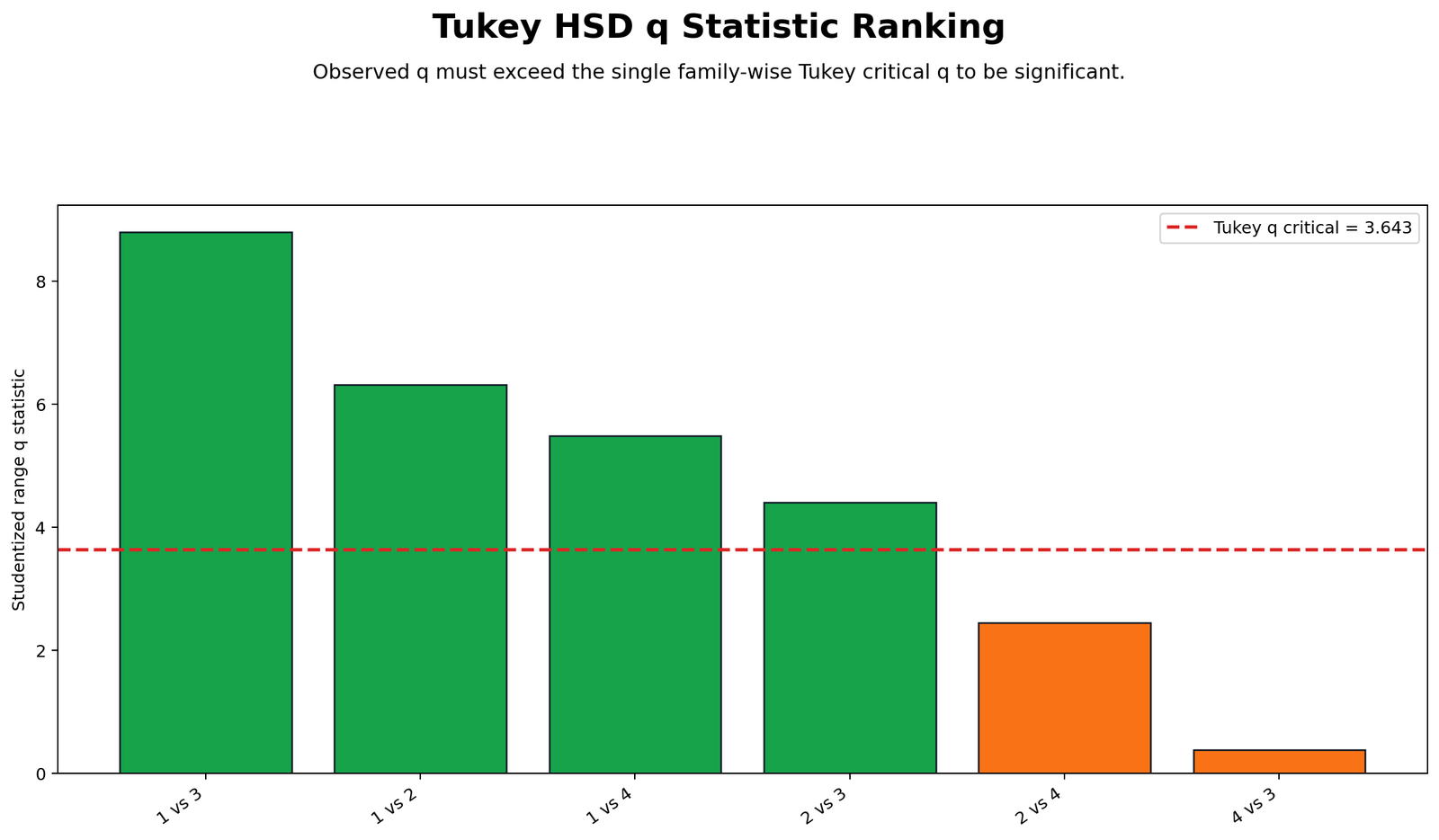

R Chart 3: Tukey q Statistic Ranking

The R q statistic ranking validates that the significant pairs have q values above the critical value. The group 1 versus group 3 comparison is the strongest, while group 4 versus group 3 is the weakest.

The q chart is helpful because it connects the Tukey HSD decision to the Studentized range distribution instead of only showing p-values. It shows the actual test statistic logic behind the final decision.

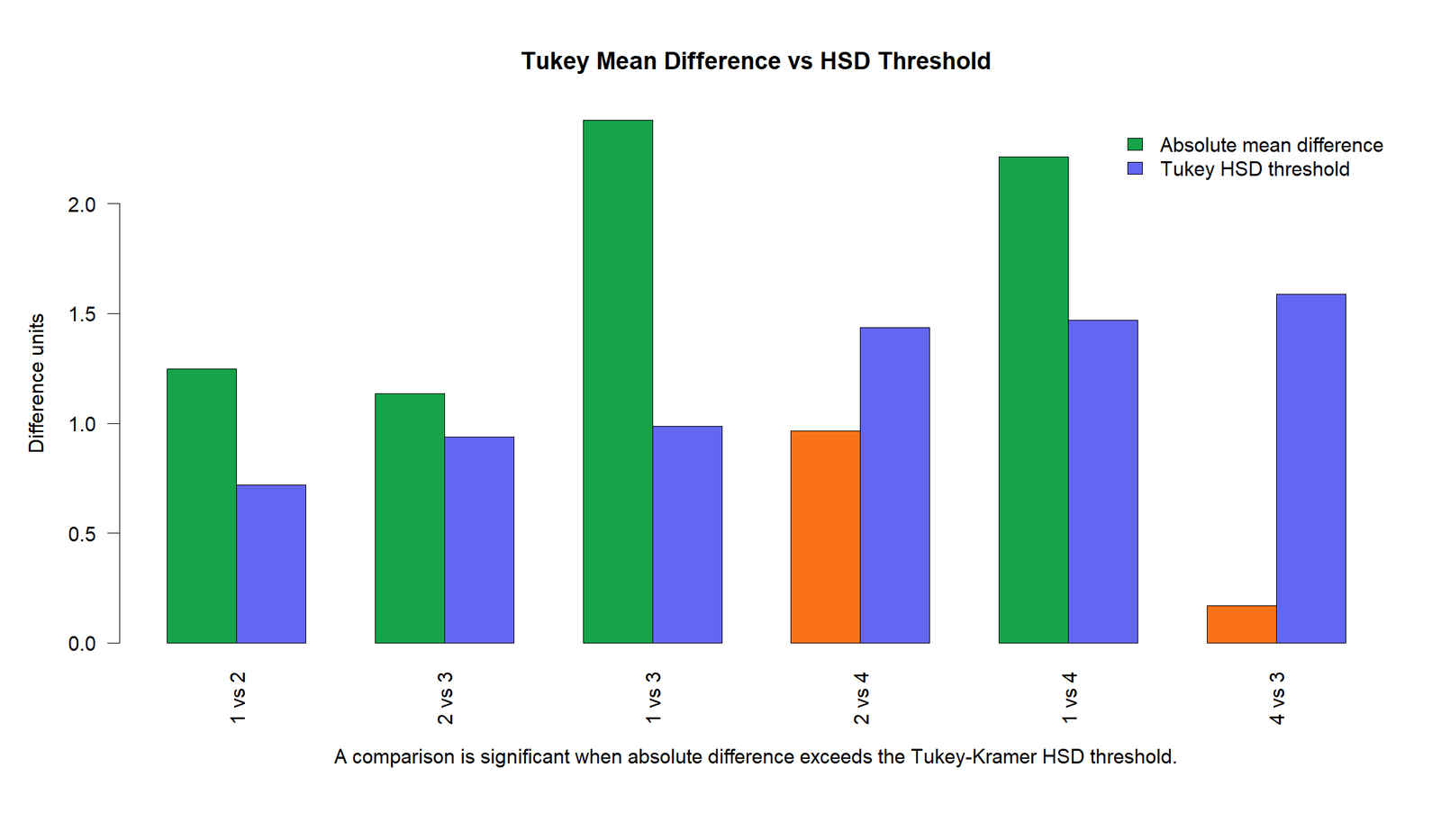

R Chart 4: Mean Difference Versus HSD Threshold

The R threshold chart confirms the unequal-sample-size logic. Pairs with smaller groups need a larger observed difference to become significant. This is one reason group 2 versus group 4 is not significant even though the raw mean difference is close to one grade point.

The threshold chart gives a practical teaching view of Tukey-Kramer. A pairwise mean difference is not interpreted alone; it is interpreted against its standard error and the familywise critical value.

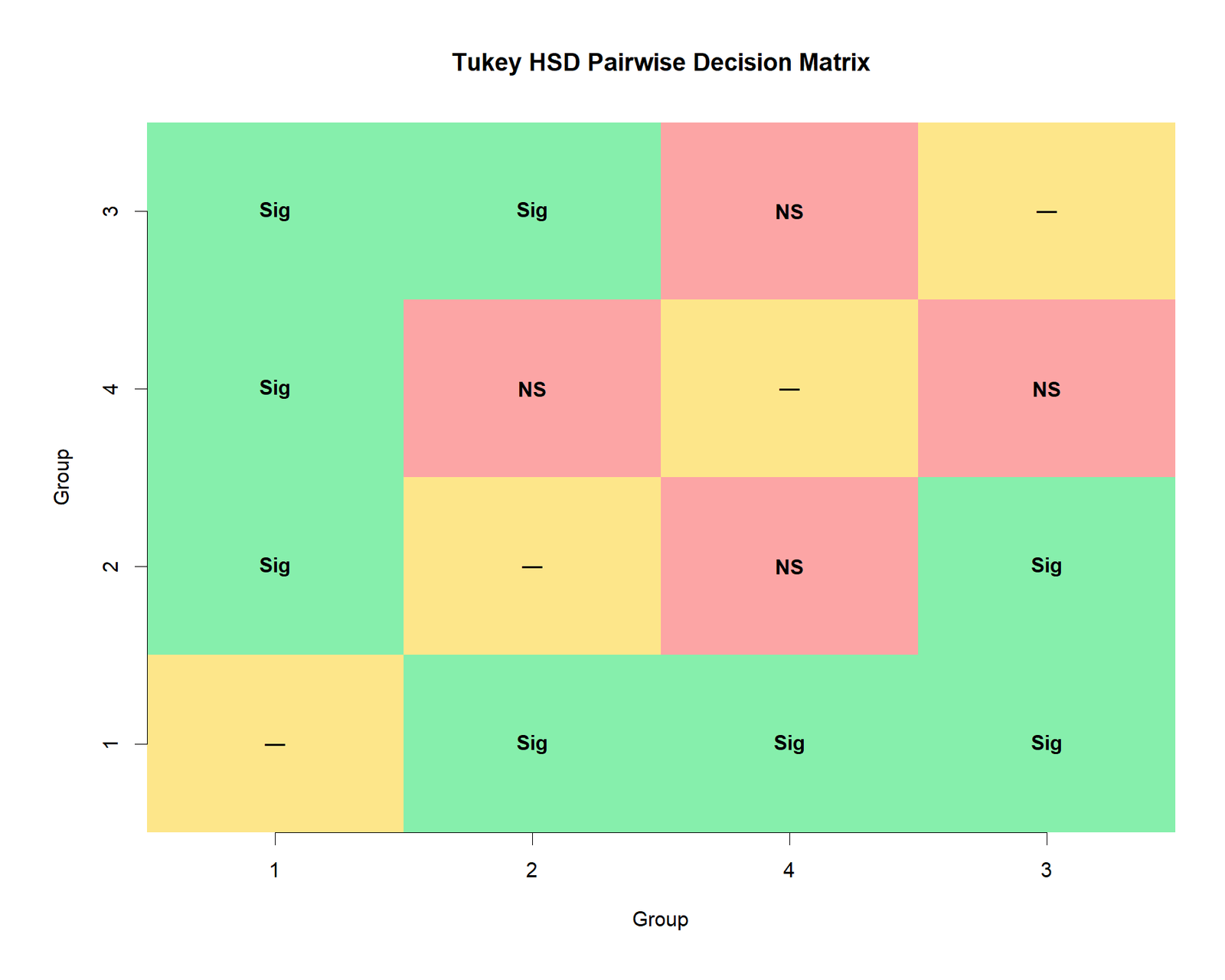

R Chart 5: Pairwise Decision Matrix

The R decision matrix matches the Python result. The significant structure is concentrated around group 1 and the group 2 versus group 3 comparison. The two non-significant comparisons remain group 2 versus group 4 and group 3 versus group 4.

This matrix is one of the easiest visuals for a final report because it prevents readers from missing a pair. Every possible comparison is represented in one compact chart.

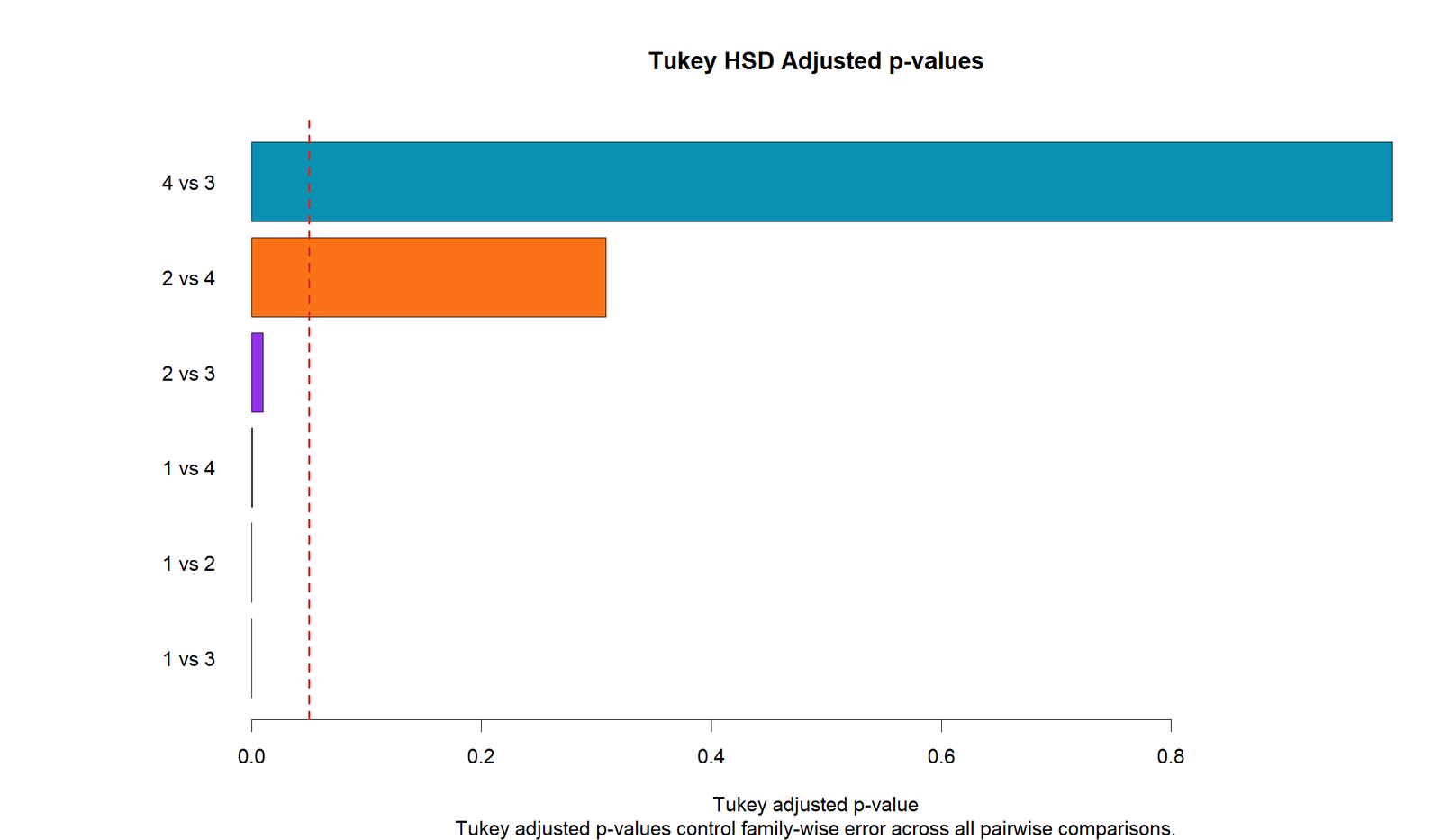

R Chart 6: Adjusted p-values

The R adjusted p-value chart validates the familywise corrected decisions. The four significant pairs are below .05, and the two non-significant pairs are above .05. This chart is useful when readers are more familiar with p-values than q statistics.

The adjusted p-values should be reported instead of unadjusted p-values because the entire purpose of Tukey HSD is to control error across the full set of pairwise comparisons.

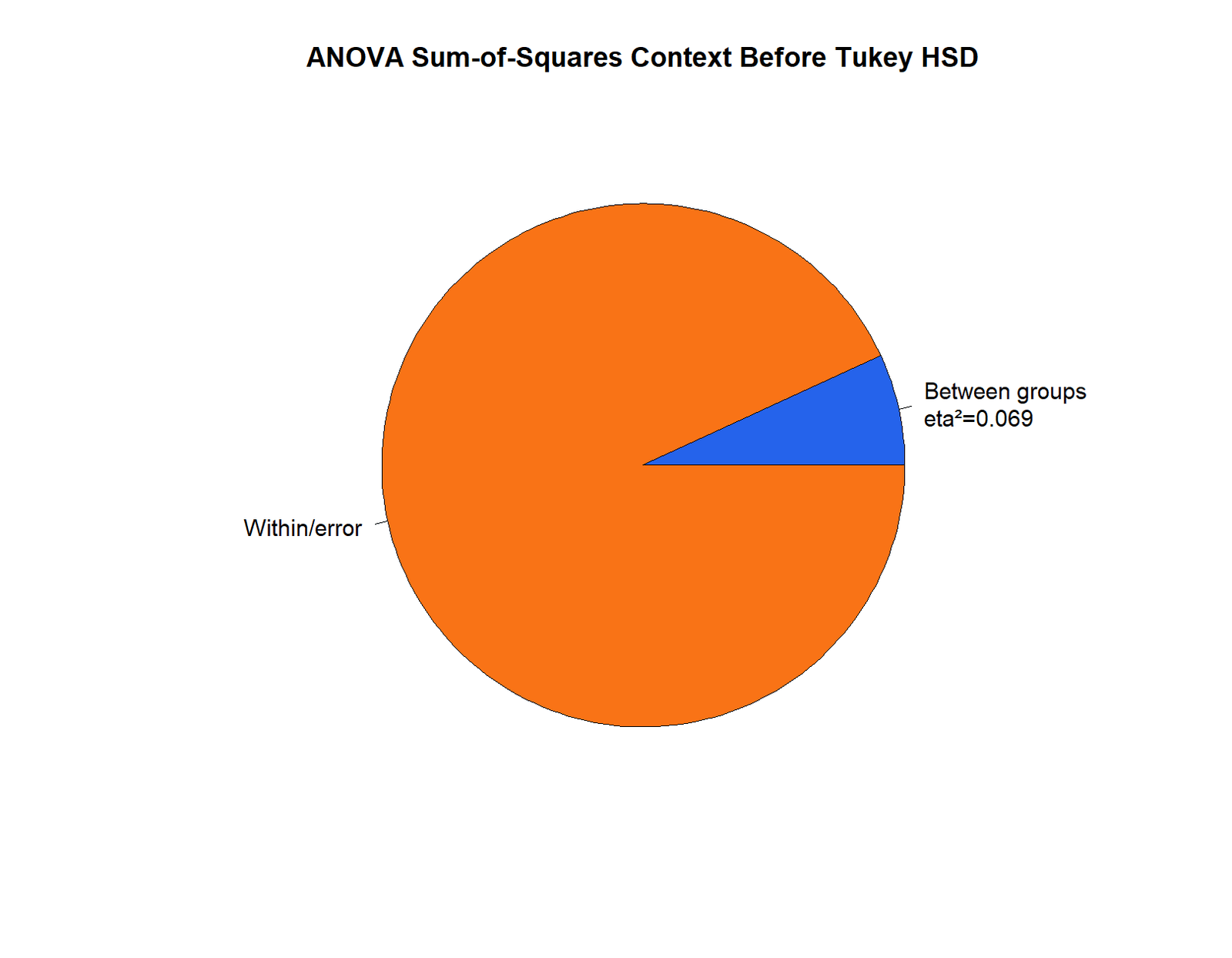

R Chart 7: ANOVA Variance Decomposition

The R ANOVA variance chart confirms that the between-group studytime effect is statistically meaningful, but much of the grade variation remains within groups. This supports a balanced conclusion: studytime groups differ, but studytime is not the only factor related to final grade.

This is why post hoc interpretation should include effect size and descriptive context, not only p-values. The significant ANOVA opens the door to Tukey HSD, while the effect size explains practical magnitude.

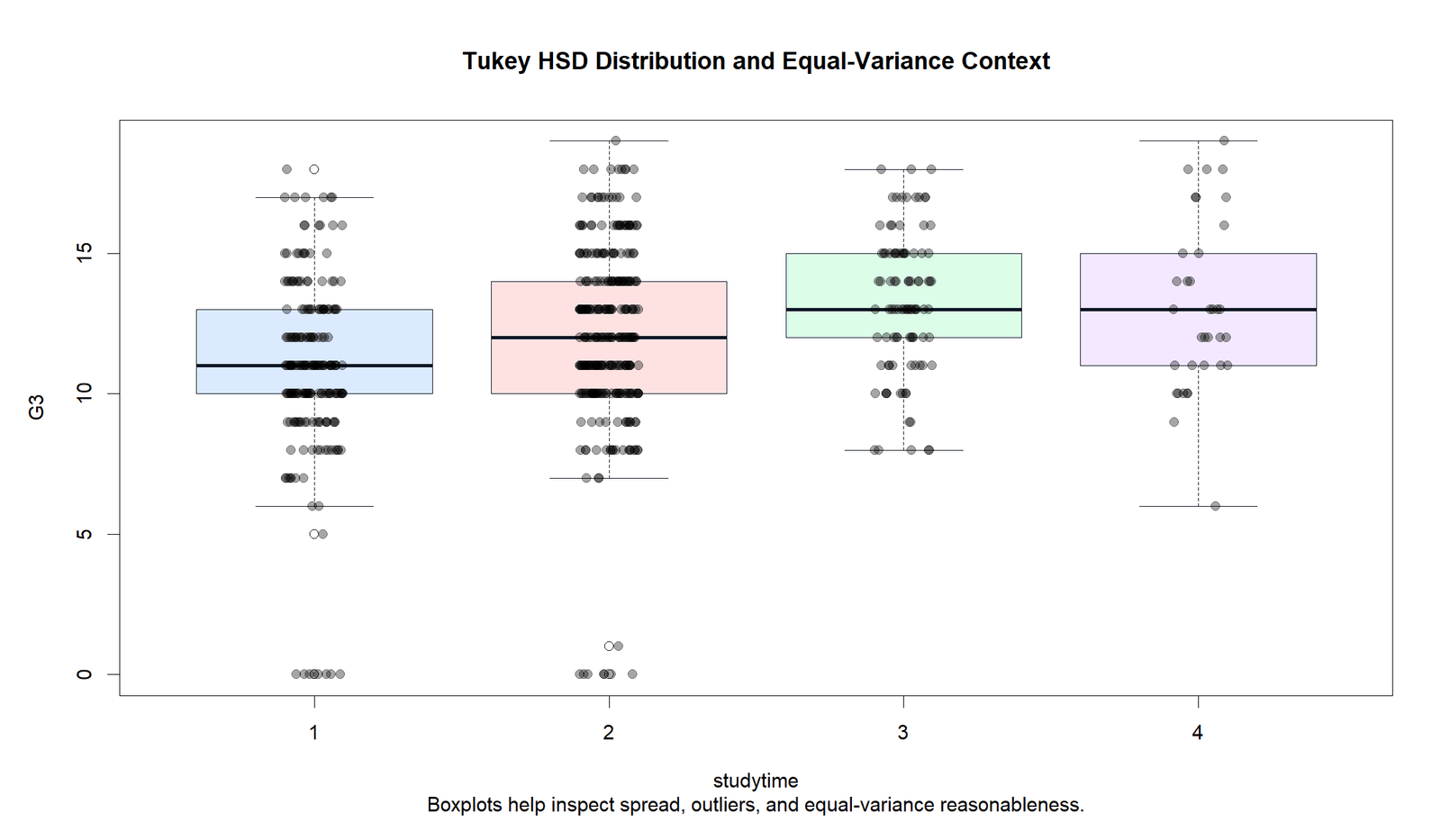

R Chart 8: Distribution Context Violin and Box Plot

The R distribution chart confirms the Python distribution context. Group 1 is visibly lower, while groups 3 and 4 are close. This visual shape matches the Tukey result: group 1 differs from higher groups, but groups 3 and 4 do not differ significantly.

Distribution charts are important because they show overlap and spread. A significant Tukey result does not mean groups are completely separate; it means the difference between their means is large enough relative to the pooled error and familywise adjustment.

SPSS, R, Python and Excel Workflows for Tukey HSD Test

The Tukey HSD Test can be performed in SPSS, R, Python and Excel. The core workflow is the same in every tool: check the ANOVA model, review assumption context, run Tukey HSD or Tukey-Kramer comparisons, interpret adjusted p-values and simultaneous confidence intervals, then report the significant and non-significant pairs clearly.

SPSS Workflow

R Workflow

Python Workflow

Excel Workflow

Code Blocks for Tukey HSD Test

SPSS Syntax for Tukey HSD Test

* Tukey HSD Test / Tukey-Kramer Post Hoc Analysis.
* Dependent variable: G3.
* Factor variable: studytime.

TITLE "Tukey HSD Test / Tukey-Kramer Post Hoc Analysis".

ONEWAY G3 BY studytime
  /STATISTICS DESCRIPTIVES HOMOGENEITY WELCH BROWNFORSYTHE
  /PLOT MEANS
  /MISSING ANALYSIS
  /POSTHOC=TUKEY ALPHA(0.05).

OUTPUT EXPORT
  /CONTENTS EXPORT=ALL
  /PDF DOCUMENTFILE="D:\DATA ANALYSIS\F Post Hoc Tests\Tukey HSD Test\SPSS_Output\pdf\Tukey-HSD-Test-SPSS-Output.pdf".

R Code for Tukey HSD Test

# Tukey HSD Test in R
data <- read.csv("dataset.csv")

data$studytime <- factor(
  data$studytime,
  levels = c(1, 2, 3, 4),
  labels = c("Studytime 1: <2 hours",
             "Studytime 2: 2 to 5 hours",
             "Studytime 3: 5 to 10 hours",
             "Studytime 4: >10 hours")
)

model <- aov(G3 ~ studytime, data = data)
summary(model)

tukey_result <- TukeyHSD(model, "studytime", conf.level = 0.95)
print(tukey_result)

plot(tukey_result, las = 1)

Python Code for Tukey HSD Test

# Tukey HSD Test in Python
import pandas as pd
import statsmodels.api as sm
from statsmodels.formula.api import ols
from statsmodels.stats.multicomp import pairwise_tukeyhsd

df = pd.read_csv("dataset.csv")
df = df.dropna(subset=["G3", "studytime"])

model = ols("G3 ~ C(studytime)", data=df).fit()
anova_table = sm.stats.anova_lm(model, typ=2)
print(anova_table)

tukey = pairwise_tukeyhsd(
    endog=df["G3"],
    groups=df["studytime"],
    alpha=0.05
)
print(tukey)

Excel Formula Logic for Tukey-Kramer

Pair Standard Error:
=SQRT(($MSE$/2)*(1/n_i + 1/n_j))

q Statistic:
=ABS(mean_i - mean_j) / pair_standard_error

Decision:
=IF(q_statistic > q_critical, "Significant", "Not significant")

Simultaneous CI:
Lower = mean_difference - q_critical * pair_standard_error
Upper = mean_difference + q_critical * pair_standard_error

APA Reporting Wording for Tukey HSD Test

A one-way ANOVA was conducted to compare final grade scores across four studytime groups. The ANOVA was statistically significant, F(3, 645) = 15.876, p < .001, η² = .069. The homogeneity of variance context did not show a serious violation, with the median-centered Levene / Brown-Forsythe result p = .380.

Tukey HSD post hoc comparisons showed that students in studytime group 1 had significantly lower G3 scores than students in group 2, MD = 1.247, p < .001, group 3, MD = 2.382, p < .001, and group 4, MD = 2.213, p = .001. Studytime group 2 was also significantly lower than group 3, MD = 1.135, p = .010. The differences between group 2 and group 4 and between group 3 and group 4 were not statistically significant.

Common Mistakes When Interpreting Tukey HSD
