Chi-Square and Categorical Data Tests

Cochran Mantel Haenszel Test: Formula, Example, Interpretation, Python, R, SPSS, SAS and Excel Guide

Stratified ordinal association with a one-degree-of-freedom score test Cochran Mantel Haenszel Test: Formula, Example, Interpretation, Python, R, SPSS, SAS and Excel Guide The Cochran Mantel Haenszel...

Statistics guide Ethical learning support SPSS/R/Python/Excel friendly
Cochran Mantel Haenszel Test: Formula, Example, Interpretation, Python, R, SPSS, SAS and Excel Guide

Stratified ordinal association with a one-degree-of-freedom score test

Cochran Mantel Haenszel Test: Formula, Example, Interpretation, Python, R, SPSS, SAS and Excel Guide

The Cochran Mantel Haenszel Test evaluates association after controlling for a categorical stratification variable. This worked guide uses the ordinal row-mean-scores version to compare female and male final-grade distributions while controlling for school, with exact calculations from 649 students, twelve chart interpretations, software workflows, APA reporting templates and verified downloads.

649 valid students2 school strata4 ordered grade bandsCMH χ²(1) = 12.8587p = 0.0003359

Cochran Mantel Haenszel Test Model Overview

The Cochran Mantel Haenszel Test is a family of stratified chi-square procedures. It asks whether two categorical variables remain associated after data are divided into meaningful strata such as schools, age groups, centres, study sites or risk categories. Unlike a single unadjusted chi-square test of independence, the analysis preserves the stratification variable and combines evidence across its levels.

This article uses the row-mean-scores member of the family. The row variable is sex with two groups, the ordered column variable is the G3 final-grade band scored 1 through 4, and school is the stratification variable. The procedure compares the observed male ordinal-score total with the score total expected under conditional independence inside each school. It then combines the two observed-minus-expected differences and their variances.

The Exact Research Question

After controlling for school, does the ordered distribution of final-grade bands differ between female and male students? The Cochran Mantel Haenszel Test answers this conditional question without pooling GP and MS as though they were one undifferentiated population.

H0: sex and ordered G3 grade band are conditionally independent within school strata
H1: the conditional ordinal grade distributions differ by sex

Why “Cochran–Mantel–Haenszel” Can Mean Different Statistics

The phrase Cochran Mantel Haenszel Test is often used as though it identifies one statistic. In practice, it can refer to a 2 × 2 × K common-odds-ratio test, a correlation statistic, a row-mean-scores statistic or a general-association statistic. The table shape, measurement scale and selected score system determine which member is appropriate. This distinction prevents the common error of reporting a Mantel–Haenszel odds ratio for an outcome with four categories.

Worked-result preview: CMH χ²(1) = 12.858673, signed z = −3.585899 and p = 0.000335919. Both school strata have negative male observed-minus-expected score totals, indicating a shift toward lower ordinal grade bands for males relative to females after school is controlled.
Important boundary: this is not the 2 × 2 common-odds-ratio version. The outcome has four ordered levels, so the article reports an ordinal score shift rather than a pooled odds ratio.
AdvertisementGoogle AdSense top placement reserved here

Quick Answer: Cochran Mantel Haenszel Test Result

The Cochran Mantel Haenszel Test compares sex with a four-level ordered final-grade variable while stratifying by school. Grade bands receive scores 1, 2, 3 and 4. The male score total is below its null expectation in GP and MS, producing a statistically significant one-degree-of-freedom row-mean-scores test.

Valid observations649
CMH statistic12.8587
Signed z−3.5859
P-value0.0003359

Statistical Decision

  • Procedure: ordinal row-mean-scores Cochran Mantel Haenszel Test
  • Degrees of freedom: 1
  • Decision at α = .05: reject H0
  • Decision at α = .01: reject H0
  • Evidence: strong conditional ordinal association

Substantive Meaning

  • GP male score difference: −22.0780.
  • MS male score difference: −12.1681.
  • Both strata point in the same direction.
  • GP male-minus-female mean-score difference: −0.2119.
  • MS male-minus-female mean-score difference: −0.2354.
Plain-language conclusion: after controlling for school, male students were more concentrated in lower G3 grade bands than female students. The Cochran Mantel Haenszel Test provides strong evidence that this ordered distribution difference is not explained by school composition alone.

Table of Contents

  1. What the test means
  2. Research question and hypotheses
  3. When to use the procedure
  4. CMH statistic variants
  5. Variables and grade-band coding
  6. Formula and manual calculation
  7. Observed and expected tables
  8. Complete statistical results
  9. Assumptions and diagnostics
  10. Comparison with related methods
  11. Calculator workflow
  12. Python chart stories
  13. Paired R chart interpretations
  14. Software workflows
  15. Expandable code
  16. APA reporting
  17. Common mistakes
  18. Practice questions
  19. Downloads
  20. Related guides
  21. Frequently asked questions
  22. Conclusion

What Is the Cochran Mantel Haenszel Test?

The Cochran Mantel Haenszel Test is a stratified procedure for categorical data. “Stratified” means the observations are organised into subgroups defined before analysis. The method calculates association information within each stratum and then combines that information, so the final result is adjusted for the stratifying factor.

Suppose a simple cross-tabulation indicates that sex and final-grade category are associated. That overall pattern might reflect a true within-school difference, a difference in the mix of students attending each school, or both. The Cochran Mantel Haenszel Test separates those possibilities by retaining school as a control variable rather than discarding it.

Conditional Independence

The null hypothesis is often described as conditional independence. Sex and the ordered grade band are conditionally independent given school when, inside each school stratum, the grade-band distribution does not systematically shift between female and male students. Conditional independence is more specific than the marginal independence tested after all strata are collapsed.

Why Scores Are Used

The four grade bands have a natural order: low, medium, high and very high. The row-mean-scores Cochran Mantel Haenszel Test assigns scores 1 through 4, preserving order and concentrating the test into one degree of freedom. A general-association test would treat the categories as nominal and use more degrees of freedom. The score-based version is therefore targeted to a monotonic ordinal shift.

Score 1Low: G3 below 10
Score 2Medium: G3 from 10 to 13
Score 3High: G3 from 14 to 16
Score 4Very high: G3 of 17 or above

What the Test Does Not Establish

A significant Cochran Mantel Haenszel Test does not prove that sex causes grade differences, that every individual follows the group pattern, or that school is the only confounder. It demonstrates a conditional association under the chosen scoring and stratification scheme. Causal claims require a design that addresses selection, confounding and measurement, as discussed in the guides to sampling methods and sampling bias.

Research Question, Hypotheses and Data Design

Row variablesex: female versus male
Ordered outcomeG3 grade score: 1, 2, 3 or 4
Stratifierschool: GP versus MS

Research Question

After controlling for school, is the ordinal G3 grade-band distribution the same for female and male students?

Null and Alternative Hypotheses

ComponentStatementMeaning
Null hypothesisH0: no conditional ordinal associationWithin every school stratum, the expected male score total equals the score total implied by the fixed margins.
Alternative hypothesisH1: a conditional ordinal association existsThe male and female distributions differ in ordered location after school is controlled.
Directional interpretationSigned z < 0 for male-minus-female codingMale score totals fall below their null expectations, indicating relatively lower ordered grades.

Why the Hypotheses Must Be Prespecified

The score order and group direction should be selected before viewing the result. Changing from female-minus-male to male-minus-female changes the sign of z but not the two-sided p-value. Changing the grade scores can change the statistic itself. The distinction between planned and data-driven choices is part of responsible null and alternative hypothesis formulation and reduces the risk of selective reporting.

Methods statement: “Sex was treated as a two-level grouping variable, G3 was converted to four ordered grade bands scored 1–4, and school was used as the stratification variable. A two-sided row-mean-scores Cochran Mantel Haenszel Test tested conditional ordinal association.”

When to Use the Cochran Mantel Haenszel Test

Use It When

  • There is a categorical exposure or grouping variable.
  • There is a categorical response variable.
  • A third categorical variable defines meaningful strata.
  • Observations are independent within and between strata.
  • The goal is an adjusted categorical association test.
  • The score-based version is chosen because the response is ordinal.
  • The score order is meaningful and specified in advance.
  • A compact one-degree-of-freedom trend or location test is scientifically relevant.

Choose Another Method When

  • Observations are paired, repeated or clustered beyond the stated strata.
  • Many covariates require simultaneous adjustment.
  • The outcome is continuous and should remain continuous.
  • The response order is arbitrary or disputed.
  • Strata contain too little information for an asymptotic test.
  • The effect varies sharply across strata and one combined statistic is misleading.
  • Prediction, interaction modelling or individual risk estimation is the main goal.
  • Survey weights or complex design features require specialised variance estimation.

Decision Flow

Step 1Is adjustment by strata needed?

If no, start with a standard chi-square test.

Step 2Is the outcome ordered?

If yes, consider row mean scores rather than general association.

Step 3Is the table 2 × 2 × K?

If yes, a common-odds-ratio CMH analysis may also be relevant.

The Cochran Mantel Haenszel Test is especially useful when a simple pooled table may be confounded. It is not a universal substitute for regression; it is a focused stratified test that works best when the number of strata and table dimensions remain interpretable.

Cochran Mantel Haenszel Test Variants and Their Meanings

Choosing the correct CMH statistic is part of the analysis, not a cosmetic software option. The same three-way table can support different null hypotheses depending on whether the row and column variables are nominal or ordinal.

General association

Treats row and column categories as nominal and tests any conditional association.

Row mean scores

Uses ordered column scores and compares mean scores across nominal rows. This is the current analysis.

Correlation statistic

Uses scores for both variables and tests conditional linear association between scores.

Common odds ratio

Designed for collections of 2 × 2 tables and estimates a pooled conditional odds ratio.

VariantTypical tableDegrees of freedomPrimary questionCurrent example?
General associationR × C × K(R−1)(C−1)Is any conditional association present?Not primary
Row mean scoresR × ordered C × KR−1; equals 1 when R=2Do row groups differ in ordered column location?Yes
Correlationordered R × ordered C × K1Are the scored variables conditionally correlated?No; sex is nominal
Common odds ratio2 × 2 × K1Is the common conditional odds ratio equal to 1?No; outcome has four levels

Why the Common Odds Ratio Is Not Reported

A pooled odds ratio requires binary row and column variables. Here the G3 outcome has four ordered categories. Collapsing it to pass/fail would answer a different question and discard information. If a project genuinely uses several 2 × 2 strata, the common-odds-ratio result should be paired with the Breslow–Day test to assess whether stratum-specific odds ratios are sufficiently homogeneous.

Software warning: Python’s common stratified-table utilities and many online calculators implement only the 2 × 2 × K Mantel–Haenszel procedure. They do not automatically reproduce the four-category row-mean-scores statistic used here.

Variables, Coding and Data Dictionary

VariableRoleCodingValid NMeaning
schoolStratification variableGP or MS649Defines the two conditional tables.
sexRow/group variableF = female; M = male649Compares two independent groups within each school.
G3Original quantitative variableFinal grade from 0 to 19649Source used to create the ordered outcome.
grade scoreOrdered response1 = below 10; 2 = 10–13; 3 = 14–16; 4 = 17+649Supplies the scores used by the row-mean-scores statistic.

Why the Grade Bands Must Be Transparent

The Cochran Mantel Haenszel Test uses the assigned numeric scores, so the cut points and scores belong in the public method description. Readers should be able to reproduce the category conversion. A frequency and relative-frequency table should also be inspected before testing to ensure that no coding error has created empty or implausible categories.

Excel grade-score formula

=IF(C5<10,1,IF(C5<=13,2,IF(C5<=16,3,4)))

Maps the original G3 score to the four ordered levels.

Direction convention

Male is the focal row for score totals; female is the comparison row.

Negative z therefore means the male score distribution is shifted downward.

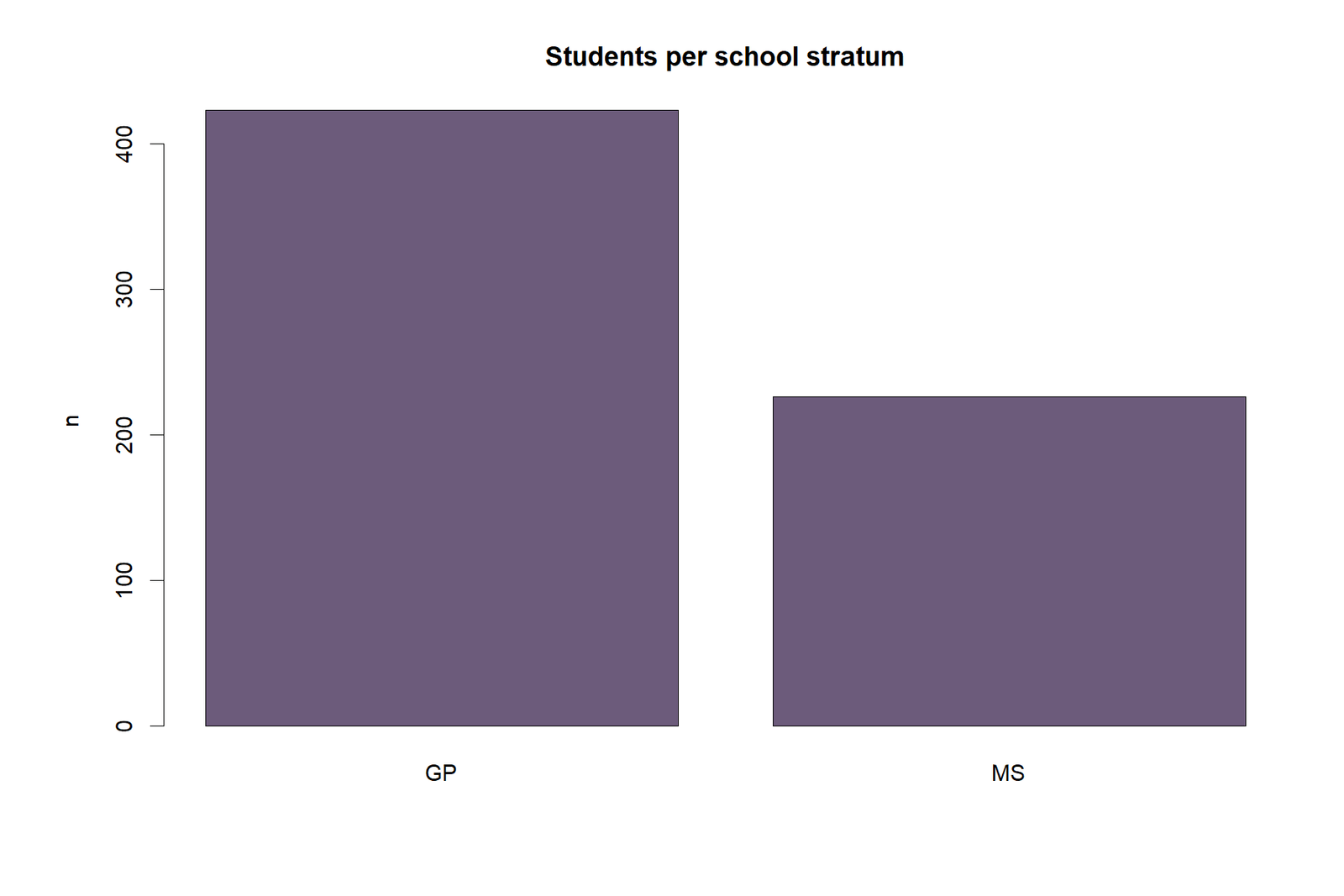

Sample Composition

SchoolFemaleMaleTotalShare of full sample
GP23718642365.18%
MS1468022634.82%
Total383266649100.00%

Cochran Mantel Haenszel Test Formula and Manual Calculation

The row-mean-scores Cochran Mantel Haenszel Test builds one score total and one null variance for each stratum. The worked calculation uses male as the focal row and column scores 1, 2, 3 and 4.

Notation

SymbolDefinition
hStratum index: GP or MS.
nFh, nMhFemale and male totals in stratum h.
nhjTotal number in grade category j within stratum h.
sjPrespecified score for grade category j.
ThObserved male score total in stratum h.
EhExpected male score total under conditional independence.
VhFixed-margin variance of the male score total.

Step 1: Observed Male Score Total

Th = Σj sj nMhj

GP: 1(23) + 2(108) + 3(44) + 4(11) = 415. MS: 1(27) + 2(43) + 3(8) + 4(2) = 145.

Step 2: Overall Mean Score Within Each Stratum

h = [Σj sjnhj] / nh

GP mean score = 2.3498818. MS mean score = 1.9646018. The lower MS mean reflects a different overall school profile, which is why school should not be ignored.

Step 3: Expected Male Score Total

Eh = nMhh

GP expected male score = 186 × 2.3498818 = 437.0780142. MS expected male score = 80 × 1.9646018 = 157.1681416.

Step 4: Observed Minus Expected

Dh = Th − Eh

GP D = 415 − 437.0780142 = −22.0780142. MS D = 145 − 157.1681416 = −12.1681416. The combined difference is −34.2461558.

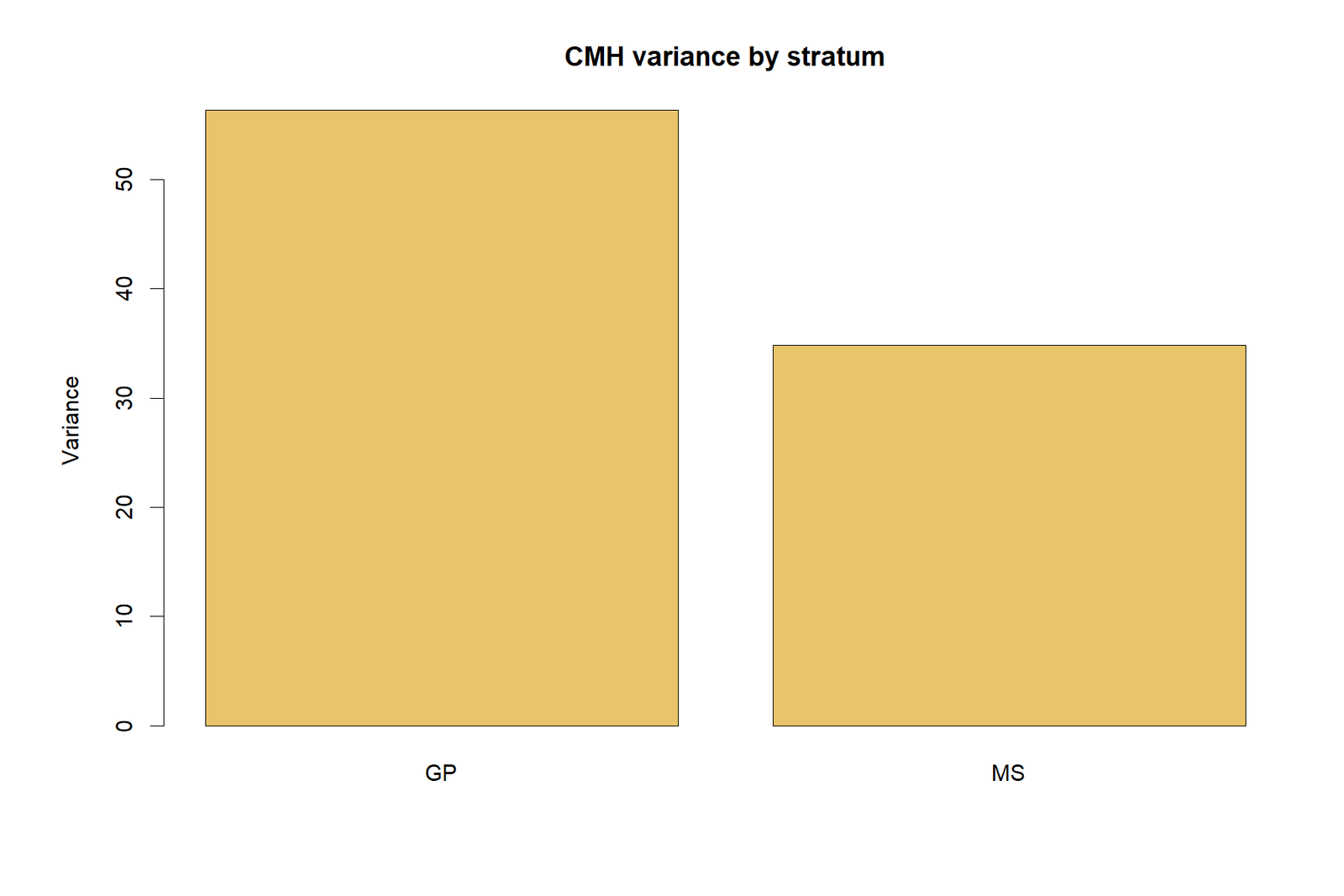

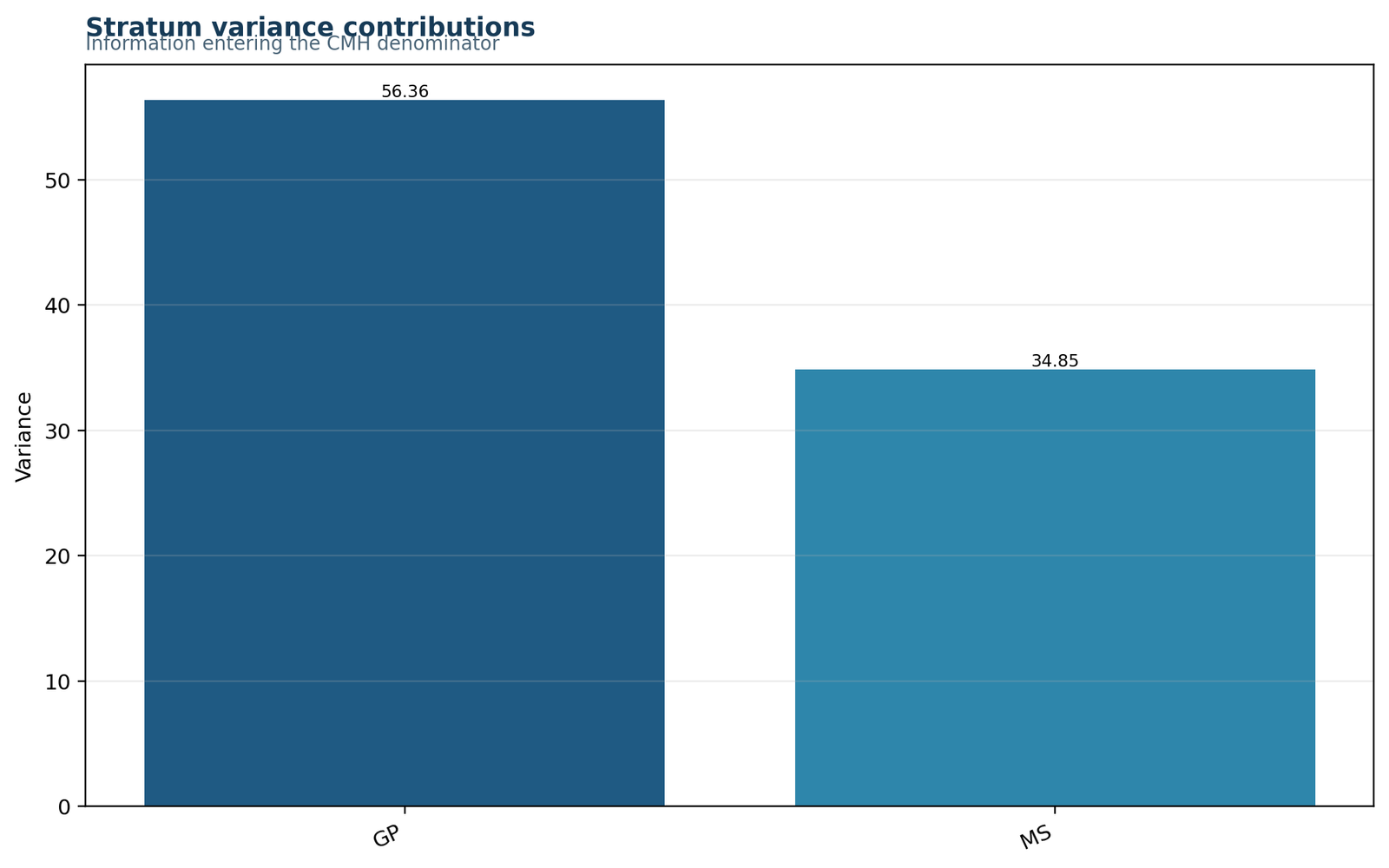

Step 5: Fixed-Margin Variance

Vh = [nFhnMh / {nh(nh−1)}] Σj nhj(sj−s̄h

GP variance = 56.3582377. MS variance = 34.8486212. Their sum is 91.2068589.

Step 6: Combined CMH Statistic

CMH = [Σh(Th−Eh)]² / ΣhVh
CMH = (−34.2461558)² / 91.2068589 = 12.8586731

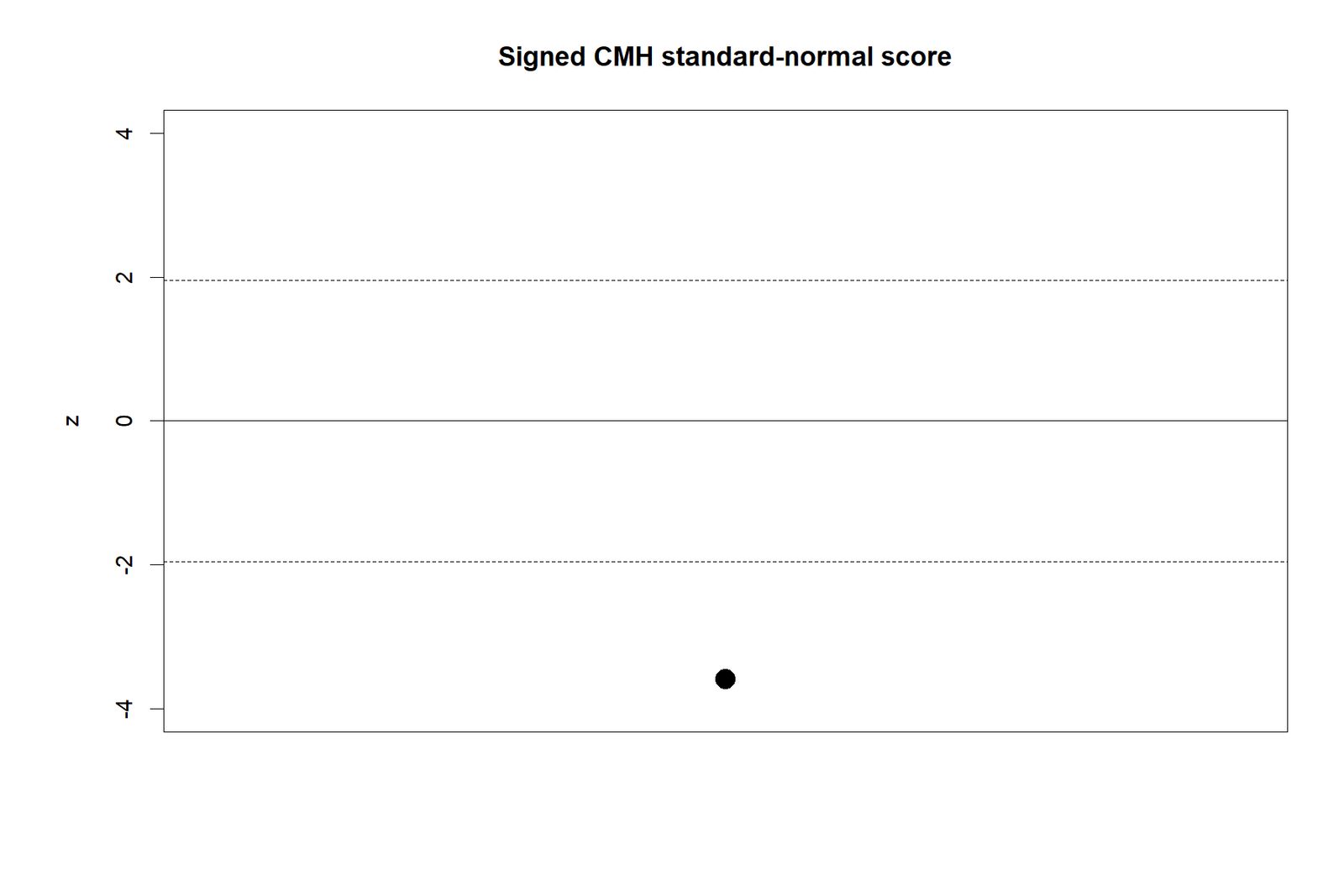

Step 7: Signed Standard-Normal Score

z = Σh(Th−Eh) / √[ΣhVh] = −3.5858992

The squared z equals the one-degree-of-freedom CMH statistic. The two-sided chi-square probability is p = 0.0003359187. This is far below .05 and .01.

Manual calculation check: 12.8586731266 from the formulas equals the independently verified Python, R, SPSS-integrated and Excel result to displayed precision.

Observed Tables, Expected Counts and Ordinal Profiles

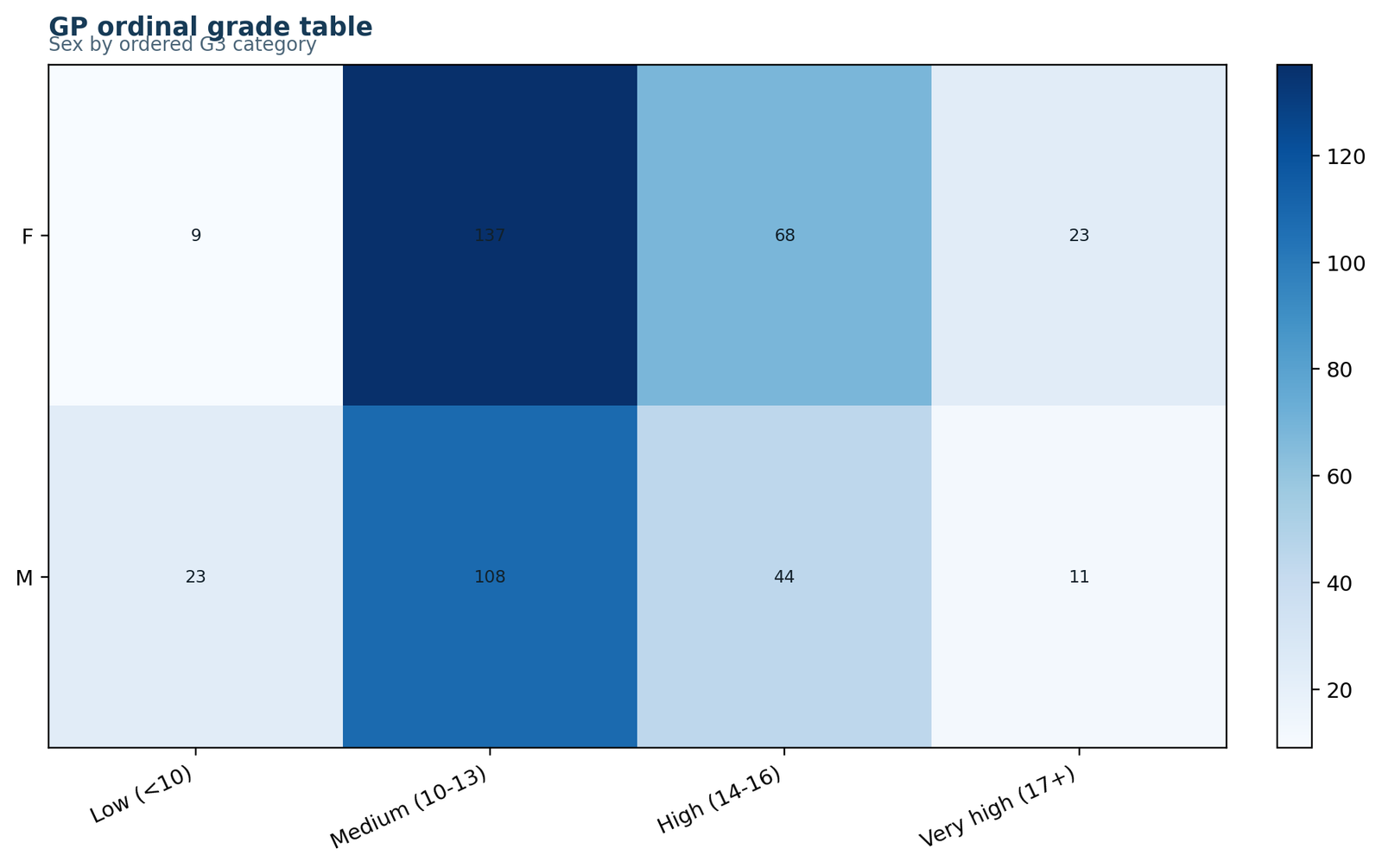

GP School: Observed Counts

SexLow <10Medium 10–13High 14–16Very high 17+Total
Female91376823237
Male231084411186
Total3224511234423

GP School: Row Percentages

SexLowMediumHighVery high
Female3.80%57.81%28.69%9.70%
Male12.37%58.06%23.66%5.91%

Within GP, the male low-grade share is more than three times the female low-grade share. Female students have higher percentages in the high and very-high bands. The male mean score is 2.2312 compared with 2.4430 for females.

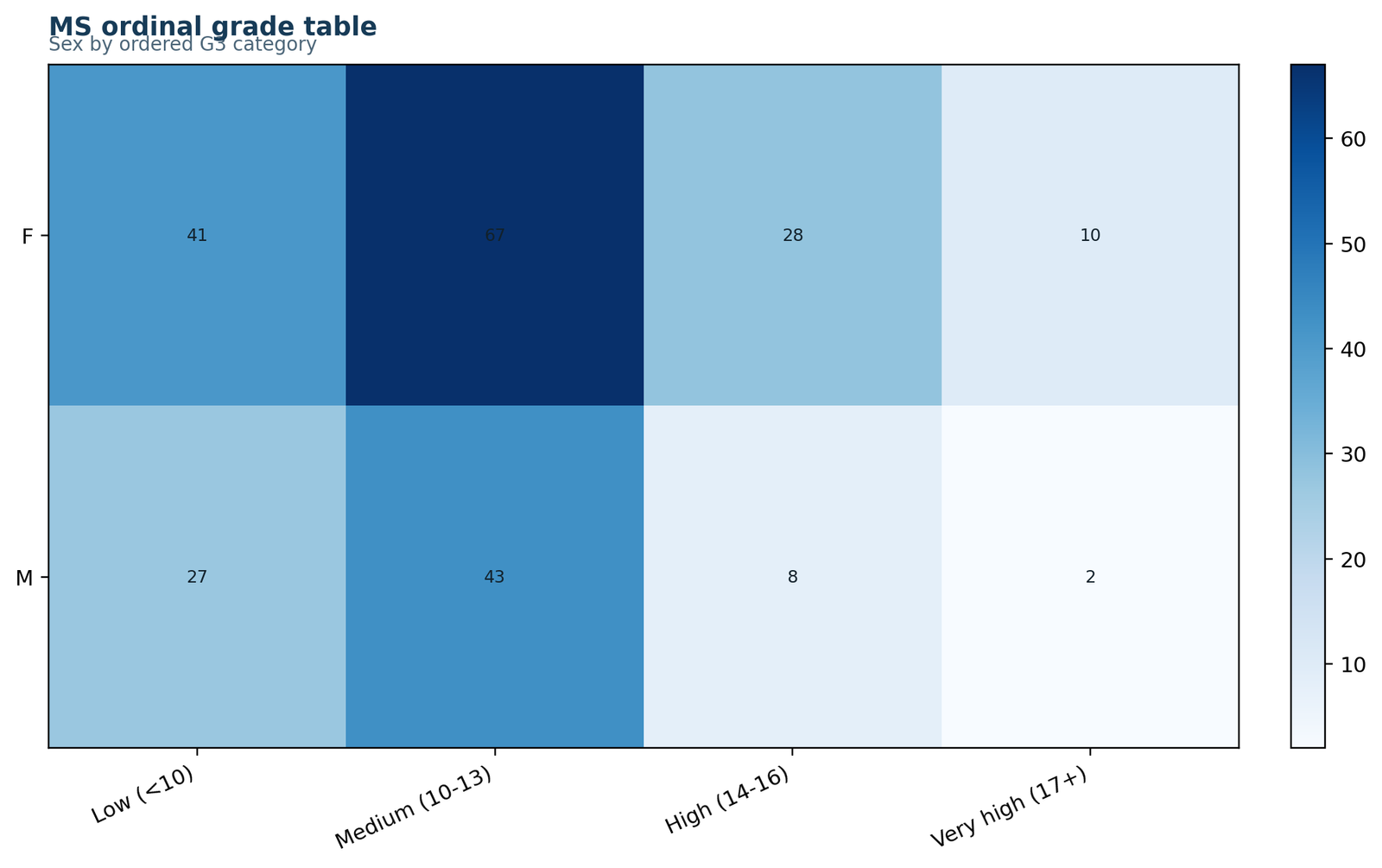

MS School: Observed Counts

SexLow <10Medium 10–13High 14–16Very high 17+Total
Female41672810146
Male27438280
Total681103612226

MS School: Row Percentages

SexLowMediumHighVery high
Female28.08%45.89%19.18%6.85%
Male33.75%53.75%10.00%2.50%

Within MS, males again have more mass in the two lower bands and less mass in the two upper bands. The male mean score is 1.8125 compared with 2.0479 for females. The direction therefore agrees with GP even though the school-wide grade profiles differ greatly.

Expected Counts Under Conditional Independence

SchoolSexLowMediumHighVery high
GPFemale17.929137.27062.75219.050
GPMale14.071107.73049.24814.950
MSFemale43.92971.06223.2577.752
MSMale24.07138.93812.7434.248
How to read expected counts: the Cochran Mantel Haenszel Test does not simply add Pearson cell contributions. It uses the ordered score totals implied by these fixed margins. Expected counts remain useful for checking the table and understanding the direction of the score shift.

For a refresher on how joint counts become row, column and total percentages, see two-way tables and relative frequencies.

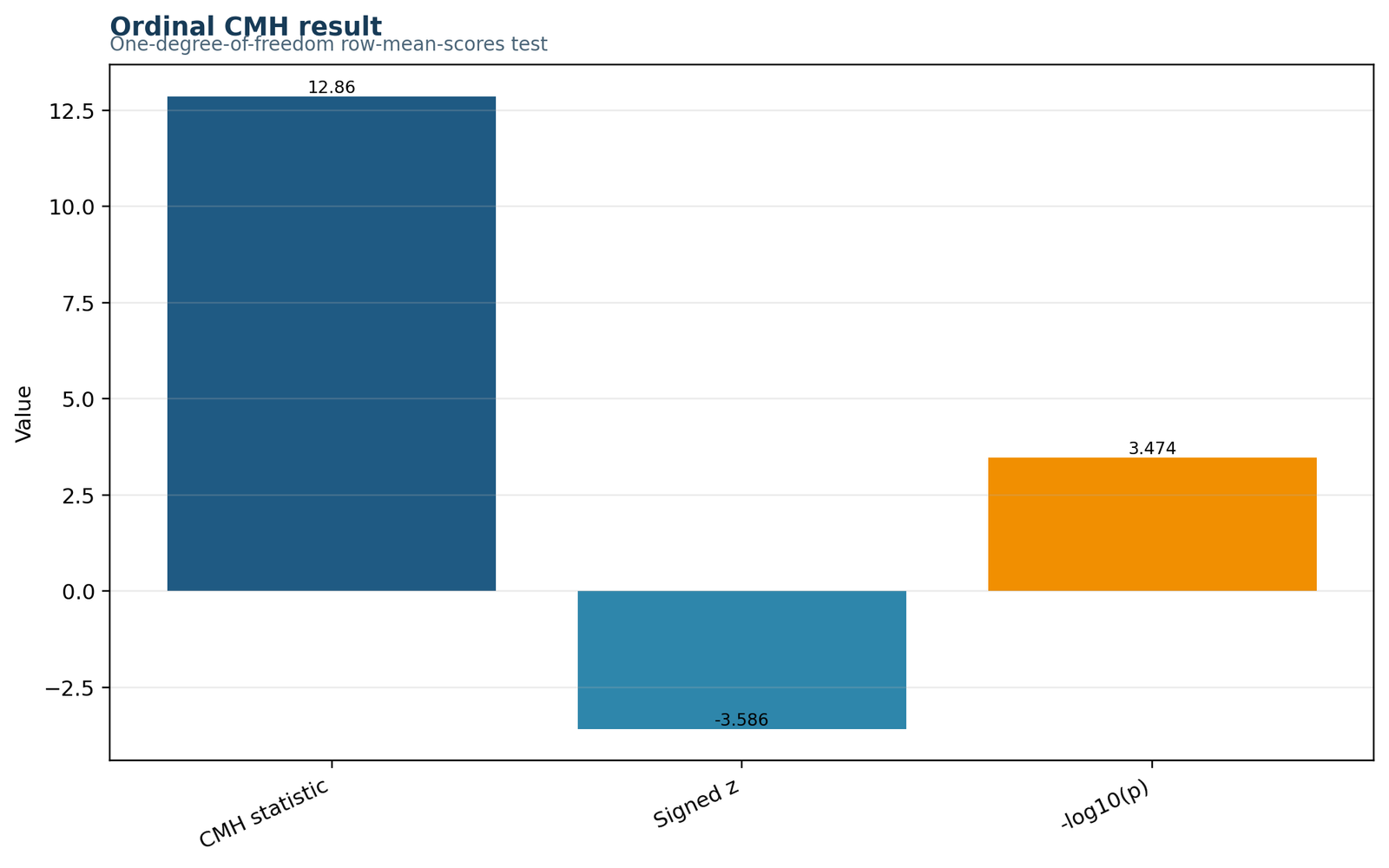

Complete Cochran Mantel Haenszel Test Results

CMH row-mean statistic12.858673

One degree of freedom

Signed z−3.585899

Male-minus-female direction

P-value0.000335919

Two-sided asymptotic

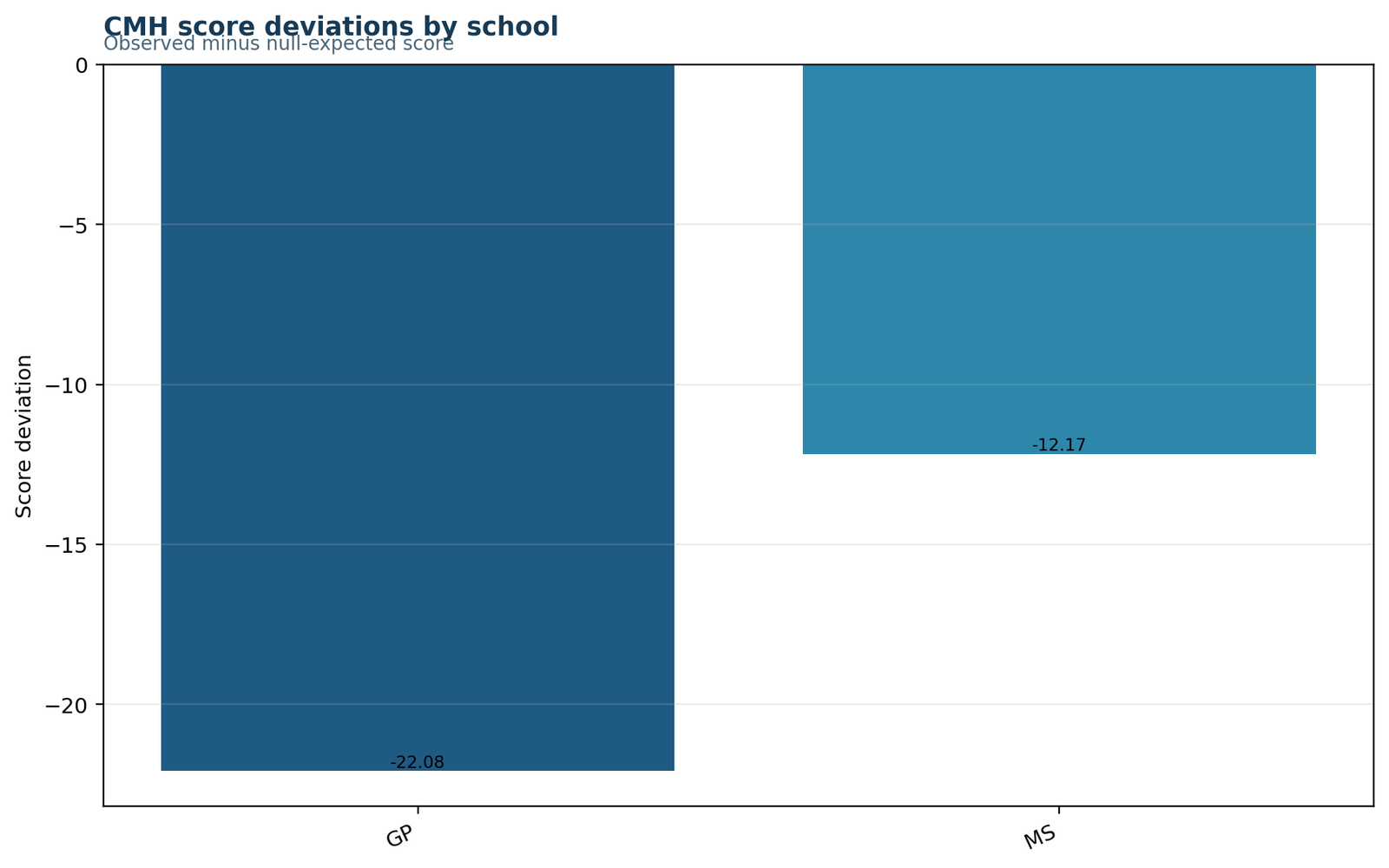

GP score difference−22.078014

Observed minus expected male total

MS score difference−12.168142

Observed minus expected male total

Descriptive |z|/√N0.1407

Score-test signal, not an odds ratio

Primary Result Table

TestStatisticdfP-valueDecision
Row-mean-scores Cochran Mantel Haenszel Test12.858673110.0003359187Reject conditional-independence null

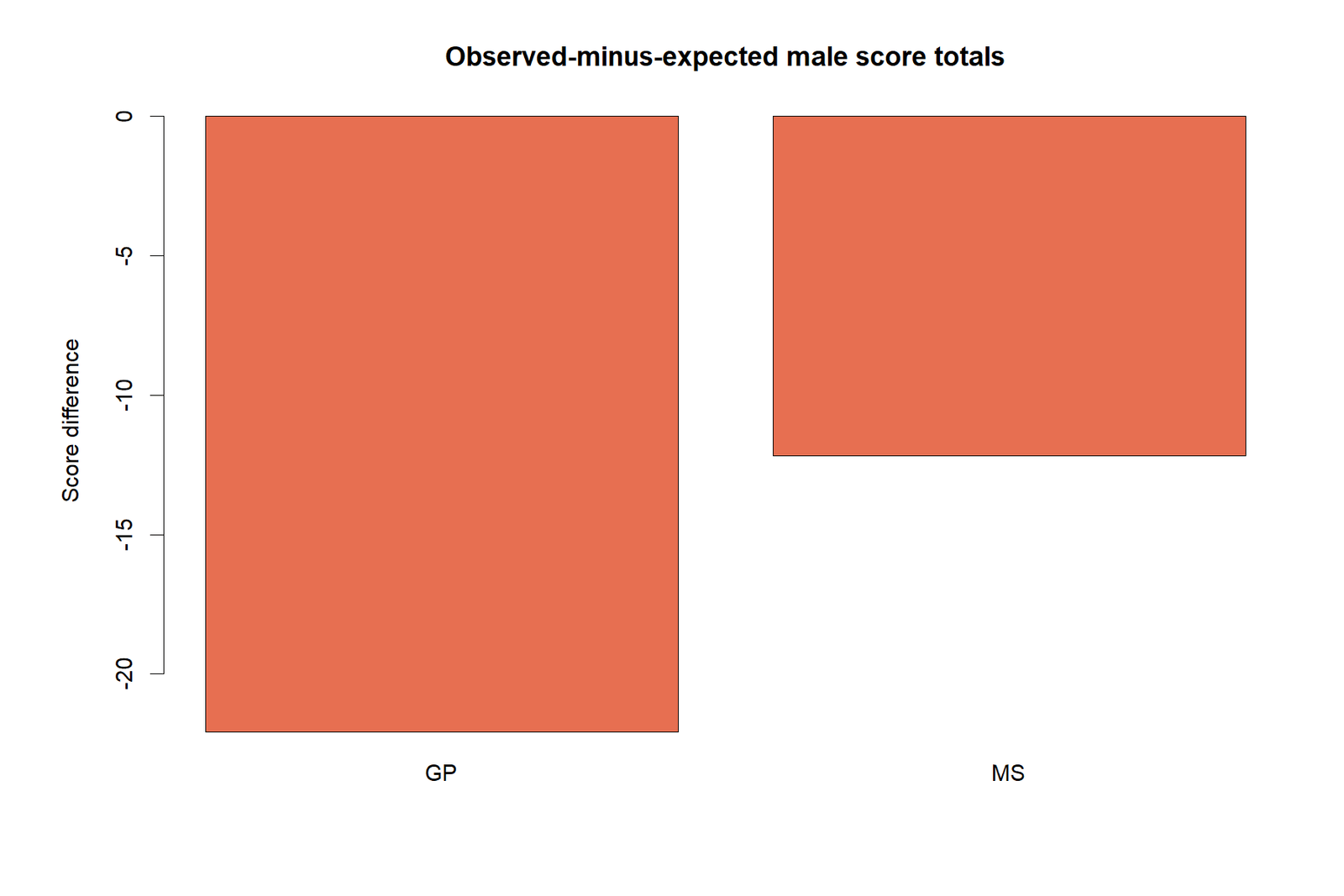

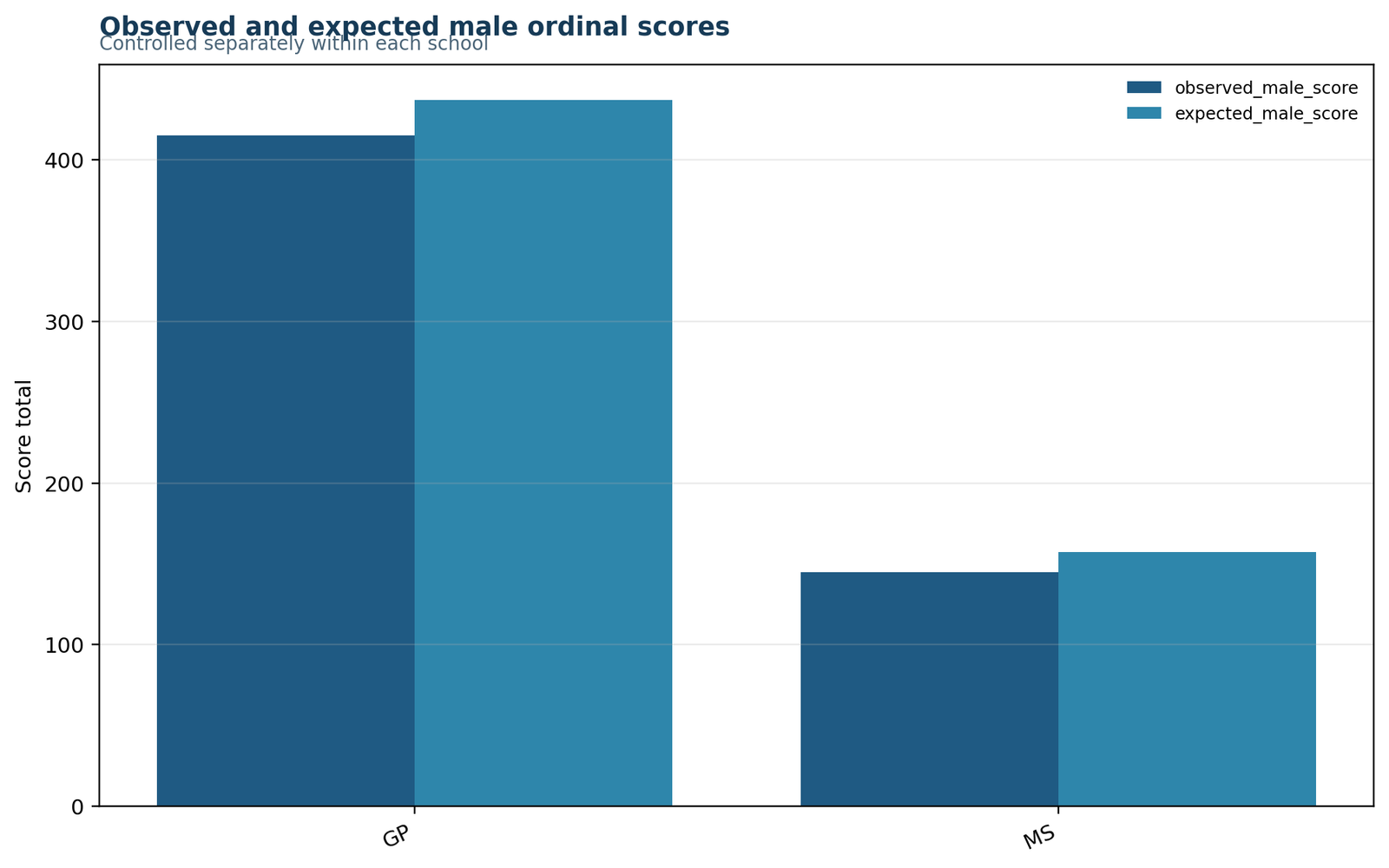

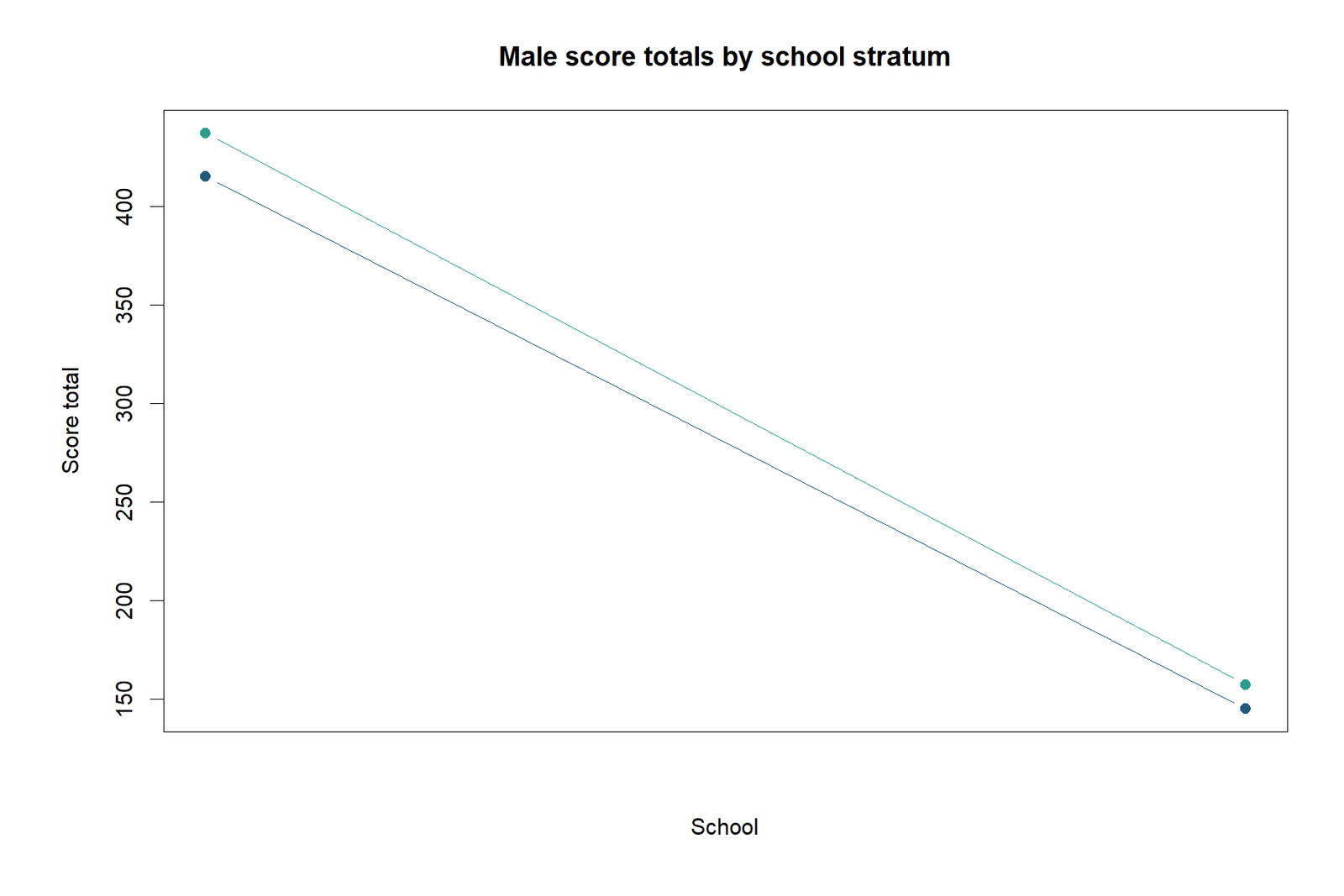

Stratum Score Components

SchoolNObserved male scoreExpected male scoreDifferenceVariance
GP423415.000437.078−22.07856.3582
MS226145.000157.168−12.16834.8486
Combined649−34.24691.2069

Mean-Score Differences

SchoolFemale meanMale meanMale − female
GP2.44302.2312−0.2119
MS2.04791.8125−0.2354
Pooled descriptive2.29242.1053−0.1872

The similar negative differences in GP and MS make the combined direction easy to interpret. The test does not estimate a causal effect or a common odds ratio. It establishes that the ordered grade profiles differ after stratifying by school.

Comparison Statistics from SPSS Crosstabs

TablePearson χ²dfPLinear-by-linear χ²P
GP12.9753.0058.649.003
MS5.7823.1234.249.039
Collapsed total8.8863.0318.869.003

The school-specific Pearson tests do not tell the same story because they use three degrees of freedom and evaluate any shape difference. The row-mean-scores Cochran Mantel Haenszel Test targets a consistent ordered shift and combines it across schools. This is an example of why the scientific question should determine the statistic rather than selecting whichever p-value is smallest.

Interpretation: there is strong evidence that the ordered G3 distribution differs by sex after school is controlled, χ²(1) = 12.86, p < .001. Males show lower ordinal grade scores in both school strata.
AdvertisementGoogle AdSense placement reserved after the Results section

Cochran Mantel Haenszel Test Assumptions and Diagnostic Checks

The Cochran Mantel Haenszel Test is robust only when its design assumptions match the data. These conditions differ from the familiar expected-count checklist used for a single Pearson table, although cell sparsity still matters for the asymptotic approximation.

Independent observations

Each student contributes to one sex category, one grade band and one school stratum.

Mutually exclusive strata

GP and MS are separate groups; no student appears in both.

Meaningful order

Scores 1–4 follow increasing grade achievement.

Prespecified scoring

Cut points and scores are not selected after seeing the result.

Adequate information

Both strata contain female and male observations across several bands.

Comparable direction

Both strata have negative score deviations, so the combined direction is not masking a reversal.

Expected-Count Review

The GP table has no expected count below 5. The MS table has one expected cell below 5, with a minimum expected count of approximately 4.25. This does not automatically invalidate the score test, but it should be disclosed. For many small or sparse strata, consider exact conditional methods, permutation procedures or a model suited to sparse ordinal outcomes. The broader chi-square assumptions guide explains why expected-count rules are diagnostic rather than ritual.

Homogeneity Is Variant-Specific

The current row-mean-scores analysis does not estimate a common odds ratio, so the Breslow–Day homogeneity-of-odds-ratios assumption is not its primary condition. When the analysis is 2 × 2 × K and a pooled odds ratio is reported, however, heterogeneity must be examined rather than assumed.

Sensitivity to Scores and Cut Points

Scores 1–4 imply equal spacing between adjacent grade bands. A sensitivity analysis can compare table scores with rank or ridit scores. Results that change sharply under plausible scoring systems should be reported cautiously. It is also useful to analyse original G3 as a quantitative outcome when that scale remains scientifically defensible.

Independence Versus Clustering

School is treated as a fixed stratifier, not as a random cluster with many school-level units. With many schools, repeated observations or class-level dependence, a multilevel or generalised estimating approach may be preferable. The generalized linear model framework offers model-based extensions.

Cochran Mantel Haenszel Test Versus Related Tests

MethodControls strata?Uses order?Typical outputBest use
Row-mean-scores Cochran Mantel Haenszel TestYesYes, for column outcome1-df score statistic and signed zConsistent ordinal shift across strata
Pearson chi-square independenceNo in a collapsed tableNoR×C chi-squareUnadjusted nominal association
Chi-square homogeneityNo unless run separatelyNoDistribution equality testCompare categorical distributions across populations
CMH common odds ratioYesBinary onlyPooled OR and testCollections of 2×2 tables
Breslow–Day testYesBinary onlyOdds-ratio heterogeneity testCheck common-OR assumption
Ordinal logistic regressionYes, through covariatesYesAdjusted odds ratios and predictionsMultiple covariates, interactions and modelling
Binary logistic regressionYes, through covariatesOnly after dichotomisingAdjusted binary odds ratiosGenuinely binary outcomes
Fisher exact testUsually one tableNoExact probabilitySmall nominal tables

Versus a Chi-Square Test of Independence

A standard chi-square test of independence can be run on the collapsed sex-by-grade table, but it ignores school. Separate tests within schools do not provide one adjusted conclusion. The Cochran Mantel Haenszel Test combines within-stratum information while retaining the control structure.

Versus a Test for Homogeneity

A chi-square test of homogeneity asks whether categorical distributions are equal across independently sampled populations. The mathematics may resemble independence testing, but the sampling interpretation differs. The Cochran Mantel Haenszel Test adds a stratification layer and can exploit order.

Versus Ordinal Logistic Regression

Ordinal logistic regression can include school, sex, interactions and additional covariates, and it estimates adjusted odds ratios under a proportional-odds assumption. The Cochran Mantel Haenszel Test is simpler and less model-dependent but does not provide individual predictions or a full coefficient model.

Versus Binary Exact Tests

Barnard’s exact test, Boschloo’s test and the binomial test answer binary questions. They are not substitutes for a four-category stratified ordinal analysis unless the research question genuinely justifies binary recoding.

Cochran Mantel Haenszel Test Calculator: Step-by-Step Workflow

A trustworthy Cochran Mantel Haenszel Test calculator must identify which CMH statistic it computes. Entering a 2 × 4 × 2 table into a calculator designed only for 2 × 2 × K odds ratios will return the wrong analysis or reject the table.

Required Inputs

InputWorked valuePurpose
StrataGP and MSKeeps school-specific margins separate.
Row groupsFemale and maleDefines the two distributions being compared.
Ordered categoriesLow, medium, high, very highDefines the outcome order.
Scores1, 2, 3, 4Converts categories to ordinal score totals.
AlternativeTwo-sidedTests any upward or downward shift.
Alpha0.05Decision threshold chosen before testing.

Calculation Checklist

  1. Enter the eight GP counts and eight MS counts.
  2. Confirm female and male totals of 383 and 266.
  3. Confirm stratum totals of 423 and 226.
  4. Assign grade scores 1–4 in increasing order.
  5. Calculate male observed score totals of 415 and 145.
  6. Calculate expected male score totals of 437.0780 and 157.1681.
  7. Calculate variance components of 56.3582 and 34.8486.
  8. Combine differences and variances to obtain CMH = 12.8587.
  9. Use one chi-square degree of freedom to obtain p = 0.0003359.
  10. Retain the negative signed z to explain direction.
Expected calculator target: CMH χ²(1) = 12.858673, z = −3.585899, p = 0.000335919. A calculator that reports a common odds ratio is solving a different problem.

The general chi-square calculator is useful for ordinary tables, but this score-based stratified calculation requires the dedicated formulas shown above.

Python Cochran Mantel Haenszel Test Chart Interpretations

The six Python figures translate the score-test calculation into observed totals, expected totals, deviations, variances, stratum tables and the final inferential result. Every chart should be read with the exact values rather than as decoration.

Python Chart 1: Cochran Mantel Haenszel Test — Observed and Expected Male Ordinal Scores

Cochran Mantel Haenszel Test observed and expected male ordinal score totals by school
Observed male score totals are compared with their conditional null expectations in GP and MS.
Pattern

In both schools, the observed bar is below the expected bar. The gap is larger in GP because GP has more students and a larger information contribution.

Key Values

GP: observed 415 versus expected 437.078. MS: observed 145 versus expected 157.168.

Interpretation

The male ordinal score total is lower than expected under conditional independence in each stratum. This consistent direction drives the negative signed z.

Why It Matters

A combined result is credible because the two school-specific deviations do not cancel one another.

Next step: Verify that the focal row and category scores match the written direction statement.

Python Chart 2: Cochran Mantel Haenszel Test — Score Deviations by School

Cochran Mantel Haenszel Test observed minus expected score deviations
The chart isolates the observed-minus-expected component that enters the numerator of the score statistic.
Pattern

Both bars extend below zero. GP has a deviation near −22.08 and MS has a deviation near −12.17.

Key Values

Combined deviation: −34.2462. GP share: 64.47% of the absolute combined difference. MS share: 35.53%.

Interpretation

Negative values mean the male group accumulated fewer high-category score points than expected from the fixed margins.

Why It Matters

The sign communicates direction, while the square of the combined standardized deviation produces the chi-square statistic.

Next step: Inspect every stratum for sign reversals before reporting one combined direction.

Python Chart 3: Cochran Mantel Haenszel Test — Variance Contributions

Cochran Mantel Haenszel Test variance contribution by stratum
The denominator information is split into the two fixed-margin variance components.
Pattern

GP contributes more variance information than MS, consistent with its larger sample and category distribution.

Key Values

GP variance: 56.3582. MS variance: 34.8486. Total: 91.2069.

Interpretation

Variance prevents a large raw score difference from being interpreted without considering its expected sampling fluctuation.

Why It Matters

The final statistic is not a simple sum of school chi-square values; it standardizes the combined score difference by combined variance.

Next step: Recalculate variance if scores, margins or category order change.

Python Chart 4: Cochran Mantel Haenszel Test — GP Ordinal Grade Table

Cochran Mantel Haenszel Test GP observed contingency heatmap
The largest GP cells are the medium-grade counts, but the low-grade cell is relatively more prominent for males.
Pattern

Female and male patterns differ primarily at the low end and, to a lesser extent, in high and very-high categories.

Key Values

Female: 9, 137, 68, 23. Male: 23, 108, 44, 11. Female n = 237; male n = 186.

Interpretation

Raw counts must be read with denominators. The low-grade percentages are 3.80% for females and 12.37% for males.

Why It Matters

The GP table contributes a clear downward male shift and the larger of the two variance components.

Next step: Pair the heatmap with row percentages and score means rather than judging colour intensity alone.

Python Chart 5: Cochran Mantel Haenszel Test — MS Ordinal Grade Table

Cochran Mantel Haenszel Test MS observed contingency heatmap
MS has more low-grade observations overall than GP, demonstrating why school must be controlled.
Pattern

Within MS, males remain more concentrated in low and medium categories and less represented in high and very-high categories.

Key Values

Female: 41, 67, 28, 10. Male: 27, 43, 8, 2. Female n = 146; male n = 80.

Interpretation

The male mean score is 1.8125 versus 2.0479 for females, a difference of −0.2354 score units.

Why It Matters

A pooled table could confuse school composition with within-school sex differences. Stratification separates those sources.

Next step: Report school-specific profiles so readers can see the consistency behind the combined statistic.

Python Chart 6: Cochran Mantel Haenszel Test — Result Summary

Cochran Mantel Haenszel Test result summary chart
The summary combines the positive chi-square statistic, negative directional z and transformed p-value.
Pattern

The CMH bar reaches 12.86, signed z is −3.586 and −log10(p) is approximately 3.474.

Key Values

CMH: 12.8587. z: −3.5859. p: 0.0003359.

Interpretation

The chi-square statistic is nonnegative because it squares the standardized difference. Direction is preserved separately by z.

Why It Matters

Reporting both values avoids the common error of trying to infer direction from chi-square alone.

Next step: Use χ² and p for inference, then use signed z and stratum profiles for direction.
AdvertisementGoogle AdSense placement reserved after the Python charts

R Cochran Mantel Haenszel Test Charts in Paired Rows

The R figures are arranged in three pairs. Each pair places a computational component beside the diagnostic needed to interpret it. This layout keeps the Cochran Mantel Haenszel Test narrative horizontal on desktop and collapses cleanly on mobile.

Pair 1 — Direction and Null Expectation
R Cochran Mantel Haenszel Test score difference by school
Observed-minus-expected male ordinal-score totals for GP and MS.
R Cochran Mantel Haenszel Test observed expected score lines
Observed and expected male score totals connected across school strata.
R Chart 1

Cochran Mantel Haenszel Test Score Difference

Both score differences are below zero: −22.0780 in GP and −12.1681 in MS. The matching signs support one combined directional statement rather than a result driven by cancellation.

Report check: The two bars must match the Python deviation values and the Excel Diagnostics sheet.
R Chart 2

Cochran Mantel Haenszel Test Observed Versus Expected

The observed series stays below the expected series in both schools. The absolute levels differ because GP is larger and has a higher overall grade-score profile.

Report check: Do not compare vertical levels across schools without considering their different sample sizes.
Pair 2 — Information and Sample Structure
R Cochran Mantel Haenszel Test variance by stratum
Fixed-margin score variance for GP and MS.
R Cochran Mantel Haenszel Test stratum sizes
Student totals of 423 in GP and 226 in MS.
R Chart 3

Cochran Mantel Haenszel Test Variance by Stratum

GP contributes 56.3582 variance units and MS contributes 34.8486. The denominator sums these values before the score deviation is standardized.

Report check: The combined variance should equal 91.2068589.
R Chart 4

Cochran Mantel Haenszel Test Stratum Size

GP contains about 65.18% of the sample and MS about 34.82%. Larger size contributes information, but variance also depends on row margins and the distribution across score categories.

Report check: Stratum totals must sum to the verified N of 649.
Pair 3 — Standardized Evidence and Final Summary
R Cochran Mantel Haenszel Test signed z plot
Signed z relative to reference lines near ±1.96.
R Cochran Mantel Haenszel Test key result summary
Compact chart of CMH statistic, signed z and transformed p-value.
R Chart 5

Cochran Mantel Haenszel Test Signed Standard-Normal Score

The point at −3.5859 lies well below −1.96, visually confirming a two-sided p-value below .05. Its negative location indicates a downward male score shift under the chosen coding.

Report check: Squaring −3.585899 gives 12.858673, the CMH chi-square statistic.
R Chart 6

Cochran Mantel Haenszel Test Result Summary

The summary reproduces the same three values as Python and Excel. The transformed p-value bar is a visualization aid; formal reporting should use the original p-value.

Report check: Report p = .000336 or p < .001, not p = 3.474.
AdvertisementGoogle AdSense placement reserved after the R charts

Cochran Mantel Haenszel Test in Python, R, SPSS, SAS and Excel

Cochran Mantel Haenszel Test in Python

Use a transparent custom implementation for the row-mean-scores statistic. Common StratifiedTable routines are aimed at collections of 2 × 2 tables and therefore do not reproduce this 2 × 4 × 2 score analysis.

  • Read school, sex and G3.
  • Create grade scores 1–4.
  • Build one 2 × 4 table per school.
  • Calculate score totals, expectations and variances.
  • Cross-check z² against CMH.

See categorical data analysis in Python for broader table workflows.

Cochran Mantel Haenszel Test in R

Base R can reproduce the formula directly. The general mantelhaen.test() function can analyse higher-dimensional tables, but its generalized statistic is not automatically the same one-degree-of-freedom row-mean-scores test. Explicit scoring avoids ambiguity.

  • Use an ordered factor for grade bands.
  • Keep school as the stratum index.
  • Declare numeric scores explicitly.
  • Use pchisq(cmh, 1, lower.tail=FALSE).
  • Retain the signed z separately.

Related workflows appear in categorical data analysis in R.

Cochran Mantel Haenszel Test in SPSS

CROSSTABS with /STATISTICS=CMH CHISQ produces the stratified tables and associated statistics. For a four-category response, the common-odds-ratio table is correctly unavailable. The supplied output also includes a validated integrated calculation of the row-mean-scores result.

  • Code sex as 0/1 and grade band as 1–4.
  • Use school as the layer variable.
  • Request counts, row percentages and expected counts.
  • Do not mislabel the Pearson or linear-by-linear value as the combined CMH score statistic.
  • Export the full SPSS output.

See categorical data analysis in SPSS.

Cochran Mantel Haenszel Test in SAS

PROC FREQ is particularly well suited to generalized CMH statistics. With school first in the table request, sex as the row variable and numeric grade score as the column variable, the CMH option reports the row-mean-scores statistic.

  • Preserve grade values 1–4.
  • Confirm ordering with ORDER=DATA if needed.
  • Request CMH and cross-tabulations.
  • Use exact options when design and computation justify them.
  • Capture ODS tables for reproducibility.

Cochran Mantel Haenszel Test in Excel

The worked workbook contains formula-driven Data Input, Observed Tables, Calculations, Diagnostics and Reporting sheets. Excel is useful because every score component remains visible.

  • Derive grade score with nested IF.
  • Use COUNTIFS for observed counts.
  • Calculate expected score totals from margins.
  • Sum variance components.
  • Use CHISQ.DIST.RT for the one-df p-value.

Cochran Mantel Haenszel Test in Stata and Minitab

Before using a menu or command labelled Mantel–Haenszel, verify whether it supports a generalized ordinal row-mean-scores statistic or only 2 × 2 strata. A model-based ordinal logistic regression is often the clearer route when multiple covariates are needed.

  • Check table dimension support.
  • Confirm score type and category order.
  • Do not report a binary odds ratio for a four-level response.
  • Compare output with the manual target values.

Expandable Cochran Mantel Haenszel Test Code

The following code blocks reproduce the worked values. They intentionally calculate the ordinal row-mean-scores statistic instead of calling a 2 × 2 common-odds-ratio routine.

Python code
import math
import pandas as pd
from scipy.stats import chi2

df = pd.read_csv("dataset.csv")
df["grade_score"] = pd.cut(
    df["G3"], bins=[-math.inf, 9, 13, 16, math.inf], labels=[1, 2, 3, 4]
).astype(int)

scores = [1, 2, 3, 4]
sum_difference = 0.0
sum_variance = 0.0
components = []

for school, d in df.groupby("school", sort=True):
    tab = pd.crosstab(d["sex"], d["grade_score"]).reindex(
        index=["F", "M"], columns=scores, fill_value=0
    )
    female = tab.loc["F"].to_numpy(float)
    male = tab.loc["M"].to_numpy(float)
    nf, nm = female.sum(), male.sum()
    n = nf + nm
    totals = female + male
    mean_score = (totals * scores).sum() / n
    observed_male = (male * scores).sum()
    expected_male = nm * mean_score
    ss = (totals * (pd.Series(scores).to_numpy() - mean_score) ** 2).sum()
    variance = (nf * nm / (n * (n - 1))) * ss
    difference = observed_male - expected_male
    sum_difference += difference
    sum_variance += variance
    components.append([school, n, observed_male, expected_male, difference, variance])

z = sum_difference / math.sqrt(sum_variance)
cmh = z ** 2
p_value = chi2.sf(cmh, df=1)

print(components)
print(f"CMH={cmh:.12f}, z={z:.12f}, p={p_value:.12g}")
R code
dat <- read.csv("dataset.csv", stringsAsFactors = FALSE)
dat$grade_score <- ifelse(dat$G3 < 10, 1,
                    ifelse(dat$G3 <= 13, 2,
                    ifelse(dat$G3 <= 16, 3, 4)))

scores <- 1:4
sum_diff <- 0
sum_var <- 0
components <- list()

for (school in sort(unique(dat$school))) {
  d <- dat[dat$school == school, ]
  tab <- table(factor(d$sex, levels=c("F","M")),
               factor(d$grade_score, levels=1:4))
  female <- as.numeric(tab["F", ])
  male <- as.numeric(tab["M", ])
  nf <- sum(female); nm <- sum(male); n <- nf + nm
  totals <- female + male
  mean_score <- sum(totals * scores) / n
  observed_male <- sum(male * scores)
  expected_male <- nm * mean_score
  ss <- sum(totals * (scores - mean_score)^2)
  variance <- (nf * nm / (n * (n - 1))) * ss
  difference <- observed_male - expected_male
  sum_diff <- sum_diff + difference
  sum_var <- sum_var + variance
  components[[school]] <- c(n=n, observed=observed_male,
                            expected=expected_male, difference=difference,
                            variance=variance)
}

z <- sum_diff / sqrt(sum_var)
cmh <- z^2
p_value <- pchisq(cmh, df=1, lower.tail=FALSE)
print(components)
cat(sprintf("CMH=%.12f, z=%.12f, p=%.12g\n", cmh, z, p_value))
SPSS syntax
DATASET CLOSE ALL.
OUTPUT CLOSE ALL.
GET DATA /TYPE=TXT
  /FILE='dataset.csv'
  /DELCASE=LINE /DELIMITERS="," /ARRANGEMENT=DELIMITED
  /FIRSTCASE=2 /IMPORTCASE=ALL.

* Recode strings to numeric variables as appropriate for your imported schema.
RECODE sex ('F'=0) ('M'=1) INTO sex_bin.
RECODE school ('GP'=1) ('MS'=2) INTO school_n.
COMPUTE grade3 = 1.
IF (G3 >= 10 AND G3 <= 13) grade3 = 2.
IF (G3 >= 14 AND G3 <= 16) grade3 = 3.
IF (G3 >= 17) grade3 = 4.
VALUE LABELS sex_bin 0 'Female' 1 'Male'
 /school_n 1 'GP' 2 'MS'
 /grade3 1 'Low below 10' 2 'Medium 10-13' 3 'High 14-16' 4 'Very high 17+'.
EXECUTE.

CROSSTABS
 /TABLES=sex_bin BY grade3 BY school_n
 /FORMAT=AVALUE TABLES
 /STATISTICS=CMH CHISQ
 /CELLS=COUNT ROW COLUMN EXPECTED
 /COUNT ROUND CELL.

The supplied SPSS PDF includes the complete tested import and integrated cross-check workflow.

SAS PROC FREQ pattern
data cmh_counts;
  length school $2 sex $1;
  input school $ sex $ grade3 count;
  datalines;
GP F 1 9
GP F 2 137
GP F 3 68
GP F 4 23
GP M 1 23
GP M 2 108
GP M 3 44
GP M 4 11
MS F 1 41
MS F 2 67
MS F 3 28
MS F 4 10
MS M 1 27
MS M 2 43
MS M 3 8
MS M 4 2
;
run;

proc freq data=cmh_counts order=data;
  tables school*sex*grade3 / cmh scores=table;
  weight count;
run;

For row-level data, omit the WEIGHT statement. For aggregated counts, provide a frequency variable.

Excel formula pattern
Grade score: =IF(C5<10,1,IF(C5<=13,2,IF(C5<=16,3,4)))
Observed cell: =COUNTIFS(Data_Input!$B:$B,$A5,Data_Input!$A:$A,B$4,Data_Input!$D:$D,C$4)
Stratum mean score: =SUMPRODUCT(CategoryTotals,Scores)/StratumN
Expected male score: =MaleN*StratumMeanScore
Difference: =ObservedMaleScore-ExpectedMaleScore
CMH statistic: =(SUM(Differences)^2)/SUM(Variances)
P-value: =CHISQ.DIST.RT(CMH_Cell,1)
Signed z: =SUM(Differences)/SQRT(SUM(Variances))
Validation rule: after any software run, confirm CMH = 12.8586731, z = −3.5858992 and p = 0.0003359187 before interpreting the output.

How to Interpret and Report the Cochran Mantel Haenszel Test

APA-Style Worked Report

A row-mean-scores Cochran Mantel Haenszel Test examined whether the ordered final-grade distribution differed by sex after controlling for school. The conditional ordinal association was statistically significant, χ²(1, N = 649) = 12.86, p < .001. The signed standardized score was negative, z = −3.59, indicating that male students had lower ordinal grade scores than expected under conditional independence. The observed-minus-expected male score totals were −22.08 in GP and −12.17 in MS, so both strata showed the same direction.

Result With Additional Descriptive Context

Within GP, mean grade-band scores were 2.44 for females and 2.23 for males; within MS, they were 2.05 and 1.81, respectively. Thus, the significant Cochran Mantel Haenszel Test reflected a consistent male shift toward lower grade bands rather than a result confined to one school.

Reusable Reporting Templates

Significant Two-Sided Result

Significant

Method

A row-mean-scores Cochran Mantel Haenszel Test assessed the association between group variable and ordered outcome, controlling for stratifier.

Statistic

The conditional association was significant, χ²(df, N = N) = CMH, p = p.

Direction

The signed z of z indicated that focal group had relatively lower/higher ordinal scores.

Non-Significant Result

Not significant

Report

The Cochran Mantel Haenszel Test did not provide sufficient evidence of a conditional ordinal association, χ²(df, N = N) = CMH, p = p.

Meaning

The null hypothesis was not rejected; this does not prove that the stratified distributions are identical.

Directional Result

Direction stated

Prerequisite

Use a directional alternative only when it was specified before examining the data.

Report

The signed standardized score was z, consistent with the prespecified upward/downward shift.

What to Include in a Complete Report

  • The exact CMH variant and score system.
  • The row, column and stratification variables.
  • Observed counts or row percentages by stratum.
  • CMH statistic, df, p-value and signed z.
  • Direction convention and stratum-specific score differences.
  • Any sparse-cell or scoring sensitivity note.
  • A clear distinction between statistical association and causation.

A p-value should be accompanied by magnitude and context. The general effect-size guide explains why statistical significance alone is not a practical conclusion.

Common Cochran Mantel Haenszel Test Mistakes and Corrections

MistakeWhy it is wrongCorrection
Using a 2×2×K calculator for a 2×4×K tableIt computes a common odds ratio rather than the row-mean-scores statistic.Use generalized CMH scoring or the explicit formula.
Ignoring category orderThe one-df test depends on ordered scores.Declare bands and scores before analysis.
Collapsing schools immediatelyMarginal association can mix within-school effects with school composition.Inspect and retain the strata.
Reporting χ² without signed zChi-square cannot show direction because it is squared.Report signed z and stratum deviations.
Calling the result an odds ratioNo common OR exists for the four-category outcome in this analysis.Describe an ordinal score shift.
Treating SPSS linear-by-linear values as the combined CMH statisticThose values are reported separately for individual or collapsed tables.Use the verified row-mean formula result.
Choosing scores after seeing pThis inflates analysis flexibility.Prespecify scores and run sensitivity checks transparently.
Assuming significance proves causationThe data are observational and may contain other confounders.Use association language.
Ignoring small expected cellsSparse information can weaken asymptotic accuracy.Report diagnostics and consider exact/model alternatives.
Reporting only the pooled tableThe reason for CMH is adjustment by strata.Show school-specific counts and profiles.

Threshold Thinking

The result is well below .05, but good reporting still avoids the word “proven.” A formal decision controls long-run error rates; it does not remove uncertainty or design limitations. Review Type I and Type II errors and statistical power when planning a new stratified study.

Cochran Mantel Haenszel Test Practice Questions

Use these questions to test whether the table design, score statistic and interpretation are understood rather than memorised.

Practice 1: A study compares treatment response across three hospitals using 2×2 tables. Which CMH variant is most natural?

Answer: The common-odds-ratio CMH procedure, provided a common conditional odds ratio is meaningful and heterogeneity is checked.

Practice 2: Why is the current test one degree of freedom although grade has four categories?

Answer: Because the ordered categories are compressed into one prespecified score contrast, and there are two row groups.

Practice 3: What does a negative signed z mean here?

Answer: With male as the focal row and scores increasing with grade, males have lower score totals than expected under conditional independence.

Practice 4: Does p = .000336 mean the probability that H0 is true is .000336?

Answer: No. It is the probability, under H0 and the test assumptions, of a statistic at least as extreme as observed.

Practice 5: Why not report a Mantel–Haenszel common odds ratio?

Answer: The response has four ordered categories rather than two binary levels.

Practice 6: What is the combined observed-minus-expected score difference?

Answer: −22.0780142 + −12.1681416 = −34.2461558.

Practice 7: What is the combined variance?

Answer: 56.3582377 + 34.8486212 = 91.2068589.

Practice 8: How does signed z connect to CMH?

Answer: CMH = z², so (−3.5858992)² = 12.8586731.

Practice 9: What feature supports a common directional interpretation?

Answer: Both school strata have negative observed-minus-expected male score totals.

Practice 10: What should be checked if a result changes under scores 1–4 versus ridit scores?

Answer: The scientific meaning of spacing between categories and the sensitivity of the conclusion to scoring.

Practice 11: When is ordinal logistic regression preferable?

Answer: When several covariates, interactions, estimates or predictions are required and model assumptions are acceptable.

Practice 12: What is the most important coding statement?

Answer: State the grade cut points, scores, focal group and direction convention.

Learning connection: the Cochran Mantel Haenszel Test is beyond the usual core scope described in What Is the AP Statistics Exam?, but it extends the same principles of contingency tables, conditional comparison and chi-square inference found in the AP Statistics formula sheet.

Cochran Mantel Haenszel Test Reports and Worked Files

Each download reproduces the same variables, grade-band coding and primary result. The links include the download attribute so browsers can save the file instead of opening an embedded viewer when supported.

Cross-software verification: all primary files agree on CMH = 12.8586731266, df = 1, p = 0.0003359187 and signed z = −3.5858992075.

Cochran Mantel Haenszel Test Frequently Asked Questions

What is the Cochran Mantel Haenszel Test?

It is a family of stratified chi-square procedures that tests categorical association while controlling for one or more categorical strata.

What is the Cochran Mantel Haenszel Test null hypothesis?

The current null states that sex and the ordered G3 grade band are conditionally independent within school strata.

When should I use the Cochran Mantel Haenszel Test?

Use it when categorical association must be adjusted for a meaningful stratification variable and the selected CMH variant matches the table scale.

What is the result in this example?

The row-mean-scores result is χ²(1) = 12.8587, p = 0.0003359, with signed z = −3.5859.

Why is the Cochran Mantel Haenszel Test signed z negative?

Male is the focal row, and males have lower observed score totals than expected in both schools.

Is the Cochran Mantel Haenszel Test the same as Mantel–Haenszel odds ratio analysis?

No. The common-odds-ratio analysis is one binary 2×2×K member of a broader CMH family.

Can the Cochran Mantel Haenszel Test outcome have more than two categories?

Yes, generalized CMH procedures can analyse larger tables. The current outcome has four ordered categories.

Why does the Cochran Mantel Haenszel Test use grade scores 1 through 4?

They encode the natural order of grade bands and create a focused one-degree-of-freedom location test.

Does the Cochran Mantel Haenszel Test require all expected counts above 5?

There is no single ritual rule for every generalized CMH design, but sparse cells can affect asymptotic accuracy and must be reviewed.

What is the Cochran Mantel Haenszel Test difference between row mean scores and general association?

Row mean scores exploit order and target an ordinal shift; general association treats categories as nominal and tests any pattern.

Can I use statsmodels StratifiedTable for this Cochran Mantel Haenszel Test example?

Not directly. That class is designed for collections of 2×2 tables, whereas this example is 2×4×2.

Can R mantelhaen.test reproduce this Cochran Mantel Haenszel Test result automatically?

A generalized R test can analyse larger arrays, but explicit row-mean scoring is needed to guarantee the same one-degree-of-freedom statistic.

What does SPSS report for the Cochran Mantel Haenszel Test?

SPSS provides layered crosstabs, Pearson and linear-by-linear statistics, and the supplied workflow adds a validated integrated row-mean-scores calculation.

Should I report an effect size for the Cochran Mantel Haenszel Test?

Report stratum-specific mean-score differences and direction. A chi-square-based standardized signal may be descriptive, but it is not a common odds ratio.

What if Cochran Mantel Haenszel Test stratum-specific directions disagree?

Do not hide the disagreement. Investigate interaction or heterogeneity and consider a model with a group-by-stratum interaction.

Can the Cochran Mantel Haenszel Test prove causation?

No. It adjusts for the stated stratifier but cannot remove all confounding or establish causal direction.

What if I have many covariates beyond the Cochran Mantel Haenszel Test?

Use an ordinal, multinomial or generalized regression model suited to the outcome and study design.

How should the Cochran Mantel Haenszel Test p-value be reported?

Report p = .000336 for precision or p < .001 in APA-style prose, together with χ², df, N and direction.

Cochran Mantel Haenszel Test Conclusion

The Cochran Mantel Haenszel Test is the correct family of methods when categorical association must be evaluated within strata rather than after collapsing them. In this analysis, the ordinal row-mean-scores version compares sex with four ordered G3 grade bands while controlling for school.

The verified result is χ²(1) = 12.858673, p = 0.000335919, with signed z = −3.585899. Male observed score totals fall below their null expectations in GP and MS, and male mean grade-band scores are lower in both strata. The evidence therefore supports a conditional ordinal association, not a common odds ratio and not a causal claim.

A defensible report names the exact CMH variant, explains the score coding, provides stratum-specific counts, reports both chi-square and signed z, checks sparse cells and distinguishes the result from ordinary chi-square independence and model-based alternatives. That combination makes the Cochran Mantel Haenszel Test reproducible, interpretable and aligned with the actual research design.

Terminology check: The Cochran Mantel Haenszel Test in the title is the ordinal row-mean-scores procedure. The Cochran Mantel Haenszel Test in the formula section uses scores 1–4. The Cochran Mantel Haenszel Test in the results section controls for school. The Cochran Mantel Haenszel Test in the software section is not a binary common-odds-ratio calculation. The Cochran Mantel Haenszel Test in the conclusion refers to this exact worked specification.
AdvertisementGoogle AdSense bottom placement reserved here

Back to top

Need help applying this to your own data?

Salar Cafe can help interpret output, clean datasets, review assumptions, build dashboards and explain statistical results ethically.

Need help interpreting your data analysis results?

Contact Salar Cafe
Engr. Muhammad Yar Saqib author profile photo

Engr. Muhammad Yar Saqib

WhatsApp Get Data Analysis Help
