Survival Function: Formula, Verified Results, Python, R, SPSS and Excel
Survival Function is presented as a complete, dataset-grounded survival analysis guide. It explains express event-free probability as a function of time and connect it to distribution, density, and hazard quantities, the exact formula, assumptions, verified calculations, interpretation, software workflows, matched charts, reports, workbook, internal links, and publication checks. The verified example uses an explicitly prepared teaching endpoint from the uploaded 649-row dataset.
Survival probability remains above one-half at time 20
The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process.
What does Survival Function measure?
the tail probability P(T > t) across observed follow-up
Survival Function focuses on the tail probability P(T > t) across observed follow-up. The estimand must remain separate from related quantities such as ordinary probability, crude event proportion, mean duration, or an unrelated regression coefficient.
Method target
Survival Function is selected to express event-free probability as a function of time and connect it to distribution, density, and hazard quantities. The method is applied to ordered follow-up times and event indicators, not to a standalone numeric outcome with censoring ignored. The analysis therefore starts from risk sets and event times.
All calculations use the same 649-row CSV, but the analytical role of the prepared fields is specific: survival function is selected to express event-free probability as a function of time and connect it to distribution, density, and hazard quantities. The post therefore separates computational verification from claims about real longitudinal follow-up.
What it does not establish
Interpretation stops at the calculated estimand. The result does not prove a universal population law, and the most important boundary is this: A survival function is a probability curve, not an event rate; its slope and transformations carry different meanings from hazard.
A survival function is a probability curve, not an event rate; its slope and transformations carry different meanings from hazard.
When should Survival Function be used?
Decision logic before software
Time outcome?
Confirm a meaningful duration from a common origin.
Event defined?
State event=1 and censor=0 unambiguously.
Method target?
Match Survival Function to the estimand.
Assumptions?
Audit censoring, risk sets, ties, and model form.
Reportable?
Retain numerical evidence and limitations.
Appropriate use
The strongest use case is one in which the analyst needs to express event-free probability as a function of time and connect it to distribution, density, and hazard quantities. A nearby method should replace it when the desired estimand, weighting, or distributional shape differs.
Survival Function is especially useful when its specific estimand is more informative than an ordinary mean comparison or binary event analysis that discards follow-up time.
Inappropriate use
The procedure is not a rescue for an arbitrary duration, inadequate event information, or unsupported endpoint. If assumptions fail, report the failure and use one of the method-specific alternatives instead of forcing a preferred result.
Do not publish Survival Function output when the matching charts, PDFs, workbook, and dataset describe different definitions or model specifications.
Survival Function dataset and variable construction
The exact 649-row teaching structure
The bundled 649-row dataset is used specifically for event-free probabilities S(5), S(10), and S(15) and their relation to F(t) and H(t). The 16-step empirical survival function is built from the same event table as Kaplan–Meier and is reported together with 1−S(t) and −ln[S(t)]. The prepared endpoint remains a transparent teaching construction rather than natural clinical, mortality, or equipment-failure follow-up.
| Variable | Role | Coding | Audit note |
|---|---|---|---|
| surv_time | Duration | absences + 1 | Positive values from 1 to 33 |
| surv_event | Primary event | 1 when G3 < 10; 0 otherwise | 100 events and 549 censorings |
| school | Group | GP reference; MS comparison | 423 GP and 226 MS records |
| competing cause | Secondary event | failures > 0 among records without the primary event | 51 competing events |
| predictors | Cox covariates | age, parental education, travel/study time, failures, family relationship, free time, school, gender | Ten-term model |
Survival Function assumptions
Conditions required for a defensible result
A Valid Time-To-Event Construction
Survival Function requires a valid time-to-event construction. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Non-Informative Censoring
Survival Function requires non-informative censoring. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Correct Risk Sets
Survival Function requires correct risk sets. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Consistent Handling Of Ties
Survival Function requires consistent handling of ties. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Sufficient Tail Support
Survival Function requires sufficient tail support. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Clear Distinction Among Survival, Hazard, And Cumulative Hazard
For Survival Function, assumptions are assessed one by one using counts, curves, residuals, risk sets, or likelihood diagnostics appropriate to the procedure. The empirical survival probability is 0.8636 at time 5, 0.7261 at time 10, and 0.5707 at time 15. Successful execution is not counted as evidence that the conditions hold.
Survival Function formula and mechanics
Native browser MathML and a plain-language audit trail
Survival Function uses this expression to estimate or test the tail probability P(T > t) across observed follow-up. Every symbol should be linked to a risk set, event count, survival estimate, covariate, distribution parameter, or weight defined in the surrounding text.
Calculation sequence
- Sort positive durations and verify event/censor coding.
- Construct the exact risk set immediately before each event time.
- Calculate the Survival Function contribution defined by the formula.
- Accumulate products, sums, likelihood terms, or weighted contrasts as required.
- Attach uncertainty, diagnostics, and a conclusion that matches the estimand.
Formula interpretation
For Formula interpretation, the Survival Function review must connect every symbol to a risk set, event count, likelihood term, or model parameter. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 1 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Native MathML preserves fractions, subscripts, superscripts, Greek symbols, and products without an external library. The article then translates the formula into the exact computational steps used for this dataset.
Survival Function verified results
Values calculated from the included dataset
| Result item | Verified value |
|---|---|
| S(1) | 0.948 |
| S(3) | 0.909 |
| S(5) | 0.864 |
| S(10) | 0.726 |
| S(15) | 0.571 |
| S(20) | 0.516 |
| S(25) | 0.323 |
How to interpret Survival Function
From statistical output to a restrained conclusion
Primary conclusion
Survival probability remains above one-half at time 20
For Primary conclusion, the Survival Function review must translate the numerical result without overstating causality, equivalence, or natural follow-up. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 2 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Interpretation order
Survival Function in Python
Transparent data preparation and reproducible calculations
This Python section reconstructs the tail probability P(T > t) across observed follow-up from explicit arrays and auditable intermediate tables. Represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, so the code below exposes the quantities that determine the final result.
import numpy as np
import pandas as pddf = pd.read_csv("dataset.csv")
t = pd.to_numeric(df["absences"]).to_numpy(float) + 1
e = (pd.to_numeric(df["G3"]) < 10).to_numpy(int)
S=1.0
curve=[]
for tj in np.sort(np.unique(t[e == 1])):
n=(t>=tj).sum(); d=((t==tj)&(e==1)).sum()
S*=1-d/n
curve.append((tj,S,1-S,-np.log(S)))
print(pd.DataFrame(curve,columns=["time","S(t)","F(t)","-logS(t)"]))
Python verification checklist
In the Survival Function Python section, the source CSV is read directly and the method-specific equation is reproduced before interpretation. The identity S(t)=1-F(t) links the survival and cumulative distribution functions for the same event definition. Package output is accepted only after its coding and defaults agree with the manual trail.
Media placement follows the verified workbook: the first chart spans the content width, later charts form responsive pairs, and every downloadable file remains tied to this post’s method and dataset definition.
Survival Function in R
Independent survival-analysis validation
R provides an independent implementation of the same the tail probability P(T > t) across observed follow-up. The script states status coding, factor references, and the function or manual calculation needed for this method instead of relying on defaults.
library(survival)
df <- read.csv("dataset.csv")
df$time <- as.numeric(df$absences)+1
df$event <- ifelse(as.numeric(df$G3)<10,1,0)
fit <- survfit(Surv(time,event)~1,data=df,conf.type="log-log")
out <- summary(fit,times=c(5,10,15,20,25))
print(data.frame(time=out$time,S=out$surv,F=1-out$surv))R validation checklist
Print the Surv object summary and factor levels before interpreting Survival Function. Save coefficient tables, curve summaries, risk tables, diagnostics, and exact package versions. Differences from Python should be traced to definitions or defaults, not dismissed as software noise.
Survival Function in SPSS
Syntax-first setup and output audit
The SPSS workflow separates native procedures from extensions and preserves the event value in saved syntax. It is reviewed against the same dataset counts and interpretation used by the other software sections.
COMPUTE surv_time = absences + 1.
COMPUTE surv_event = (G3 < 10).
VALUE LABELS surv_event 0 'Censored' 1 'Event'.
EXECUTE.
KM surv_time BY school
/STATUS=surv_event(1)
/PRINT TABLE MEAN
/PLOT SURVIVAL HAZARD
/TEST LOGRANK BRESLOW TARONE.
COXREG surv_time WITH age Medu Fedu studytime failures famrel
/STATUS=surv_event(1)
/METHOD=ENTER age Medu Fedu studytime failures famrel
/PRINT=CI(95) GOODFIT SUMMARY.Survival Function in Excel
A visible calculation and reconciliation workbook
The Excel workbook exposes the arithmetic behind S(t) = P(T > t) = 1 − F(t) and reconciles selected rows with the programmatic output. It is an auditable calculation, not a black-box result.
Excel step 1
Build a unique event-time risk table.
Excel step 2
Update survival by multiplying 1-d/n.
Excel step 3
Update cumulative hazard by adding d/n.
Excel step 4
Calculate -LN(S) for comparison.
Excel step 5
Stop overinterpreting when the tail risk set becomes very small.
Excel controls
For Excel controls, the Survival Function review must make the spreadsheet an auditable calculation rather than a decorative download. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 3 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Survival Function charts and chart-specific interpretation
First chart full-width; remaining charts arranged in pairs
For Survival Function charts and chart-specific interpretation, the Survival Function review must tie each chart caption to the displayed quantity and its numerical source. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 4 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.

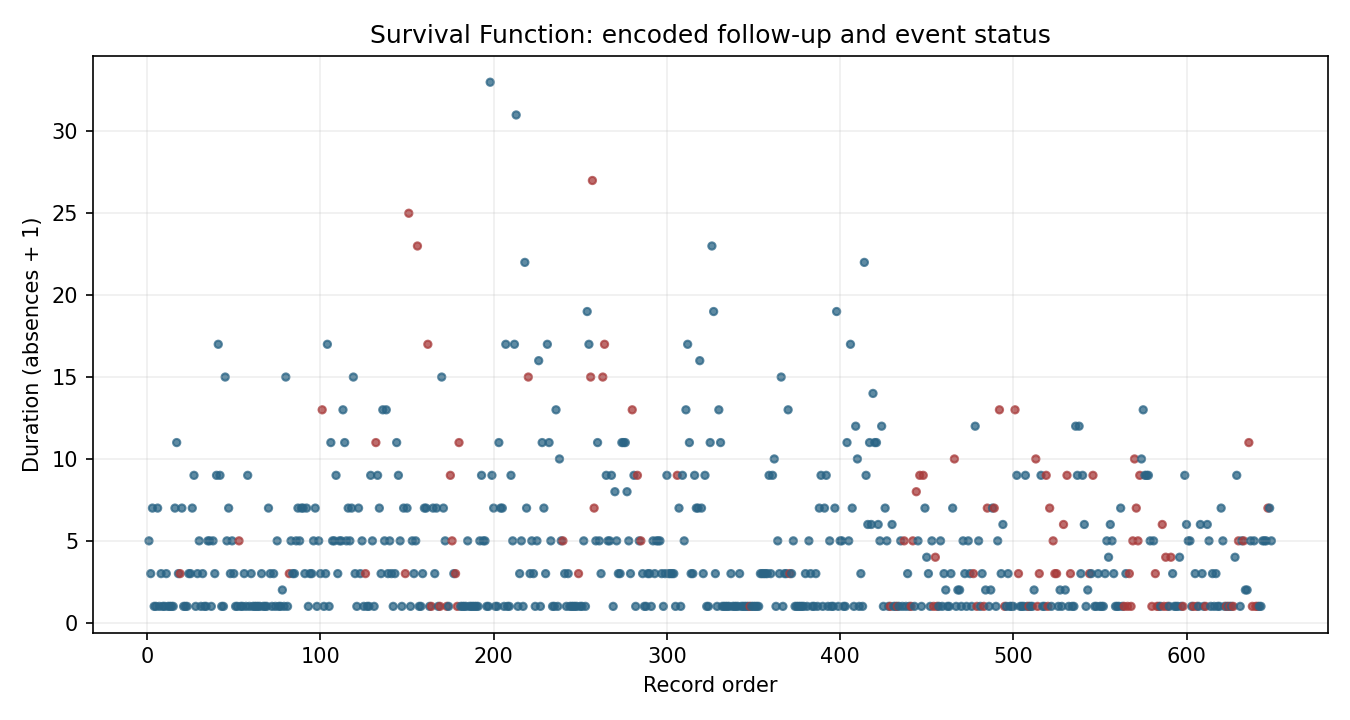

Python chart 1 — Survival Function
Python chart 1: shows the prepared 1–33 duration distribution, event/censor pattern, and where the survival estimator obtains most of its information. For this topic, the display should be read with the event definition and the fact that represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard.

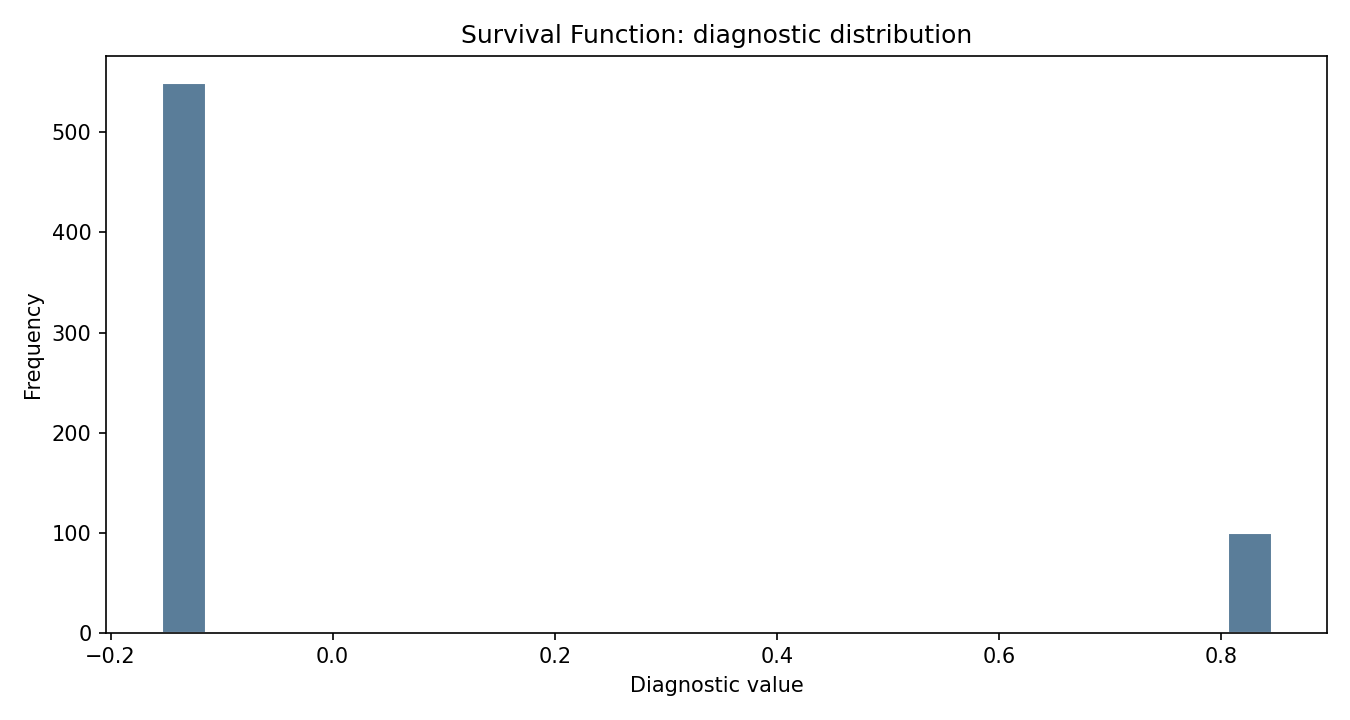

Python chart 2 — Survival Function
Python chart 2: examines the diagnostic path most relevant to the assumptions of this survival estimator. The review priority is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; visible structure is a warning rather than decoration.

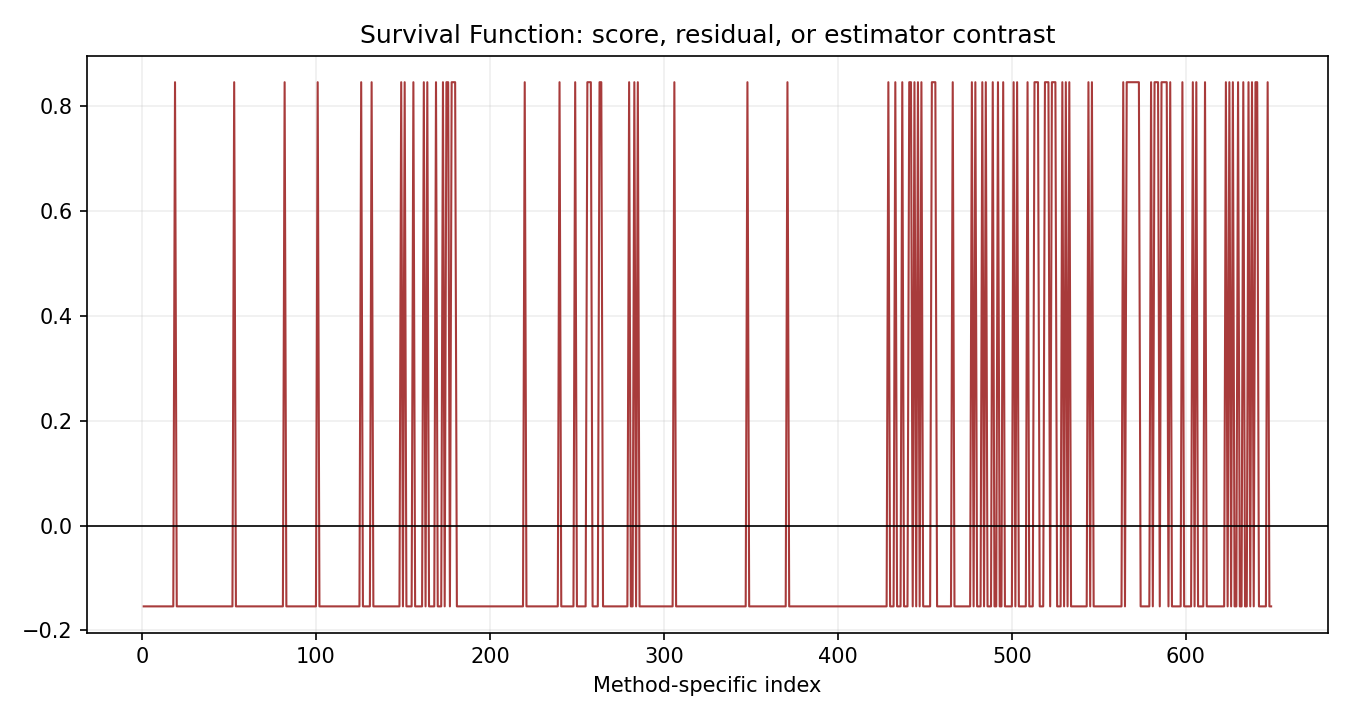

Python chart 3 — Survival Function
Python chart 3: places uncertainty, residuals, weighted contributions, or fitted discrepancies on a distributional scale. It supports the model or test audit but does not replace the natural-scale result or its confidence interval.

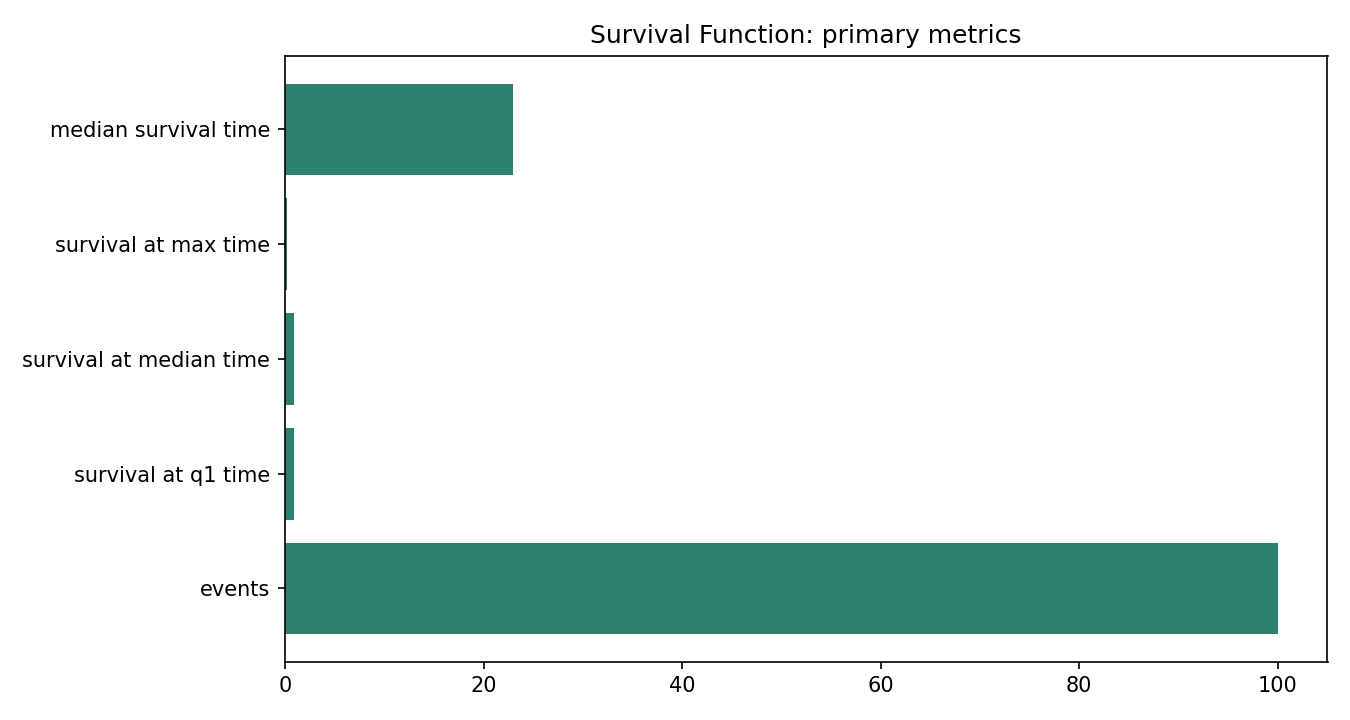

Python chart 4 — Survival Function
Python chart 4: collects the key verified metrics used in the article, including sample information and the method-specific estimate. Every displayed value must reconcile with dataset.csv and the downloadable Python output.

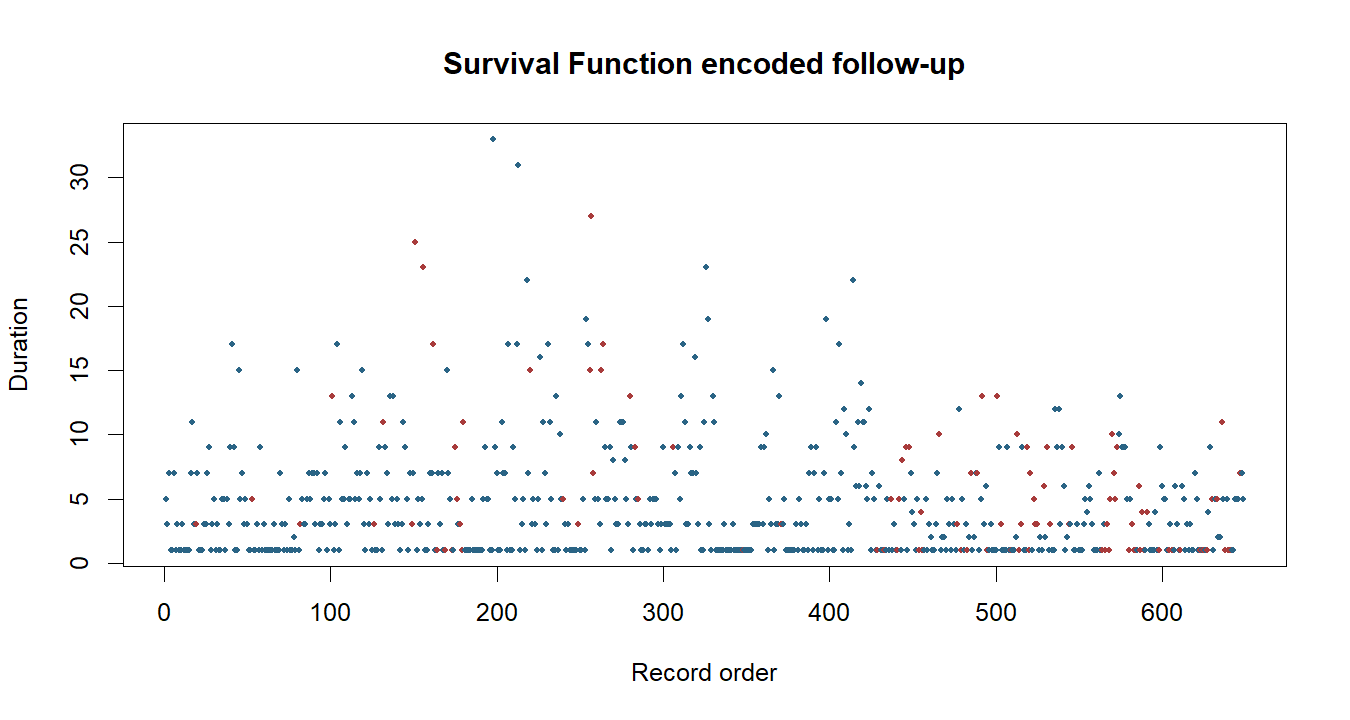

R chart 1 — Survival Function
R chart 1 independently reproduces the prepared duration, event, and censoring structure for Survival Function. Read it with the declared event definition before comparing groups or fitted quantities.

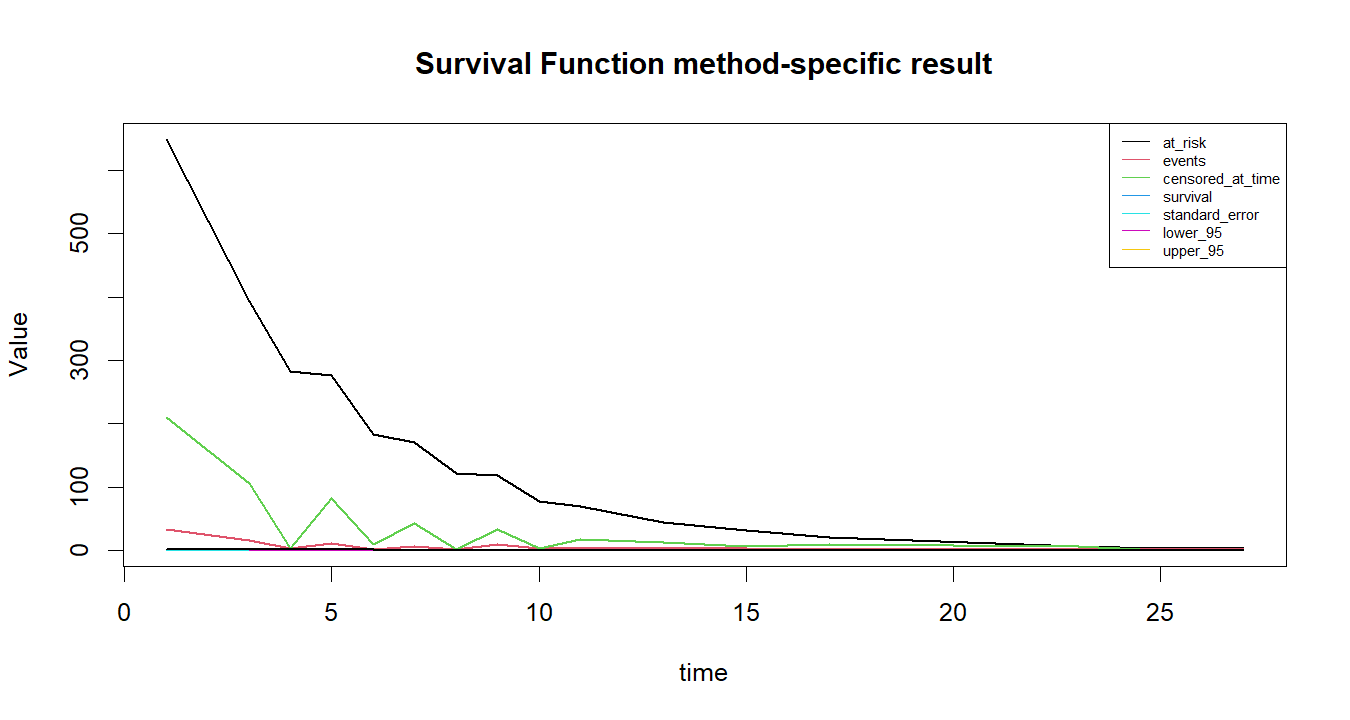

R chart 2 — Survival Function
R chart 2 presents the benchmark output using R conventions. Its values should agree with the Python calculation after reference levels, tie handling, weighting, and status coding are aligned.

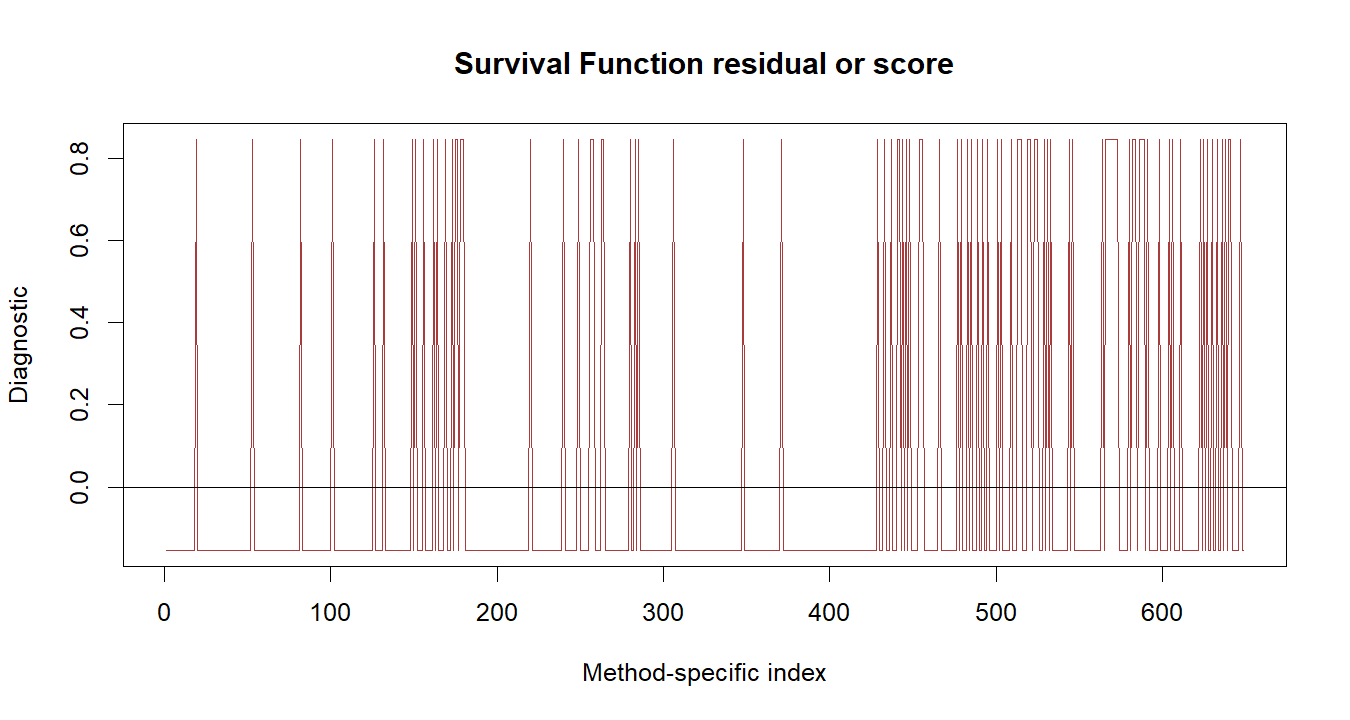

R chart 3 — Survival Function
R chart 3 focuses on the diagnostic evidence for Survival Function. Visible departures or sparse-tail behavior should trigger a sensitivity analysis rather than a cosmetic interpretation.
R chart 4 — Survival Function
R chart 4 displays uncertainty or residual structure on the scale used by the R workflow. It supports the numerical audit but does not replace the natural-scale estimate and its limitation.
R chart 5 — Survival Function
R chart 5 consolidates the principal metrics used in the R output. Every annotation must reconcile with dataset.csv, the printed result, and the matched downloadable file.
Survival Function diagnostics and sensitivity analysis
Evidence required beyond the primary number
Data diagnostics
Sensitivity analysis should compare the primary specification with Kaplan–Meier survival, Nelson–Aalen cumulative hazard, life-table grouped estimates. A changed conclusion must be explained by the altered estimand, weighting, or model form rather than hidden.
Method diagnostics
The Survival Function sensitivity analysis asks whether its substantive conclusion survives a defensible neighboring specification. Under a continuous model, S(t)=exp[-H(t)] connects survival to cumulative hazard. Chart behavior, tail support, coding, and the method-specific plan to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves are documented together.
Sensitivity diagnostics
Compare Survival Function with Kaplan–Meier survival, Nelson–Aalen cumulative hazard, life-table grouped estimates, parametric survival functions. Explain whether the substantive conclusion changes and why.
Full Survival Function publication audit
Method-specific checkpoints for content, data, formulas, results, and assets
1. Research estimand
The publication test at research estimand is practical: could another analyst rebuild the same result from dataset.csv? Translate the research question into the specific survival, hazard, incidence, or test quantity being estimated. That standard matters because this approach represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard.
The empirical survival probability is 0.8636 at time 5, 0.7261 at time 10, and 0.5707 at time 15. This evidence is read alongside the checkpoint rather than used as a substitute for it. The recommended diagnostic is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, and the final interpretation should remember that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
2. Time origin
The publication test at time origin is practical: could another analyst rebuild the same result from dataset.csv? Identify the starting event and verify that all durations use the same origin. That standard matters because this approach represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard.
The identity S(t)=1-F(t) links the survival and cumulative distribution functions for the same event definition. Reproducing that figure from the bundled CSV is required before publication. The diagnostic sequence should check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, while the substantive statement recognizes that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
3. Event and status coding
Treat event and status coding as an analytical decision. Print the status mapping and reconcile each event total with the CSV. Here the method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
Under a continuous model, S(t)=exp[-H(t)] connects survival to cumulative hazard. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves. Interpret the displayed effect under the constraint that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
4. Censoring definition
This checkpoint asks whether censoring definition has been translated into executable analysis. Verify that censoring is represented as status information rather than discarded rows. The method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; therefore a generic survival-analysis explanation is not enough for this post.
Survival must stay within zero and one and must not increase as time advances. Any discrepancy across Python, R, SPSS, or Excel must be traced to definitions or defaults. In addition, check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the reader should be told that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
5. Duration scale
The reviewer should pause at duration scale and reproduce the relevant step. Check positivity, units, transformations, and the observed follow-up range. In this analysis the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; that mechanism sets the boundary for correct interpretation.
A higher survival probability at one time does not prove a lower instantaneous hazard at every time. The post links this evidence to the formula and saved output rather than repeating generic advice. A defensible review will check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, and it will state clearly that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
6. Risk-set or likelihood construction
This checkpoint asks whether risk-set or likelihood construction has been translated into executable analysis. Show which records enter each denominator or censored likelihood term. The method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; therefore a generic survival-analysis explanation is not enough for this post.
Tail estimates after time 25 are based on few records and need risk-set context rather than a smooth unqualified narrative. The numerical record supports a method-specific audit, but it does not remove design limitations. To test robustness, check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; when stating direction, note that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
7. Ties and discretization
Ties and discretization defines the checkpoint for this article. Check that discretized follow-up does not silently invoke different tie algorithms. Because the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, the reviewer must connect the source rows to that mechanism rather than infer correctness from the software label.
The empirical survival probability is 0.8636 at time 5, 0.7261 at time 10, and 0.5707 at time 15. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the directional explanation follows the fact that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
8. Reference coding
Reference coding is reviewed separately from statistical significance. Print factor levels and define the numerator and denominator of every contrast. For this survival estimator, the core operation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; the prose, formula, table, and chart must all describe that same operation.
The identity S(t)=1-F(t) links the survival and cumulative distribution functions for the same event definition. The article should retain this value in a saved table and connect it to its matching chart. Reviewers should also check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, because higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
9. Missing-data handling
At missing-data handling, the article must move from terminology to evidence. Make missing-value handling visible instead of allowing silent listwise deletion. Its defining computation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, and the audit should show where the required quantities appear in the CSV or derived table.
For 9. Missing-data handling, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 5 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
10. Dependence and clustering
Dependence and clustering can invalidate an otherwise polished article. Document the independence assumption and any clustering correction. The reason is specific to this procedure: it represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard. The final wording should state any unresolved limitation rather than hide it behind a p-value.
Survival must stay within zero and one and must not increase as time advances. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the directional explanation follows the fact that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
11. Information and event adequacy
The reviewer should pause at information and event adequacy and reproduce the relevant step. Recalculate event categories and counts directly from the source columns. In this analysis the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; that mechanism sets the boundary for correct interpretation.
A higher survival probability at one time does not prove a lower instantaneous hazard at every time. That result becomes publishable only after its risk-set, likelihood, or coding trail is reconciled. A useful next check is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves. Directional language must remain consistent with the rule that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
12. Tail support
Treat tail support as an analytical decision. Check whether sparse risk sets support the requested estimate or coefficient complexity. Here the method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
For 12. Tail support, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 6 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
13. Uncertainty interval
Before interpreting the principal estimate, resolve uncertainty interval. Verify the variance formula and avoid intervals based on a neighboring method. The calculation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
The empirical survival probability is 0.8636 at time 5, 0.7261 at time 10, and 0.5707 at time 15. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves. Interpret the displayed effect under the constraint that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
14. Null hypothesis and p-value
Use null hypothesis and p-value to challenge the draft rather than merely document it. Write the exact null hypothesis and keep practical importance separate from significance. The relevant technical fact is that the estimator represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, which determines what must be checked in the stored output.
The identity S(t)=1-F(t) links the survival and cumulative distribution functions for the same event definition. That result becomes publishable only after its risk-set, likelihood, or coding trail is reconciled. A useful next check is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves. Directional language must remain consistent with the rule that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
15. Effect magnitude
Effect magnitude is reviewed separately from statistical significance. Show the size of the modeled difference rather than reporting significance alone. For this survival estimator, the core operation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; the prose, formula, table, and chart must all describe that same operation.
Under a continuous model, S(t)=exp[-H(t)] connects survival to cumulative hazard. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the directional explanation follows the fact that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
16. Software defaults
The publication test at software defaults is practical: could another analyst rebuild the same result from dataset.csv? Save the executable command and all defaults needed for an independent rerun. That standard matters because this approach represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard.
For 16. Software defaults, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 7 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
17. Cross-software reconciliation
The publication test at cross-software reconciliation is practical: could another analyst rebuild the same result from dataset.csv? Record package versions, defaults, factor coding, convergence, and tie settings. That standard matters because this approach represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard.
A higher survival probability at one time does not prove a lower instantaneous hazard at every time. The article should retain this value in a saved table and connect it to its matching chart. Reviewers should also check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, because higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
18. Chart-to-table audit
Use chart-to-table audit to challenge the draft rather than merely document it. Verify that the figure, caption, data table, and method result describe the same run. The relevant technical fact is that the estimator represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, which determines what must be checked in the stored output.
Tail estimates after time 25 are based on few records and need risk-set context rather than a smooth unqualified narrative. That checkpoint is considered complete only when the same value appears in code, table, and interpretation. The robustness review should check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the direction statement remains governed by the fact that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
19. Sensitivity specification
Sensitivity specification receives an explicit pass, warning, or fail assessment. Document whether the conclusion survives a method-specific sensitivity analysis. This is necessary because the method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, and a different construction would answer a different survival question.
The empirical survival probability is 0.8636 at time 5, 0.7261 at time 10, and 0.5707 at time 15. This is the concrete evidence used for the checkpoint. The sensitivity plan is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the narrative must not forget that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
20. Scientific limitation
This checkpoint asks whether scientific limitation has been translated into executable analysis. State what the constructed teaching endpoint cannot establish about a real population. The method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; therefore a generic survival-analysis explanation is not enough for this post.
The identity S(t)=1-F(t) links the survival and cumulative distribution functions for the same event definition. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves. Interpret the displayed effect under the constraint that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
21. Generalizability boundary
A strong account of generalizability boundary names the decision and shows its consequence. Keep inference inside the observed design, coding, and follow-up window. Since the method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, hidden defaults at this point would propagate into every later value.
Under a continuous model, S(t)=exp[-H(t)] connects survival to cumulative hazard. This evidence is read alongside the checkpoint rather than used as a substitute for it. The recommended diagnostic is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, and the final interpretation should remember that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
22. Reproducible record
Reproducible record defines the checkpoint for this article. Audit focus-keyword use, content specificity, and asset ownership before import. Because the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, the reviewer must connect the source rows to that mechanism rather than infer correctness from the software label.
For 22. Reproducible record, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 8 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
23. Publication language
Publication language is reviewed separately from statistical significance. Preserve the CSV, transformation rules, code, output, metadata, and matched URLs. For this survival estimator, the core operation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; the prose, formula, table, and chart must all describe that same operation.
A higher survival probability at one time does not prove a lower instantaneous hazard at every time. The numerical record supports a method-specific audit, but it does not remove design limitations. To test robustness, check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; when stating direction, note that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
24. SEO and asset consistency
SEO and asset consistency defines the checkpoint for this article. Verify that the figure, caption, data table, and method result describe the same run. Because the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, the reviewer must connect the source rows to that mechanism rather than infer correctness from the software label.
Tail estimates after time 25 are based on few records and need risk-set context rather than a smooth unqualified narrative. Reproducing that figure from the bundled CSV is required before publication. The diagnostic sequence should check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, while the substantive statement recognizes that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
25. Estimator identity
Before interpreting the principal estimate, resolve estimator identity. Document the evidence and the consequence of a warning or failure. The calculation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
The empirical survival probability is 0.8636 at time 5, 0.7261 at time 10, and 0.5707 at time 15. The article should retain this value in a saved table and connect it to its matching chart. Reviewers should also check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, because higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
26. Variance construction
Treat variance construction as an analytical decision. Report sampling uncertainty on the natural scale and reproduce its calculation. Here the method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
The identity S(t)=1-F(t) links the survival and cumulative distribution functions for the same event definition. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the directional explanation follows the fact that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
27. Median and quantiles
A strong account of median and quantiles names the decision and shows its consequence. Connect this checkpoint to a saved calculation rather than a generic claim. Since the method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, hidden defaults at this point would propagate into every later value.
Under a continuous model, S(t)=exp[-H(t)] connects survival to cumulative hazard. The post links this evidence to the formula and saved output rather than repeating generic advice. A defensible review will check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, and it will state clearly that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
28. Step placement and continuity
Step placement and continuity defines the checkpoint for this article. Document the evidence and the consequence of a warning or failure. Because the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, the reviewer must connect the source rows to that mechanism rather than infer correctness from the software label.
Survival must stay within zero and one and must not increase as time advances. The article should retain this value in a saved table and connect it to its matching chart. Reviewers should also check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves, because higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
29. Exact times versus intervals
The reviewer should pause at exact times versus intervals and reproduce the relevant step. Define the decision operationally and show how it was checked. In this analysis the procedure represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; that mechanism sets the boundary for correct interpretation.
For 29. Exact times versus intervals, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 9 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
30. Censor marks and withdrawals
Before interpreting the principal estimate, resolve censor marks and withdrawals. Distinguish incomplete follow-up from the occurrence of the modeled event. The calculation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
Tail estimates after time 25 are based on few records and need risk-set context rather than a smooth unqualified narrative. Any discrepancy across Python, R, SPSS, or Excel must be traced to definitions or defaults. In addition, check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves; the reader should be told that higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition.
31. Monotonicity and bounds
Before interpreting the principal estimate, resolve monotonicity and bounds. Document the evidence and the consequence of a warning or failure. The calculation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
For 31. Monotonicity and bounds, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 10 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
32. Tail transformation
This checkpoint asks whether tail transformation has been translated into executable analysis. Use numbers at risk and event distribution to limit late-time claims. The method represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard; therefore a generic survival-analysis explanation is not enough for this post.
For 32. Tail transformation, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 11 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
33. Estimation versus hypothesis testing
Estimation versus hypothesis testing can invalidate an otherwise polished article. Connect this checkpoint to a saved calculation rather than a generic claim. The reason is specific to this procedure: it represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard. The final wording should state any unresolved limitation rather than hide it behind a p-value.
For 33. Estimation versus hypothesis testing, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 12 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
34. Practical time horizons
At practical time horizons, the article must move from terminology to evidence. Document the evidence and the consequence of a warning or failure. Its defining computation represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard, and the audit should show where the required quantities appear in the CSV or derived table.
For 34. Practical time horizons, the Survival Function review must record a method-specific publication checkpoint and the evidence required to pass it. This method expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; therefore the editor should check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard. The bundled example supplies the following numerical anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. Checkpoint 13 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Final Survival Function release decision
This draft is released only when its exact formula, event definition, software settings, numerical result, chart captions, download files, and contextual links agree. The central computational mechanism is that it represents the probability that event time exceeds t and links that tail probability to the cumulative distribution and hazard. That statement differentiates the article from the other twenty survival posts and prevents a shared template from substituting for method-specific explanation.
The final robustness record directs the editor to check monotonicity, range zero to one, right-continuity, risk-set support, and agreement among empirical and modeled curves. The directional interpretation remains: higher S(t) means a greater event-free probability beyond t; it is not a lower instantaneous hazard at every time by definition. Because the example is built from absences and G3 in a student-performance dataset, publication must keep the teaching-purpose limitation visible and must not recast the endpoint as clinical survival, mortality, equipment failure, or causal evidence.
Survival Function compared with related methods
Choose the method by estimand, not menu proximity
| Related method | Comparison question |
|---|---|
| Kaplan–Meier survival | Kaplan–meier survival estimates event-free probability through conditional product-limit factors. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Survival Function only when the tail probability P(T > t) across observed follow-up is the actual target. |
| Nelson–Aalen cumulative hazard | Nelson–aalen cumulative hazard targets accumulated hazard instead of survival probability. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Survival Function only when the tail probability P(T > t) across observed follow-up is the actual target. |
| life-table grouped estimates | Life-table grouped estimates summarize interval failure and survival with a withdrawal convention. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Survival Function only when the tail probability P(T > t) across observed follow-up is the actual target. |
| parametric survival functions | Parametric survival functions use a specified distribution to smooth and potentially extrapolate the curve. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Survival Function only when the tail probability P(T > t) across observed follow-up is the actual target. |
How to report Survival Function
A complete, restrained result statement
Reporting template
“A Survival Function analysis used 649 records from dataset(100).csv. Duration was defined as absences plus one, and the event indicator equaled one when G3 was below 10; 100 events and 549 right-censored observations were available. The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. The analysis documented event coding, reference groups, risk sets, ties, assumptions, software settings, diagnostics, matching files, and the educational nature of the prepared survival endpoint.”
Include
Reporting should lead with the method’s natural-scale quantity and then add uncertainty and limitations. The wording must preserve the boundary that a survival function is a probability curve, not an event rate; its slope and transformations carry different meanings from hazard.
Avoid
Avoid calling hazard a probability, treating censoring as missingness, or converting a nonsignificant result into proof of equality. The final sentence should answer the stated estimand and no broader question.
Survival Function downloads
Only assets assigned to this topic after filename and extension audit
Source-register corrections are preserved in the QA report so the reassignment of any mislabeled chart, PDF, or workbook remains reviewable after import.
Survival Function frequently asked questions
Method-specific answers for draft review
What does Survival Function measure?
Survival Function is used for the estimand defined in this article. It expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard. The interpretation remains conditional on the stated time origin, event code, censoring rule, group or predictor coding, and any distributional or proportionality assumptions.
When should Survival Function be used?
Use Survival Function when the research objective requires event-free probabilities S(5), S(10), and S(15) and their relation to F(t) and H(t) and the assumptions listed in the article are defensible. The method is inappropriate when a different event type, time emphasis, adjustment strategy, or hazard shape is the scientific target.
What data are used in this Survival Function example?
The 16-step empirical survival function is built from the same event table as Kaplan–Meier and is reported together with 1−S(t) and −ln[S(t)]. All values come from the uploaded 649-row file and the disclosed absences-plus-one/G3 event construction.
What is the main Survival Function result?
The result is summarized by this verified anchor: The empirical survival function gave S(5) = 0.864, S(10) = 0.726, and S(20) = 0.516; therefore F(10) = 0.274 for the derived event process. It should be read together with the method-specific assumptions, uncertainty, and the teaching-endpoint limitation rather than as a stand-alone causal conclusion.
How does censoring affect Survival Function?
Censored records contribute to risk sets or likelihood survival terms until their observed duration. Their handling matters because expresses the probability of remaining event-free beyond time t and connects it to cumulative distribution and hazard; treating censoring as an event or deleting censored rows would change the estimate and usually bias the analysis.
How are ties handled in Survival Function?
The prepared durations are integer-valued, so tied times are common. The article states the exact pooled-event rule, weight, or Efron/Breslow approximation used for Survival Function, and software results should be reconciled only after those defaults match.
Can Survival Function be completed in Python?
Yes. The Python section reconstructs the data fields and exposes the intermediate quantities required for Survival Function. It prints the benchmark result and supports the diagnostic task to check monotonicity, range, right continuity, risk-set support, and consistency with cumulative hazard.
Can Survival Function be completed in R?
Yes. The R section uses a method-appropriate survival or competing-risk routine, declares factor references and tie or weighting settings, and provides an independent check of the benchmark result for Survival Function.
Can Survival Function be completed in SPSS?
SPSS is used only where a native procedure matches Survival Function. When no exact native command exists, the post describes SPSS as a data-management, charting, or integration route and does not rename a different test or model.
How does Excel support Survival Function?
Excel supports Survival Function by displaying S(t), 1−S(t), −ln[S(t)], and the supporting event-time risk table in visible cells. The matching workbook must reproduce selected Python and R benchmark values and retain the exact event, censoring, group, tie, and interval definitions.
What is the largest reporting mistake for Survival Function?
The largest Survival Function reporting error is confusing S(t) with the density or instantaneous hazard, or allowing the reported curve to increase. The article also keeps the teaching-endpoint limitation visible so the worked result is not presented as causal or naturally observed survival evidence.
Which internal guides support Survival Function?
Start with Kaplan Meier Survival Curve because it provides the nearest check on event-free probabilities S(5), S(10), and S(15) and their relation to F(t) and H(t). Use Cumulative Hazard Function, Nelson Aalen Estimator, Life Table Analysis to compare weighting, probability scale, model assumptions, or software implementation; each link has a specific methodological role rather than serving as generic navigation.
