Kaplan Meier Survival Curve: Formula, Verified Results, Python, R, SPSS and Excel
Kaplan Meier Survival Curve is presented as a complete, dataset-grounded survival analysis guide. It explains estimate a stepwise survival curve while retaining right-censored observations in earlier risk sets, the exact formula, assumptions, verified calculations, interpretation, software workflows, matched charts, reports, workbook, internal links, and publication checks. The verified example uses an explicitly prepared teaching endpoint from the uploaded 649-row dataset.
Stepwise survival declines across follow-up
Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. The overall median survival was 23; GP and MS medians were 25 and 9.
What does Kaplan Meier Survival Curve measure?
the nonparametric survival probability beyond each observed event time
Kaplan Meier Survival Curve focuses on the nonparametric survival probability beyond each observed event time. The estimand must remain separate from related quantities such as ordinary probability, crude event proportion, mean duration, or an unrelated regression coefficient.
Method target
Kaplan Meier Survival Curve is selected to estimate a stepwise survival curve while retaining right-censored observations in earlier risk sets. The method is applied to ordered follow-up times and event indicators, not to a standalone numeric outcome with censoring ignored. The analysis therefore starts from risk sets and event times.
The worked example defines time as absences plus one and the primary event as G3 below 10. For Kaplan Meier Survival Curve, these variables are used only to demonstrate the nonparametric survival probability beyond each observed event time; they are not presented as naturally observed medical survival times.
What it does not establish
The procedure cannot create causality or a real-world failure process from cross-sectional student records. Its defensible output is the method-specific estimate or test under the stated coding, and the far-right tail is supported by few records and must not be interpreted with the same confidence as the early curve.
The far-right tail is supported by few records and must not be interpreted with the same confidence as the early curve.
When should Kaplan Meier Survival Curve be used?
Decision logic before software
Time outcome?
Confirm a meaningful duration from a common origin.
Event defined?
State event=1 and censor=0 unambiguously.
Method target?
Match Kaplan Meier Survival Curve to the estimand.
Assumptions?
Audit censoring, risk sets, ties, and model form.
Reportable?
Retain numerical evidence and limitations.
Appropriate use
Choose this method when the research question is genuinely about the nonparametric survival probability beyond each observed event time and the required assumptions can be defended. It is preferable to a simple mean or binary comparison because it retains event timing and censoring information relevant to multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets.
Kaplan Meier Survival Curve is especially useful when its specific estimand is more informative than an ordinary mean comparison or binary event analysis that discards follow-up time.
Inappropriate use
Do not force the data into Kaplan Meier Survival Curve by merely renaming columns. It is unsuitable when the data lack a defensible time origin and status indicator, or when a descriptive estimator is being used as though it were an adjusted causal model. A valid application must reproduce the method’s own inputs and assumptions. Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25.
Do not publish Kaplan Meier Survival Curve output when the matching charts, PDFs, workbook, and dataset describe different definitions or model specifications.
Kaplan Meier Survival Curve dataset and variable construction
The exact 649-row teaching structure
The bundled 649-row dataset is used specifically for product-limit survival steps, Greenwood uncertainty, and risk-set support. The product-limit table uses 100 events and 549 censorings to update survival at 16 distinct failure times from duration 1 through 27. The prepared endpoint remains a transparent teaching construction rather than natural clinical, mortality, or equipment-failure follow-up.
| Variable | Role | Coding | Audit note |
|---|---|---|---|
| surv_time | Duration | absences + 1 | Positive values from 1 to 33 |
| surv_event | Primary event | 1 when G3 < 10; 0 otherwise | 100 events and 549 censorings |
| school | Group | GP reference; MS comparison | 423 GP and 226 MS records |
| competing cause | Secondary event | failures > 0 among records without the primary event | 51 competing events |
| predictors | Cox covariates | age, parental education, travel/study time, failures, family relationship, free time, school, gender | Ten-term model |
Kaplan Meier Survival Curve assumptions
Conditions required for a defensible result
Right-Censoring Handled Through Risk Sets
Kaplan Meier Survival Curve requires right-censoring handled through risk sets. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Independent Censoring
Kaplan Meier Survival Curve requires independent censoring. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Correct Event-Time Order
Kaplan Meier Survival Curve requires correct event-time order. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Transparent Tie Treatment
Kaplan Meier Survival Curve requires transparent tie treatment. This condition is evaluated against the prepared duration, event coding, group structure, risk sets, and the method-specific result rather than assumed from the word nonparametric or from successful software execution.
Adequate Records Remaining In The Tail
The assumption review for Kaplan Meier Survival Curve converts each condition into a check against the prepared records rather than declaring the method assumption-free. At time 10, estimated survival is 0.9052 for GP and 0.3405 for MS. A warning remains visible whenever the event process, censoring, support, weighting, or model form cannot be justified.
Confidence Intervals That Reflect Diminishing Support
The assumption review for Kaplan Meier Survival Curve converts each condition into a check against the prepared records rather than declaring the method assumption-free. Downward steps occur only at events; censoring reduces future risk sets but creates no step of its own. A warning remains visible whenever the event process, censoring, support, weighting, or model form cannot be justified.
Kaplan Meier Survival Curve formula and mechanics
Native browser MathML and a plain-language audit trail
Kaplan Meier Survival Curve uses this expression to estimate or test the nonparametric survival probability beyond each observed event time. Every symbol should be linked to a risk set, event count, survival estimate, covariate, distribution parameter, or weight defined in the surrounding text.
Calculation sequence
- Sort positive durations and verify event/censor coding.
- Construct the exact risk set immediately before each event time.
- Calculate the Kaplan Meier Survival Curve contribution defined by the formula.
- Accumulate products, sums, likelihood terms, or weighted contrasts as required.
- Attach uncertainty, diagnostics, and a conclusion that matches the estimand.
Formula interpretation
For Formula interpretation, the Kaplan Meier Survival Curve review must connect every symbol to a risk set, event count, likelihood term, or model parameter. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 1 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
The displayed expression uses browser-native MathML and ordinary semantic HTML. Its symbols correspond to the risk sets, event counts, weights, coefficients, or distribution parameters defined in this section; no remote rendering script or equation image is required.
Kaplan Meier Survival Curve verified results
Values calculated from the included dataset
| Result item | Verified value |
|---|---|
| S(1) | 0.948 |
| S(3) | 0.909 |
| S(5) | 0.864 |
| S(10) | 0.726 |
| S(15) | 0.571 |
| S(20) | 0.516 |
| S(25) | 0.323 |
How to interpret Kaplan Meier Survival Curve
From statistical output to a restrained conclusion
Primary conclusion
Stepwise survival declines across follow-up
For Primary conclusion, the Kaplan Meier Survival Curve review must translate the numerical result without overstating causality, equivalence, or natural follow-up. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 2 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Interpretation order
Kaplan Meier Survival Curve in Python
Transparent data preparation and reproducible calculations
This Python section reconstructs the nonparametric survival probability beyond each observed event time from explicit arrays and auditable intermediate tables. Multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so the code below exposes the quantities that determine the final result.
import numpy as np
import pandas as pddf = pd.read_csv("dataset.csv")
time = pd.to_numeric(df["absences"]).to_numpy(float) + 1
event = (pd.to_numeric(df["G3"]) < 10).to_numpy(int)
S = 1.0
greenwood = 0.0
rows=[]
for tj in np.sort(np.unique(time[event == 1])):
n = (time >= tj).sum()
d = ((time == tj) & (event == 1)).sum()
S *= 1-d/n
if n > d: greenwood += d/(n*(n-d))
se = S*np.sqrt(greenwood)
rows.append((tj,n,d,S,se))
km = pd.DataFrame(rows,columns=["time","risk","events","survival","SE"])
print(km)
Python verification checklist
In the Kaplan Meier Survival Curve Python section, the source CSV is read directly and the method-specific equation is reproduced before interpretation. Greenwood-style uncertainty and numbers at risk become especially important in the late tail. Package output is accepted only after its coding and defaults agree with the manual trail.
Only topic-matching URLs from the uploaded register are embedded. When a Python, R, SPSS, or Excel file is absent, the article states that limitation rather than fabricating a filename or borrowing another post’s asset.
Kaplan Meier Survival Curve in R
Independent survival-analysis validation
R provides an independent implementation of the same the nonparametric survival probability beyond each observed event time. The script states status coding, factor references, and the function or manual calculation needed for this method instead of relying on defaults.
library(survival)
df <- read.csv("dataset.csv")
df$time <- as.numeric(df$absences)+1
df$event <- ifelse(as.numeric(df$G3)<10,1,0)
fit <- survfit(Surv(time,event) ~ school, data=df, conf.type="log-log")
print(summary(fit,times=c(5,10,15,20,25)))R validation checklist
R provides an independent route for Kaplan Meier Survival Curve with explicit formulas and saved output rather than a second decorative code block. The curve is a descriptive estimator; a formal comparison requires a separate test with an explicit weighting rule. The audit records package versions and uses the plan to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support.
Kaplan Meier Survival Curve in SPSS
Syntax-first setup and output audit
The SPSS workflow separates native procedures from extensions and preserves the event value in saved syntax. It is reviewed against the same dataset counts and interpretation used by the other software sections.
COMPUTE surv_time=absences+1.
COMPUTE surv_event=(G3<10).
KM surv_time BY school /STATUS=surv_event(1) /PRINT TABLE MEAN /PLOT SURVIVAL /TEST LOGRANK BRESLOW TARONE.Kaplan Meier Survival Curve in Excel
A visible calculation and reconciliation workbook
The Excel workbook exposes the arithmetic behind Ŝ(t) = ∏_{t_i≤t}(1 − d_i/n_i) and reconciles selected rows with the programmatic output. It is an auditable calculation, not a black-box result.
Excel step 1
List interval or exact event times in ascending order.
Excel step 2
Count at-risk, events and censorings.
Excel step 3
Apply the displayed estimator formula.
Excel step 4
Calculate confidence intervals and median survival.
Excel step 5
Reconcile every plotted step with the table.
Excel controls
For Excel controls, the Kaplan Meier Survival Curve review must make the spreadsheet an auditable calculation rather than a decorative download. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 3 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Kaplan Meier Survival Curve charts and chart-specific interpretation
First chart full-width; remaining charts arranged in pairs
For Kaplan Meier Survival Curve charts and chart-specific interpretation, the Kaplan Meier Survival Curve review must tie each chart caption to the displayed quantity and its numerical source. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 4 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
Python chart 1 — Kaplan Meier Survival Curve
Python chart 1: shows the prepared 1–33 duration distribution, event/censor pattern, and where the survival estimator obtains most of its information. For this topic, the display should be read with the event definition and the fact that multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets.
Python chart 2 — Kaplan Meier Survival Curve
Python chart 2: summarizes the principal Kaplan Meier Survival Curve output and the numerical components behind the reported conclusion. Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. The overall median survival was 23; GP and MS medians were 25 and 9.

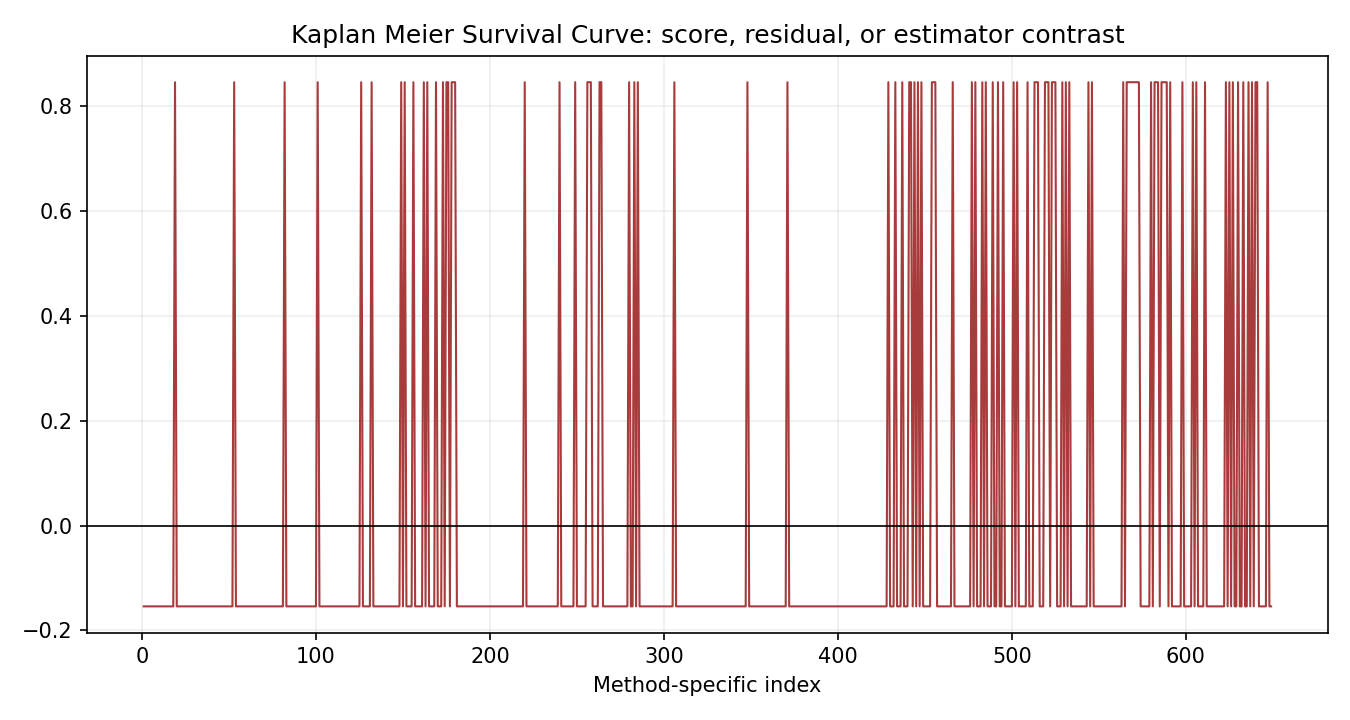

Python chart 3 — Kaplan Meier Survival Curve
Python chart 3: examines the diagnostic path most relevant to the assumptions of this survival estimator. The review priority is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; visible structure is a warning rather than decoration.

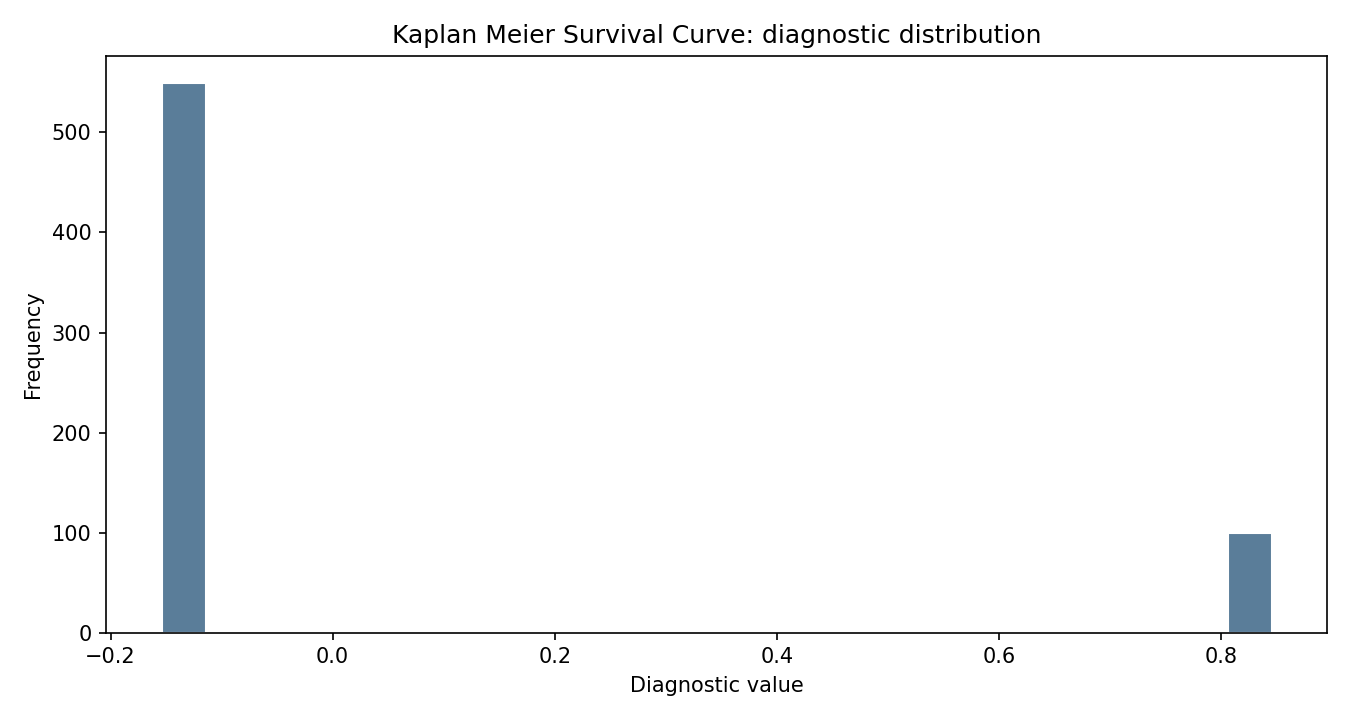

Python chart 4 — Kaplan Meier Survival Curve
Python chart 4: places uncertainty, residuals, weighted contributions, or fitted discrepancies on a distributional scale. It supports the model or test audit but does not replace the natural-scale result or its confidence interval.

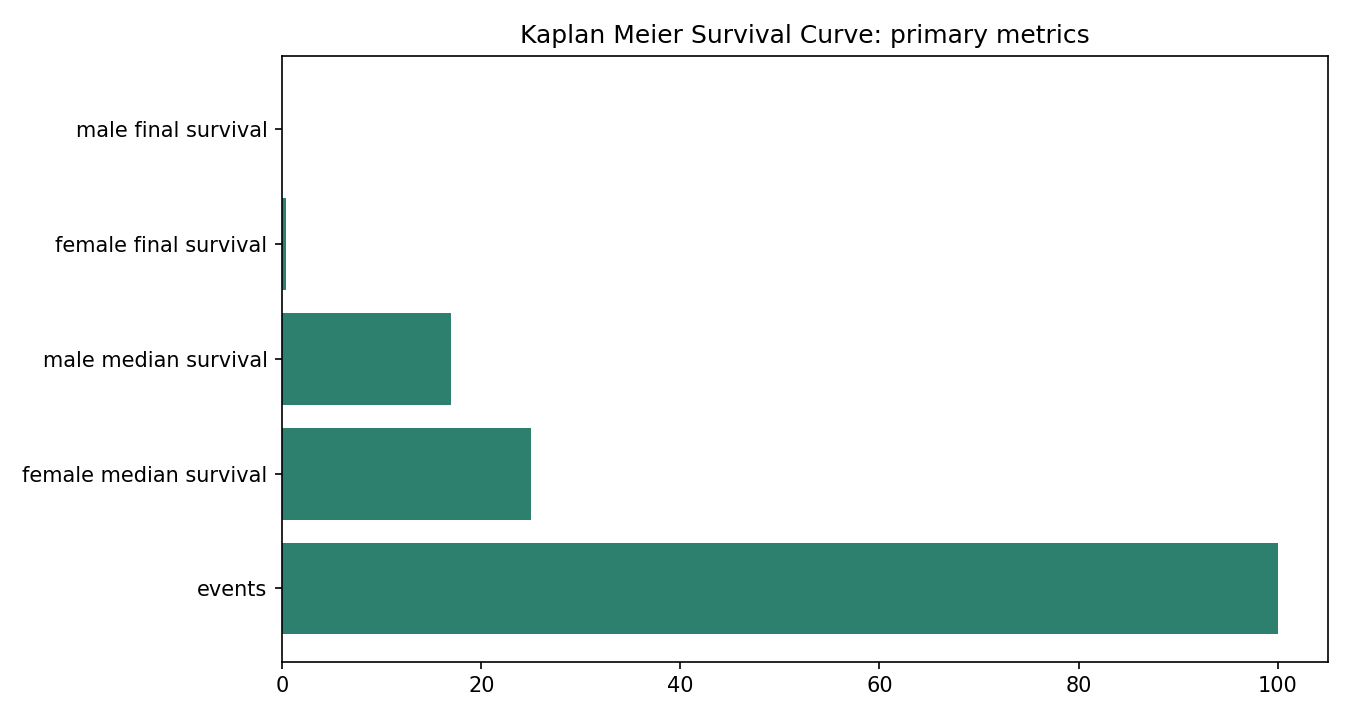

Python chart 5 — Kaplan Meier Survival Curve
Python chart 5: collects the key verified metrics used in the article, including sample information and the method-specific estimate. Every displayed value must reconcile with dataset.csv and the downloadable Python output.
R chart 1 — Kaplan Meier Survival Curve
R chart 1 independently reproduces the prepared duration, event, and censoring structure for Kaplan Meier Survival Curve. Read it with the declared event definition before comparing groups or fitted quantities.
R chart 2 — Kaplan Meier Survival Curve
R chart 2 presents the benchmark output using R conventions. Its values should agree with the Python calculation after reference levels, tie handling, weighting, and status coding are aligned.
R chart 3 — Kaplan Meier Survival Curve
R chart 3 focuses on the diagnostic evidence for Kaplan Meier Survival Curve. Visible departures or sparse-tail behavior should trigger a sensitivity analysis rather than a cosmetic interpretation.
R chart 4 — Kaplan Meier Survival Curve
R chart 4 displays uncertainty or residual structure on the scale used by the R workflow. It supports the numerical audit but does not replace the natural-scale estimate and its limitation.
R chart 5 — Kaplan Meier Survival Curve
R chart 5 consolidates the principal metrics used in the R output. Every annotation must reconcile with dataset.csv, the printed result, and the matched downloadable file.
Kaplan Meier Survival Curve diagnostics and sensitivity analysis
Evidence required beyond the primary number
Data diagnostics
Before interpreting the primary result, verify the 649-row count, 100 events, 549 censorings, 1–33 duration range, GP/MS composition, tied times, and missing values. The method-specific review then asks analysts to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support.
Method diagnostics
The Kaplan Meier Survival Curve sensitivity analysis asks whether its substantive conclusion survives a defensible neighboring specification. Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25. Chart behavior, tail support, coding, and the method-specific plan to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support are documented together.
Sensitivity diagnostics
Compare Kaplan Meier Survival Curve with Kaplan–Meier exact-time estimates, life-table grouped estimates, Nelson–Aalen cumulative hazard, parametric distribution-based curves. Explain whether the substantive conclusion changes and why.
Full Kaplan Meier Survival Curve publication audit
Method-specific checkpoints for content, data, formulas, results, and assets
1. Research estimand
Research estimand is reviewed separately from statistical significance. Translate the research question into the specific survival, hazard, incidence, or test quantity being estimated. For this survival estimator, the core operation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; the prose, formula, table, and chart must all describe that same operation.
Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25. This evidence is read alongside the checkpoint rather than used as a substitute for it. The recommended diagnostic is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, and the final interpretation should remember that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
2. Time origin
This checkpoint asks whether time origin has been translated into executable analysis. Identify the starting event and verify that all durations use the same origin. The method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; therefore a generic survival-analysis explanation is not enough for this post.
The overall median survival is 23, while GP and MS medians are 25 and 9 in the constructed example. This evidence is read alongside the checkpoint rather than used as a substitute for it. The recommended diagnostic is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, and the final interpretation should remember that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
3. Event and status coding
The reviewer should pause at event and status coding and reproduce the relevant step. Print the status mapping and reconcile each event total with the CSV. In this analysis the procedure multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; that mechanism sets the boundary for correct interpretation.
At time 10, estimated survival is 0.9052 for GP and 0.3405 for MS. This evidence is read alongside the checkpoint rather than used as a substitute for it. The recommended diagnostic is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, and the final interpretation should remember that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
4. Censoring definition
The publication test at censoring definition is practical: could another analyst rebuild the same result from dataset.csv? Verify that censoring is represented as status information rather than discarded rows. That standard matters because this approach multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets.
Downward steps occur only at events; censoring reduces future risk sets but creates no step of its own. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support. Interpret the displayed effect under the constraint that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
5. Duration scale
The reviewer should pause at duration scale and reproduce the relevant step. Check positivity, units, transformations, and the observed follow-up range. In this analysis the procedure multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; that mechanism sets the boundary for correct interpretation.
Greenwood-style uncertainty and numbers at risk become especially important in the late tail. Reproducing that figure from the bundled CSV is required before publication. The diagnostic sequence should display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, while the substantive statement recognizes that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
6. Risk-set or likelihood construction
This checkpoint asks whether risk-set or likelihood construction has been translated into executable analysis. Show which records enter each denominator or censored likelihood term. The method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; therefore a generic survival-analysis explanation is not enough for this post.
The curve is a descriptive estimator; a formal comparison requires a separate test with an explicit weighting rule. Reproducing that figure from the bundled CSV is required before publication. The diagnostic sequence should display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, while the substantive statement recognizes that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
7. Ties and discretization
Ties and discretization can invalidate an otherwise polished article. Check that discretized follow-up does not silently invoke different tie algorithms. The reason is specific to this procedure: it multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets. The final wording should state any unresolved limitation rather than hide it behind a p-value.
Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25. The numerical record supports a method-specific audit, but it does not remove design limitations. To test robustness, display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; when stating direction, note that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
8. Reference coding
The reviewer should pause at reference coding and reproduce the relevant step. Print factor levels and define the numerator and denominator of every contrast. In this analysis the procedure multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; that mechanism sets the boundary for correct interpretation.
The overall median survival is 23, while GP and MS medians are 25 and 9 in the constructed example. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; the directional explanation follows the fact that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
9. Missing-data handling
Treat missing-data handling as an analytical decision. Make missing-value handling visible instead of allowing silent listwise deletion. Here the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
At time 10, estimated survival is 0.9052 for GP and 0.3405 for MS. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support. Interpret the displayed effect under the constraint that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
10. Dependence and clustering
This checkpoint asks whether dependence and clustering has been translated into executable analysis. Document the independence assumption and any clustering correction. The method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; therefore a generic survival-analysis explanation is not enough for this post.
For 10. Dependence and clustering, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 5 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
11. Information and event adequacy
Information and event adequacy is reviewed separately from statistical significance. Recalculate event categories and counts directly from the source columns. For this survival estimator, the core operation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; the prose, formula, table, and chart must all describe that same operation.
Greenwood-style uncertainty and numbers at risk become especially important in the late tail. The article should retain this value in a saved table and connect it to its matching chart. Reviewers should also display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, because downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
12. Tail support
Treat tail support as an analytical decision. Check whether sparse risk sets support the requested estimate or coefficient complexity. Here the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
The curve is a descriptive estimator; a formal comparison requires a separate test with an explicit weighting rule. The numerical record supports a method-specific audit, but it does not remove design limitations. To test robustness, display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; when stating direction, note that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
13. Uncertainty interval
A strong account of uncertainty interval names the decision and shows its consequence. Verify the variance formula and avoid intervals based on a neighboring method. Since the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, hidden defaults at this point would propagate into every later value.
Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25. The post links this evidence to the formula and saved output rather than repeating generic advice. A defensible review will display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, and it will state clearly that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
14. Null hypothesis and p-value
Treat null hypothesis and p-value as an analytical decision. Write the exact null hypothesis and keep practical importance separate from significance. Here the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
For 14. Null hypothesis and p-value, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 6 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
15. Effect magnitude
Before interpreting the principal estimate, resolve effect magnitude. Show the size of the modeled difference rather than reporting significance alone. The calculation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
For 15. Effect magnitude, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 7 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
16. Software defaults
The publication test at software defaults is practical: could another analyst rebuild the same result from dataset.csv? Save the executable command and all defaults needed for an independent rerun. That standard matters because this approach multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets.
For 16. Software defaults, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 8 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
17. Cross-software reconciliation
A strong account of cross-software reconciliation names the decision and shows its consequence. Record package versions, defaults, factor coding, convergence, and tie settings. Since the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, hidden defaults at this point would propagate into every later value.
Greenwood-style uncertainty and numbers at risk become especially important in the late tail. Any discrepancy across Python, R, SPSS, or Excel must be traced to definitions or defaults. In addition, display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; the reader should be told that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
18. Chart-to-table audit
Chart-to-table audit receives an explicit pass, warning, or fail assessment. Verify that the figure, caption, data table, and method result describe the same run. This is necessary because the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, and a different construction would answer a different survival question.
The curve is a descriptive estimator; a formal comparison requires a separate test with an explicit weighting rule. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support. Interpret the displayed effect under the constraint that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
19. Sensitivity specification
This checkpoint asks whether sensitivity specification has been translated into executable analysis. Document whether the conclusion survives a method-specific sensitivity analysis. The method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; therefore a generic survival-analysis explanation is not enough for this post.
Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25. It provides an audit anchor, not an automatic scientific conclusion. The method-specific safeguard is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support. Interpret the displayed effect under the constraint that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
20. Scientific limitation
Before interpreting the principal estimate, resolve scientific limitation. State what the constructed teaching endpoint cannot establish about a real population. The calculation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
The overall median survival is 23, while GP and MS medians are 25 and 9 in the constructed example. The numerical record supports a method-specific audit, but it does not remove design limitations. To test robustness, display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; when stating direction, note that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
21. Generalizability boundary
Treat generalizability boundary as an analytical decision. Keep inference inside the observed design, coding, and follow-up window. Here the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
At time 10, estimated survival is 0.9052 for GP and 0.3405 for MS. Reproducing that figure from the bundled CSV is required before publication. The diagnostic sequence should display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, while the substantive statement recognizes that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
22. Reproducible record
Before interpreting the principal estimate, resolve reproducible record. Audit focus-keyword use, content specificity, and asset ownership before import. The calculation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
Downward steps occur only at events; censoring reduces future risk sets but creates no step of its own. The article should retain this value in a saved table and connect it to its matching chart. Reviewers should also display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, because downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
23. Publication language
Publication language is reviewed separately from statistical significance. Preserve the CSV, transformation rules, code, output, metadata, and matched URLs. For this survival estimator, the core operation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; the prose, formula, table, and chart must all describe that same operation.
Greenwood-style uncertainty and numbers at risk become especially important in the late tail. This evidence is read alongside the checkpoint rather than used as a substitute for it. The recommended diagnostic is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, and the final interpretation should remember that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
24. SEO and asset consistency
The reviewer should pause at seo and asset consistency and reproduce the relevant step. Verify that the figure, caption, data table, and method result describe the same run. In this analysis the procedure multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; that mechanism sets the boundary for correct interpretation.
The curve is a descriptive estimator; a formal comparison requires a separate test with an explicit weighting rule. The result is meaningful only within the constructed endpoint and observed follow-up. The audit should display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, then frame direction according to the principle that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
25. Estimator identity
Before interpreting the principal estimate, resolve estimator identity. Document the evidence and the consequence of a warning or failure. The calculation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
Overall survival is 0.8636 at time 5, 0.7261 at time 10, and 0.3227 at time 25. The result is meaningful only within the constructed endpoint and observed follow-up. The audit should display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support, then frame direction according to the principle that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
26. Variance construction
Variance construction can invalidate an otherwise polished article. Report sampling uncertainty on the natural scale and reproduce its calculation. The reason is specific to this procedure: it multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets. The final wording should state any unresolved limitation rather than hide it behind a p-value.
For 26. Variance construction, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 9 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
27. Median and quantiles
Before interpreting the principal estimate, resolve median and quantiles. Connect this checkpoint to a saved calculation rather than a generic claim. The calculation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
At time 10, estimated survival is 0.9052 for GP and 0.3405 for MS. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; the directional explanation follows the fact that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
28. Step placement and continuity
A strong account of step placement and continuity names the decision and shows its consequence. Document the evidence and the consequence of a warning or failure. Since the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, hidden defaults at this point would propagate into every later value.
For 28. Step placement and continuity, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 10 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
29. Exact times versus intervals
Treat exact times versus intervals as an analytical decision. Define the decision operationally and show how it was checked. Here the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
Greenwood-style uncertainty and numbers at risk become especially important in the late tail. The numerical record supports a method-specific audit, but it does not remove design limitations. To test robustness, display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; when stating direction, note that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
30. Censor marks and withdrawals
The reviewer should pause at censor marks and withdrawals and reproduce the relevant step. Distinguish incomplete follow-up from the occurrence of the modeled event. In this analysis the procedure multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; that mechanism sets the boundary for correct interpretation.
For 30. Censor marks and withdrawals, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 11 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
31. Monotonicity and bounds
This checkpoint asks whether monotonicity and bounds has been translated into executable analysis. Document the evidence and the consequence of a warning or failure. The method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; therefore a generic survival-analysis explanation is not enough for this post.
For 31. Monotonicity and bounds, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 12 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
32. Tail transformation
Treat tail transformation as an analytical decision. Use numbers at risk and event distribution to limit late-time claims. Here the method multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets; a reproducible audit therefore records the relevant inputs, intermediate quantities, and settings before accepting the displayed result.
For 32. Tail transformation, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 13 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
33. Estimation versus hypothesis testing
Estimation versus hypothesis testing can invalidate an otherwise polished article. Connect this checkpoint to a saved calculation rather than a generic claim. The reason is specific to this procedure: it multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets. The final wording should state any unresolved limitation rather than hide it behind a p-value.
For 33. Estimation versus hypothesis testing, the Kaplan Meier Survival Curve review must record a method-specific publication checkpoint and the evidence required to pass it. This method multiplies conditional survival factors at ordered event times while censoring changes later risk sets; therefore the editor should show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior. The bundled example supplies the following numerical anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. Checkpoint 14 passes only when the formula, code output, table, chart caption, and interpretation describe the same event definition and censoring rule.
34. Practical time horizons
Before interpreting the principal estimate, resolve practical time horizons. Document the evidence and the consequence of a warning or failure. The calculation multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets, so any mismatch in timing, coding, or risk-set construction can change the target quantity even when the program completes normally.
Downward steps occur only at events; censoring reduces future risk sets but creates no step of its own. This number is retained because it distinguishes the current method from neighboring procedures. The quality-control step is to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support; the directional explanation follows the fact that downward steps occur only at events; censoring changes later denominators but does not create a survival drop.
Final Kaplan Meier Survival Curve release decision
This draft is released only when its exact formula, event definition, software settings, numerical result, chart captions, download files, and contextual links agree. The central computational mechanism is that it multiplies conditional survival factors at ordered event times while censored observations remain in earlier risk sets. That statement differentiates the article from the other twenty survival posts and prevents a shared template from substituting for method-specific explanation.
The final robustness record directs the editor to display censor marks, numbers at risk, Greenwood intervals, median confidence limits, and tail support. The directional interpretation remains: downward steps occur only at events; censoring changes later denominators but does not create a survival drop. Because the example is built from absences and G3 in a student-performance dataset, publication must keep the teaching-purpose limitation visible and must not recast the endpoint as clinical survival, mortality, equipment failure, or causal evidence.
Kaplan Meier Survival Curve compared with related methods
Choose the method by estimand, not menu proximity
| Related method | Comparison question |
|---|---|
| Kaplan–Meier exact-time estimates | Kaplan–meier exact-time estimates use every distinct event time rather than grouped intervals. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Kaplan Meier Survival Curve only when the nonparametric survival probability beyond each observed event time is the actual target. |
| life-table grouped estimates | Life-table grouped estimates summarize interval failure and survival with a withdrawal convention. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Kaplan Meier Survival Curve only when the nonparametric survival probability beyond each observed event time is the actual target. |
| Nelson–Aalen cumulative hazard | Nelson–aalen cumulative hazard targets accumulated hazard instead of survival probability. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Kaplan Meier Survival Curve only when the nonparametric survival probability beyond each observed event time is the actual target. |
| parametric distribution-based curves | Parametric distribution-based curves smooth the entire survival distribution under a family assumption. Compare it with the present method by checking the estimand, censor handling, weight or distribution, uncertainty, and practical interpretation; retain Kaplan Meier Survival Curve only when the nonparametric survival probability beyond each observed event time is the actual target. |
How to report Kaplan Meier Survival Curve
A complete, restrained result statement
Reporting template
“A Kaplan Meier Survival Curve analysis used 649 records from dataset(100).csv. Duration was defined as absences plus one, and the event indicator equaled one when G3 was below 10; 100 events and 549 right-censored observations were available. Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. The overall median survival was 23; GP and MS medians were 25 and 9. The analysis documented event coding, reference groups, risk sets, ties, assumptions, software settings, diagnostics, matching files, and the educational nature of the prepared survival endpoint.”
Include
Avoid calling hazard a probability, treating censoring as missingness, or converting a nonsignificant result into proof of equality. The final sentence should answer the stated estimand and no broader question.
Avoid
A complete report states the prepared time origin, event and censor codes, sample and event counts, group or predictor reference, exact method, formula, estimate or statistic, uncertainty, and the relevant diagnostics. It then gives this result: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. The overall median survival was 23; GP and MS medians were 25 and 9.
Kaplan Meier Survival Curve downloads
Only assets assigned to this topic after filename and extension audit
The download panel contains only URLs whose filenames and extensions match this topic in the source register. The plugin does not infer a missing asset from another post or alter the registered media path.
Kaplan Meier Survival Curve frequently asked questions
Method-specific answers for draft review
What does Kaplan Meier Survival Curve measure?
Kaplan Meier Survival Curve is used for the estimand defined in this article. It multiplies conditional survival factors at ordered event times while censoring changes later risk sets. The interpretation remains conditional on the stated time origin, event code, censoring rule, group or predictor coding, and any distributional or proportionality assumptions.
When should Kaplan Meier Survival Curve be used?
Use Kaplan Meier Survival Curve when the research objective requires product-limit survival steps, Greenwood uncertainty, and risk-set support and the assumptions listed in the article are defensible. The method is inappropriate when a different event type, time emphasis, adjustment strategy, or hazard shape is the scientific target.
What data are used in this Kaplan Meier Survival Curve example?
The product-limit table uses 100 events and 549 censorings to update survival at 16 distinct failure times from duration 1 through 27. All values come from the uploaded 649-row file and the disclosed absences-plus-one/G3 event construction.
What is the main Kaplan Meier Survival Curve result?
The result is summarized by this verified anchor: Overall KM survival was 0.864 at time 5, 0.726 at time 10, and 0.516 at time 20. It should be read together with the method-specific assumptions, uncertainty, and the teaching-endpoint limitation rather than as a stand-alone causal conclusion.
How does censoring affect Kaplan Meier Survival Curve?
Censored records contribute to risk sets or likelihood survival terms until their observed duration. Their handling matters because multiplies conditional survival factors at ordered event times while censoring changes later risk sets; treating censoring as an event or deleting censored rows would change the estimate and usually bias the analysis.
How are ties handled in Kaplan Meier Survival Curve?
The prepared durations are integer-valued, so tied times are common. The article states the exact pooled-event rule, weight, or Efron/Breslow approximation used for Kaplan Meier Survival Curve, and software results should be reconciled only after those defaults match.
Can Kaplan Meier Survival Curve be completed in Python?
Yes. The Python section reconstructs the data fields and exposes the intermediate quantities required for Kaplan Meier Survival Curve. It prints the benchmark result and supports the diagnostic task to show censor marks, numbers at risk, Greenwood intervals, median support, and unstable tail behavior.
Can Kaplan Meier Survival Curve be completed in R?
Yes. The R section uses a method-appropriate survival or competing-risk routine, declares factor references and tie or weighting settings, and provides an independent check of the benchmark result for Kaplan Meier Survival Curve.
Can Kaplan Meier Survival Curve be completed in SPSS?
SPSS is used only where a native procedure matches Kaplan Meier Survival Curve. When no exact native command exists, the post describes SPSS as a data-management, charting, or integration route and does not rename a different test or model.
How does Excel support Kaplan Meier Survival Curve?
Excel supports Kaplan Meier Survival Curve by displaying risk sets, events, censorings, conditional factors, product-limit survival, and Greenwood terms in visible cells. The matching workbook must reproduce selected Python and R benchmark values and retain the exact event, censoring, group, tie, and interval definitions.
What is the largest reporting mistake for Kaplan Meier Survival Curve?
The largest Kaplan Meier Survival Curve reporting error is letting censoring create downward steps or interpreting the sparse tail without numbers at risk. The article also keeps the teaching-endpoint limitation visible so the worked result is not presented as causal or naturally observed survival evidence.
Which internal guides support Kaplan Meier Survival Curve?
Start with Log Rank Test because it provides the nearest check on product-limit survival steps, Greenwood uncertainty, and risk-set support. Use Breslow Test, Tarone Ware Test, Fleming Harrington Test to compare weighting, probability scale, model assumptions, or software implementation; each link has a specific methodological role rather than serving as generic navigation.
