Measurement Model: Formula, Verified Results, Charts and Interpretation
A measurement model specifies how observed indicators represent latent constructs or composites. For the reflective CFA used here, assessment requires loadings, residual variances, factor correlations, reliability, convergent validity, discriminant validity, and global/local fit. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
For Measurement Model, cFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
What Measurement Model measures
The exact estimand and the result this method is allowed to support.
Measurement Model addresses one defined analytical target: A measurement model specifies how observed indicators represent latent constructs or composites. For the reflective CFA used here, assessment requires loadings, residual variances, factor correlations, reliability, convergent validity, discriminant validity, and global/local fit.
Quantity estimated in this analysis
The indicator-to-construct specification is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is CFI = 0.997823; RMSEA = 0.020492 supplies the first supporting check. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
For Measurement Model, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
Measurement-model adequacy does not establish the structural paths among constructs or causal effects. Global fit alone cannot compensate for a weak indicator such as TravelAccess.
For Measurement Model, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use Measurement Model
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the indicator-to-construct specification supports the result stated for the declared dataset and analytical specification. It is answered by inspect each standardized loading and residual, followed by calculate CR and AVE per construct. The evidence is bounded by CFI = 0.997823 and its named companion quantities.
For Measurement Model, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
Structural Model: The structural model concerns relations among constructs after measurement quality is established.
Confirmatory Factor Analysis: CFA is the estimation procedure used for this reflective measurement model.
These distinctions determine which formula, output table, and chart can legitimately appear in a Measurement Model post.
Real data used for Measurement Model
Variables, coding, sample or panel size, and the role each input plays.
For Measurement Model, the model-based analysis uses 649 complete student records and the declared indicator blocks shown in the table. G1, G2, and G3 define Academic Achievement; Medu, Fedu, and reverse-coded TravelAccess define Educational Advantage; goout, Dalc, and Walc define Social-Alcohol Exposure.
For the indicator-to-construct specification, these variables enter a prespecified covariance, composite, or path model. Their order, scaling, factor membership, and missing-data treatment must match the model syntax because CFI = 0.997823 is conditional on that exact specification.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|
| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
Measurement Model assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. Indicator–construct assignments are theoretically prespecified
This condition determines whether the input object matches the formula. In the current Measurement Model analysis, the check is to inspect each standardized loading and residual while preserving CFI = 0.997823.
For Measurement Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. The measurement mode is correct
This requirement controls whether the numerical estimate has the interpretation claimed. In the current Measurement Model analysis, the check is to calculate CR and AVE per construct while preserving RMSEA = 0.020492.
For Measurement Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. The model is identified
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Measurement Model analysis, the check is to assess HTMT with confidence intervals while preserving SRMR = 0.035876.
For Measurement Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. The estimator matches the data
This specification rule keeps the software routes numerically comparable. In the current Measurement Model analysis, the check is to review factor correlations and local residuals while preserving G2 standardized loading = 0.979897.
For Measurement Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. Residual dependencies are justified
This diagnostic requirement is checked before a benchmark is applied. In the current Measurement Model analysis, the check is to test alternative measurement specifications while preserving TravelAccess standardized loading = 0.301480.
For Measurement Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. Reliability and validity are assessed per construct
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Measurement Model analysis, the check is to complete measurement assessment before structural paths while preserving Academic Achievement CR = 0.953517.
For Measurement Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
Measurement Model hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
For Measurement Model, global model hypotheses concern covariance reproduction, while parameter hypotheses concern individual loadings, paths, covariances, weights, or indirect effects.
The two levels are reported separately so that a favorable global result does not conceal an unsupported parameter claim in Measurement Model.
Decision for the worked analysis
For Measurement Model, the calculation yields CFI = 0.997823 . CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Measurement Model formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for Measurement Model. Its symbols are connected to the saved inputs and to CFI = 0.997823, RMSEA = 0.020492, SRMR = 0.035876, G2 standardized loading = 0.979897.
The indicator-to-construct mapping must be specified before structural paths are interpreted.
Excellent global fit does not erase the weak local loading for TravelAccess.
Symbol and denominator control
A measurement model specifies how observed indicators represent latent constructs or composites. For the reflective CFA used here, assessment requires loadings, residual variances, factor correlations, reliability, convergent validity, discriminant validity, and global/local fit.
For Measurement Model, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
For Measurement Model, the spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with CFI = 0.997823 and RMSEA = 0.020492 .
Measurement-model adequacy does not establish the structural paths among constructs or causal effects. Global fit alone cannot compensate for a weak indicator such as TravelAccess.
Step-by-step Measurement Model calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the indicator-to-construct specification. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Inspect each standardized loading and residual.
Numerical trace: CFI = 0.997823; RMSEA = 0.020492.
Condition: indicator–construct assignments are theoretically prespecified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Calculate CR and AVE per construct.
Numerical trace: RMSEA = 0.020492; SRMR = 0.035876.
Condition: the measurement mode is correct. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Assess HTMT with confidence intervals.
Numerical trace: SRMR = 0.035876; G2 standardized loading = 0.979897.
For Measurement Model, condition: the model is identified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Review factor correlations and local residuals.
Numerical trace: G2 standardized loading = 0.979897; TravelAccess standardized loading = 0.301480.
Condition: the estimator matches the data. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Test alternative measurement specifications.
Numerical trace: TravelAccess standardized loading = 0.301480; Academic Achievement CR = 0.953517.
Condition: residual dependencies are justified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Complete measurement assessment before structural paths.
Numerical trace: Academic Achievement CR = 0.953517; Educational Advantage AVE = 0.467009.
Condition: reliability and validity are assessed per construct. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Measurement Model results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
CFI
The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Why the result is internally coherent
For Measurement Model, cFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
For Measurement Model, rMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
For Measurement Model, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| CFI | 0.997823 | CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| RMSEA | 0.020492 | RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting. |
| SRMR | 0.035876 | SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells. |
| G2 standardized loading | 0.979897 | G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit. |
| TravelAccess standardized loading | 0.301480 | TravelAccess standardized loading = 0.301480 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Academic Achievement CR | 0.953517 | Academic Achievement CR = 0.953517 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Educational Advantage AVE | 0.467009 | Educational Advantage AVE = 0.467009 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Academic Achievement AVE | 0.872614 | Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Social-Alcohol Exposure AVE | 0.490896 | Social-Alcohol Exposure AVE = 0.490896 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Educational Advantage CR | 0.696353 | Educational Advantage CR = 0.696353 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Social-Alcohol Exposure CR | 0.724808 | Social-Alcohol Exposure CR = 0.724808 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Academic sqrt AVE | 0.934138 | Academic sqrt AVE = 0.934138 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Educational sqrt AVE | 0.683380 | Educational sqrt AVE = 0.683380 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Social-Alcohol sqrt AVE | 0.700640 | Social-Alcohol sqrt AVE = 0.700640 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
Measurement Model in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses semopy, Model to calculate or extract the indicator-to-construct specification from the declared data and analytical specification. It must reproduce CFI = 0.997823 and retain RMSEA = 0.020492 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to inspect each standardized loading and residual; the associated design condition is that indicator–construct assignments are theoretically prespecified. Measurement-model adequacy does not establish the structural paths among constructs or causal effects. Global fit alone cannot compensate for a weak indicator such as TravelAccess.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
from semopy import Model, calc_stats
model = Model("""
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
""")
model.fit(df)
stats = calc_stats(model)
print("Measurement Model")
print(stats.T if "all" == "all" else stats.T.loc[["ALL"]])
print(model.inspect(std_est=True))
Measurement Model in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses lavaan and the displayed arguments to estimate the indicator-to-construct specification. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with CFI = 0.997823 after the analyst calculate CR and AVE per construct. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
library(lavaan)
model <- '
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
'
fit <- sem(model,data=d,estimator="ML")
fitMeasures(fit,c("chisq","df","pvalue","cfi","tli","nfi","rmsea","srmr","gfi","agfi"))
standardizedSolution(fit)Measurement Model in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the indicator-to-construct specification. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify CFI = 0.997823 and the settings needed to reproduce it. The software review specifically assess HTMT with confidence intervals, while preserving the requirement that the model is identified.
* Measurement Model is obtained from the prespecified AMOS covariance model.
* Three factors: G1 G2 G3; Medu Fedu TravelAccess; goout Dalc Walc.
* Maximum likelihood, N=649, df=24.
* Request standardized estimates, residual moments, squared multiple correlations, and fit measures.
* Reconcile the exact Measurement Model value with the formula and result ledger in this draft.Measurement Model in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the indicator-to-construct specification. Named cells retain the inputs, intermediate components, and final formula leading to CFI = 0.997823; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to review factor correlations and local residuals and documents RMSEA = 0.020492 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by Measurement Model.
Calculation: Use the native MathML formula shown above with named ranges for every input
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.Measurement Model charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same Measurement Model analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

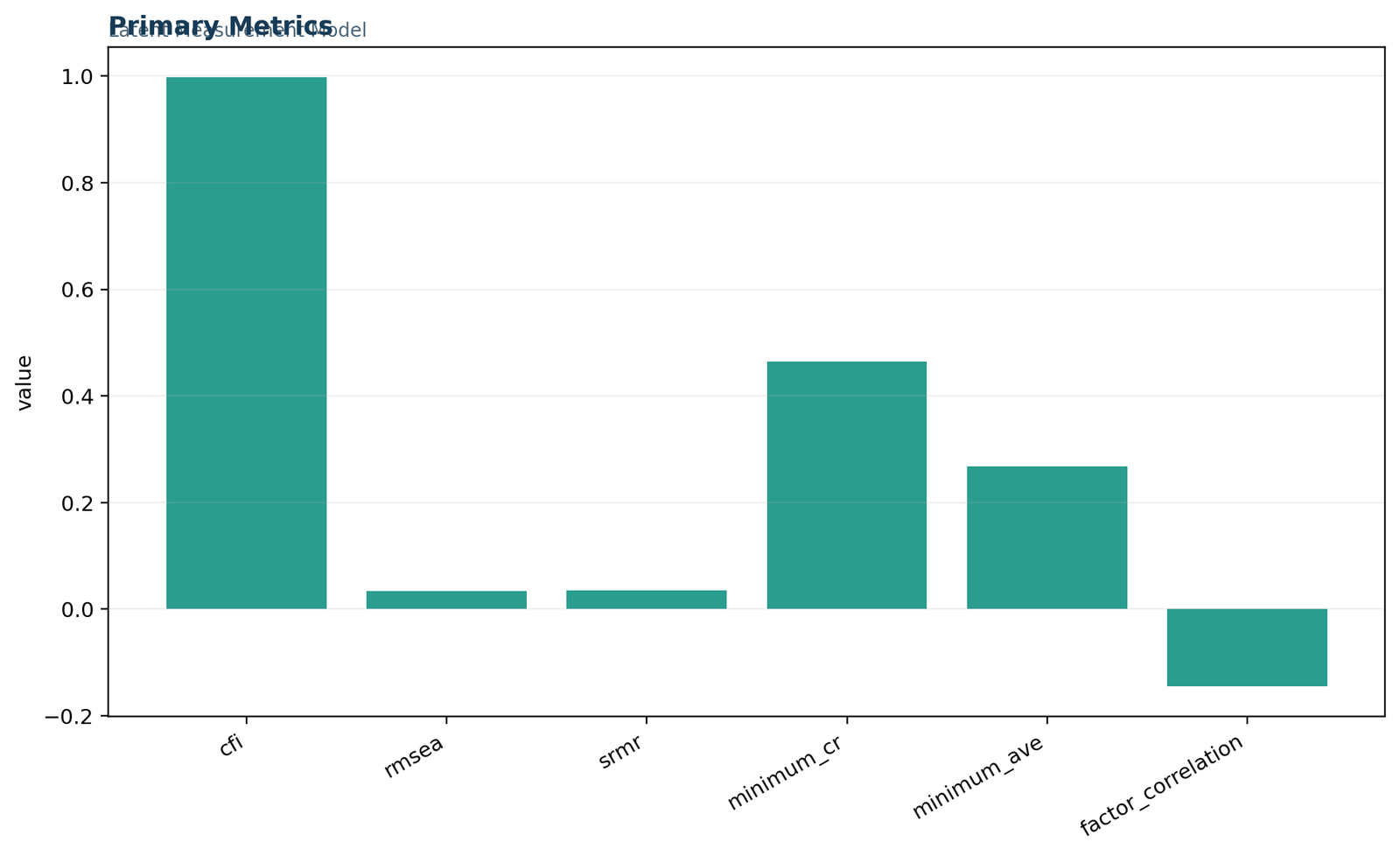

01 Measurement-Model Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Measurement Model. Read CFI = 0.997823 beside RMSEA = 0.020492; the first quantity is not replaced by the second.
The chart is used to inspect each standardized loading and residual. Its interpretation remains valid only when indicator–construct assignments are theoretically prespecified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

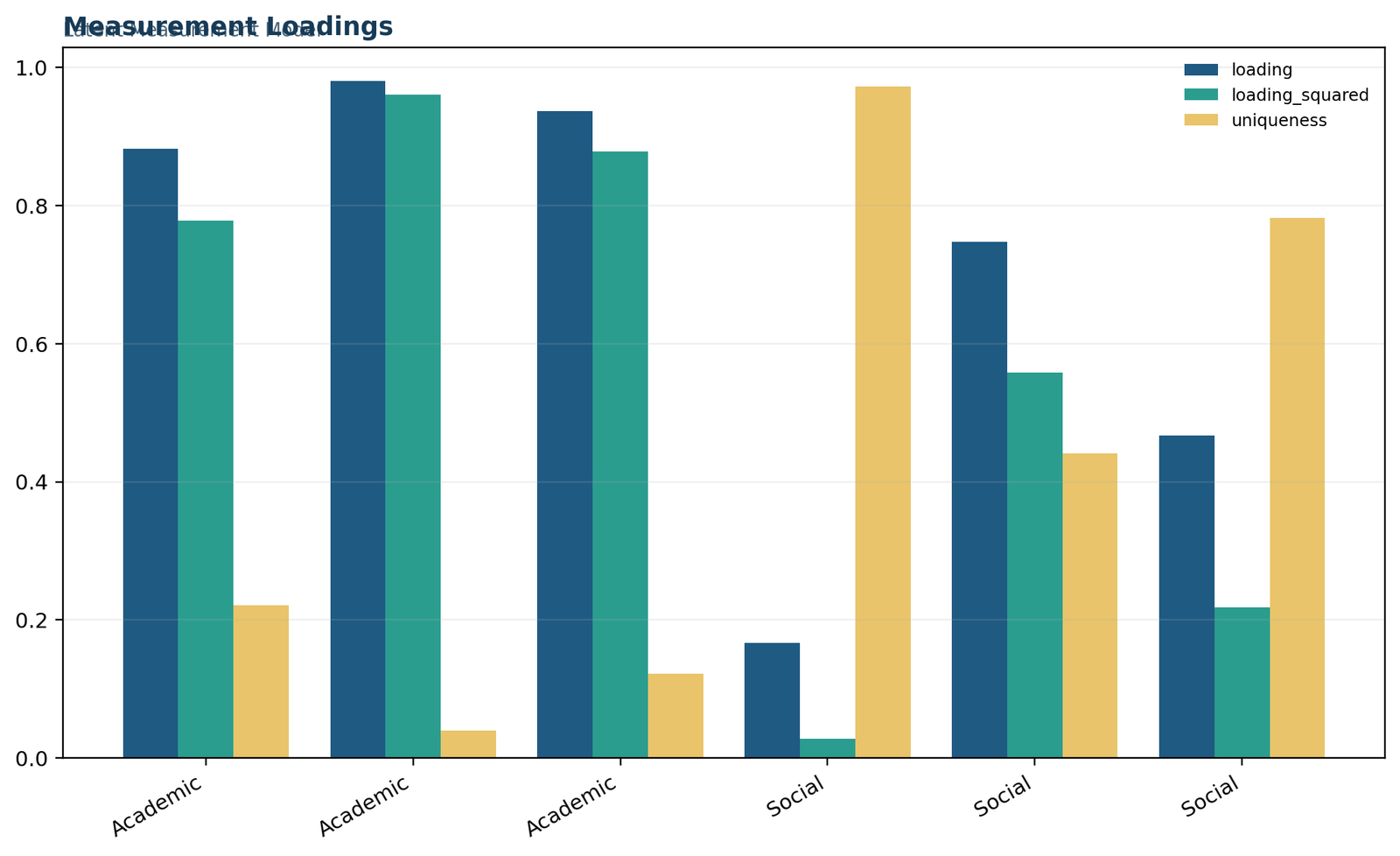

02 Measurement-Model Measurement Loadings
This panel locates strong, weak, and cross-indicator coefficients in the declared measurement structure for Measurement Model. Read RMSEA = 0.020492 beside SRMR = 0.035876; the first quantity is not replaced by the second.
The chart is used to calculate CR and AVE per construct. Its interpretation remains valid only when the measurement mode is correct. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

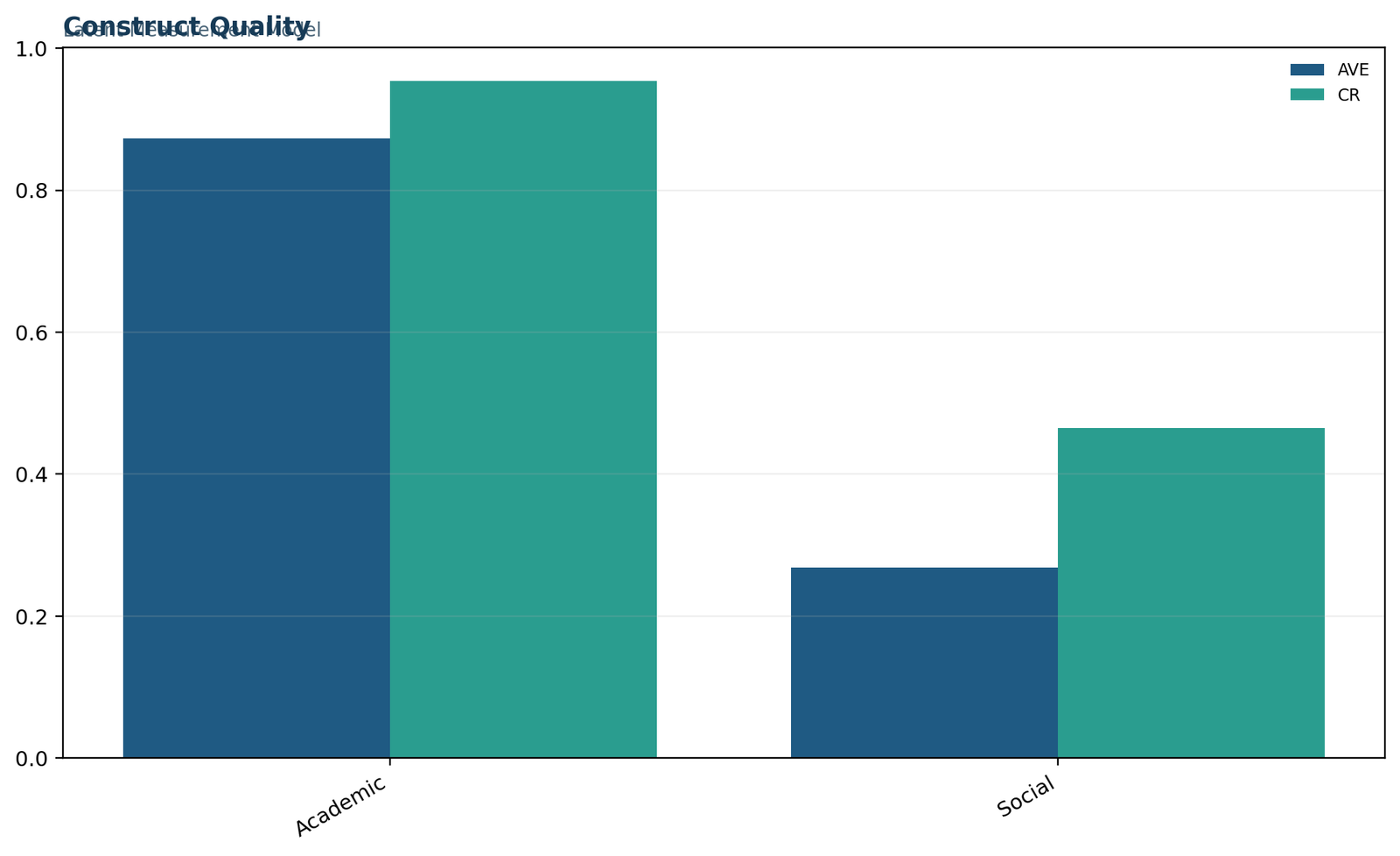

03 Measurement-Model Construct Quality
This panel provides a visual diagnostic tied to the method’s exact decision rule for Measurement Model. Read SRMR = 0.035876 beside G2 standardized loading = 0.979897; the first quantity is not replaced by the second.
The chart is used to assess HTMT with confidence intervals. Its interpretation remains valid only when the model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

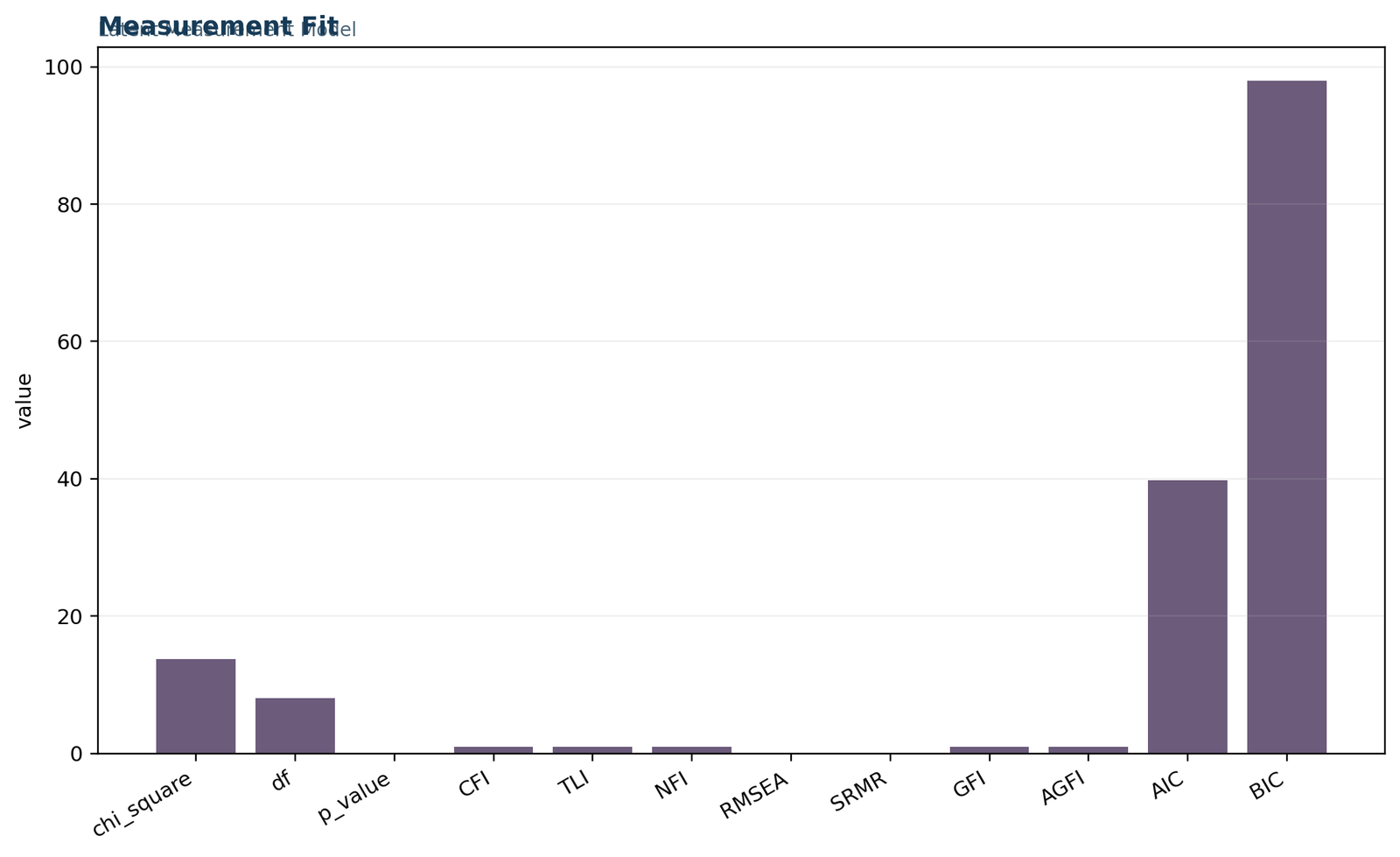

04 Measurement-Model Measurement Fit
This panel provides a visual diagnostic tied to the method’s exact decision rule for Measurement Model. Read G2 standardized loading = 0.979897 beside TravelAccess standardized loading = 0.301480; the first quantity is not replaced by the second.
The chart is used to review factor correlations and local residuals. Its interpretation remains valid only when the estimator matches the data. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

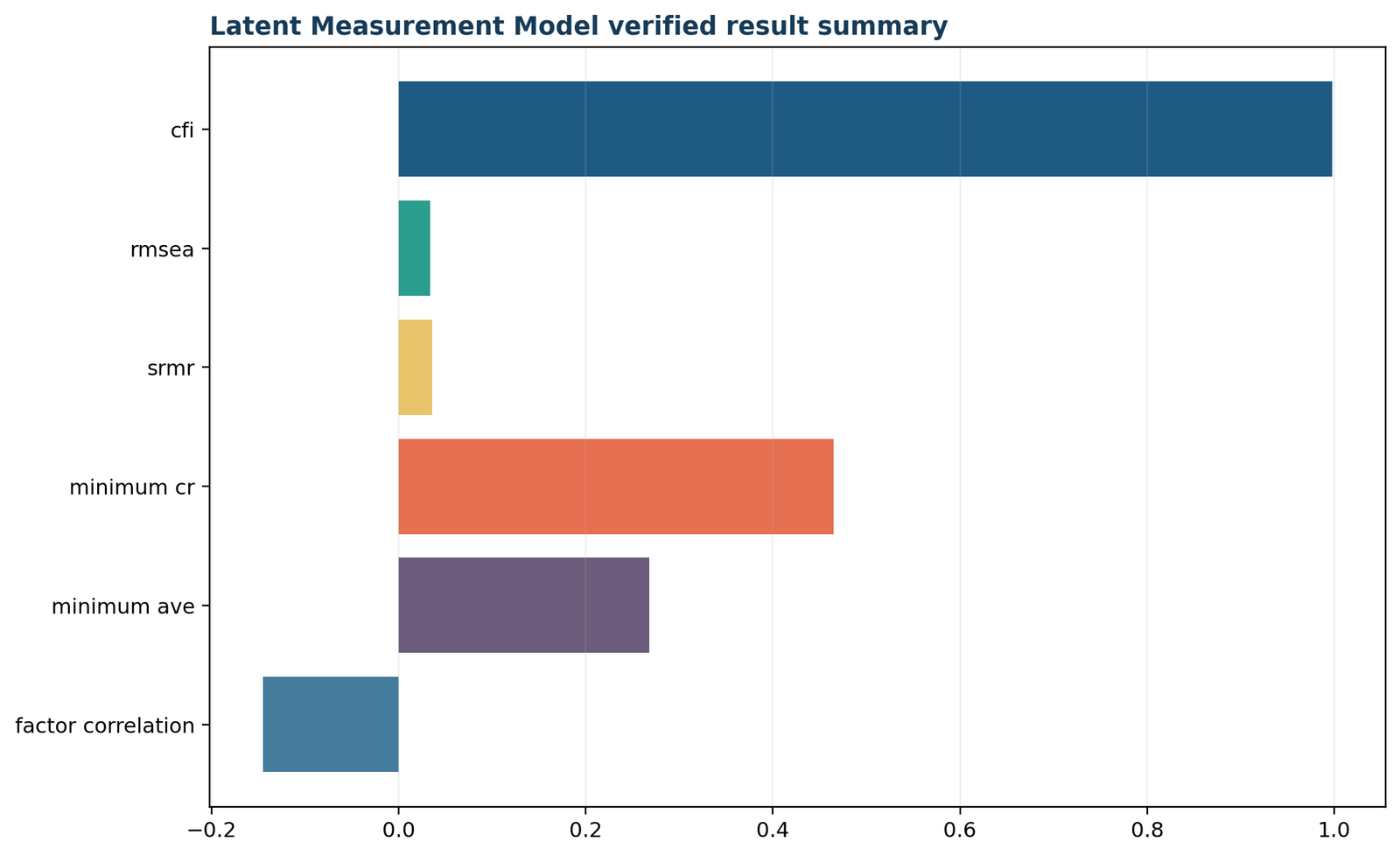

05 Measurement-Model Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Measurement Model. Read TravelAccess standardized loading = 0.301480 beside Academic Achievement CR = 0.953517; the first quantity is not replaced by the second.
The chart is used to test alternative measurement specifications. Its interpretation remains valid only when residual dependencies are justified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Measurement-Model Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Measurement Model. Read Academic Achievement CR = 0.953517 beside Educational Advantage AVE = 0.467009; the first quantity is not replaced by the second.
The chart is used to complete measurement assessment before structural paths. Its interpretation remains valid only when reliability and validity are assessed per construct. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Measurement-Model Measurement Loadings
This panel locates strong, weak, and cross-indicator coefficients in the declared measurement structure for Measurement Model. Read Educational Advantage AVE = 0.467009 beside Academic Achievement AVE = 0.872614; the first quantity is not replaced by the second.
The chart is used to inspect each standardized loading and residual. Its interpretation remains valid only when indicator–construct assignments are theoretically prespecified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
03 Measurement-Model Construct Quality
This panel provides a visual diagnostic tied to the method’s exact decision rule for Measurement Model. Read Academic Achievement AVE = 0.872614 beside Social-Alcohol Exposure AVE = 0.490896; the first quantity is not replaced by the second.
The chart is used to calculate CR and AVE per construct. Its interpretation remains valid only when the measurement mode is correct. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
04 Measurement-Model Measurement Fit
This panel provides a visual diagnostic tied to the method’s exact decision rule for Measurement Model. Read Social-Alcohol Exposure AVE = 0.490896 beside Educational Advantage CR = 0.696353; the first quantity is not replaced by the second.
The chart is used to assess HTMT with confidence intervals. Its interpretation remains valid only when the model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Measurement-Model Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Measurement Model. Read Educational Advantage CR = 0.696353 beside Social-Alcohol Exposure CR = 0.724808; the first quantity is not replaced by the second.
The chart is used to review factor correlations and local residuals. Its interpretation remains valid only when the estimator matches the data. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
Measurement Model verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Measurement Model.
1. Inspect each standardized loading and residual
Begin by inspect each standardized loading and residual. For the indicator-to-construct specification, this operation directly connects CFI = 0.997823 with SRMR = 0.035876. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The governing condition is that indicator–construct assignments are theoretically prespecified. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Structural Model, because The structural model concerns relations among constructs after measurement quality is established.
2. Calculate CR and AVE per construct
Next, calculate CR and AVE per construct. For the indicator-to-construct specification, this operation directly connects RMSEA = 0.020492 with G2 standardized loading = 0.979897. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
The governing condition is that the measurement mode is correct. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Confirmatory Factor Analysis, because CFA is the estimation procedure used for this reflective measurement model.
3. Assess HTMT with confidence intervals
The third verification is to assess HTMT with confidence intervals. For the indicator-to-construct specification, this operation directly connects SRMR = 0.035876 with TravelAccess standardized loading = 0.301480. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
The governing condition is that the model is identified. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Composite Measurement Model, because Composite models form weighted scores and require different outer-model criteria.
4. Review factor correlations and local residuals
After the core arithmetic is stable, review factor correlations and local residuals. For the indicator-to-construct specification, this operation directly connects G2 standardized loading = 0.979897 with Academic Achievement CR = 0.953517. G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
The governing condition is that the estimator matches the data. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Structural Model, because The structural model concerns relations among constructs after measurement quality is established.
5. Test alternative measurement specifications
A robustness review must test alternative measurement specifications. For the indicator-to-construct specification, this operation directly connects TravelAccess standardized loading = 0.301480 with Educational Advantage AVE = 0.467009. TravelAccess standardized loading = 0.301480 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
The governing condition is that residual dependencies are justified. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Confirmatory Factor Analysis, because CFA is the estimation procedure used for this reflective measurement model.
6. Complete measurement assessment before structural paths
The final reconciliation should complete measurement assessment before structural paths. For the indicator-to-construct specification, this operation directly connects Academic Achievement CR = 0.953517 with Academic Achievement AVE = 0.872614. Academic Achievement CR = 0.953517 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model.
The governing condition is that reliability and validity are assessed per construct. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Composite Measurement Model, because Composite models form weighted scores and require different outer-model criteria.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | inspect each standardized loading and residual | indicator–construct assignments are theoretically prespecified | CFI = 0.997823 |
| 2 | calculate CR and AVE per construct | the measurement mode is correct | RMSEA = 0.020492 |
| 3 | assess HTMT with confidence intervals | the model is identified | SRMR = 0.035876 |
| 4 | review factor correlations and local residuals | the estimator matches the data | G2 standardized loading = 0.979897 |
| 5 | test alternative measurement specifications | residual dependencies are justified | TravelAccess standardized loading = 0.301480 |
| 6 | complete measurement assessment before structural paths | reliability and validity are assessed per construct | Academic Achievement CR = 0.953517 |
Measurement Model compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Measurement Model formula and output rather than a nearby procedure.
Structural Model
The structural model concerns relations among constructs after measurement quality is established.
In the current analysis, RMSEA = 0.020492 remains evidence for the indicator-to-construct specification; it is not relabeled as a Structural Model result. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
Confirmatory Factor Analysis
CFA is the estimation procedure used for this reflective measurement model.
In the current analysis, SRMR = 0.035876 remains evidence for the indicator-to-construct specification; it is not relabeled as a Confirmatory Factor Analysis result. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
Composite Measurement Model
Composite models form weighted scores and require different outer-model criteria.
In the current analysis, G2 standardized loading = 0.979897 remains evidence for the indicator-to-construct specification; it is not relabeled as a Composite Measurement Model result. G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
How to report Measurement Model
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
Measurement Model was evaluated using the declared data, specification, and software settings. The primary result was CFI = 0.997823; RMSEA = 0.020492 and SRMR = 0.035876 supplied supporting context. The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
The report then states the limitation explicitly: Measurement-model adequacy does not establish the structural paths among constructs or causal effects. Global fit alone cannot compensate for a weak indicator such as TravelAccess.
Settings that must accompany the result
indicator–construct assignments are theoretically prespecified; the measurement mode is correct; the model is identified; the estimator matches the data.
For Measurement Model, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
inspect each standardized loading and residual; calculate CR and AVE per construct; assess HTMT with confidence intervals; review factor correlations and local residuals.
The final wording is revised only after those operations reproduce the saved values.
Measurement Model decision scenarios
For Measurement Model, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Inspect each standardized loading and residual
Consider a review in which CFI = 0.997823 is reproduced but RMSEA = 0.020492 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect each standardized loading and residual and verify that indicator–construct assignments are theoretically prespecified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Model only for method selection: The structural model concerns relations among constructs after measurement quality is established. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Input-definition sensitivity: Calculate CR and AVE per construct
Consider a review in which SRMR = 0.035876 is reproduced but G2 standardized loading = 0.979897 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to calculate CR and AVE per construct and verify that the measurement mode is correct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA is the estimation procedure used for this reflective measurement model. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Software-definition reconciliation: Assess HTMT with confidence intervals
Consider a review in which TravelAccess standardized loading = 0.301480 is reproduced but Academic Achievement CR = 0.953517 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to assess HTMT with confidence intervals and verify that the model is identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Composite Measurement Model only for method selection: Composite models form weighted scores and require different outer-model criteria. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Local-chart conflict: Review factor correlations and local residuals
Consider a review in which Educational Advantage AVE = 0.467009 is reproduced but Academic Achievement AVE = 0.872614 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to review factor correlations and local residuals and verify that the estimator matches the data.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Model only for method selection: The structural model concerns relations among constructs after measurement quality is established. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Alternative-method challenge: Test alternative measurement specifications
Consider a review in which Social-Alcohol Exposure AVE = 0.490896 is reproduced but Educational Advantage CR = 0.696353 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to test alternative measurement specifications and verify that residual dependencies are justified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA is the estimation procedure used for this reflective measurement model. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Replication and reporting decision: Complete measurement assessment before structural paths
Consider a review in which Social-Alcohol Exposure CR = 0.724808 is reproduced but Academic sqrt AVE = 0.934138 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to complete measurement assessment before structural paths and verify that reliability and validity are assessed per construct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Composite Measurement Model only for method selection: Composite models form weighted scores and require different outer-model criteria. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Boundary-case interpretation: Inspect each standardized loading and residual
Consider a review in which Educational sqrt AVE = 0.683380 is reproduced but Social-Alcohol sqrt AVE = 0.700640 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect each standardized loading and residual and verify that indicator–construct assignments are theoretically prespecified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Model only for method selection: The structural model concerns relations among constructs after measurement quality is established. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Input-definition sensitivity: Calculate CR and AVE per construct
Consider a review in which Academic–Education factor correlation = 0.313995 is reproduced but CFI = 0.997823 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to calculate CR and AVE per construct and verify that the measurement mode is correct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA is the estimation procedure used for this reflective measurement model. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Software-definition reconciliation: Assess HTMT with confidence intervals
Consider a review in which RMSEA = 0.020492 is reproduced but SRMR = 0.035876 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to assess HTMT with confidence intervals and verify that the model is identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Composite Measurement Model only for method selection: Composite models form weighted scores and require different outer-model criteria. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Local-chart conflict: Review factor correlations and local residuals
Consider a review in which G2 standardized loading = 0.979897 is reproduced but TravelAccess standardized loading = 0.301480 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to review factor correlations and local residuals and verify that the estimator matches the data.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Model only for method selection: The structural model concerns relations among constructs after measurement quality is established. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Alternative-method challenge: Test alternative measurement specifications
Consider a review in which Academic Achievement CR = 0.953517 is reproduced but Educational Advantage AVE = 0.467009 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to test alternative measurement specifications and verify that residual dependencies are justified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA is the estimation procedure used for this reflective measurement model. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Replication and reporting decision: Complete measurement assessment before structural paths
Consider a review in which Academic Achievement AVE = 0.872614 is reproduced but Social-Alcohol Exposure AVE = 0.490896 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to complete measurement assessment before structural paths and verify that reliability and validity are assessed per construct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Composite Measurement Model only for method selection: Composite models form weighted scores and require different outer-model criteria. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Boundary-case interpretation: Inspect each standardized loading and residual
Consider a review in which Educational Advantage CR = 0.696353 is reproduced but Social-Alcohol Exposure CR = 0.724808 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect each standardized loading and residual and verify that indicator–construct assignments are theoretically prespecified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Model only for method selection: The structural model concerns relations among constructs after measurement quality is established. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Input-definition sensitivity: Calculate CR and AVE per construct
Consider a review in which Academic sqrt AVE = 0.934138 is reproduced but Educational sqrt AVE = 0.683380 is not. For the indicator-to-construct specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to calculate CR and AVE per construct and verify that the measurement mode is correct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA is the estimation procedure used for this reflective measurement model. The published conclusion remains The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
Measurement Model downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one Measurement Model analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
Measurement Model frequently asked questions
Answers use the worked result and the exact method boundary.
What does Measurement Model measure?
A measurement model specifies how observed indicators represent latent constructs or composites. For the reflective CFA used here, assessment requires loadings, residual variances, factor correlations, reliability, convergent validity, discriminant validity, and global/local fit.
What is the main result in this Measurement Model analysis?
CFI = 0.997823. The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
What does the result not prove?
Measurement-model adequacy does not establish the structural paths among constructs or causal effects. Global fit alone cannot compensate for a weak indicator such as TravelAccess.
Which supporting value should be reported with the primary result?
For Measurement Model, rMSEA = 0.020492 is the first companion quantity. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
Which assumption is most likely to change the interpretation?
The first requirement is that indicator–construct assignments are theoretically prespecified. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must inspect each standardized loading and residual. That operation traces CFI = 0.997823 to the formula and saved inputs.
Why can software packages disagree on Measurement Model?
Disagreement can arise because the measurement mode is correct or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is Measurement Model different from Structural Model?
The structural model concerns relations among constructs after measurement quality is established.
How should a chart be interpreted?
For Measurement Model, each chart is tied to a named output such as SRMR = 0.035876. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should Measurement Model be reported?
Report CFI = 0.997823, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: The three-factor measurement model has excellent overall fit and strong Academic Achievement indicators. Educational Advantage is less secure because TravelAccess loads weakly and its AVE is below .50.
