Structural Model: Formula, Verified Results, Charts and Interpretation
The structural model specifies directional relations among latent constructs after their measurement models have been evaluated. The key outputs are standardized paths, uncertainty, endogenous R-squared, indirect effects, and structural residuals. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
What Structural Model measures
The exact estimand and the result this method is allowed to support.
Structural Model addresses one defined analytical target: The structural model specifies directional relations among latent constructs after their measurement models have been evaluated. The key outputs are standardized paths, uncertainty, endogenous R-squared, indirect effects, and structural residuals.
Quantity estimated in this analysis
The latent path specification is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is Latent Education path = 0.382401; Latent Social-Alcohol path = -0.477804 supplies the first supporting check. Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
For Structural Model, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
Structural paths are not factor loadings and do not repair unreliable or invalid constructs. With observational data they represent conditional associations under the specified model, not automatically causal effects.
For Structural Model, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use Structural Model
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the latent path specification supports the result stated for the declared dataset and analytical specification. It is answered by report each standardized path with SE or bootstrap interval, followed by verify the endogenous R-squared. The evidence is bounded by Latent Education path = 0.382401 and its named companion quantities.
For Structural Model, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
Measurement Model: The measurement model defines indicators and constructs; the structural model defines relations among constructs.
Path Analysis: Observed path analysis omits latent measurement error.
These distinctions determine which formula, output table, and chart can legitimately appear in a Structural Model post.
Real data used for Structural Model
Variables, coding, sample or panel size, and the role each input plays.
For Structural Model, the model-based analysis uses 649 complete student records and the declared indicator blocks shown in the table. G1, G2, and G3 define Academic Achievement; Medu, Fedu, and reverse-coded TravelAccess define Educational Advantage; goout, Dalc, and Walc define Social-Alcohol Exposure.
For the latent path specification, these variables enter a prespecified covariance, composite, or path model. Their order, scaling, factor membership, and missing-data treatment must match the model syntax because Latent Education path = 0.382401 is conditional on that exact specification.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|

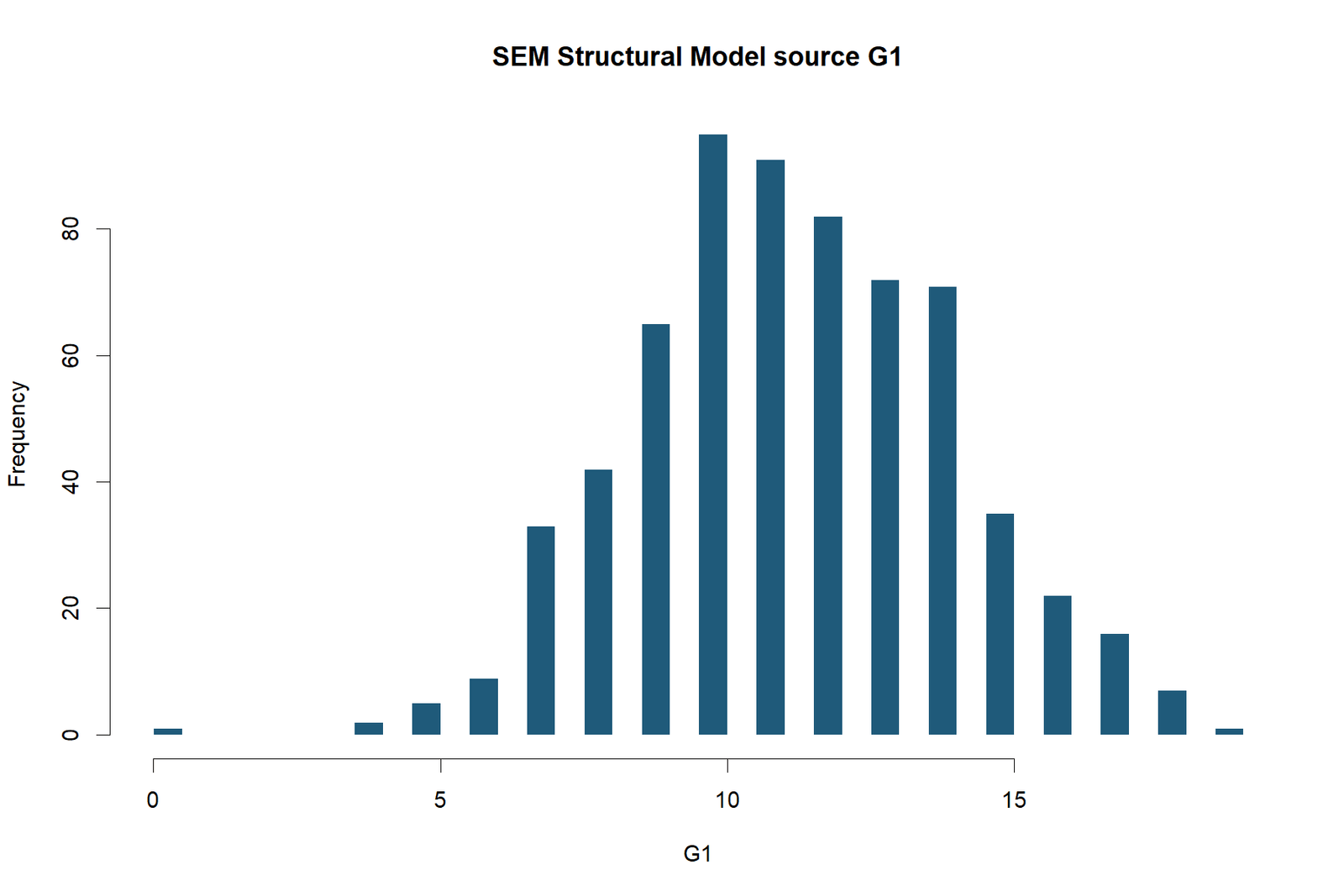

| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
Structural Model assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. The measurement model is acceptable
This condition determines whether the input object matches the formula. In the current Structural Model analysis, the check is to report each standardized path with SE or bootstrap interval while preserving Latent Education path = 0.382401.
For Structural Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. The structural equations are identified
This requirement controls whether the numerical estimate has the interpretation claimed. In the current Structural Model analysis, the check is to verify the endogenous R-squared while preserving Latent Social-Alcohol path = -0.477804.
For Structural Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. Predictor constructs are sufficiently distinct
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Structural Model analysis, the check is to inspect covariance among exogenous constructs while preserving Latent structural R squared = 0.167253.
For Structural Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. Collinearity is checked
This specification rule keeps the software routes numerically comparable. In the current Structural Model analysis, the check is to test indirect effects explicitly if claimed while preserving CFI = 0.997823.
For Structural Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. Path directions are theoretically justified
This diagnostic requirement is checked before a benchmark is applied. In the current Structural Model analysis, the check is to compare alternative path directions only as sensitivity analysis while preserving SRMR = 0.035876.
For Structural Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. Uncertainty estimates match the estimator
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Structural Model analysis, the check is to check whether weak indicators alter path estimates while preserving TLI = 0.996735.
For Structural Model, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
Structural Model hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
For Structural Model, global model hypotheses concern covariance reproduction, while parameter hypotheses concern individual loadings, paths, covariances, weights, or indirect effects.
The two levels are reported separately so that a favorable global result does not conceal an unsupported parameter claim in Structural Model.
Decision for the worked analysis
The calculation yields Latent Education path = 0.382401. Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Structural Model formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for Structural Model. Its symbols are connected to the saved inputs and to Latent Education path = 0.382401, Latent Social-Alcohol path = -0.477804, Latent structural R squared = 0.167253, CFI = 0.997823.
The latent path system is interpreted only after the measurement model is admissible.
Educational Advantage is positive and Social-Alcohol Exposure is negative in the fitted latent regression.
Symbol and denominator control
The structural model specifies directional relations among latent constructs after their measurement models have been evaluated. The key outputs are standardized paths, uncertainty, endogenous R-squared, indirect effects, and structural residuals.
For Structural Model, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
The spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with Latent Education path = 0.382401 and Latent Social-Alcohol path = -0.477804.
Structural paths are not factor loadings and do not repair unreliable or invalid constructs. With observational data they represent conditional associations under the specified model, not automatically causal effects.
Step-by-step Structural Model calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the latent path specification. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Report each standardized path with SE or bootstrap interval.
Numerical trace: Latent Education path = 0.382401; Latent Social-Alcohol path = -0.477804.
Condition: the measurement model is acceptable. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Verify the endogenous R-squared.
Numerical trace: Latent Social-Alcohol path = -0.477804; Latent structural R squared = 0.167253.
Condition: the structural equations are identified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Inspect covariance among exogenous constructs.
Numerical trace: Latent structural R squared = 0.167253; CFI = 0.997823.
Condition: predictor constructs are sufficiently distinct. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Test indirect effects explicitly if claimed.
Numerical trace: CFI = 0.997823; SRMR = 0.035876.
For Structural Model, condition: collinearity is checked. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Compare alternative path directions only as sensitivity analysis.
Numerical trace: SRMR = 0.035876; TLI = 0.996735.
Condition: path directions are theoretically justified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Check whether weak indicators alter path estimates.
Numerical trace: TLI = 0.996735; RMSEA = 0.020492.
Condition: uncertainty estimates match the estimator. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Structural Model results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
Latent Education path
Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Why the result is internally coherent
Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
For Structural Model, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| Latent Education path | 0.382401 | Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| Latent Social-Alcohol path | -0.477804 | Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| Latent structural R squared | 0.167253 | Latent structural R squared = 0.167253 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction. |
| CFI | 0.997823 | CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| SRMR | 0.035876 | SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells. |
| TLI | 0.996735 | TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| RMSEA | 0.020492 | RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting. |
| PLS Education path | 0.282066 | PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| PLS Social-Alcohol path | -0.197452 | PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| PLS R squared | 0.120424 | PLS R squared = 0.120424 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction. |
| PLS Q squared | 0.112273 | PLS Q squared = 0.112273 indicates predictive relevance under the declared omission or prediction procedure, not automatically strong out-of-sample accuracy. |
| Observed path R squared | 0.850714 | Observed path R squared = 0.850714 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| Observed path adjusted R squared | 0.849084 | Observed path adjusted R squared = 0.849084 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| Observed path RMSE | 1.247283 | Observed path RMSE = 1.247283 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
Structural Model in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses semopy, Model to calculate or extract the latent path specification from the declared data and analytical specification. It must reproduce Latent Education path = 0.382401 and retain Latent Social-Alcohol path = -0.477804 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to report each standardized path with SE or bootstrap interval; the associated design condition is that the measurement model is acceptable. Structural paths are not factor loadings and do not repair unreliable or invalid constructs. With observational data they represent conditional associations under the specified model, not automatically causal effects.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
from semopy import Model, calc_stats
model = Model("""
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
""")
model.fit(df)
stats = calc_stats(model)
print("Structural Model")
print(stats.T if "all" == "all" else stats.T.loc[["ALL"]])
print(model.inspect(std_est=True))
Structural Model in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses lavaan and the displayed arguments to estimate the latent path specification. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with Latent Education path = 0.382401 after the analyst verify the endogenous R-squared. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
library(lavaan)
model <- '
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
'
fit <- sem(model,data=d,estimator="ML")
fitMeasures(fit,c("chisq","df","pvalue","cfi","tli","nfi","rmsea","srmr","gfi","agfi"))
standardizedSolution(fit)Structural Model in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the latent path specification. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify Latent Education path = 0.382401 and the settings needed to reproduce it. The software review specifically inspect covariance among exogenous constructs, while preserving the requirement that predictor constructs are sufficiently distinct.
* Structural Model is obtained from the prespecified AMOS covariance model.
* Three factors: G1 G2 G3; Medu Fedu TravelAccess; goout Dalc Walc.
* Maximum likelihood, N=649, df=24.
* Request standardized estimates, residual moments, squared multiple correlations, and fit measures.
* Reconcile the exact Structural Model value with the formula and result ledger in this draft.Structural Model in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the latent path specification. Named cells retain the inputs, intermediate components, and final formula leading to Latent Education path = 0.382401; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to test indirect effects explicitly if claimed and documents Latent Social-Alcohol path = -0.477804 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by Structural Model.
Calculation: Use the native MathML formula shown above with named ranges for every input
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.Structural Model charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same Structural Model analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

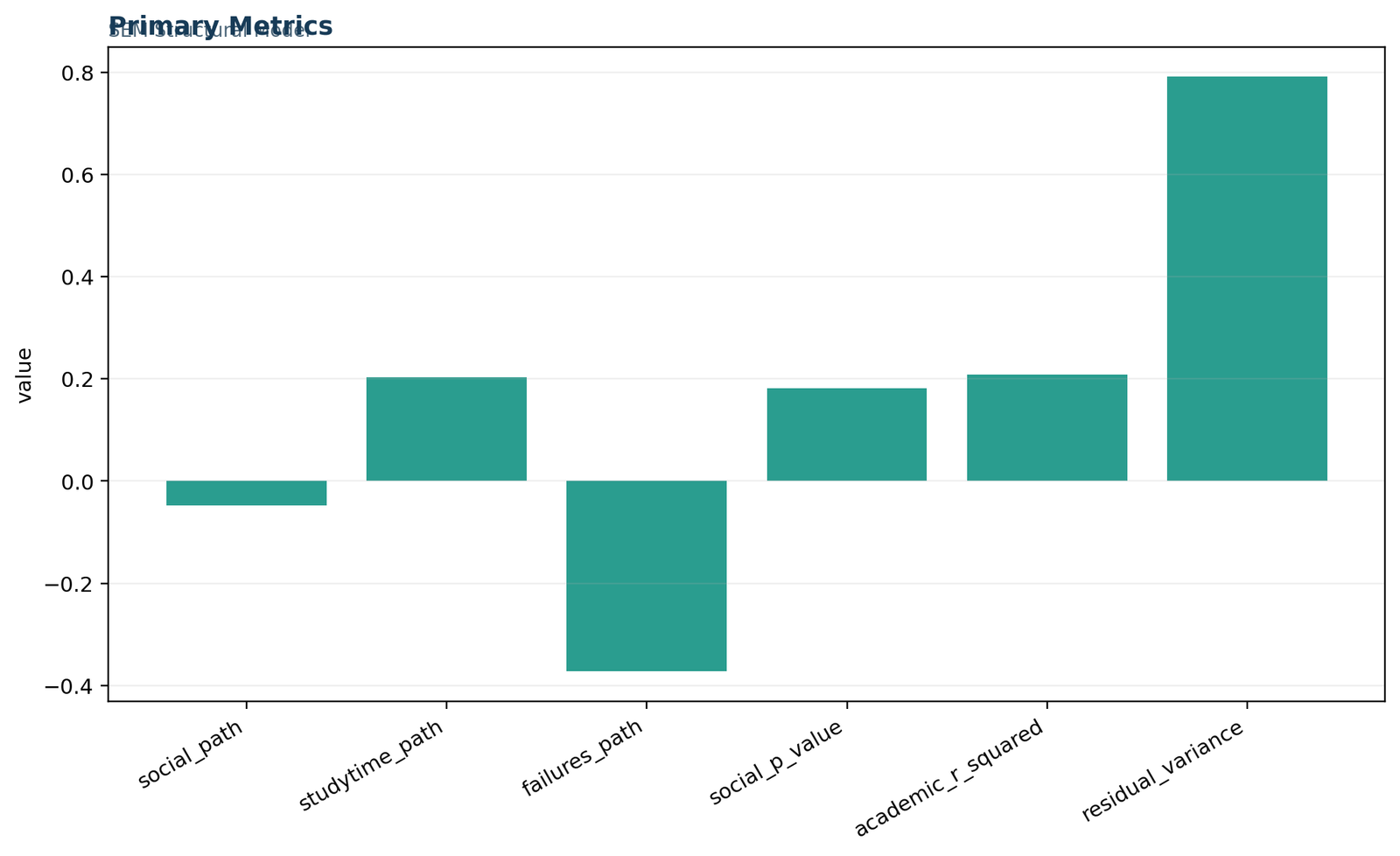

01 Structural-Model Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Structural Model. Read Latent Education path = 0.382401 beside Latent Social-Alcohol path = -0.477804; the first quantity is not replaced by the second.
The chart is used to report each standardized path with SE or bootstrap interval. Its interpretation remains valid only when the measurement model is acceptable. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

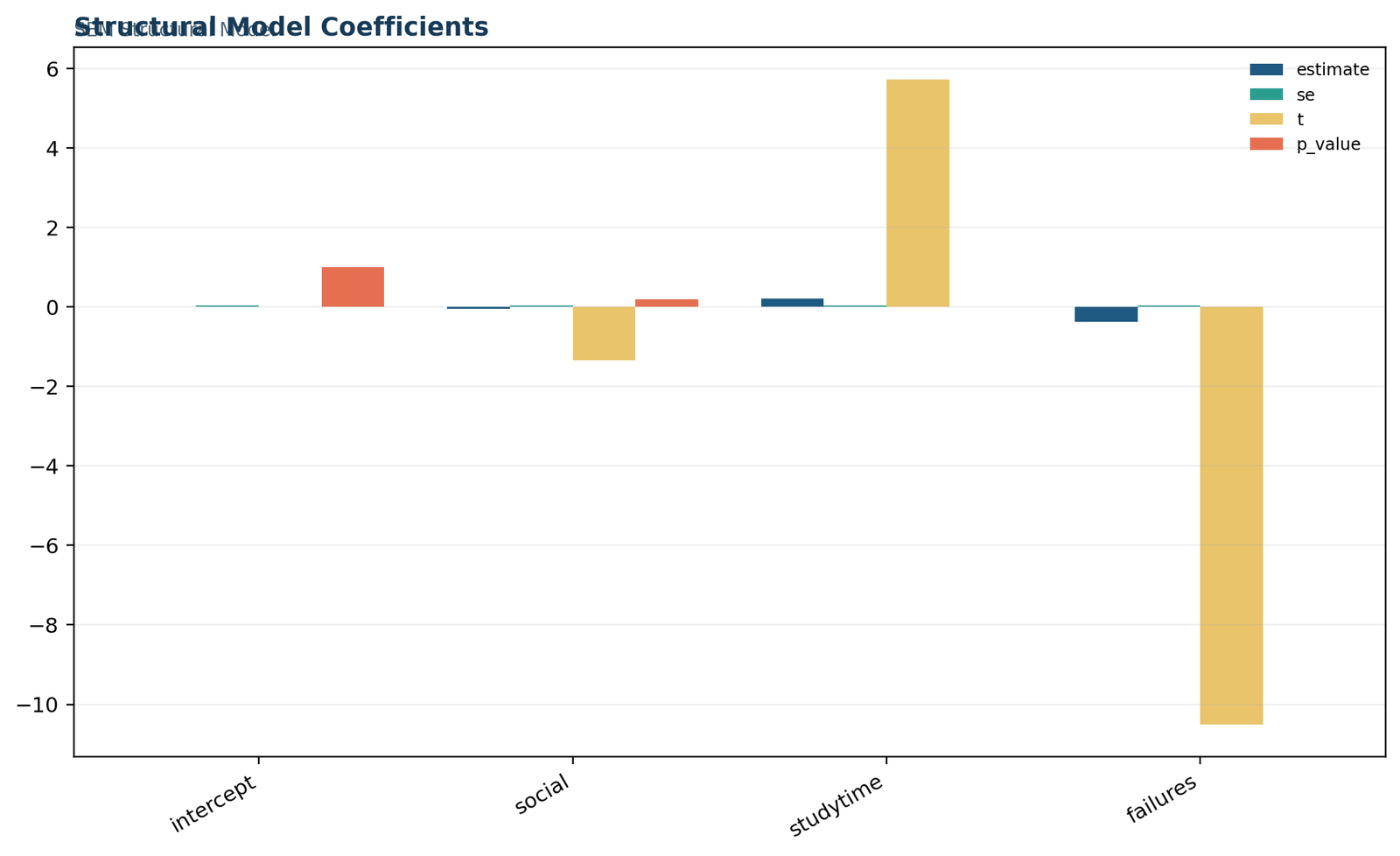

02 Structural-Model Structural Model Coefficients
This panel shows the direction and relative magnitude of the declared structural relations for Structural Model. Read Latent Social-Alcohol path = -0.477804 beside Latent structural R squared = 0.167253; the first quantity is not replaced by the second.
The chart is used to verify the endogenous R-squared. Its interpretation remains valid only when the structural equations are identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

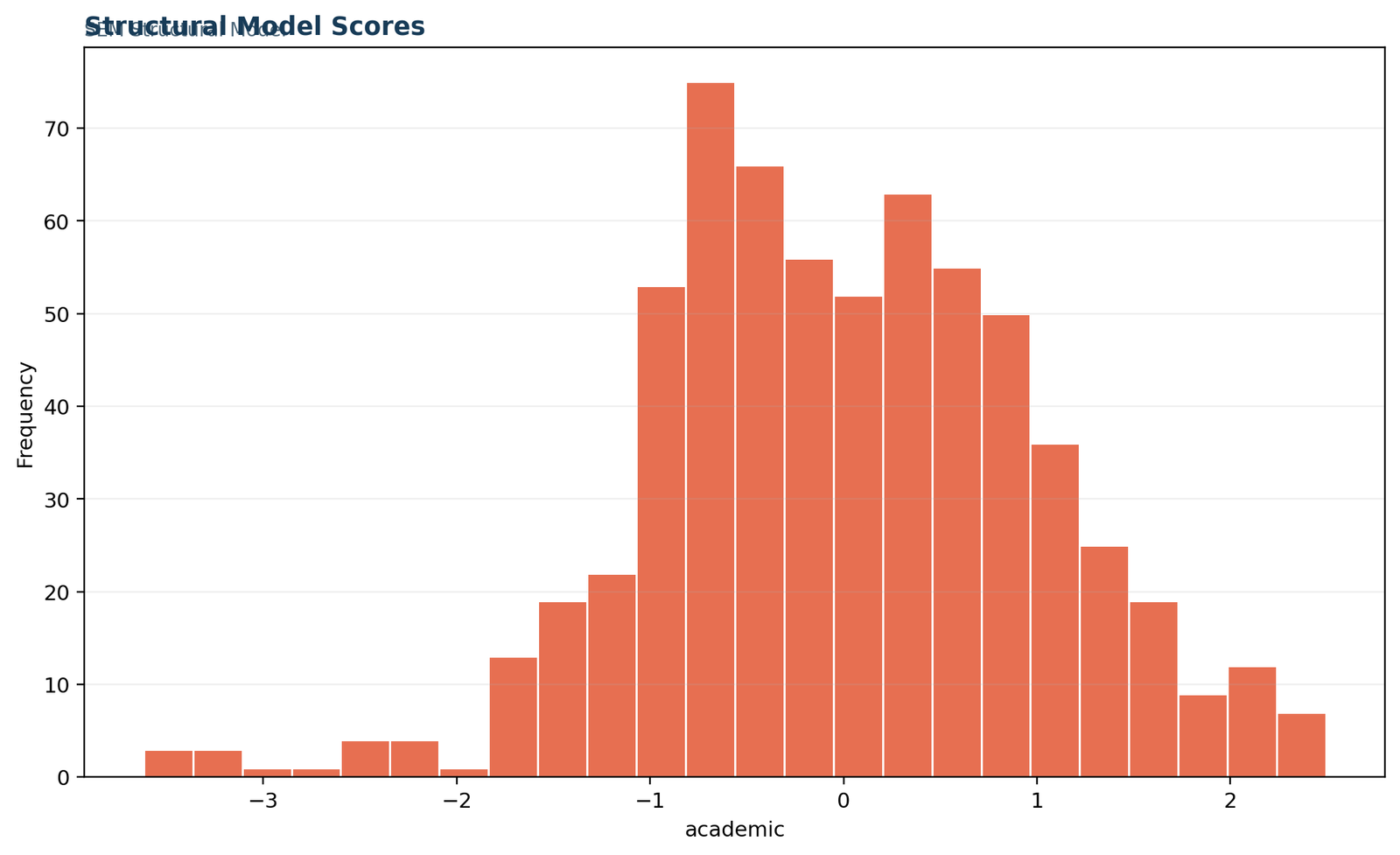

03 Structural-Model Structural Model Scores
This panel shows the direction and relative magnitude of the declared structural relations for Structural Model. Read Latent structural R squared = 0.167253 beside CFI = 0.997823; the first quantity is not replaced by the second.
The chart is used to inspect covariance among exogenous constructs. Its interpretation remains valid only when predictor constructs are sufficiently distinct. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

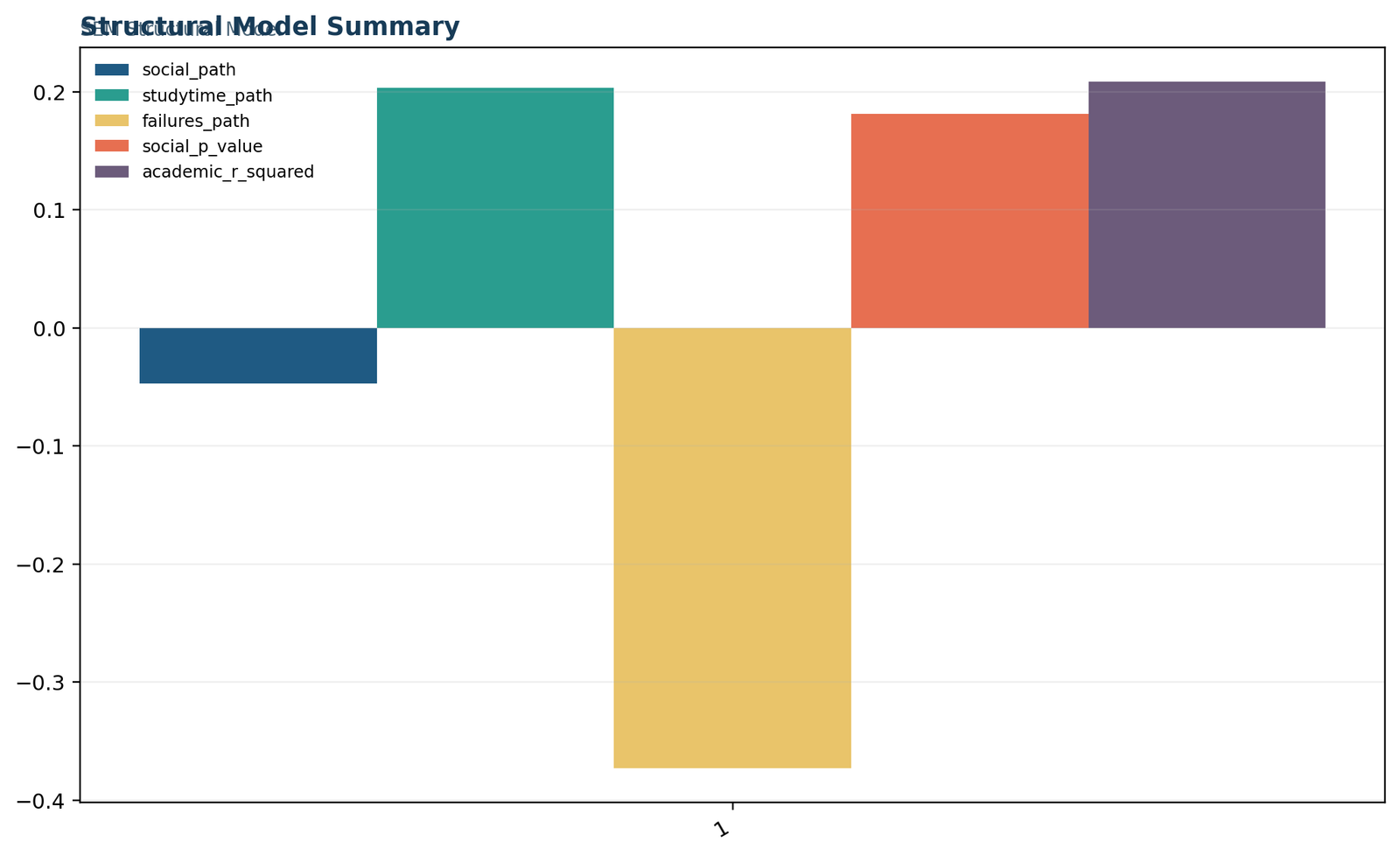

04 Structural-Model Structural Model Summary
This panel reconciles the headline estimate with its principal supporting values for Structural Model. Read CFI = 0.997823 beside SRMR = 0.035876; the first quantity is not replaced by the second.
The chart is used to test indirect effects explicitly if claimed. Its interpretation remains valid only when collinearity is checked. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

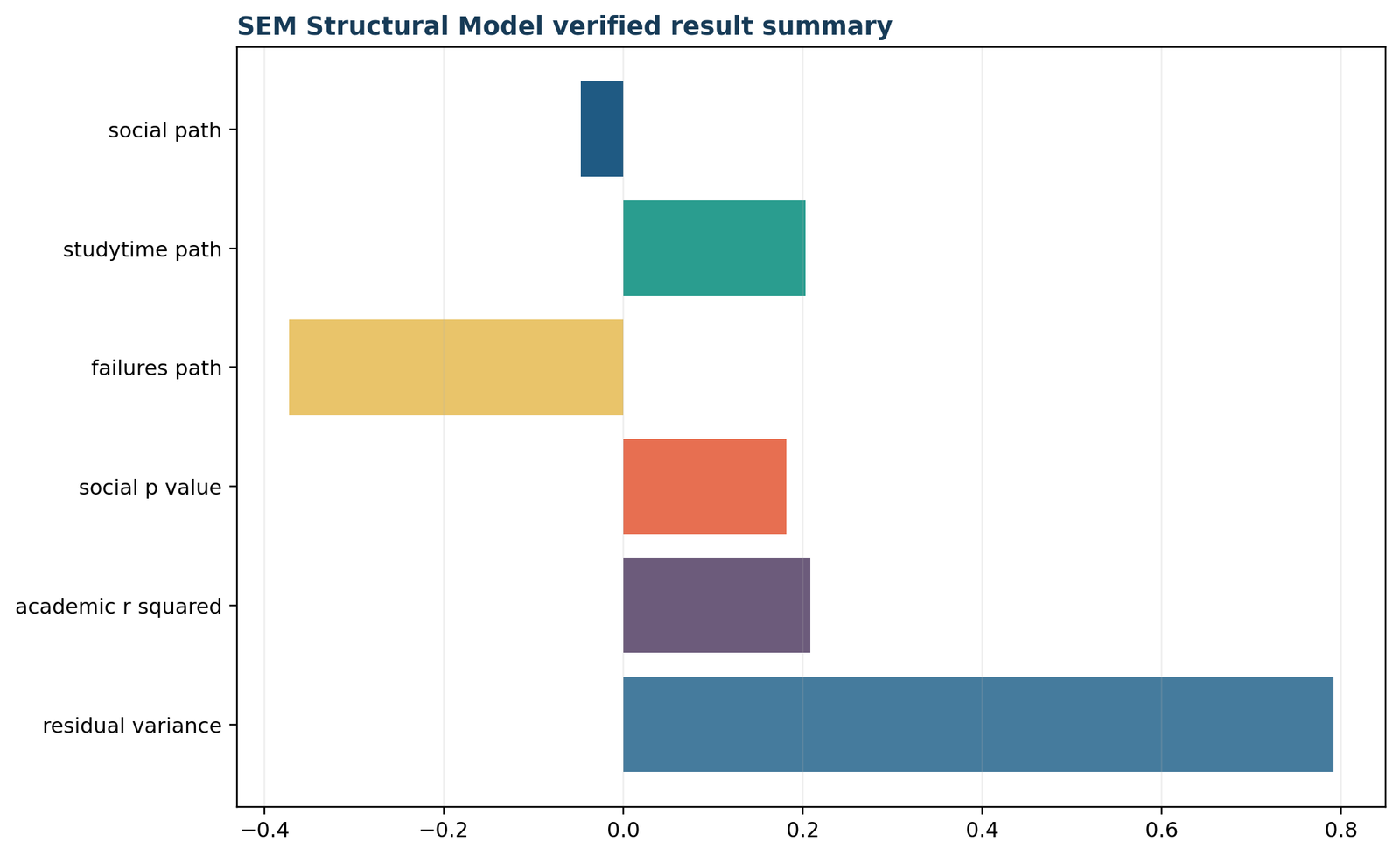

05 Structural-Model Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Structural Model. Read SRMR = 0.035876 beside TLI = 0.996735; the first quantity is not replaced by the second.
The chart is used to compare alternative path directions only as sensitivity analysis. Its interpretation remains valid only when path directions are theoretically justified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Structural-Model Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Structural Model. Read TLI = 0.996735 beside RMSEA = 0.020492; the first quantity is not replaced by the second.
The chart is used to check whether weak indicators alter path estimates. Its interpretation remains valid only when uncertainty estimates match the estimator. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Structural-Model Structural Model Coefficients
This panel shows the direction and relative magnitude of the declared structural relations for Structural Model. Read RMSEA = 0.020492 beside PLS Education path = 0.282066; the first quantity is not replaced by the second.
The chart is used to report each standardized path with SE or bootstrap interval. Its interpretation remains valid only when the measurement model is acceptable. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
03 Structural-Model Structural Model Scores
This panel shows the direction and relative magnitude of the declared structural relations for Structural Model. Read PLS Education path = 0.282066 beside PLS Social-Alcohol path = -0.197452; the first quantity is not replaced by the second.
The chart is used to verify the endogenous R-squared. Its interpretation remains valid only when the structural equations are identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
04 Structural-Model Source G1
This panel shows the direction and relative magnitude of the declared structural relations for Structural Model. Read PLS Social-Alcohol path = -0.197452 beside PLS R squared = 0.120424; the first quantity is not replaced by the second.
The chart is used to inspect covariance among exogenous constructs. Its interpretation remains valid only when predictor constructs are sufficiently distinct. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Structural-Model Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Structural Model. Read PLS R squared = 0.120424 beside PLS Q squared = 0.112273; the first quantity is not replaced by the second.
The chart is used to test indirect effects explicitly if claimed. Its interpretation remains valid only when collinearity is checked. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
Structural Model verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Structural Model.
1. Report each standardized path with SE or bootstrap interval
Begin by report each standardized path with SE or bootstrap interval. For the latent path specification, this operation directly connects Latent Education path = 0.382401 with Latent structural R squared = 0.167253. Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
The governing condition is that the measurement model is acceptable. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Measurement Model, because The measurement model defines indicators and constructs; the structural model defines relations among constructs.
2. Verify the endogenous R-squared
Next, verify the endogenous R-squared. For the latent path specification, this operation directly connects Latent Social-Alcohol path = -0.477804 with CFI = 0.997823. Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
The governing condition is that the structural equations are identified. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Path Analysis, because Observed path analysis omits latent measurement error.
3. Inspect covariance among exogenous constructs
The third verification is to inspect covariance among exogenous constructs. For the latent path specification, this operation directly connects Latent structural R squared = 0.167253 with SRMR = 0.035876. Latent structural R squared = 0.167253 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction.
The governing condition is that predictor constructs are sufficiently distinct. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Regression, because A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects.
4. Test indirect effects explicitly if claimed
After the core arithmetic is stable, test indirect effects explicitly if claimed. For the latent path specification, this operation directly connects CFI = 0.997823 with TLI = 0.996735. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The governing condition is that collinearity is checked. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Measurement Model, because The measurement model defines indicators and constructs; the structural model defines relations among constructs.
5. Compare alternative path directions only as sensitivity analysis
A robustness review must compare alternative path directions only as sensitivity analysis. For the latent path specification, this operation directly connects SRMR = 0.035876 with RMSEA = 0.020492. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
The governing condition is that path directions are theoretically justified. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Path Analysis, because Observed path analysis omits latent measurement error.
6. Check whether weak indicators alter path estimates
The final reconciliation should check whether weak indicators alter path estimates. For the latent path specification, this operation directly connects TLI = 0.996735 with PLS Education path = 0.282066. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The governing condition is that uncertainty estimates match the estimator. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Regression, because A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | report each standardized path with SE or bootstrap interval | the measurement model is acceptable | Latent Education path = 0.382401 |
| 2 | verify the endogenous R-squared | the structural equations are identified | Latent Social-Alcohol path = -0.477804 |
| 3 | inspect covariance among exogenous constructs | predictor constructs are sufficiently distinct | Latent structural R squared = 0.167253 |
| 4 | test indirect effects explicitly if claimed | collinearity is checked | CFI = 0.997823 |
| 5 | compare alternative path directions only as sensitivity analysis | path directions are theoretically justified | SRMR = 0.035876 |
| 6 | check whether weak indicators alter path estimates | uncertainty estimates match the estimator | TLI = 0.996735 |
Structural Model compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Structural Model formula and output rather than a nearby procedure.
Measurement Model
The measurement model defines indicators and constructs; the structural model defines relations among constructs.
In the current analysis, Latent Social-Alcohol path = -0.477804 remains evidence for the latent path specification; it is not relabeled as a Measurement Model result. Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Path Analysis
Observed path analysis omits latent measurement error.
In the current analysis, Latent structural R squared = 0.167253 remains evidence for the latent path specification; it is not relabeled as a Path Analysis result. Latent structural R squared = 0.167253 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction.
Regression
A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects.
In the current analysis, CFI = 0.997823 remains evidence for the latent path specification; it is not relabeled as a Regression result. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
How to report Structural Model
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
Structural Model was evaluated using the declared data, specification, and software settings. The primary result was Latent Education path = 0.382401; Latent Social-Alcohol path = -0.477804 and Latent structural R squared = 0.167253 supplied supporting context. Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
The report then states the limitation explicitly: Structural paths are not factor loadings and do not repair unreliable or invalid constructs. With observational data they represent conditional associations under the specified model, not automatically causal effects.
Settings that must accompany the result
the measurement model is acceptable; the structural equations are identified; predictor constructs are sufficiently distinct; collinearity is checked.
For Structural Model, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
report each standardized path with SE or bootstrap interval; verify the endogenous R-squared; inspect covariance among exogenous constructs; test indirect effects explicitly if claimed.
The final wording is revised only after those operations reproduce the saved values.
Structural Model decision scenarios
For Structural Model, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Report each standardized path with SE or bootstrap interval
Consider a review in which Latent Education path = 0.382401 is reproduced but Latent Social-Alcohol path = -0.477804 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report each standardized path with SE or bootstrap interval and verify that the measurement model is acceptable.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: The measurement model defines indicators and constructs; the structural model defines relations among constructs. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Input-definition sensitivity: Verify the endogenous R-squared
Consider a review in which Latent structural R squared = 0.167253 is reproduced but CFI = 0.997823 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the endogenous R-squared and verify that the structural equations are identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Observed path analysis omits latent measurement error. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Software-definition reconciliation: Inspect covariance among exogenous constructs
Consider a review in which SRMR = 0.035876 is reproduced but TLI = 0.996735 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect covariance among exogenous constructs and verify that predictor constructs are sufficiently distinct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Regression only for method selection: A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Local-chart conflict: Test indirect effects explicitly if claimed
Consider a review in which RMSEA = 0.020492 is reproduced but PLS Education path = 0.282066 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to test indirect effects explicitly if claimed and verify that collinearity is checked.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: The measurement model defines indicators and constructs; the structural model defines relations among constructs. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Alternative-method challenge: Compare alternative path directions only as sensitivity analysis
Consider a review in which PLS Social-Alcohol path = -0.197452 is reproduced but PLS R squared = 0.120424 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to compare alternative path directions only as sensitivity analysis and verify that path directions are theoretically justified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Observed path analysis omits latent measurement error. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Replication and reporting decision: Check whether weak indicators alter path estimates
Consider a review in which PLS Q squared = 0.112273 is reproduced but Observed path R squared = 0.850714 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to check whether weak indicators alter path estimates and verify that uncertainty estimates match the estimator.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Regression only for method selection: A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Boundary-case interpretation: Report each standardized path with SE or bootstrap interval
Consider a review in which Observed path adjusted R squared = 0.849084 is reproduced but Observed path RMSE = 1.247283 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report each standardized path with SE or bootstrap interval and verify that the measurement model is acceptable.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: The measurement model defines indicators and constructs; the structural model defines relations among constructs. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Input-definition sensitivity: Verify the endogenous R-squared
Consider a review in which G2 observed coefficient = 0.887127 is reproduced but Latent Education path = 0.382401 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the endogenous R-squared and verify that the structural equations are identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Observed path analysis omits latent measurement error. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Software-definition reconciliation: Inspect covariance among exogenous constructs
Consider a review in which Latent Social-Alcohol path = -0.477804 is reproduced but Latent structural R squared = 0.167253 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect covariance among exogenous constructs and verify that predictor constructs are sufficiently distinct.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Regression only for method selection: A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Local-chart conflict: Test indirect effects explicitly if claimed
Consider a review in which CFI = 0.997823 is reproduced but SRMR = 0.035876 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to test indirect effects explicitly if claimed and verify that collinearity is checked.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: The measurement model defines indicators and constructs; the structural model defines relations among constructs. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Alternative-method challenge: Compare alternative path directions only as sensitivity analysis
Consider a review in which TLI = 0.996735 is reproduced but RMSEA = 0.020492 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to compare alternative path directions only as sensitivity analysis and verify that path directions are theoretically justified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Observed path analysis omits latent measurement error. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Replication and reporting decision: Check whether weak indicators alter path estimates
Consider a review in which PLS Education path = 0.282066 is reproduced but PLS Social-Alcohol path = -0.197452 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to check whether weak indicators alter path estimates and verify that uncertainty estimates match the estimator.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Regression only for method selection: A single regression is one equation; a structural model can contain simultaneous latent equations and indirect effects. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Boundary-case interpretation: Report each standardized path with SE or bootstrap interval
Consider a review in which PLS R squared = 0.120424 is reproduced but PLS Q squared = 0.112273 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report each standardized path with SE or bootstrap interval and verify that the measurement model is acceptable.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: The measurement model defines indicators and constructs; the structural model defines relations among constructs. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Input-definition sensitivity: Verify the endogenous R-squared
Consider a review in which Observed path R squared = 0.850714 is reproduced but Observed path adjusted R squared = 0.849084 is not. For the latent path specification, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the endogenous R-squared and verify that the structural equations are identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Observed path analysis omits latent measurement error. The published conclusion remains Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
Structural Model downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one Structural Model analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
Structural Model frequently asked questions
Answers use the worked result and the exact method boundary.
What does Structural Model measure?
The structural model specifies directional relations among latent constructs after their measurement models have been evaluated. The key outputs are standardized paths, uncertainty, endogenous R-squared, indirect effects, and structural residuals.
What is the main result in this Structural Model analysis?
Latent Education path = 0.382401. Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
What does the result not prove?
Structural paths are not factor loadings and do not repair unreliable or invalid constructs. With observational data they represent conditional associations under the specified model, not automatically causal effects.
Which supporting value should be reported with the primary result?
Latent Social-Alcohol path = -0.477804 is the first companion quantity. Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Which assumption is most likely to change the interpretation?
The first requirement is that the measurement model is acceptable. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must report each standardized path with SE or bootstrap interval. That operation traces Latent Education path = 0.382401 to the formula and saved inputs.
Why can software packages disagree on Structural Model?
Disagreement can arise because the structural equations are identified or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is Structural Model different from Measurement Model?
The measurement model defines indicators and constructs; the structural model defines relations among constructs.
How should a chart be interpreted?
Each chart is tied to a named output such as Latent structural R squared = 0.167253. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should Structural Model be reported?
Report Latent Education path = 0.382401, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: Educational Advantage is positively associated and Social-Alcohol Exposure negatively associated with latent Academic Achievement. Together they explain a modest proportion of latent Achievement variance.
