Confirmatory Factor Analysis: Formula, Verified Results, Charts and Interpretation
Confirmatory factor analysis estimates a prespecified measurement model in which observed indicators are linked to declared latent factors. The analysis tests the covariance implications of that structure while estimating loadings, factor correlations, and residual variances. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
For Confirmatory Factor Analysis, cFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
What Confirmatory Factor Analysis measures
The exact estimand and the result this method is allowed to support.
Confirmatory Factor Analysis addresses one defined analytical target: Confirmatory factor analysis estimates a prespecified measurement model in which observed indicators are linked to declared latent factors. The analysis tests the covariance implications of that structure while estimating loadings, factor correlations, and residual variances.
Quantity estimated in this analysis
The confirmatory factor model is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is CFI = 0.997823; TLI = 0.996735 supplies the first supporting check. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
For Confirmatory Factor Analysis, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
CFA fit does not establish causal direction, criterion validity, or invariance across groups. A favorable global fit can coexist with weak indicators, cross-loadings fixed incorrectly to zero, correlated residuals, or a theoretically poor factor interpretation.
For Confirmatory Factor Analysis, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use Confirmatory Factor Analysis
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the confirmatory factor model supports the result stated for the declared dataset and analytical specification. It is answered by verify factor-to-indicator assignments in the model syntax, followed by inspect standardized loadings and residual variances. The evidence is bounded by CFI = 0.997823 and its named companion quantities.
For Confirmatory Factor Analysis, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
Exploratory Factor Analysis: EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions.
PCA: PCA summarizes total variance with components, whereas CFA models common factors and measurement error.
These distinctions determine which formula, output table, and chart can legitimately appear in a Confirmatory Factor Analysis post.
Real data used for Confirmatory Factor Analysis
Variables, coding, sample or panel size, and the role each input plays.
For Confirmatory Factor Analysis, the model-based analysis uses 649 complete student records and the declared indicator blocks shown in the table. G1, G2, and G3 define Academic Achievement; Medu, Fedu, and reverse-coded TravelAccess define Educational Advantage; goout, Dalc, and Walc define Social-Alcohol Exposure.
For the confirmatory factor model, these variables enter a prespecified covariance, composite, or path model. Their order, scaling, factor membership, and missing-data treatment must match the model syntax because CFI = 0.997823 is conditional on that exact specification.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|
| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
Confirmatory Factor Analysis assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. The factor pattern is specified before estimation
This condition determines whether the input object matches the formula. In the current Confirmatory Factor Analysis analysis, the check is to verify factor-to-indicator assignments in the model syntax while preserving CFI = 0.997823.
For Confirmatory Factor Analysis, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. The model is identified
This requirement controls whether the numerical estimate has the interpretation claimed. In the current Confirmatory Factor Analysis analysis, the check is to inspect standardized loadings and residual variances while preserving TLI = 0.996735.
For Confirmatory Factor Analysis, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. The estimator matches scale and distributional properties
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Confirmatory Factor Analysis analysis, the check is to review modification indices only as diagnostic evidence while preserving RMSEA = 0.020492.
For Confirmatory Factor Analysis, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. Observations are independent or clustering is modeled
This specification rule keeps the software routes numerically comparable. In the current Confirmatory Factor Analysis analysis, the check is to check latent correlations for discriminant problems while preserving SRMR = 0.035876.
For Confirmatory Factor Analysis, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. Residual covariances are justified rather than data-mined
This diagnostic requirement is checked before a benchmark is applied. In the current Confirmatory Factor Analysis analysis, the check is to examine residual matrices and localized strain while preserving G2 standardized loading = 0.979897.
For Confirmatory Factor Analysis, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. Standardized solutions and fit corrections are reported consistently
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Confirmatory Factor Analysis analysis, the check is to test alternative theoretically plausible measurement models while preserving TravelAccess standardized loading = 0.301480.
For Confirmatory Factor Analysis, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
Confirmatory Factor Analysis hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
For Confirmatory Factor Analysis, global model hypotheses concern covariance reproduction, while parameter hypotheses concern individual loadings, paths, covariances, weights, or indirect effects.
The two levels are reported separately so that a favorable global result does not conceal an unsupported parameter claim in Confirmatory Factor Analysis.
Decision for the worked analysis
For Confirmatory Factor Analysis, the calculation yields CFI = 0.997823 . CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Confirmatory Factor Analysis formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for Confirmatory Factor Analysis. Its symbols are connected to the saved inputs and to CFI = 0.997823, TLI = 0.996735, RMSEA = 0.020492, SRMR = 0.035876.
The factor pattern is prespecified before estimation; CFA tests how well the specified measurement model reproduces the covariance structure.
All three grade indicators strongly measure the Academic Achievement factor.
Symbol and denominator control
Confirmatory factor analysis estimates a prespecified measurement model in which observed indicators are linked to declared latent factors. The analysis tests the covariance implications of that structure while estimating loadings, factor correlations, and residual variances.
For Confirmatory Factor Analysis, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
The spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with CFI = 0.997823 and TLI = 0.996735.
CFA fit does not establish causal direction, criterion validity, or invariance across groups. A favorable global fit can coexist with weak indicators, cross-loadings fixed incorrectly to zero, correlated residuals, or a theoretically poor factor interpretation.
Step-by-step Confirmatory Factor Analysis calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the confirmatory factor model. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Verify factor-to-indicator assignments in the model syntax.
Numerical trace: CFI = 0.997823; TLI = 0.996735.
Condition: the factor pattern is specified before estimation. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Inspect standardized loadings and residual variances.
Numerical trace: TLI = 0.996735; RMSEA = 0.020492.
For Confirmatory Factor Analysis, condition: the model is identified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Review modification indices only as diagnostic evidence.
Numerical trace: RMSEA = 0.020492; SRMR = 0.035876.
Condition: the estimator matches scale and distributional properties. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Check latent correlations for discriminant problems.
Numerical trace: SRMR = 0.035876; G2 standardized loading = 0.979897.
Condition: observations are independent or clustering is modeled. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Examine residual matrices and localized strain.
Numerical trace: G2 standardized loading = 0.979897; TravelAccess standardized loading = 0.301480.
Condition: residual covariances are justified rather than data-mined. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Test alternative theoretically plausible measurement models.
Numerical trace: TravelAccess standardized loading = 0.301480; Latent Education path = 0.382401.
Condition: standardized solutions and fit corrections are reported consistently. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Confirmatory Factor Analysis results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
CFI
The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Why the result is internally coherent
For Confirmatory Factor Analysis, cFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
For Confirmatory Factor Analysis, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| CFI | 0.997823 | CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| TLI | 0.996735 | TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| RMSEA | 0.020492 | RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting. |
| SRMR | 0.035876 | SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells. |
| G2 standardized loading | 0.979897 | G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit. |
| TravelAccess standardized loading | 0.301480 | TravelAccess standardized loading = 0.301480 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Latent Education path | 0.382401 | Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| Latent Social-Alcohol path | -0.477804 | Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| Latent structural R squared | 0.167253 | Latent structural R squared = 0.167253 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction. |
| PLS Education path | 0.282066 | PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| PLS Social-Alcohol path | -0.197452 | PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| PLS R squared | 0.120424 | PLS R squared = 0.120424 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction. |
| PLS Q squared | 0.112273 | PLS Q squared = 0.112273 indicates predictive relevance under the declared omission or prediction procedure, not automatically strong out-of-sample accuracy. |
| Observed path R squared | 0.850714 | Observed path R squared = 0.850714 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
Confirmatory Factor Analysis in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses semopy, Model to calculate or extract the confirmatory factor model from the declared data and analytical specification. It must reproduce CFI = 0.997823 and retain TLI = 0.996735 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to verify factor-to-indicator assignments in the model syntax; the associated design condition is that the factor pattern is specified before estimation. CFA fit does not establish causal direction, criterion validity, or invariance across groups. A favorable global fit can coexist with weak indicators, cross-loadings fixed incorrectly to zero, correlated residuals, or a theoretically poor factor interpretation.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
from semopy import Model, calc_stats
model = Model("""
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
""")
model.fit(df)
stats = calc_stats(model)
print("Confirmatory Factor Analysis")
print(stats.T if "all" == "all" else stats.T.loc[["ALL"]])
print(model.inspect(std_est=True))
Confirmatory Factor Analysis in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses lavaan and the displayed arguments to estimate the confirmatory factor model. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with CFI = 0.997823 after the analyst inspect standardized loadings and residual variances. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
library(lavaan)
model <- '
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
'
fit <- sem(model,data=d,estimator="ML")
fitMeasures(fit,c("chisq","df","pvalue","cfi","tli","nfi","rmsea","srmr","gfi","agfi"))
standardizedSolution(fit)Confirmatory Factor Analysis in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the confirmatory factor model. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify CFI = 0.997823 and the settings needed to reproduce it. The software review specifically review modification indices only as diagnostic evidence, while preserving the requirement that the estimator matches scale and distributional properties.
* Confirmatory Factor Analysis is obtained from the prespecified AMOS covariance model.
* Three factors: G1 G2 G3; Medu Fedu TravelAccess; goout Dalc Walc.
* Maximum likelihood, N=649, df=24.
* Request standardized estimates, residual moments, squared multiple correlations, and fit measures.
* Reconcile the exact Confirmatory Factor Analysis value with the formula and result ledger in this draft.Confirmatory Factor Analysis in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the confirmatory factor model. Named cells retain the inputs, intermediate components, and final formula leading to CFI = 0.997823; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to check latent correlations for discriminant problems and documents TLI = 0.996735 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by Confirmatory Factor Analysis.
Calculation: Use the native MathML formula shown above with named ranges for every input
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.Confirmatory Factor Analysis charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same Confirmatory Factor Analysis analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

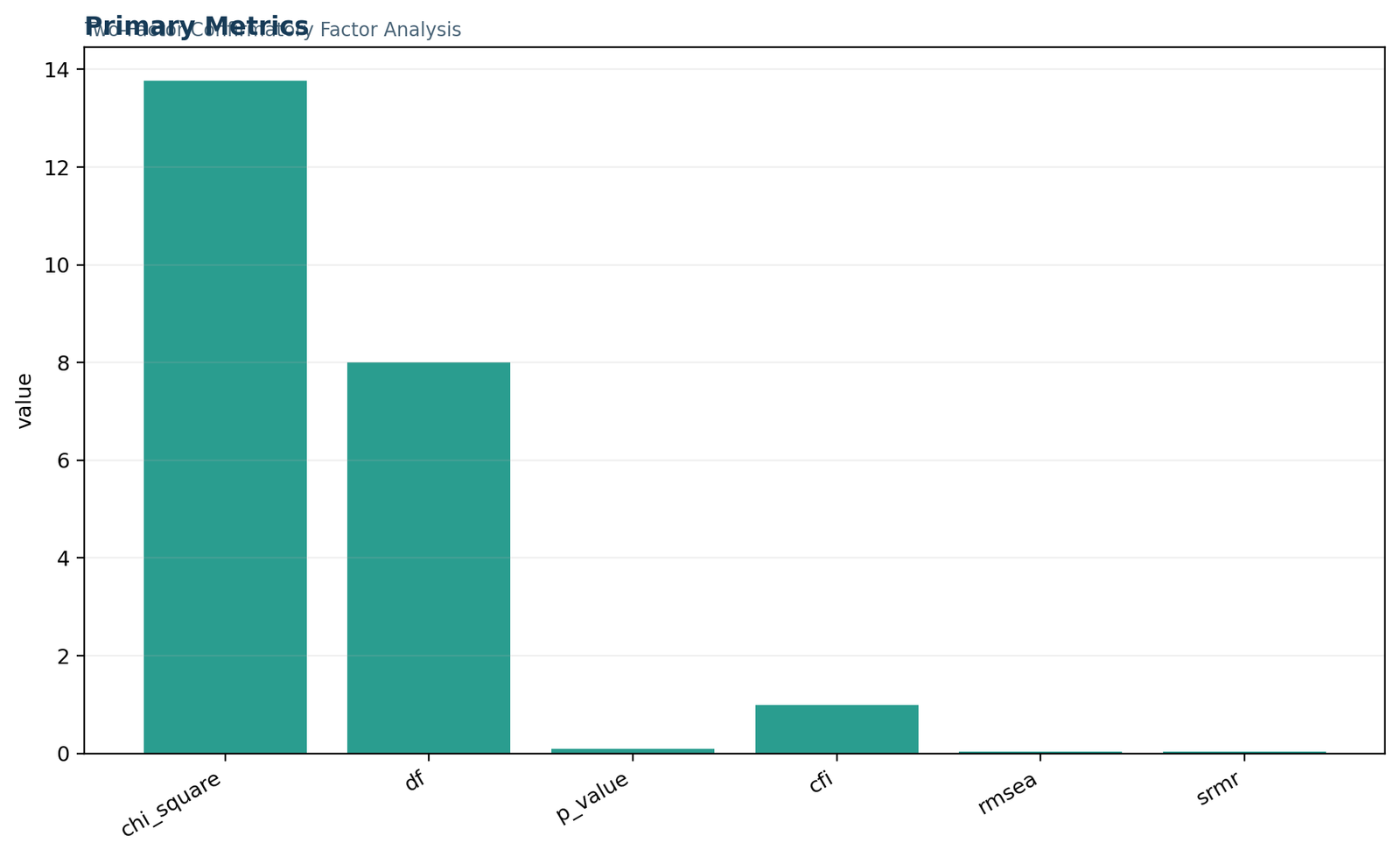

01 Confirmatory-Factor-Analysis Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Confirmatory Factor Analysis. Read CFI = 0.997823 beside TLI = 0.996735; the first quantity is not replaced by the second.
The chart is used to verify factor-to-indicator assignments in the model syntax. Its interpretation remains valid only when the factor pattern is specified before estimation. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

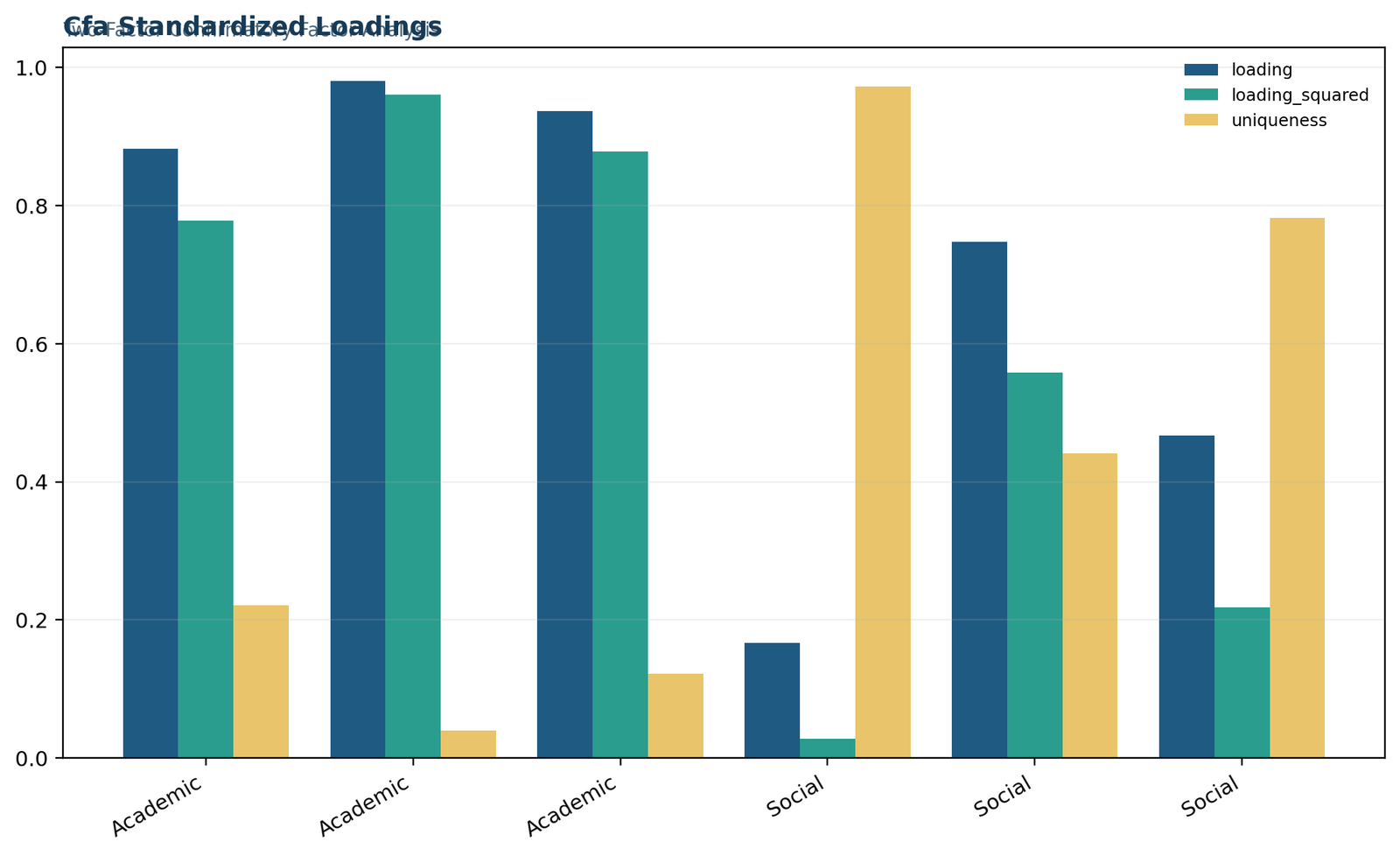

02 Confirmatory-Factor-Analysis Cfa Standardized Loadings
This panel locates strong, weak, and cross-indicator coefficients in the declared measurement structure for Confirmatory Factor Analysis. Read TLI = 0.996735 beside RMSEA = 0.020492; the first quantity is not replaced by the second.
The chart is used to inspect standardized loadings and residual variances. Its interpretation remains valid only when the model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

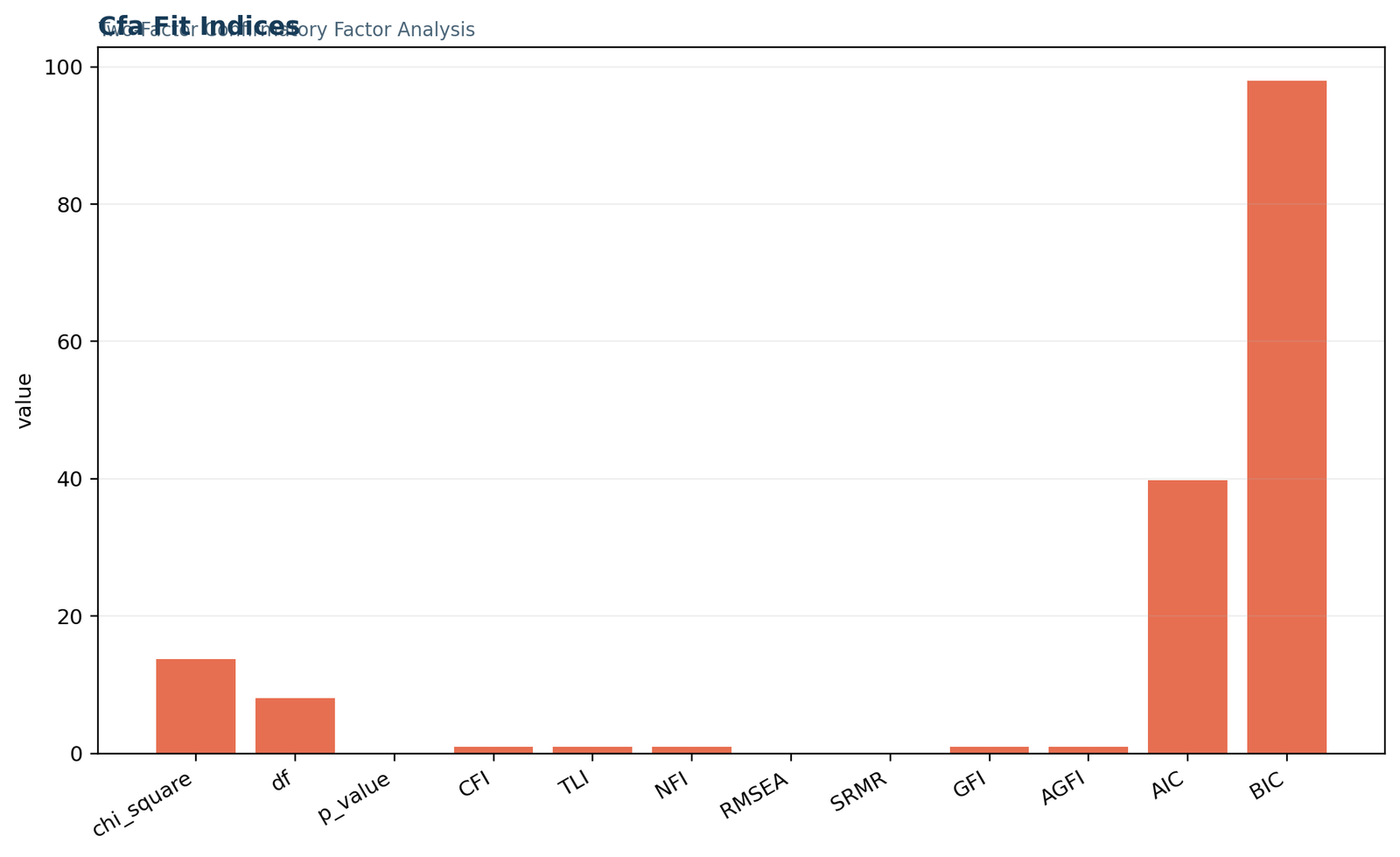

03 Confirmatory-Factor-Analysis Cfa Fit Indices
This panel provides a visual diagnostic tied to the method’s exact decision rule for Confirmatory Factor Analysis. Read RMSEA = 0.020492 beside SRMR = 0.035876; the first quantity is not replaced by the second.
The chart is used to review modification indices only as diagnostic evidence. Its interpretation remains valid only when the estimator matches scale and distributional properties. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

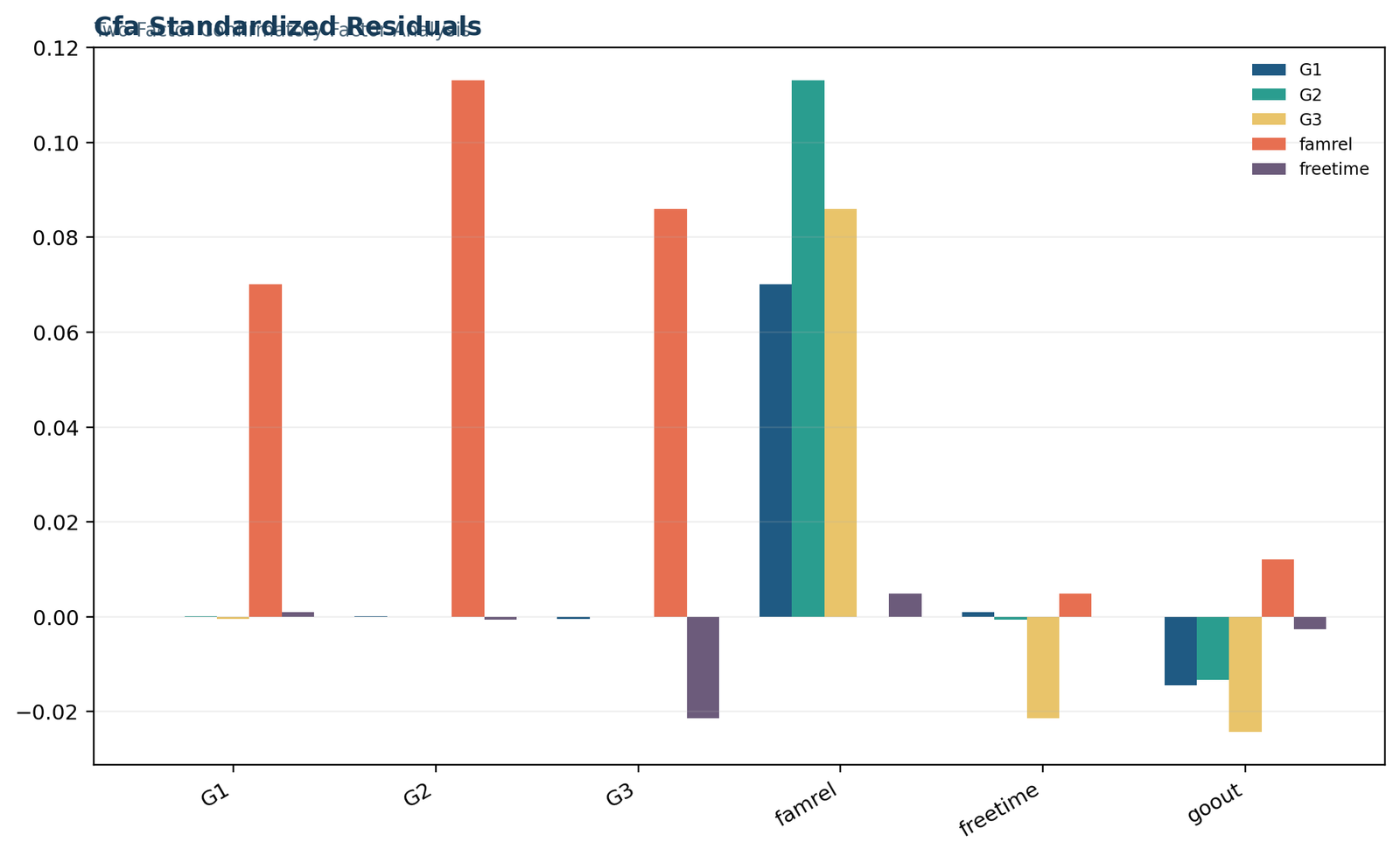

04 Confirmatory-Factor-Analysis Cfa Standardized Residuals
This panel examines localized discrepancy after the model or factor solution is fitted for Confirmatory Factor Analysis. Read SRMR = 0.035876 beside G2 standardized loading = 0.979897; the first quantity is not replaced by the second.
The chart is used to check latent correlations for discriminant problems. Its interpretation remains valid only when observations are independent or clustering is modeled. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

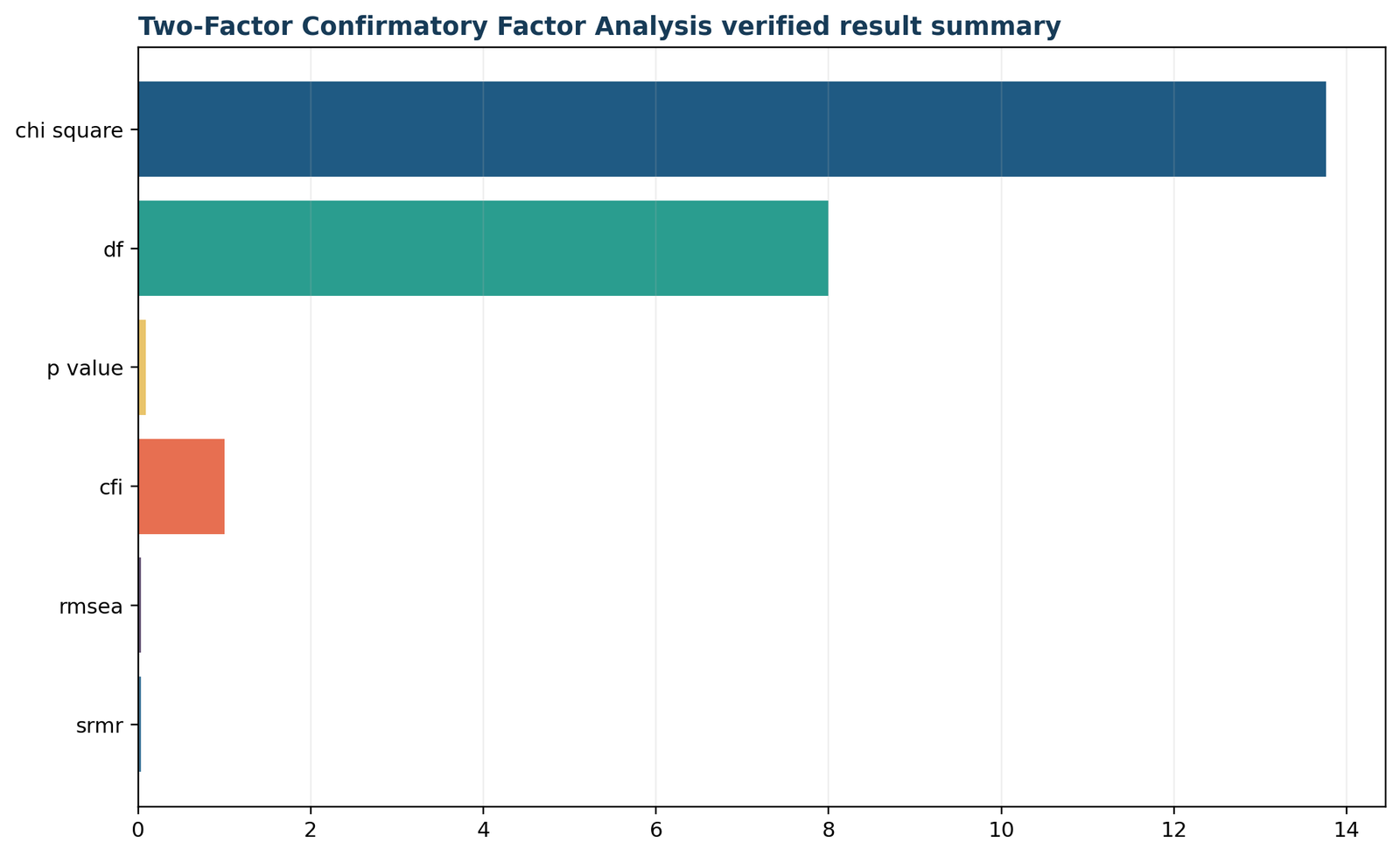

05 Confirmatory-Factor-Analysis Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Confirmatory Factor Analysis. Read G2 standardized loading = 0.979897 beside TravelAccess standardized loading = 0.301480; the first quantity is not replaced by the second.
The chart is used to examine residual matrices and localized strain. Its interpretation remains valid only when residual covariances are justified rather than data-mined. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Confirmatory-Factor-Analysis Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Confirmatory Factor Analysis. Read TravelAccess standardized loading = 0.301480 beside Latent Education path = 0.382401; the first quantity is not replaced by the second.
The chart is used to test alternative theoretically plausible measurement models. Its interpretation remains valid only when standardized solutions and fit corrections are reported consistently. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Confirmatory-Factor-Analysis Cfa Standardized Loadings
This panel locates strong, weak, and cross-indicator coefficients in the declared measurement structure for Confirmatory Factor Analysis. Read Latent Education path = 0.382401 beside Latent Social-Alcohol path = -0.477804; the first quantity is not replaced by the second.
The chart is used to verify factor-to-indicator assignments in the model syntax. Its interpretation remains valid only when the factor pattern is specified before estimation. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
03 Confirmatory-Factor-Analysis Cfa Fit Indices
This panel provides a visual diagnostic tied to the method’s exact decision rule for Confirmatory Factor Analysis. Read Latent Social-Alcohol path = -0.477804 beside Latent structural R squared = 0.167253; the first quantity is not replaced by the second.
The chart is used to inspect standardized loadings and residual variances. Its interpretation remains valid only when the model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
04 Confirmatory-Factor-Analysis Cfa Standardized Residuals
This panel examines localized discrepancy after the model or factor solution is fitted for Confirmatory Factor Analysis. Read Latent structural R squared = 0.167253 beside PLS Education path = 0.282066; the first quantity is not replaced by the second.
The chart is used to review modification indices only as diagnostic evidence. Its interpretation remains valid only when the estimator matches scale and distributional properties. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Confirmatory-Factor-Analysis Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Confirmatory Factor Analysis. Read PLS Education path = 0.282066 beside PLS Social-Alcohol path = -0.197452; the first quantity is not replaced by the second.
The chart is used to check latent correlations for discriminant problems. Its interpretation remains valid only when observations are independent or clustering is modeled. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
Confirmatory Factor Analysis verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Confirmatory Factor Analysis.
1. Verify factor-to-indicator assignments in the model syntax
Begin by verify factor-to-indicator assignments in the model syntax. For the confirmatory factor model, this operation directly connects CFI = 0.997823 with RMSEA = 0.020492. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The governing condition is that the factor pattern is specified before estimation. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Exploratory Factor Analysis, because EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions.
2. Inspect standardized loadings and residual variances
Next, inspect standardized loadings and residual variances. For the confirmatory factor model, this operation directly connects TLI = 0.996735 with SRMR = 0.035876. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The governing condition is that the model is identified. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with PCA, because PCA summarizes total variance with components, whereas CFA models common factors and measurement error.
3. Review modification indices only as diagnostic evidence
The third verification is to review modification indices only as diagnostic evidence. For the confirmatory factor model, this operation directly connects RMSEA = 0.020492 with G2 standardized loading = 0.979897. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
The governing condition is that the estimator matches scale and distributional properties. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Measurement Model, because CFA is one method for estimating a reflective measurement model; measurement-model assessment also covers reliability, validity, and invariance.
4. Check latent correlations for discriminant problems
After the core arithmetic is stable, check latent correlations for discriminant problems. For the confirmatory factor model, this operation directly connects SRMR = 0.035876 with TravelAccess standardized loading = 0.301480. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
The governing condition is that observations are independent or clustering is modeled. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Exploratory Factor Analysis, because EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions.
5. Examine residual matrices and localized strain
A robustness review must examine residual matrices and localized strain. For the confirmatory factor model, this operation directly connects G2 standardized loading = 0.979897 with Latent Education path = 0.382401. G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
The governing condition is that residual covariances are justified rather than data-mined. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with PCA, because PCA summarizes total variance with components, whereas CFA models common factors and measurement error.
6. Test alternative theoretically plausible measurement models
The final reconciliation should test alternative theoretically plausible measurement models. For the confirmatory factor model, this operation directly connects TravelAccess standardized loading = 0.301480 with Latent Social-Alcohol path = -0.477804. TravelAccess standardized loading = 0.301480 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
The governing condition is that standardized solutions and fit corrections are reported consistently. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Measurement Model, because CFA is one method for estimating a reflective measurement model; measurement-model assessment also covers reliability, validity, and invariance.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | verify factor-to-indicator assignments in the model syntax | the factor pattern is specified before estimation | CFI = 0.997823 |
| 2 | inspect standardized loadings and residual variances | the model is identified | TLI = 0.996735 |
| 3 | review modification indices only as diagnostic evidence | the estimator matches scale and distributional properties | RMSEA = 0.020492 |
| 4 | check latent correlations for discriminant problems | observations are independent or clustering is modeled | SRMR = 0.035876 |
| 5 | examine residual matrices and localized strain | residual covariances are justified rather than data-mined | G2 standardized loading = 0.979897 |
| 6 | test alternative theoretically plausible measurement models | standardized solutions and fit corrections are reported consistently | TravelAccess standardized loading = 0.301480 |
Confirmatory Factor Analysis compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Confirmatory Factor Analysis formula and output rather than a nearby procedure.
Exploratory Factor Analysis
EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions.
In the current analysis, TLI = 0.996735 remains evidence for the confirmatory factor model; it is not relabeled as a Exploratory Factor Analysis result. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
PCA
PCA summarizes total variance with components, whereas CFA models common factors and measurement error.
In the current analysis, RMSEA = 0.020492 remains evidence for the confirmatory factor model; it is not relabeled as a PCA result. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
Measurement Model
CFA is one method for estimating a reflective measurement model; measurement-model assessment also covers reliability, validity, and invariance.
In the current analysis, SRMR = 0.035876 remains evidence for the confirmatory factor model; it is not relabeled as a Measurement Model result. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
How to report Confirmatory Factor Analysis
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
Confirmatory Factor Analysis was evaluated using the declared data, specification, and software settings. The primary result was CFI = 0.997823; TLI = 0.996735 and RMSEA = 0.020492 supplied supporting context. The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
The report then states the limitation explicitly: CFA fit does not establish causal direction, criterion validity, or invariance across groups. A favorable global fit can coexist with weak indicators, cross-loadings fixed incorrectly to zero, correlated residuals, or a theoretically poor factor interpretation.
Settings that must accompany the result
the factor pattern is specified before estimation; the model is identified; the estimator matches scale and distributional properties; observations are independent or clustering is modeled.
For Confirmatory Factor Analysis, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
verify factor-to-indicator assignments in the model syntax; inspect standardized loadings and residual variances; review modification indices only as diagnostic evidence; check latent correlations for discriminant problems.
The final wording is revised only after those operations reproduce the saved values.
Confirmatory Factor Analysis decision scenarios
For Confirmatory Factor Analysis, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Verify factor-to-indicator assignments in the model syntax
Consider a review in which CFI = 0.997823 is reproduced but TLI = 0.996735 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify factor-to-indicator assignments in the model syntax and verify that the factor pattern is specified before estimation.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Exploratory Factor Analysis only for method selection: EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Input-definition sensitivity: Inspect standardized loadings and residual variances
Consider a review in which RMSEA = 0.020492 is reproduced but SRMR = 0.035876 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect standardized loadings and residual variances and verify that the model is identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with PCA only for method selection: PCA summarizes total variance with components, whereas CFA models common factors and measurement error. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Software-definition reconciliation: Review modification indices only as diagnostic evidence
Consider a review in which G2 standardized loading = 0.979897 is reproduced but TravelAccess standardized loading = 0.301480 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to review modification indices only as diagnostic evidence and verify that the estimator matches scale and distributional properties.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: CFA is one method for estimating a reflective measurement model; measurement-model assessment also covers reliability, validity, and invariance. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Local-chart conflict: Check latent correlations for discriminant problems
Consider a review in which Latent Education path = 0.382401 is reproduced but Latent Social-Alcohol path = -0.477804 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to check latent correlations for discriminant problems and verify that observations are independent or clustering is modeled.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Exploratory Factor Analysis only for method selection: EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Alternative-method challenge: Examine residual matrices and localized strain
Consider a review in which Latent structural R squared = 0.167253 is reproduced but PLS Education path = 0.282066 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to examine residual matrices and localized strain and verify that residual covariances are justified rather than data-mined.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with PCA only for method selection: PCA summarizes total variance with components, whereas CFA models common factors and measurement error. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Replication and reporting decision: Test alternative theoretically plausible measurement models
Consider a review in which PLS Social-Alcohol path = -0.197452 is reproduced but PLS R squared = 0.120424 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to test alternative theoretically plausible measurement models and verify that standardized solutions and fit corrections are reported consistently.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: CFA is one method for estimating a reflective measurement model; measurement-model assessment also covers reliability, validity, and invariance. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Boundary-case interpretation: Verify factor-to-indicator assignments in the model syntax
Consider a review in which PLS Q squared = 0.112273 is reproduced but Observed path R squared = 0.850714 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify factor-to-indicator assignments in the model syntax and verify that the factor pattern is specified before estimation.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Exploratory Factor Analysis only for method selection: EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Input-definition sensitivity: Inspect standardized loadings and residual variances
Consider a review in which Observed path adjusted R squared = 0.849084 is reproduced but CFI = 0.997823 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect standardized loadings and residual variances and verify that the model is identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with PCA only for method selection: PCA summarizes total variance with components, whereas CFA models common factors and measurement error. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Software-definition reconciliation: Review modification indices only as diagnostic evidence
Consider a review in which TLI = 0.996735 is reproduced but RMSEA = 0.020492 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to review modification indices only as diagnostic evidence and verify that the estimator matches scale and distributional properties.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Measurement Model only for method selection: CFA is one method for estimating a reflective measurement model; measurement-model assessment also covers reliability, validity, and invariance. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Local-chart conflict: Check latent correlations for discriminant problems
Consider a review in which SRMR = 0.035876 is reproduced but G2 standardized loading = 0.979897 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to check latent correlations for discriminant problems and verify that observations are independent or clustering is modeled.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Exploratory Factor Analysis only for method selection: EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Alternative-method challenge: Examine residual matrices and localized strain
Consider a review in which TravelAccess standardized loading = 0.301480 is reproduced but Latent Education path = 0.382401 is not. For the confirmatory factor model, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to examine residual matrices and localized strain and verify that residual covariances are justified rather than data-mined.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with PCA only for method selection: PCA summarizes total variance with components, whereas CFA models common factors and measurement error. The published conclusion remains The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
Confirmatory Factor Analysis downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one Confirmatory Factor Analysis analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
Confirmatory Factor Analysis frequently asked questions
Answers use the worked result and the exact method boundary.
What does Confirmatory Factor Analysis measure?
Confirmatory factor analysis estimates a prespecified measurement model in which observed indicators are linked to declared latent factors. The analysis tests the covariance implications of that structure while estimating loadings, factor correlations, and residual variances.
What is the main result in this Confirmatory Factor Analysis analysis?
CFI = 0.997823. The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
What does the result not prove?
CFA fit does not establish causal direction, criterion validity, or invariance across groups. A favorable global fit can coexist with weak indicators, cross-loadings fixed incorrectly to zero, correlated residuals, or a theoretically poor factor interpretation.
Which supporting value should be reported with the primary result?
TLI = 0.996735 is the first companion quantity. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
Which assumption is most likely to change the interpretation?
The first requirement is that the factor pattern is specified before estimation. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must verify factor-to-indicator assignments in the model syntax. That operation traces CFI = 0.997823 to the formula and saved inputs.
Why can software packages disagree on Confirmatory Factor Analysis?
Disagreement can arise because the model is identified or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is Confirmatory Factor Analysis different from Exploratory Factor Analysis?
EFA estimates a loading pattern with broad cross-loading freedom; CFA begins with explicit indicator–factor restrictions.
How should a chart be interpreted?
Each chart is tied to a named output such as RMSEA = 0.020492. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should Confirmatory Factor Analysis be reported?
Report CFI = 0.997823, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: The three-factor CFA has very favorable global fit, but the TravelAccess loading is weak. The model should therefore be described as globally well fitting with uneven local measurement quality, not as uniformly validated.
