HTMT Ratio: Formula, Verified Results, Charts and Interpretation

HTMT is the ratio of average absolute correlations across two constructs to the geometric mean of average absolute correlations within each construct. It is designed for discriminant-validity assessment of reflective measurement blocks. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.

Measurement evidenceConstruct-specificReal dataReproducible workflow

HTMT Academic Achievement vs Educational Advantage0.361500

HTMT Academic Achievement vs Social-Alcohol Exposure0.244980

HTMT Educational Advantage vs Social-Alcohol Exposure0.087231

HTMT upper 95% Academic Achievement vs Educational Advantage0.446550

Verified result

All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

For HTMT Ratio, hTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

Interpretive limit: HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

What HTMT Ratio measures

The exact estimand and the result this method is allowed to support.

HTMT Ratio addresses one defined analytical target: HTMT is the ratio of average absolute correlations across two constructs to the geometric mean of average absolute correlations within each construct. It is designed for discriminant-validity assessment of reflective measurement blocks.

Quantity estimated in this analysis

The heterotrait–monotrait ratio is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is HTMT Academic Achievement vs Educational Advantage = 0.361500; HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 supplies the first supporting check. HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

For HTMT Ratio, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.

Interpretation that is not permitted

HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

For HTMT Ratio, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.

Worked conclusion: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

When to use HTMT Ratio

Research scope, neighboring methods, and excluded claims.

Research question answered

The defensible question is whether the heterotrait–monotrait ratio supports the result stated for the declared dataset and analytical specification. It is answered by recalculate numerator and both monotrait components for each pair, followed by exclude diagonal item correlations. The evidence is bounded by HTMT Academic Achievement vs Educational Advantage = 0.361500 and its named companion quantities.

For HTMT Ratio, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.

Nearest methods that answer different questions

Fornell–Larcker Criterion: Fornell–Larcker is an older AVE-based comparison with lower sensitivity in many overlap scenarios.

Latent Correlation: A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations.

These distinctions determine which formula, output table, and chart can legitimately appear in a HTMT Ratio post.

Scope limit: HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

Real data used for HTMT Ratio

Variables, coding, sample or panel size, and the role each input plays.

For HTMT Ratio, the worked measurement evidence uses 649 complete records unless the method is based on expert ratings. The reflective blocks are Academic Achievement, Educational Advantage, and Social-Alcohol Exposure, with TravelAccess reverse-coded so that higher values indicate easier travel.

The heterotrait–monotrait ratio is evaluated from the loadings, residual variances, construct correlations, external criterion, or expert judgments appropriate to this method. The post does not transfer a coefficient from another evidence source simply because the same scale names appear.

Variable	Meaning	Mean	SD	Range	Construct
G1	first-period grade	11.3991	2.7453	0–19	Academic Achievement
G2	second-period grade	11.5701	2.9136	0–19	Academic Achievement
G3	final grade	11.9060	3.2307	0–19	Academic Achievement
Medu	mother’s education	2.5146	1.1346	0–4	Educational Advantage
Fedu	father’s education	2.3066	1.0999	0–4	Educational Advantage
TravelAccess	reverse-coded travel accessibility	3.4314	0.7487	1–4	Educational Advantage
goout	frequency of going out	3.1849	1.1758	1–5	Social-Alcohol Exposure
Dalc	workday alcohol use	1.5023	0.9248	1–5	Social-Alcohol Exposure
Walc	weekend alcohol use	2.2804	1.2844	1–5	Social-Alcohol Exposure

Data-to-result trace: Recalculate numerator and both monotrait components for each pair is the first data-integrity check, followed by exclude diagonal item correlations. Both checks are performed before the primary coefficient is interpreted.

HTMT Ratio assumptions and design requirements

Six conditions checked before the coefficient or decision rule is interpreted.

1. The indicator blocks are correctly defined

This condition determines whether the input object matches the formula. In the current HTMT Ratio analysis, the check is to recalculate numerator and both monotrait components for each pair while preserving HTMT Academic Achievement vs Educational Advantage = 0.361500.

For HTMT Ratio, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.

2. Absolute correlations exclude self-correlations

This requirement controls whether the numerical estimate has the interpretation claimed. In the current HTMT Ratio analysis, the check is to exclude diagonal item correlations while preserving HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980.

3. Within-block denominators use the intended correlation pairs

This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current HTMT Ratio analysis, the check is to inspect the largest pair Academic Achievement–Educational Advantage while preserving HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231.

4. The correlation type matches the item scales

This specification rule keeps the software routes numerically comparable. In the current HTMT Ratio analysis, the check is to report the upper confidence limit with the point estimate while preserving HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550.

5. Bootstrap resampling respects the sampling design

This diagnostic requirement is checked before a benchmark is applied. In the current HTMT Ratio analysis, the check is to compare with factor correlations and conceptual content while preserving Academic Achievement AVE = 0.872614.

6. The constructs are reflective

This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current HTMT Ratio analysis, the check is to avoid substituting Fornell–Larcker when HTMT is available while preserving Educational Advantage AVE = 0.467009.

Assumption consequence: HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

HTMT Ratio hypotheses or decision rule

The statistical question is stated at the correct level for this method.

Statistical question

For HTMT Ratio, the decision is defined by the named coefficient or evidence criterion. When a bootstrap interval or parameter test is available, its null concerns that exact coefficient or construct pair.

For HTMT Ratio, a threshold result is one component of a validity argument and cannot by itself establish the intended score interpretation.

Decision for the worked analysis

For HTMT Ratio, the calculation yields HTMT Academic Achievement vs Educational Advantage = 0.361500 . HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Language rule: the conclusion names the tested model, construct pair, item set, retained dimensions, or expert panel. It does not convert nonrejection into proof or a benchmark into a universal pass.

HTMT Ratio formula and worked substitution

Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.

The equation below is the defining mathematical object for HTMT Ratio. Its symbols are connected to the saved inputs and to HTMT Academic Achievement vs Educational Advantage = 0.361500, HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980, HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231, HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550.

heterotrait-monotrait coefficient equationsNative MathML · no external script

HTMT formula

${HTMT}_{a b} = \frac{mean}{(| r_{A–B} |)}$

The calculation excludes same-item correlations and uses the indicator blocks assigned to the two constructs.

Pairwise HTMT values

$\begin{array}{rcl} {HTMT}_{Academic Achievement–Educational Advantage} & = & 0.3615 \\ {HTMT}_{Academic Achievement–Social-Alcohol Exposure} & = & 0.2450 \\ {HTMT}_{Educational Advantage–Social-Alcohol Exposure} & = & 0.0872 \end{array}$

All pairwise ratios are comfortably below common thresholds, supporting discriminant validity.

Symbol and denominator control

For HTMT Ratio, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.

Full-precision substitution

For HTMT Ratio, the spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with HTMT Academic Achievement vs Educational Advantage = 0.361500 and HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 .

Step-by-step HTMT Ratio calculation

Every stage is tied to a saved value and a method-specific condition.

The worked calculation follows six operations specific to the heterotrait–monotrait ratio. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.

Establish the analytical object

Action: Recalculate numerator and both monotrait components for each pair.

For HTMT Ratio, numerical trace: HTMT Academic Achievement vs Educational Advantage = 0.361500; HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980.

Condition: the indicator blocks are correctly defined. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Reconstruct the first required quantity

Action: Exclude diagonal item correlations.

For HTMT Ratio, numerical trace: HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980; HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231.

Condition: absolute correlations exclude self-correlations. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Verify the companion quantity

Action: Inspect the largest pair Academic Achievement–Educational Advantage.

For HTMT Ratio, numerical trace: HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231; HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550.

Condition: within-block denominators use the intended correlation pairs. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Apply the decision rule

Action: Report the upper confidence limit with the point estimate.

Numerical trace: HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550; Academic Achievement AVE = 0.872614.

For HTMT Ratio, condition: the correlation type matches the item scales. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Inspect local evidence

Action: Compare with factor correlations and conceptual content.

Numerical trace: Academic Achievement AVE = 0.872614; Educational Advantage AVE = 0.467009.

Condition: bootstrap resampling respects the sampling design. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Reconcile and report

Action: Avoid substituting Fornell–Larcker when HTMT is available.

Numerical trace: Educational Advantage AVE = 0.467009; Social-Alcohol Exposure AVE = 0.490896.

Condition: the constructs are reflective. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Final reconciliation: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

HTMT Ratio results and interpretation

Primary and supporting statistics are kept separate and precisely labeled.

Primary result

0.361500

HTMT Academic Achievement vs Educational Advantage

Why the result is internally coherent

For HTMT Ratio, hTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

For HTMT Ratio, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.

Result item	Exact value	Interpretation restricted to this method
HTMT Academic Achievement vs Educational Advantage	0.361500	HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
HTMT Academic Achievement vs Social-Alcohol Exposure	0.244980	HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
HTMT Educational Advantage vs Social-Alcohol Exposure	0.087231	HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
HTMT upper 95% Academic Achievement vs Educational Advantage	0.446550	HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
Academic Achievement AVE	0.872614	Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
Educational Advantage AVE	0.467009	Educational Advantage AVE = 0.467009 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
Social-Alcohol Exposure AVE	0.490896	Social-Alcohol Exposure AVE = 0.490896 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
Academic Achievement CR	0.953517	Academic Achievement CR = 0.953517 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model.
Educational Advantage CR	0.696353	Educational Advantage CR = 0.696353 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model.
Social-Alcohol Exposure CR	0.724808	Social-Alcohol Exposure CR = 0.724808 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model.
Academic sqrt AVE	0.934138	Academic sqrt AVE = 0.934138 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column.
Educational sqrt AVE	0.683380	Educational sqrt AVE = 0.683380 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column.
Social-Alcohol sqrt AVE	0.700640	Social-Alcohol sqrt AVE = 0.700640 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column.
Academic–Education factor correlation	0.313995	Academic–Education factor correlation = 0.313995 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.

Maximum defensible claim: HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

HTMT Ratio in Python

The Python route calculates or reconstructs the exact named result.

The Python workflow uses the explicit NumPy/Pandas calculation to calculate or extract the heterotrait–monotrait ratio from the declared data and analytical specification. It must reproduce HTMT Academic Achievement vs Educational Advantage = 0.361500 and retain HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 as a separate supporting quantity.

The code is read as an executable analysis, not as a printed answer. Its critical verification is to recalculate numerator and both monotrait components for each pair; the associated design condition is that the indicator blocks are correctly defined. HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

Python — HTMT Ratio

import pandas as pd

import numpy as np

df = pd.read_csv("student-por.csv", sep=";") df["TravelAccess"] = 5 - df["traveltime"] vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"] X = df[vars9].dropna() blocks={"Academic":["G1","G2","G3"],"Education":["Medu","Fedu","TravelAccess"],"SocialAlcohol":["goout","Dalc","Walc"]} R=X.corr() def htmt(a,b): cross=np.abs(R.loc[blocks[a],blocks[b]].to_numpy()).mean() wa=np.abs(R.loc[blocks[a],blocks[a]].to_numpy()[np.triu_indices(3,1)]).mean() wb=np.abs(R.loc[blocks[b],blocks[b]].to_numpy()[np.triu_indices(3,1)]).mean() return cross/np.sqrt(wa*wb) for a,b in [("Academic","Education"),("Academic","SocialAlcohol"),("Education","SocialAlcohol")]: print(a,b,htmt(a,b))

Python interpretation: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

HTMT Ratio in R

The R route declares package, estimator, extraction, rotation, or resampling settings.

The R route uses semTools and the displayed arguments to estimate the heterotrait–monotrait ratio. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.

R output is reconciled with HTMT Academic Achievement vs Educational Advantage = 0.361500 after the analyst exclude diagonal item correlations. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.

R — HTMT Ratio

d <- read.csv2("student-por.csv")

d$TravelAccess <- 5 - d$traveltime

vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")

X <- d[vars9]

library(semTools)

# Fit the CFA model, then request HTMT and AVE from the fitted lavaan object.

htmt(model, data=d); reliability(fit); AVE(fit)

R interpretation: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

HTMT Ratio in SPSS or AMOS

The procedure is labeled honestly when base SPSS does not expose the coefficient.

The SPSS or AMOS section shows the procedure that is actually available for the heterotrait–monotrait ratio. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.

The output must identify HTMT Academic Achievement vs Educational Advantage = 0.361500 and the settings needed to reproduce it. The software review specifically inspect the largest pair Academic Achievement–Educational Advantage, while preserving the requirement that within-block denominators use the intended correlation pairs.

SPSS or AMOS — HTMT Ratio

* Prepare the standardized loading, residual-variance, construct-correlation, or expert-rating table required for HTMT Ratio.

* Use MATRIX, AMOS, or validated R/Python integration when base SPSS does not expose the coefficient.

* Do not rename a different SPSS statistic as HTMT Ratio.

SPSS or AMOS interpretation: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

HTMT Ratio in Excel

The workbook exposes source values, intermediate arithmetic, and the final formula.

The Excel workbook is an arithmetic audit for the heterotrait–monotrait ratio. Named cells retain the inputs, intermediate components, and final formula leading to HTMT Academic Achievement vs Educational Advantage = 0.361500; no rounded constant is pasted over a formula cell.

Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to report the upper confidence limit with the point estimate and documents HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 independently.

Excel — HTMT Ratio

Data: 649 rows with documented coding.

Inputs: named cells or ranges required only by HTMT Ratio.

Calculation: =AVERAGE(ABS(Cross_Block_Correlations))/SQRT(AVERAGE(ABS(Within_A))*AVERAGE(ABS(Within_B)))

Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.

Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.

Excel interpretation: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

HTMT Ratio charts and visual diagnostics

Each supplied image is interpreted through its own values and analytical purpose.

Every image below is interpreted as part of the same HTMT Ratio analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

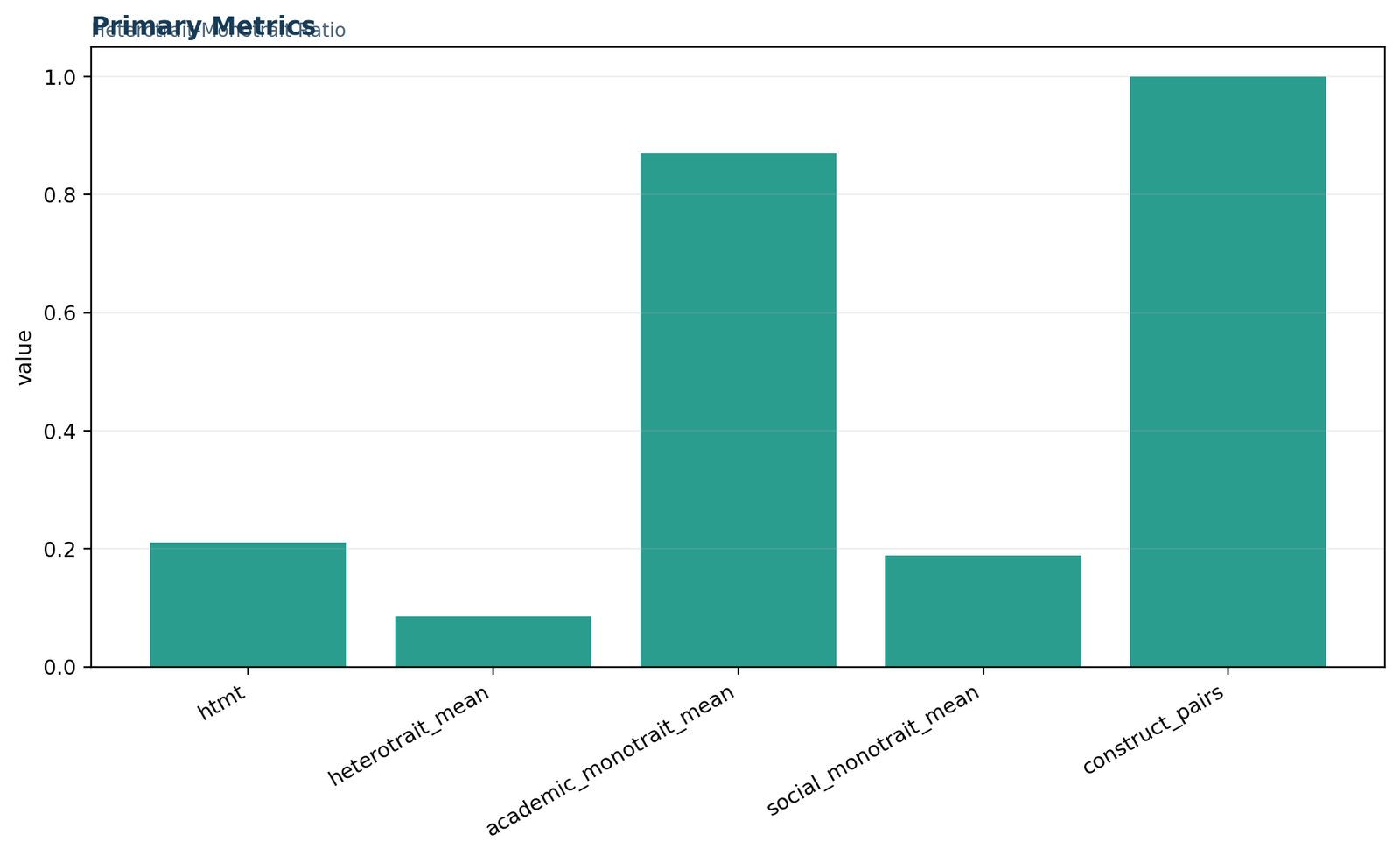

HTMT Ratio — 01 Htmt-Ratio Primary Metrics — 01 Htmt-Ratio Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for **HTMT Ratio**. Read **HTMT Academic Achievement vs Educational Advantage = 0.361500** beside **HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980**; the first quantity is not replaced by the second.
The chart is used to recalculate numerator and both monotrait components for each pair. Its interpretation remains valid only when the indicator blocks are correctly defined. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

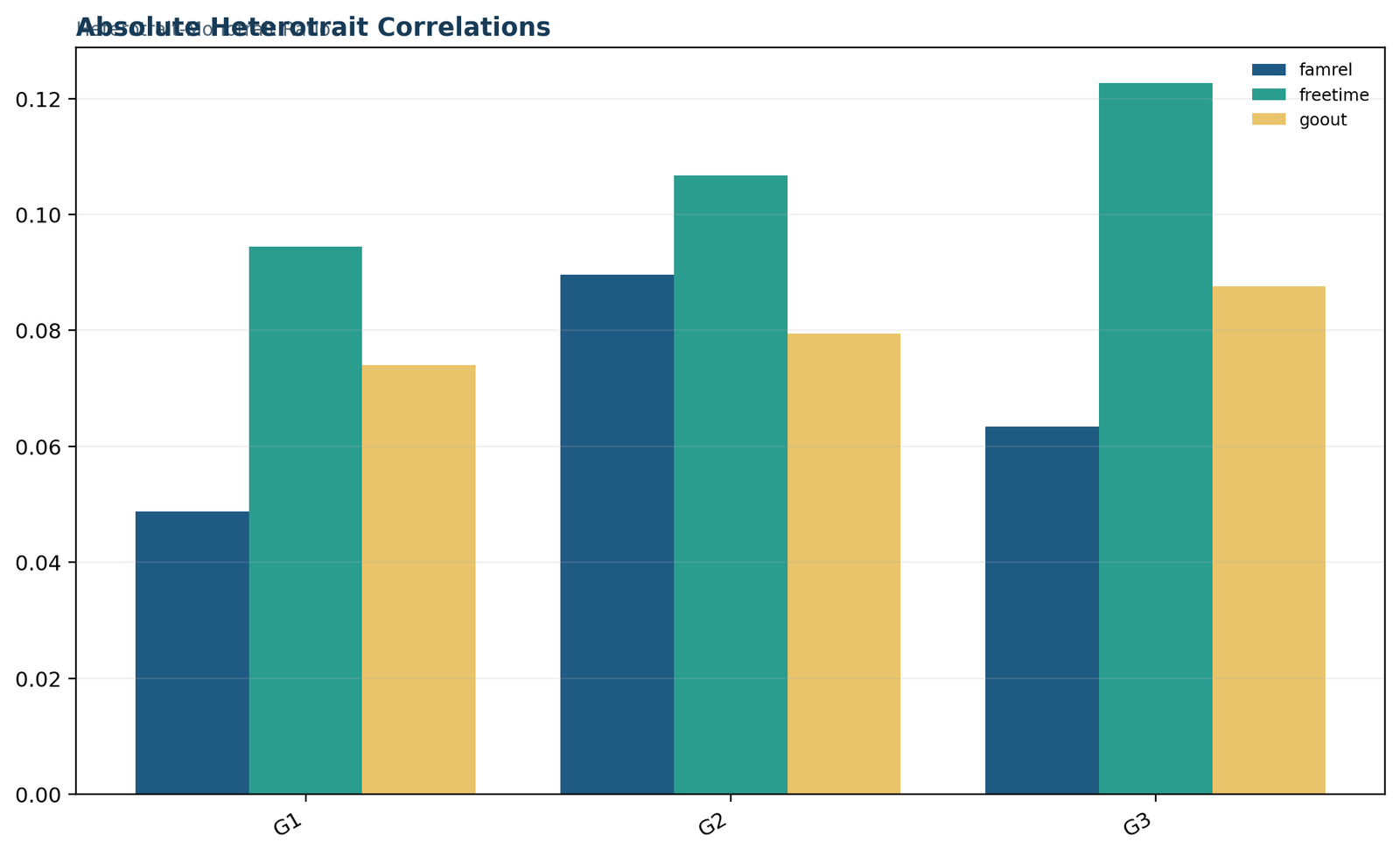

HTMT Ratio — 02 Htmt-Ratio Absolute Heterotrait Correlations — 02 Htmt-Ratio Absolute Heterotrait Correlations
This panel provides a visual diagnostic tied to the method’s exact decision rule for **HTMT Ratio**. Read **HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980** beside **HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231**; the first quantity is not replaced by the second.
The chart is used to exclude diagonal item correlations. Its interpretation remains valid only when absolute correlations exclude self-correlations. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

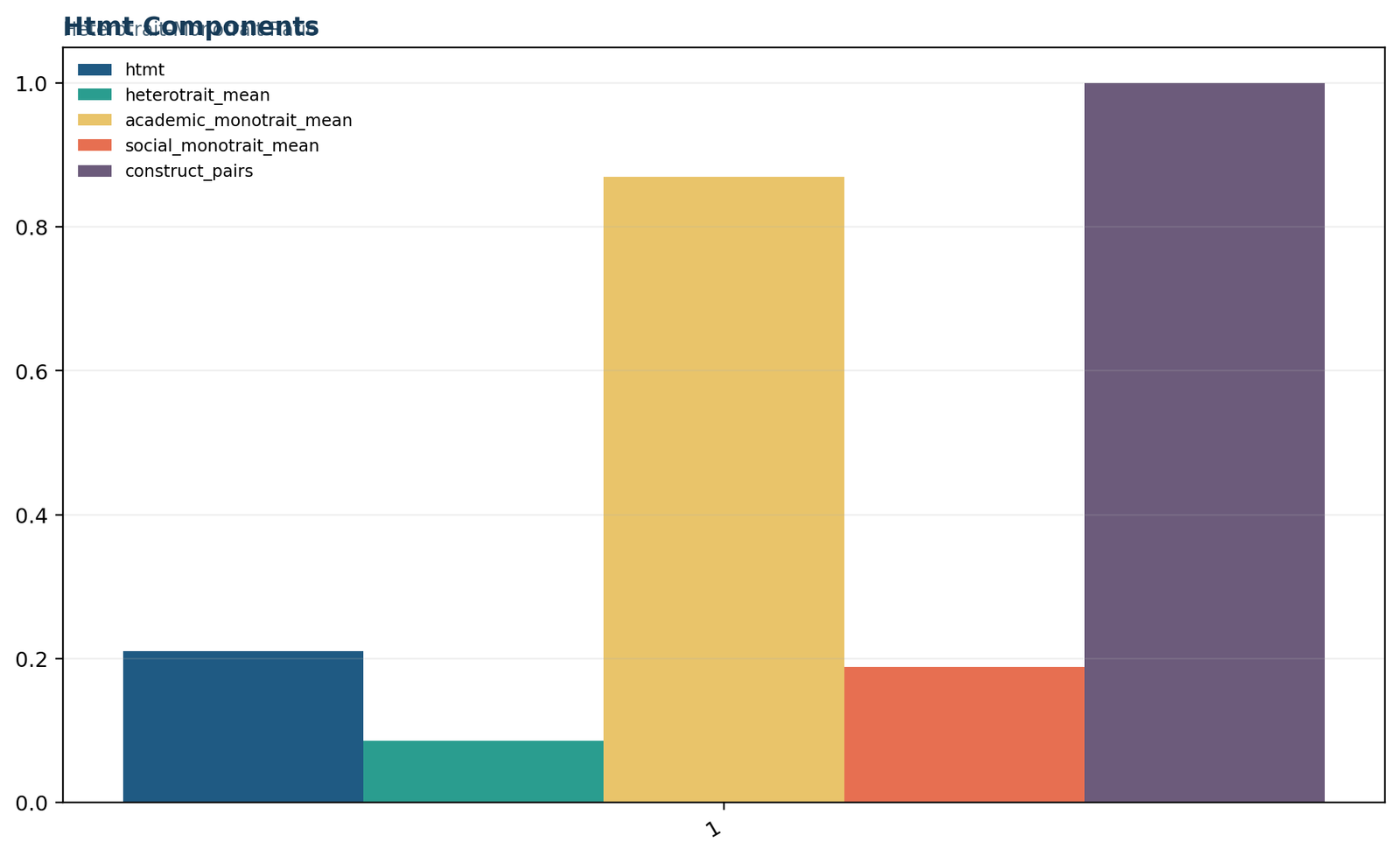

HTMT Ratio — 03 Htmt-Ratio Htmt Components — 03 Htmt-Ratio Htmt Components
This panel displays the quantities entering the defining equation for **HTMT Ratio**. Read **HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231** beside **HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550**; the first quantity is not replaced by the second.
The chart is used to inspect the largest pair Academic Achievement–Educational Advantage. Its interpretation remains valid only when within-block denominators use the intended correlation pairs. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

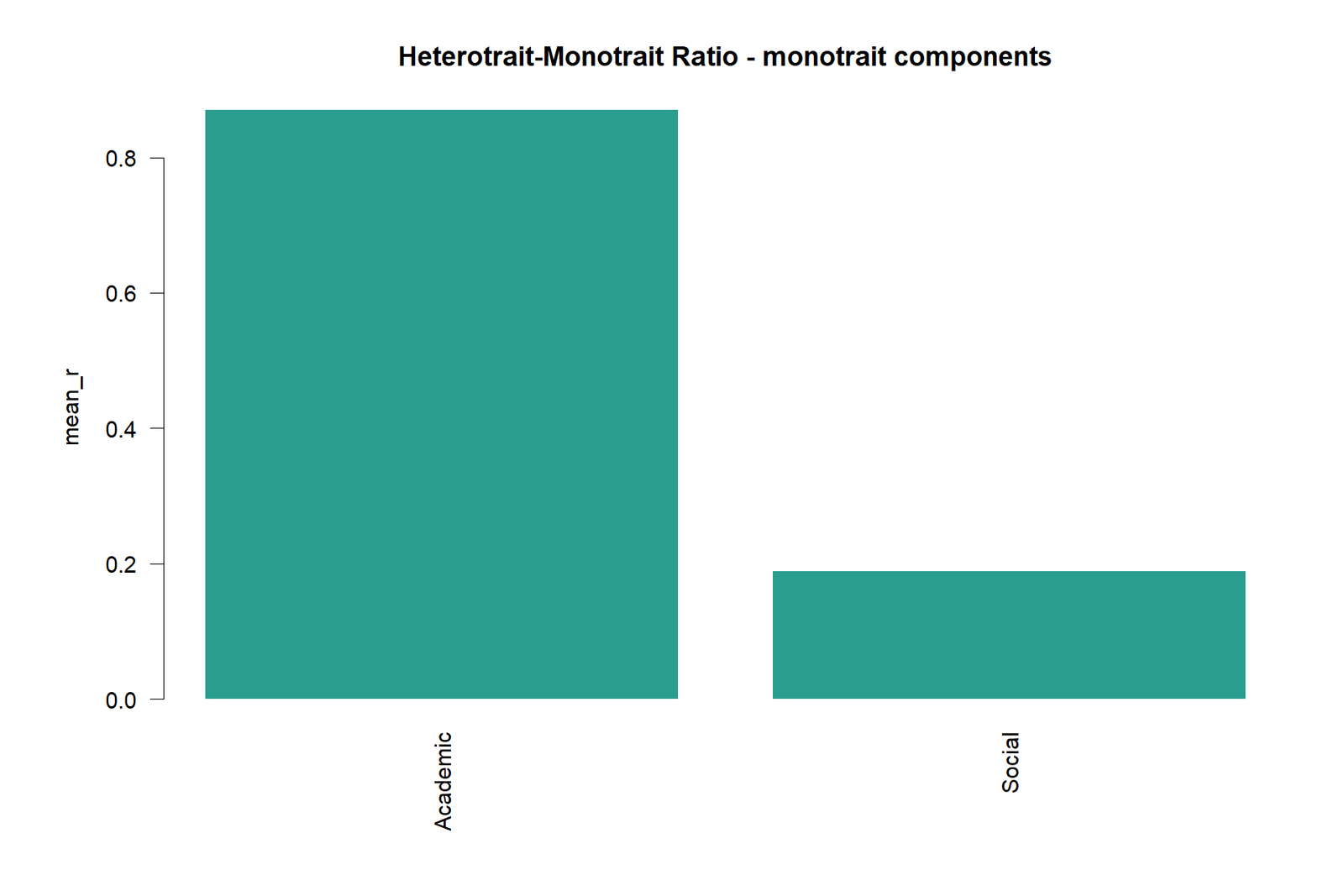

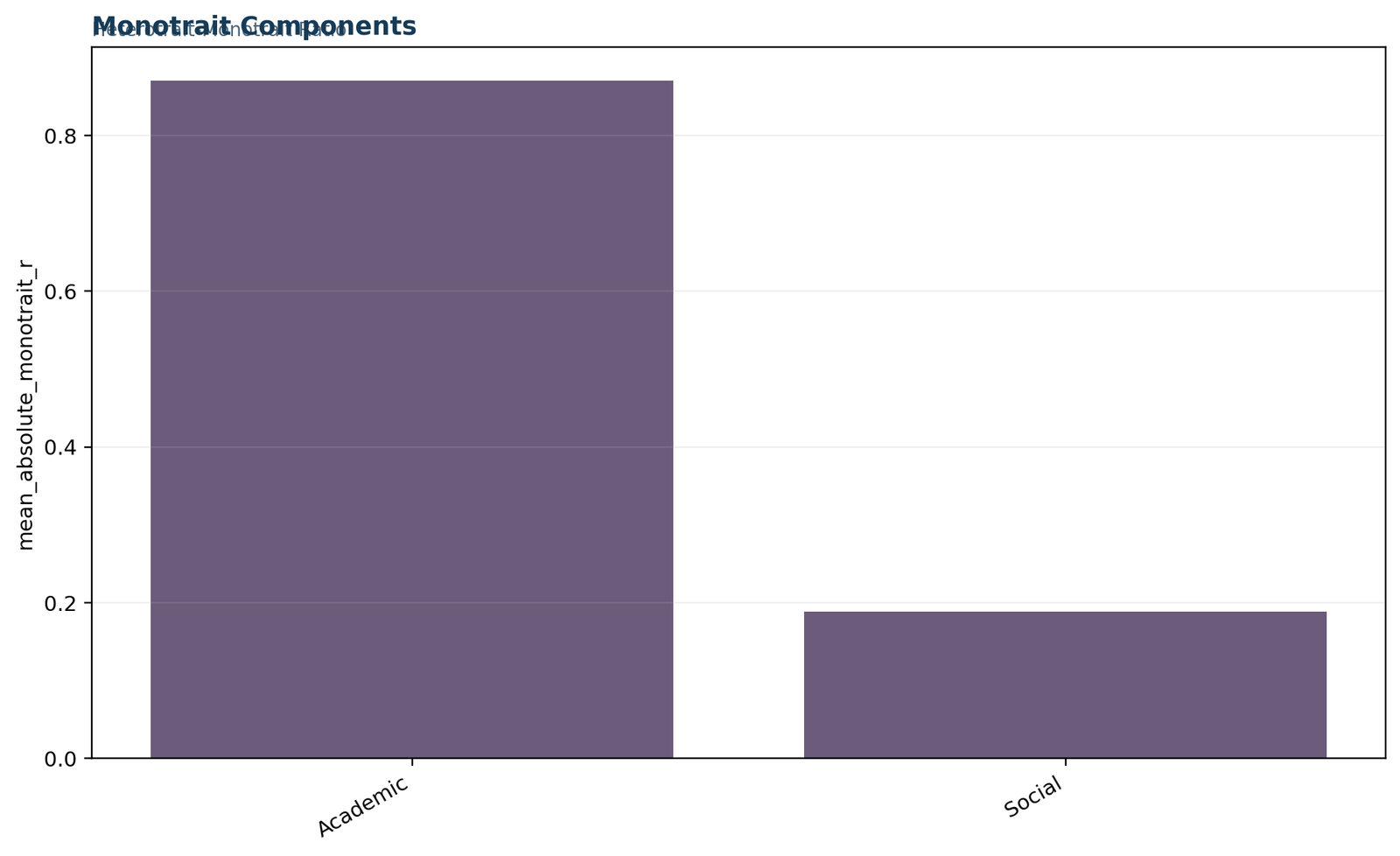

HTMT Ratio — 04 Htmt-Ratio Monotrait Components — 04 Htmt-Ratio Monotrait Components
This panel displays the quantities entering the defining equation for **HTMT Ratio**. Read **HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550** beside **Academic Achievement AVE = 0.872614**; the first quantity is not replaced by the second.
The chart is used to report the upper confidence limit with the point estimate. Its interpretation remains valid only when the correlation type matches the item scales. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

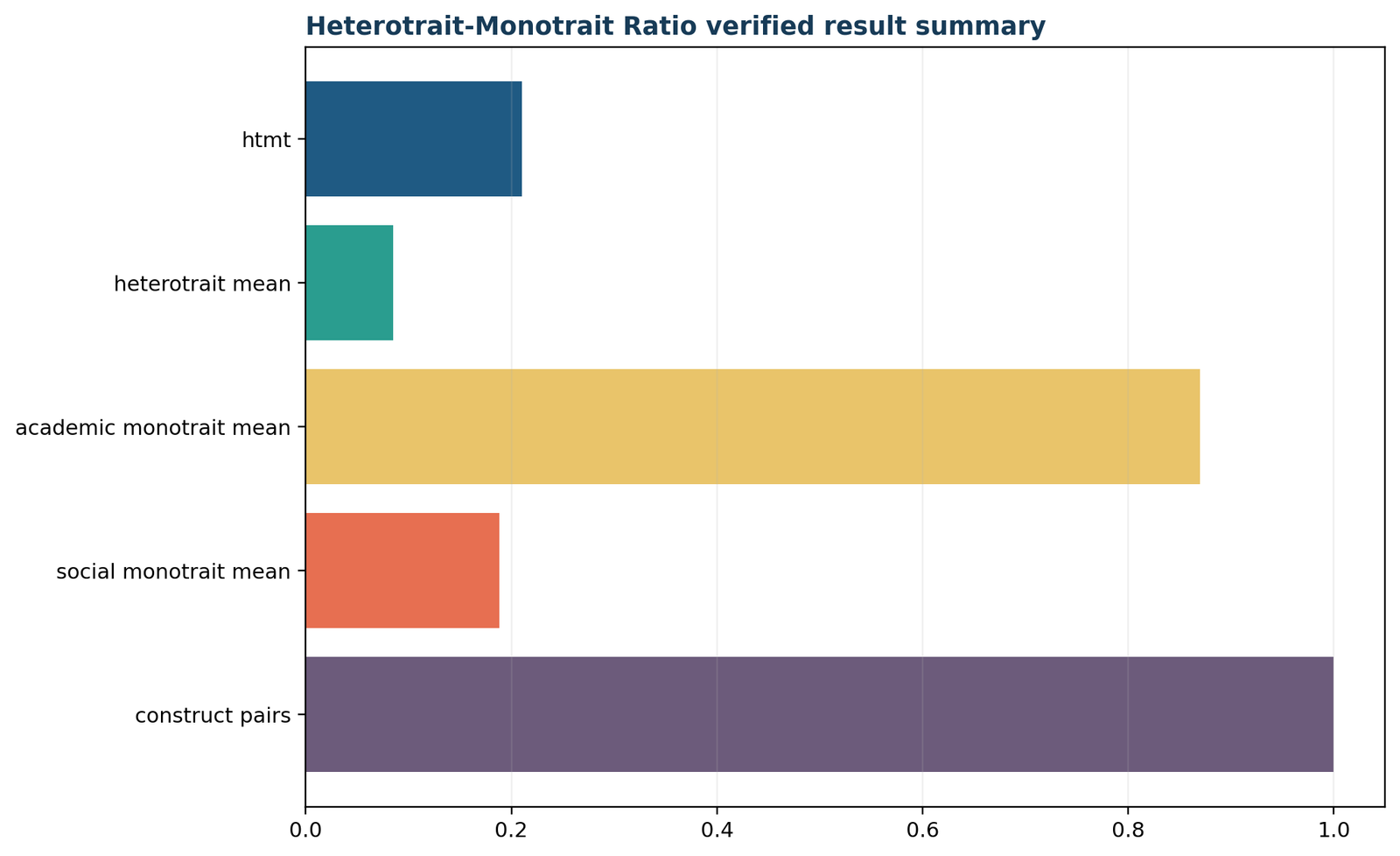

HTMT Ratio — 05 Htmt-Ratio Verified Result Summary — 05 Htmt-Ratio Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for **HTMT Ratio**. Read **Academic Achievement AVE = 0.872614** beside **Educational Advantage AVE = 0.467009**; the first quantity is not replaced by the second.
The chart is used to compare with factor correlations and conceptual content. Its interpretation remains valid only when bootstrap resampling respects the sampling design. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

HTMT Ratio — 03 Htmt-Ratio Monotrait Components — 03 Htmt-Ratio Monotrait Components
This panel displays the quantities entering the defining equation for **HTMT Ratio**. Read **Academic Achievement CR = 0.953517** beside **Educational Advantage CR = 0.696353**; the first quantity is not replaced by the second.
The chart is used to exclude diagonal item correlations. Its interpretation remains valid only when absolute correlations exclude self-correlations. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

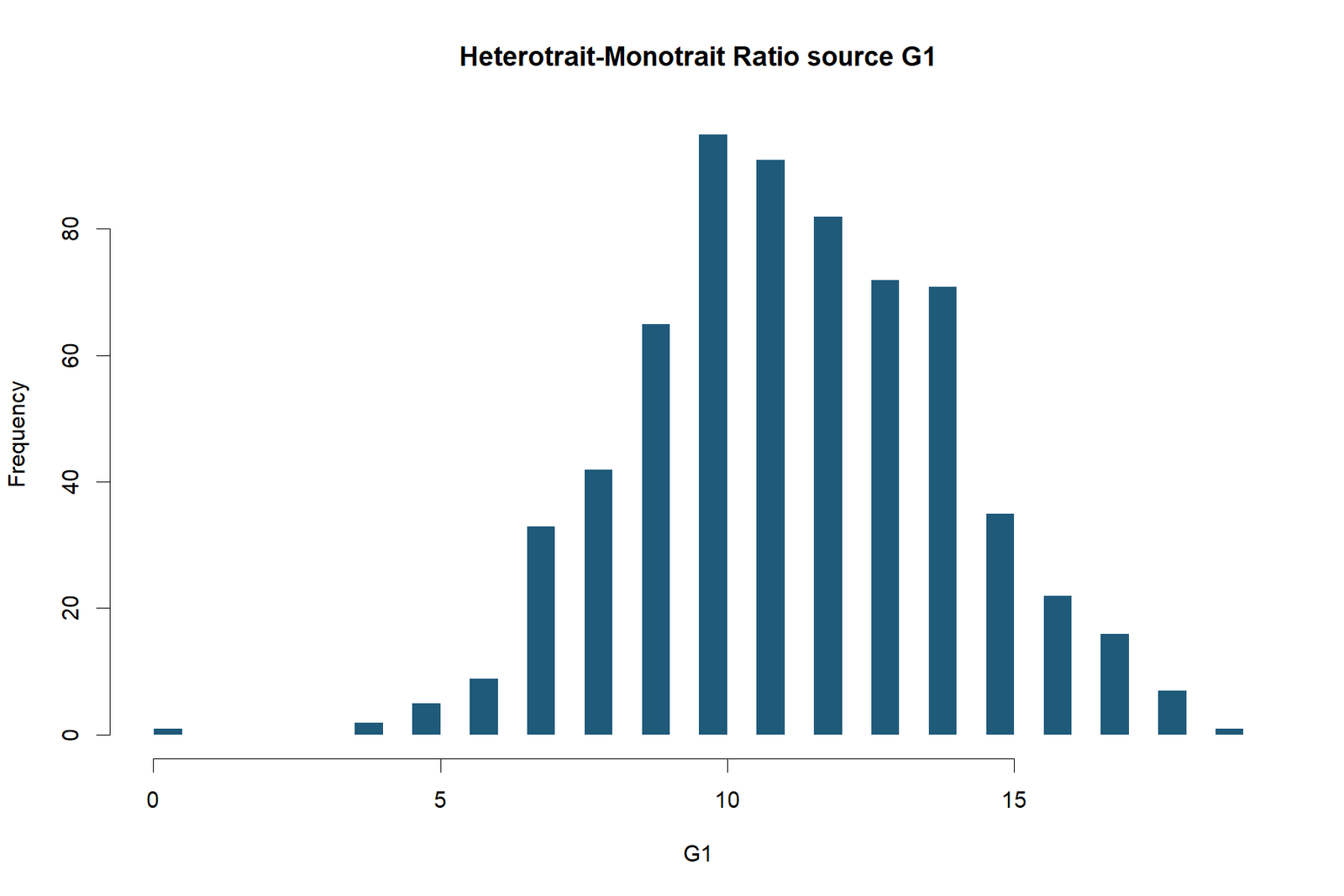

HTMT Ratio — 04 Htmt-Ratio Source G1 — 04 Htmt-Ratio Source G1
This panel provides a visual diagnostic tied to the method’s exact decision rule for **HTMT Ratio**. Read **Educational Advantage CR = 0.696353** beside **Social-Alcohol Exposure CR = 0.724808**; the first quantity is not replaced by the second.
The chart is used to inspect the largest pair Academic Achievement–Educational Advantage. Its interpretation remains valid only when within-block denominators use the intended correlation pairs. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

HTMT Ratio verification and sensitivity analysis

Six failure modes are checked against the formula, data, output, and charts.

The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of HTMT Ratio.

1. Recalculate numerator and both monotrait components for each pair

Begin by recalculate numerator and both monotrait components for each pair. For the heterotrait–monotrait ratio, this operation directly connects HTMT Academic Achievement vs Educational Advantage = 0.361500 with HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231. HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

The governing condition is that the indicator blocks are correctly defined. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Fornell–Larcker Criterion, because Fornell–Larcker is an older AVE-based comparison with lower sensitivity in many overlap scenarios.

2. Exclude diagonal item correlations

Next, exclude diagonal item correlations. For the heterotrait–monotrait ratio, this operation directly connects HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 with HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550. HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

The governing condition is that absolute correlations exclude self-correlations. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Latent Correlation, because A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations.

3. Inspect the largest pair Academic Achievement–Educational Advantage

The third verification is to inspect the largest pair Academic Achievement–Educational Advantage. For the heterotrait–monotrait ratio, this operation directly connects HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 with Academic Achievement AVE = 0.872614. HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

The governing condition is that within-block denominators use the intended correlation pairs. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Cross-Loadings, because Cross-loadings localize indicator overlap but do not replace the pairwise HTMT assessment.

4. Report the upper confidence limit with the point estimate

After the core arithmetic is stable, report the upper confidence limit with the point estimate. For the heterotrait–monotrait ratio, this operation directly connects HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 with Educational Advantage AVE = 0.467009. HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

The governing condition is that the correlation type matches the item scales. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Fornell–Larcker Criterion, because Fornell–Larcker is an older AVE-based comparison with lower sensitivity in many overlap scenarios.

5. Compare with factor correlations and conceptual content

A robustness review must compare with factor correlations and conceptual content. For the heterotrait–monotrait ratio, this operation directly connects Academic Achievement AVE = 0.872614 with Social-Alcohol Exposure AVE = 0.490896. Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.

The governing condition is that bootstrap resampling respects the sampling design. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Latent Correlation, because A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations.

6. Avoid substituting Fornell–Larcker when HTMT is available

The final reconciliation should avoid substituting Fornell–Larcker when HTMT is available. For the heterotrait–monotrait ratio, this operation directly connects Educational Advantage AVE = 0.467009 with Academic Achievement CR = 0.953517. Educational Advantage AVE = 0.467009 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.

The governing condition is that the constructs are reflective. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Cross-Loadings, because Cross-loadings localize indicator overlap but do not replace the pairwise HTMT assessment.

#	Verification operation	Condition protected	Saved quantity traced
1	recalculate numerator and both monotrait components for each pair	the indicator blocks are correctly defined	HTMT Academic Achievement vs Educational Advantage = 0.361500
2	exclude diagonal item correlations	absolute correlations exclude self-correlations	HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980
3	inspect the largest pair Academic Achievement–Educational Advantage	within-block denominators use the intended correlation pairs	HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231
4	report the upper confidence limit with the point estimate	the correlation type matches the item scales	HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550
5	compare with factor correlations and conceptual content	bootstrap resampling respects the sampling design	Academic Achievement AVE = 0.872614
6	avoid substituting Fornell–Larcker when HTMT is available	the constructs are reflective	Educational Advantage AVE = 0.467009

Diagnostic conclusion: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Failure boundary: HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

HTMT Ratio compared with related methods

Differences in estimand, formula, and conclusion determine the correct choice.

Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the HTMT Ratio formula and output rather than a nearby procedure.

Fornell–Larcker Criterion

Fornell–Larcker is an older AVE-based comparison with lower sensitivity in many overlap scenarios.

In the current analysis, HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 remains evidence for the heterotrait–monotrait ratio; it is not relabeled as a Fornell–Larcker Criterion result. HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

Latent Correlation

A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations.

In the current analysis, HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 remains evidence for the heterotrait–monotrait ratio; it is not relabeled as a Latent Correlation result. HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

Cross-Loadings

Cross-loadings localize indicator overlap but do not replace the pairwise HTMT assessment.

In the current analysis, HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 remains evidence for the heterotrait–monotrait ratio; it is not relabeled as a Cross-Loadings result. HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

Selection rule: HTMT is the ratio of average absolute correlations across two constructs to the geometric mean of average absolute correlations within each construct. It is designed for discriminant-validity assessment of reflective measurement blocks.

How to report HTMT Ratio

A complete result paragraph includes the value, analytical object, settings, and limitation.

Results paragraph

HTMT Ratio was evaluated using the declared data, specification, and software settings. The primary result was HTMT Academic Achievement vs Educational Advantage = 0.361500; HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 and HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 supplied supporting context. All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

The report then states the limitation explicitly: HTMT is not a latent correlation, not a reliability coefficient, and not appropriate without defensible reflective blocks. Point estimates alone are weaker than bootstrap confidence intervals, especially near a decision boundary.

Settings that must accompany the result

the indicator blocks are correctly defined; absolute correlations exclude self-correlations; within-block denominators use the intended correlation pairs; the correlation type matches the item scales.

For HTMT Ratio, these details identify the exact version of the analysis and make cross-software reconciliation possible.

Verification actions retained in the record

recalculate numerator and both monotrait components for each pair; exclude diagonal item correlations; inspect the largest pair Academic Achievement–Educational Advantage; report the upper confidence limit with the point estimate.

The final wording is revised only after those operations reproduce the saved values.

Reporting standard: name the statistic, value, analytical object, sample or panel size, method settings, and limitation in the same result paragraph.

16A

HTMT Ratio decision scenarios

For HTMT Ratio, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.

Boundary-case interpretation: Recalculate numerator and both monotrait components for each pair

Consider a review in which HTMT Academic Achievement vs Educational Advantage = 0.361500 is reproduced but HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to recalculate numerator and both monotrait components for each pair and verify that the indicator blocks are correctly defined.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Fornell–Larcker Criterion only for method selection: Fornell–Larcker is an older AVE-based comparison with lower sensitivity in many overlap scenarios. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Input-definition sensitivity: Exclude diagonal item correlations

Consider a review in which HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is reproduced but HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to exclude diagonal item correlations and verify that absolute correlations exclude self-correlations.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Latent Correlation only for method selection: A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Software-definition reconciliation: Inspect the largest pair Academic Achievement–Educational Advantage

Consider a review in which Academic Achievement AVE = 0.872614 is reproduced but Educational Advantage AVE = 0.467009 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect the largest pair Academic Achievement–Educational Advantage and verify that within-block denominators use the intended correlation pairs.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Cross-Loadings only for method selection: Cross-loadings localize indicator overlap but do not replace the pairwise HTMT assessment. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Local-chart conflict: Report the upper confidence limit with the point estimate

Consider a review in which Social-Alcohol Exposure AVE = 0.490896 is reproduced but Academic Achievement CR = 0.953517 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report the upper confidence limit with the point estimate and verify that the correlation type matches the item scales.

Alternative-method challenge: Compare with factor correlations and conceptual content

Consider a review in which Educational Advantage CR = 0.696353 is reproduced but Social-Alcohol Exposure CR = 0.724808 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to compare with factor correlations and conceptual content and verify that bootstrap resampling respects the sampling design.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Latent Correlation only for method selection: A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Replication and reporting decision: Avoid substituting Fornell–Larcker when HTMT is available

Consider a review in which Academic sqrt AVE = 0.934138 is reproduced but Educational sqrt AVE = 0.683380 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to avoid substituting Fornell–Larcker when HTMT is available and verify that the constructs are reflective.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Cross-Loadings only for method selection: Cross-loadings localize indicator overlap but do not replace the pairwise HTMT assessment. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Boundary-case interpretation: Recalculate numerator and both monotrait components for each pair

Consider a review in which Social-Alcohol sqrt AVE = 0.700640 is reproduced but Academic–Education factor correlation = 0.313995 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to recalculate numerator and both monotrait components for each pair and verify that the indicator blocks are correctly defined.

Input-definition sensitivity: Exclude diagonal item correlations

Consider a review in which Academic–Social factor correlation = 0.200278 is reproduced but HTMT Academic Achievement vs Educational Advantage = 0.361500 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to exclude diagonal item correlations and verify that absolute correlations exclude self-correlations.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Latent Correlation only for method selection: A latent correlation is a model parameter; HTMT is a ratio built from indicator correlations. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

Software-definition reconciliation: Inspect the largest pair Academic Achievement–Educational Advantage

Consider a review in which HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is reproduced but HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is not. For the heterotrait–monotrait ratio, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect the largest pair Academic Achievement–Educational Advantage and verify that within-block denominators use the intended correlation pairs.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Cross-Loadings only for method selection: Cross-loadings localize indicator overlap but do not replace the pairwise HTMT assessment. The published conclusion remains All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

HTMT Ratio downloads and reproducibility files

All linked files belong to the same analysis and remain on onlineinternetcafe.com.

PYHTMT Ratio Python reportReproduces HTMT Academic Achievement vs Educational Advantage = 0.361500 and documents how to recalculate numerator and both monotrait components for each pair.Open file →RHTMT Ratio R reportReproduces HTMT Academic Achievement vs Educational Advantage = 0.361500 and documents how to exclude diagonal item correlations.Open file →SPSSHTMT Ratio SPSS/AMOS outputReproduces HTMT Academic Achievement vs Educational Advantage = 0.361500 and documents how to inspect the largest pair Academic Achievement–Educational Advantage.Open file →XLSXHTMT Ratio Excel workbookReproduces HTMT Academic Achievement vs Educational Advantage = 0.361500 and documents how to report the upper confidence limit with the point estimate.Open file →

The four files belong to one HTMT Ratio analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.

HTMT Ratio frequently asked questions

Answers use the worked result and the exact method boundary.

What does HTMT Ratio measure?

What is the main result in this HTMT Ratio analysis?

HTMT Academic Achievement vs Educational Advantage = 0.361500. All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

What does the result not prove?

Which supporting value should be reported with the primary result?

For HTMT Ratio, hTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is the first companion quantity. HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.

Which assumption is most likely to change the interpretation?

The first requirement is that the indicator blocks are correctly defined. The result is recomputed if that condition is not satisfied.

What is the most important numerical verification?

The analyst must recalculate numerator and both monotrait components for each pair. That operation traces HTMT Academic Achievement vs Educational Advantage = 0.361500 to the formula and saved inputs.

Why can software packages disagree on HTMT Ratio?

Disagreement can arise because absolute correlations exclude self-correlations or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.

How is HTMT Ratio different from Fornell–Larcker Criterion?

Fornell–Larcker is an older AVE-based comparison with lower sensitivity in many overlap scenarios.

How should a chart be interpreted?

For HTMT Ratio, each chart is tied to a named output such as HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231. It supports a local calculation or diagnostic and does not replace the full numerical result.

How should HTMT Ratio be reported?

Report HTMT Academic Achievement vs Educational Advantage = 0.361500, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

All three pairwise HTMT values are low, and the largest reported upper 95% bound remains far below one and below conservative practical references. The three constructs are therefore empirically distinct in this sample.

What HTMT Ratio measures

Quantity estimated in this analysis

Interpretation that is not permitted

When to use HTMT Ratio

Research question answered

Nearest methods that answer different questions

Real data used for HTMT Ratio

HTMT Ratio assumptions and design requirements

1. The indicator blocks are correctly defined

2. Absolute correlations exclude self-correlations

3. Within-block denominators use the intended correlation pairs

4. The correlation type matches the item scales

5. Bootstrap resampling respects the sampling design

6. The constructs are reflective

HTMT Ratio hypotheses or decision rule

Statistical question

Decision for the worked analysis

HTMT Ratio formula and worked substitution

Symbol and denominator control

Full-precision substitution

Step-by-step HTMT Ratio calculation

Establish the analytical object

Reconstruct the first required quantity

Verify the companion quantity

Apply the decision rule

Inspect local evidence

Reconcile and report

HTMT Ratio results and interpretation

Primary result

Why the result is internally coherent

HTMT Ratio in Python

HTMT Ratio in R

HTMT Ratio in SPSS or AMOS

HTMT Ratio in Excel

HTMT Ratio charts and visual diagnostics

01 Htmt-Ratio Primary Metrics

02 Htmt-Ratio Absolute Heterotrait Correlations

03 Htmt-Ratio Htmt Components

04 Htmt-Ratio Monotrait Components

05 Htmt-Ratio Verified Result Summary

01 Htmt-Ratio Primary Metrics

02 Htmt-Ratio Absolute Heterotrait Correlations

03 Htmt-Ratio Monotrait Components

04 Htmt-Ratio Source G1

05 Htmt-Ratio Verified Result Summary

HTMT Ratio verification and sensitivity analysis

1. Recalculate numerator and both monotrait components for each pair

2. Exclude diagonal item correlations

3. Inspect the largest pair Academic Achievement–Educational Advantage

4. Report the upper confidence limit with the point estimate

5. Compare with factor correlations and conceptual content

6. Avoid substituting Fornell–Larcker when HTMT is available

HTMT Ratio compared with related methods

Fornell–Larcker Criterion

Latent Correlation

Cross-Loadings

How to report HTMT Ratio

Results paragraph

Settings that must accompany the result

Verification actions retained in the record

HTMT Ratio decision scenarios

Boundary-case interpretation: Recalculate numerator and both monotrait components for each pair

Input-definition sensitivity: Exclude diagonal item correlations

Software-definition reconciliation: Inspect the largest pair Academic Achievement–Educational Advantage

Local-chart conflict: Report the upper confidence limit with the point estimate

Alternative-method challenge: Compare with factor correlations and conceptual content

Replication and reporting decision: Avoid substituting Fornell–Larcker when HTMT is available

Boundary-case interpretation: Recalculate numerator and both monotrait components for each pair

Input-definition sensitivity: Exclude diagonal item correlations

Software-definition reconciliation: Inspect the largest pair Academic Achievement–Educational Advantage

HTMT Ratio downloads and reproducibility files

HTMT Ratio frequently asked questions

Need help understanding your data?
