Discriminant validity evaluates whether theoretically distinct reflective constructs are empirically distinguishable. The principal evidence here is HTMT and its bootstrap upper bound, with Fornell–Larcker and cross-loading information treated as supplementary checks. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
For Discriminant Validity, hTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
What Discriminant Validity measures
The exact estimand and the result this method is allowed to support.
Discriminant Validity addresses one defined analytical target: Discriminant validity evaluates whether theoretically distinct reflective constructs are empirically distinguishable. The principal evidence here is HTMT and its bootstrap upper bound, with Fornell–Larcker and cross-loading information treated as supplementary checks.
Quantity estimated in this analysis
The construct-separation evidence is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is HTMT Academic Achievement vs Educational Advantage = 0.361500; HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 supplies the first supporting check. HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
For Discriminant Validity, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
Passing Fornell–Larcker alone is not sufficient evidence because that criterion can miss overlap. Low factor correlations do not compensate for cross-loadings, wording effects, or poor content distinctions.
For Discriminant Validity, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use Discriminant Validity
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the construct-separation evidence supports the result stated for the declared dataset and analytical specification. It is answered by calculate every construct pair rather than only the largest, followed by verify the geometric-mean denominator of within-construct correlations. The evidence is bounded by HTMT Academic Achievement vs Educational Advantage = 0.361500 and its named companion quantities.
For Discriminant Validity, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
HTMT Ratio: HTMT is the primary numerical ratio used in this discriminant-validity assessment.
Fornell–Larcker Criterion: Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary.
These distinctions determine which formula, output table, and chart can legitimately appear in a Discriminant Validity post.
Real data used for Discriminant Validity
Variables, coding, sample or panel size, and the role each input plays.
For Discriminant Validity, the worked measurement evidence uses 649 complete records unless the method is based on expert ratings. The reflective blocks are Academic Achievement, Educational Advantage, and Social-Alcohol Exposure, with TravelAccess reverse-coded so that higher values indicate easier travel.
The construct-separation evidence is evaluated from the loadings, residual variances, construct correlations, external criterion, or expert judgments appropriate to this method. The post does not transfer a coefficient from another evidence source simply because the same scale names appear.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|
| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
Discriminant Validity assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. Constructs are reflectively measured
This condition determines whether the input object matches the formula. In the current Discriminant Validity analysis, the check is to calculate every construct pair rather than only the largest while preserving HTMT Academic Achievement vs Educational Advantage = 0.361500.
For Discriminant Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. Indicator blocks are correctly assigned
This requirement controls whether the numerical estimate has the interpretation claimed. In the current Discriminant Validity analysis, the check is to verify the geometric-mean denominator of within-construct correlations while preserving HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980.
For Discriminant Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. The correlation type matches the item scales
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Discriminant Validity analysis, the check is to inspect the bootstrap upper bound, not only point estimates while preserving HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231.
For Discriminant Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. HTMT uses absolute cross- and within-construct correlations correctly
This specification rule keeps the software routes numerically comparable. In the current Discriminant Validity analysis, the check is to compare results with latent correlations and cross-loadings while preserving HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550.
For Discriminant Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. Bootstrap intervals use enough resamples
This diagnostic requirement is checked before a benchmark is applied. In the current Discriminant Validity analysis, the check is to avoid treating Fornell–Larcker as the sole test while preserving Academic–Education factor correlation = 0.313995.
For Discriminant Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. Method effects and cross-loadings are examined
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Discriminant Validity analysis, the check is to check whether near-duplicate item wording artificially raises monotrait correlations while preserving Academic Achievement AVE = 0.872614.
For Discriminant Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
Discriminant Validity hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
For Discriminant Validity, the decision is defined by the named coefficient or evidence criterion. When a bootstrap interval or parameter test is available, its null concerns that exact coefficient or construct pair.
For Discriminant Validity, a threshold result is one component of a validity argument and cannot by itself establish the intended score interpretation.
Decision for the worked analysis
The calculation yields HTMT Academic Achievement vs Educational Advantage = 0.361500. HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Discriminant Validity formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for Discriminant Validity. Its symbols are connected to the saved inputs and to HTMT Academic Achievement vs Educational Advantage = 0.361500, HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980, HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231, HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550.
Lower values indicate that indicators correlate more strongly within constructs than across constructs.
All three pairwise values are far below common .85 or .90 guidance, supporting construct separation.
Symbol and denominator control
Discriminant validity evaluates whether theoretically distinct reflective constructs are empirically distinguishable. The principal evidence here is HTMT and its bootstrap upper bound, with Fornell–Larcker and cross-loading information treated as supplementary checks.
For Discriminant Validity, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
The spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with HTMT Academic Achievement vs Educational Advantage = 0.361500 and HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980.
Passing Fornell–Larcker alone is not sufficient evidence because that criterion can miss overlap. Low factor correlations do not compensate for cross-loadings, wording effects, or poor content distinctions.
Step-by-step Discriminant Validity calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the construct-separation evidence. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Calculate every construct pair rather than only the largest.
Numerical trace: HTMT Academic Achievement vs Educational Advantage = 0.361500; HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980.
Condition: constructs are reflectively measured. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Verify the geometric-mean denominator of within-construct correlations.
Numerical trace: HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980; HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231.
Condition: indicator blocks are correctly assigned. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Inspect the bootstrap upper bound, not only point estimates.
Numerical trace: HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231; HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550.
Condition: the correlation type matches the item scales. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Compare results with latent correlations and cross-loadings.
Numerical trace: HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550; Academic–Education factor correlation = 0.313995.
Condition: HTMT uses absolute cross- and within-construct correlations correctly. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Avoid treating Fornell–Larcker as the sole test.
Numerical trace: Academic–Education factor correlation = 0.313995; Academic Achievement AVE = 0.872614.
Condition: bootstrap intervals use enough resamples. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Check whether near-duplicate item wording artificially raises monotrait correlations.
Numerical trace: Academic Achievement AVE = 0.872614; Educational Advantage AVE = 0.467009.
Condition: method effects and cross-loadings are examined. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Discriminant Validity results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
HTMT Academic Achievement vs Educational Advantage
All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Why the result is internally coherent
HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
For Discriminant Validity, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| HTMT Academic Achievement vs Educational Advantage | 0.361500 | HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary. |
| HTMT Academic Achievement vs Social-Alcohol Exposure | 0.244980 | HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary. |
| HTMT Educational Advantage vs Social-Alcohol Exposure | 0.087231 | HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary. |
| HTMT upper 95% Academic Achievement vs Educational Advantage | 0.446550 | HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary. |
| Academic–Education factor correlation | 0.313995 | Academic–Education factor correlation = 0.313995 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect. |
| Academic Achievement AVE | 0.872614 | Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Educational Advantage AVE | 0.467009 | Educational Advantage AVE = 0.467009 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Social-Alcohol Exposure AVE | 0.490896 | Social-Alcohol Exposure AVE = 0.490896 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Academic Achievement CR | 0.953517 | Academic Achievement CR = 0.953517 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Educational Advantage CR | 0.696353 | Educational Advantage CR = 0.696353 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Social-Alcohol Exposure CR | 0.724808 | Social-Alcohol Exposure CR = 0.724808 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Academic sqrt AVE | 0.934138 | Academic sqrt AVE = 0.934138 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Educational sqrt AVE | 0.683380 | Educational sqrt AVE = 0.683380 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Social-Alcohol sqrt AVE | 0.700640 | Social-Alcohol sqrt AVE = 0.700640 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
Discriminant Validity in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses the explicit NumPy/Pandas calculation to calculate or extract the construct-separation evidence from the declared data and analytical specification. It must reproduce HTMT Academic Achievement vs Educational Advantage = 0.361500 and retain HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to calculate every construct pair rather than only the largest; the associated design condition is that constructs are reflectively measured. Passing Fornell–Larcker alone is not sufficient evidence because that criterion can miss overlap. Low factor correlations do not compensate for cross-loadings, wording effects, or poor content distinctions.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
blocks={"Academic":["G1","G2","G3"],"Education":["Medu","Fedu","TravelAccess"],"SocialAlcohol":["goout","Dalc","Walc"]}
R=X.corr()
def htmt(a,b):
cross=np.abs(R.loc[blocks[a],blocks[b]].to_numpy()).mean()
wa=np.abs(R.loc[blocks[a],blocks[a]].to_numpy()[np.triu_indices(3,1)]).mean()
wb=np.abs(R.loc[blocks[b],blocks[b]].to_numpy()[np.triu_indices(3,1)]).mean()
return cross/np.sqrt(wa*wb)
for a,b in [("Academic","Education"),("Academic","SocialAlcohol"),("Education","SocialAlcohol")]: print(a,b,htmt(a,b))
Discriminant Validity in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses semTools and the displayed arguments to estimate the construct-separation evidence. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with HTMT Academic Achievement vs Educational Advantage = 0.361500 after the analyst verify the geometric-mean denominator of within-construct correlations. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
library(semTools)
# Fit the CFA model, then request HTMT and AVE from the fitted lavaan object.
htmt(model, data=d); reliability(fit); AVE(fit)Discriminant Validity in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the construct-separation evidence. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify HTMT Academic Achievement vs Educational Advantage = 0.361500 and the settings needed to reproduce it. The software review specifically inspect the bootstrap upper bound, not only point estimates, while preserving the requirement that the correlation type matches the item scales.
* Prepare the standardized loading, residual-variance, construct-correlation, or expert-rating table required for Discriminant Validity.
* Use MATRIX, AMOS, or validated R/Python integration when base SPSS does not expose the coefficient.
* Do not rename a different SPSS statistic as Discriminant Validity.Discriminant Validity in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the construct-separation evidence. Named cells retain the inputs, intermediate components, and final formula leading to HTMT Academic Achievement vs Educational Advantage = 0.361500; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to compare results with latent correlations and cross-loadings and documents HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by Discriminant Validity.
Calculation: Use the native MathML formula shown above with named ranges for every input
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.Discriminant Validity charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same Discriminant Validity analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

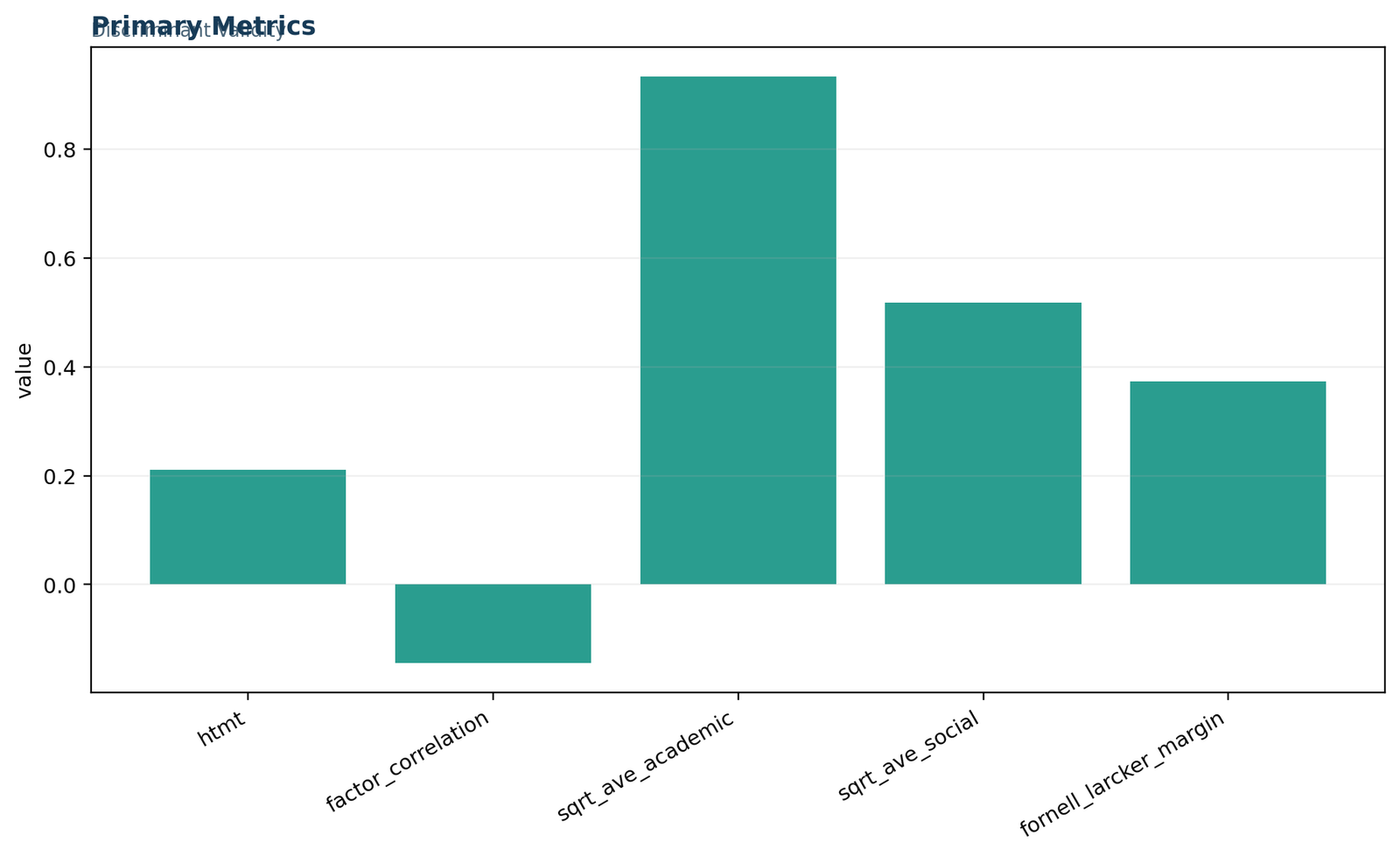

01 Discriminant-Validity Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Discriminant Validity. Read HTMT Academic Achievement vs Educational Advantage = 0.361500 beside HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980; the first quantity is not replaced by the second.
The chart is used to calculate every construct pair rather than only the largest. Its interpretation remains valid only when constructs are reflectively measured. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

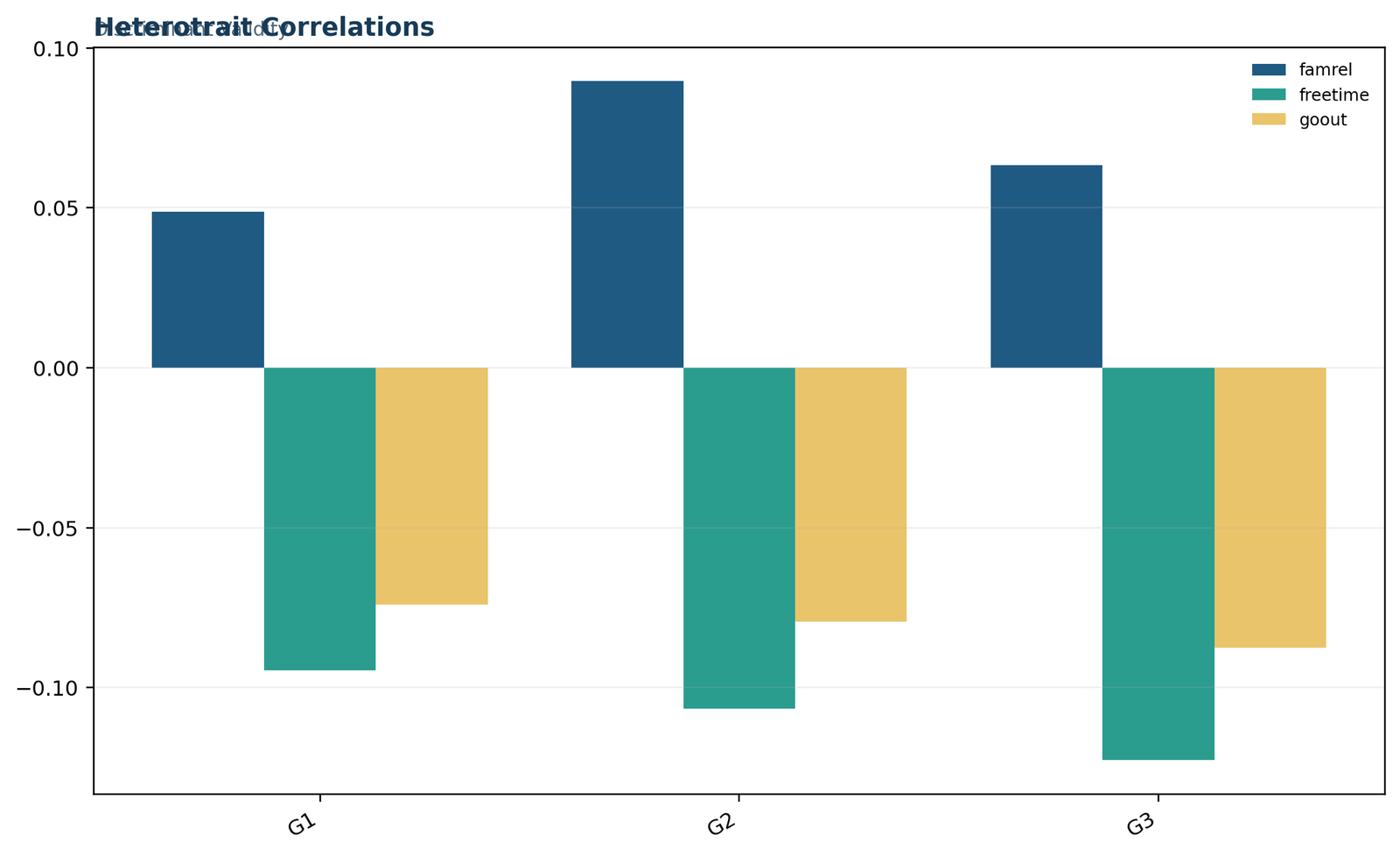

02 Discriminant-Validity Heterotrait Correlations
This panel checks measurement quality before a broader conclusion is made for Discriminant Validity. Read HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 beside HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231; the first quantity is not replaced by the second.
The chart is used to verify the geometric-mean denominator of within-construct correlations. Its interpretation remains valid only when indicator blocks are correctly assigned. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

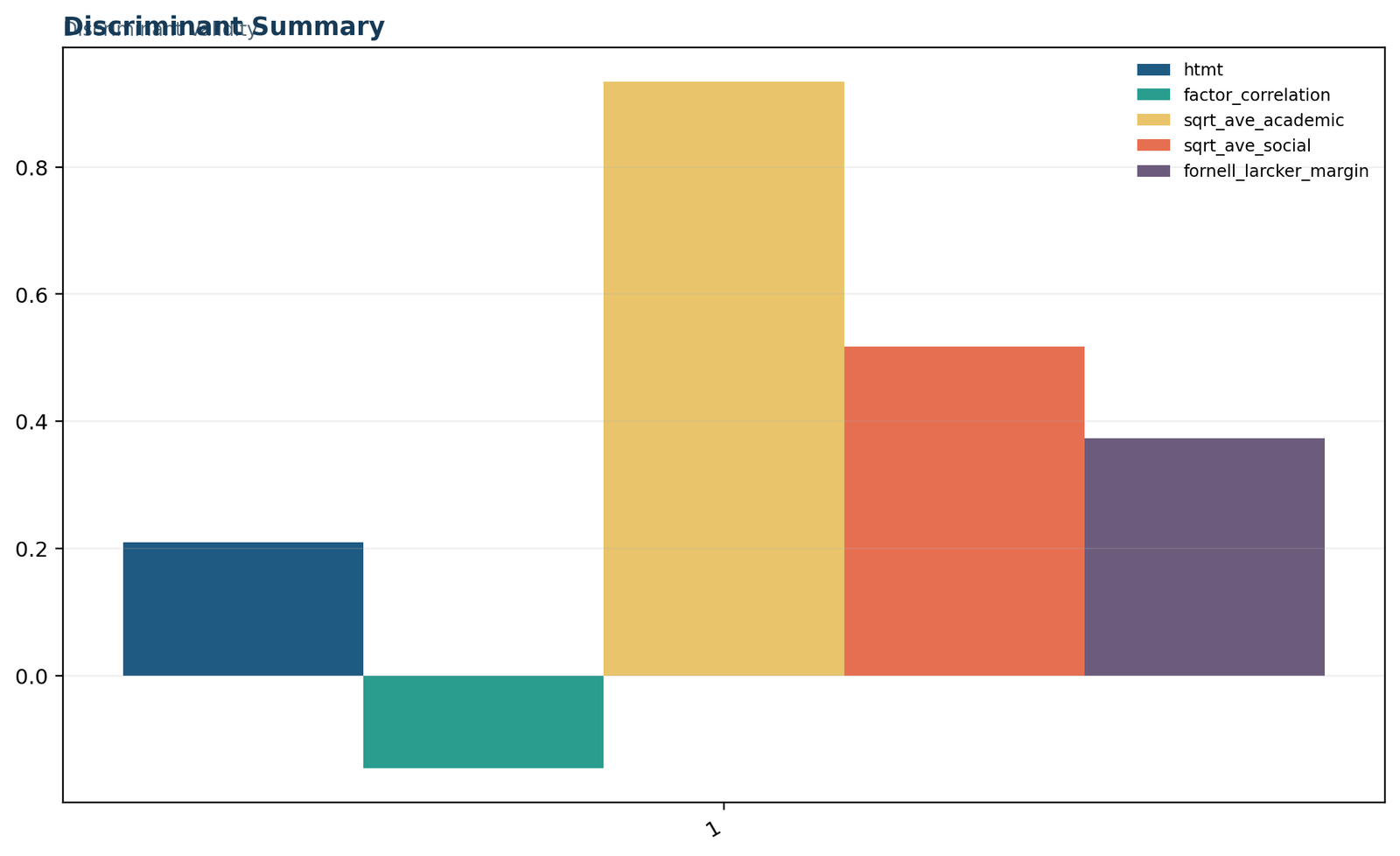

03 Discriminant-Validity Discriminant Summary
This panel reconciles the headline estimate with its principal supporting values for Discriminant Validity. Read HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 beside HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550; the first quantity is not replaced by the second.
The chart is used to inspect the bootstrap upper bound, not only point estimates. Its interpretation remains valid only when the correlation type matches the item scales. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

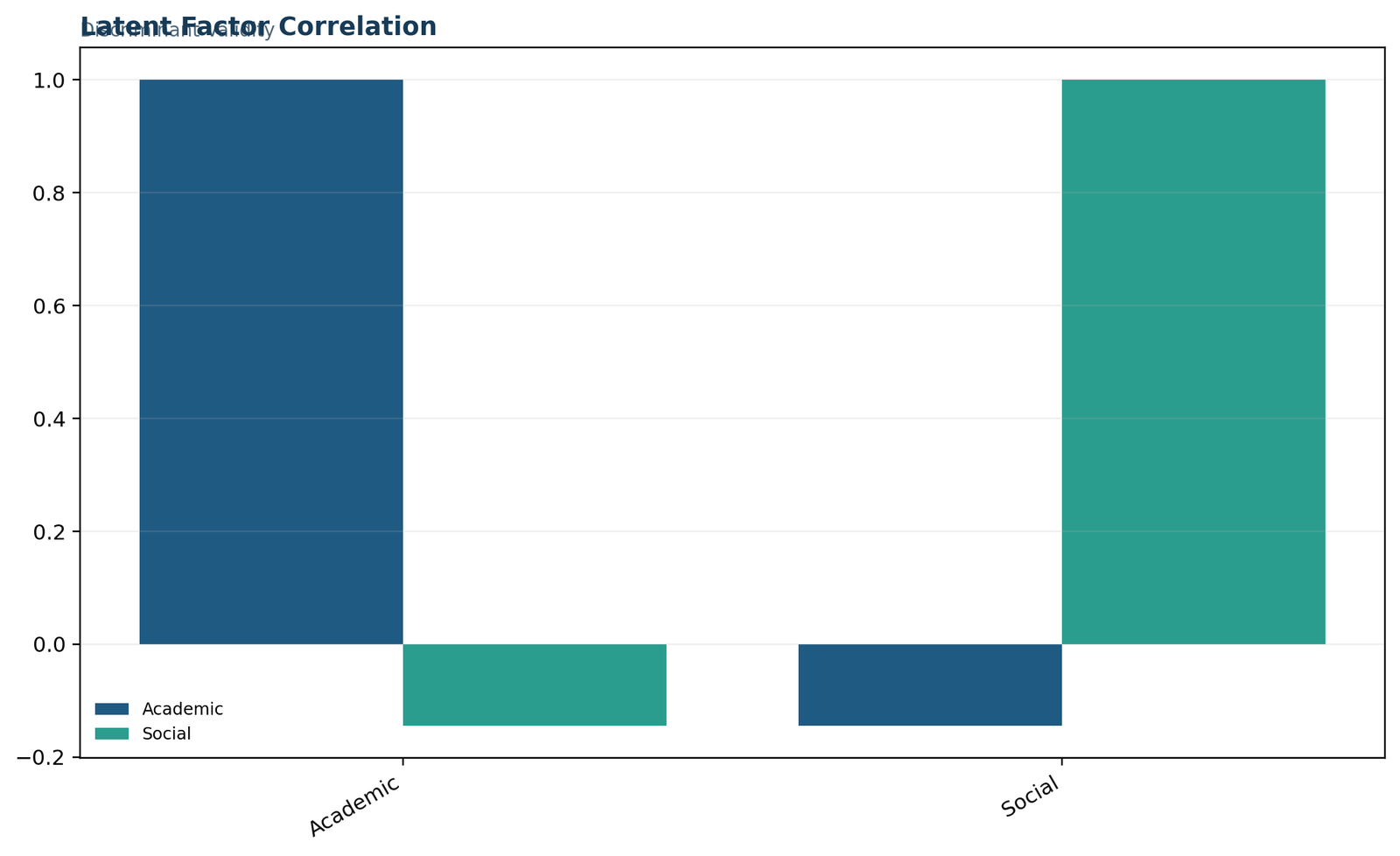

04 Discriminant-Validity Latent Factor Correlation
This panel checks measurement quality before a broader conclusion is made for Discriminant Validity. Read HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 beside Academic–Education factor correlation = 0.313995; the first quantity is not replaced by the second.
The chart is used to compare results with latent correlations and cross-loadings. Its interpretation remains valid only when HTMT uses absolute cross- and within-construct correlations correctly. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

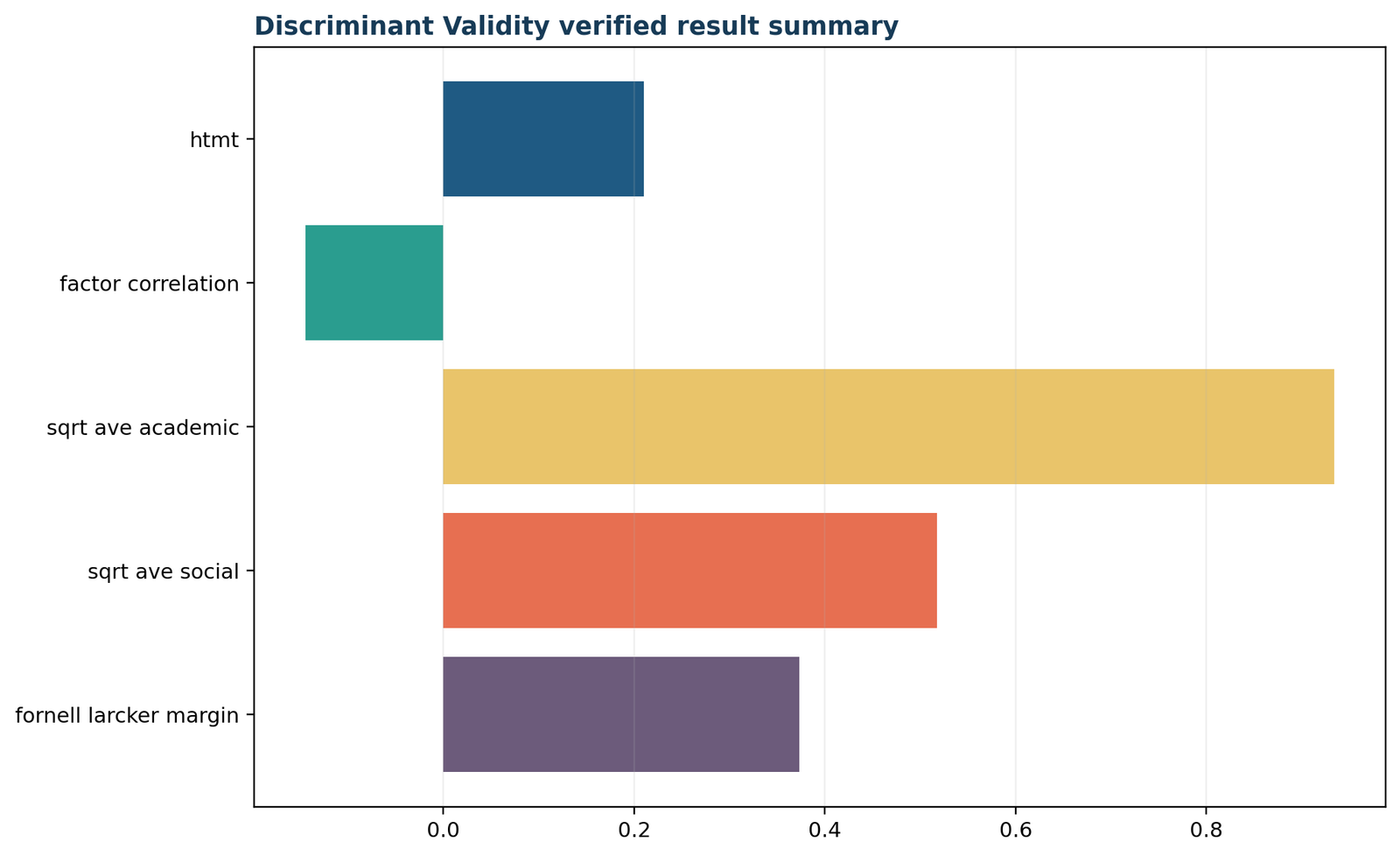

05 Discriminant-Validity Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Discriminant Validity. Read Academic–Education factor correlation = 0.313995 beside Academic Achievement AVE = 0.872614; the first quantity is not replaced by the second.
The chart is used to avoid treating Fornell–Larcker as the sole test. Its interpretation remains valid only when bootstrap intervals use enough resamples. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Discriminant-Validity Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Discriminant Validity. Read Academic Achievement AVE = 0.872614 beside Educational Advantage AVE = 0.467009; the first quantity is not replaced by the second.
The chart is used to check whether near-duplicate item wording artificially raises monotrait correlations. Its interpretation remains valid only when method effects and cross-loadings are examined. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Discriminant-Validity Heterotrait Correlations
This panel checks measurement quality before a broader conclusion is made for Discriminant Validity. Read Educational Advantage AVE = 0.467009 beside Social-Alcohol Exposure AVE = 0.490896; the first quantity is not replaced by the second.
The chart is used to calculate every construct pair rather than only the largest. Its interpretation remains valid only when constructs are reflectively measured. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

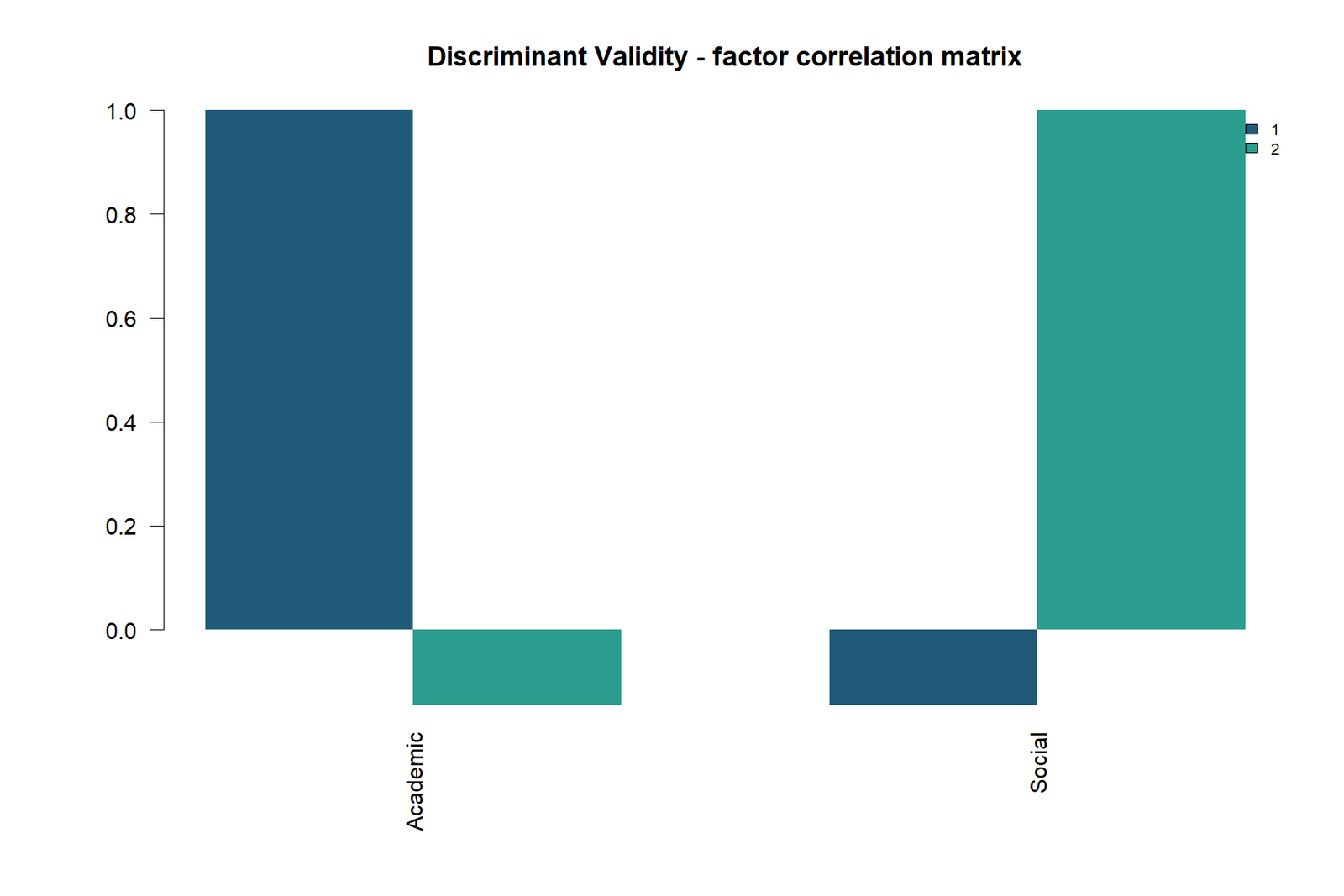

03 Discriminant-Validity Factor Correlation Matrix
This panel shows the cell-level pattern that a single coefficient can conceal for Discriminant Validity. Read Social-Alcohol Exposure AVE = 0.490896 beside Academic Achievement CR = 0.953517; the first quantity is not replaced by the second.
The chart is used to verify the geometric-mean denominator of within-construct correlations. Its interpretation remains valid only when indicator blocks are correctly assigned. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

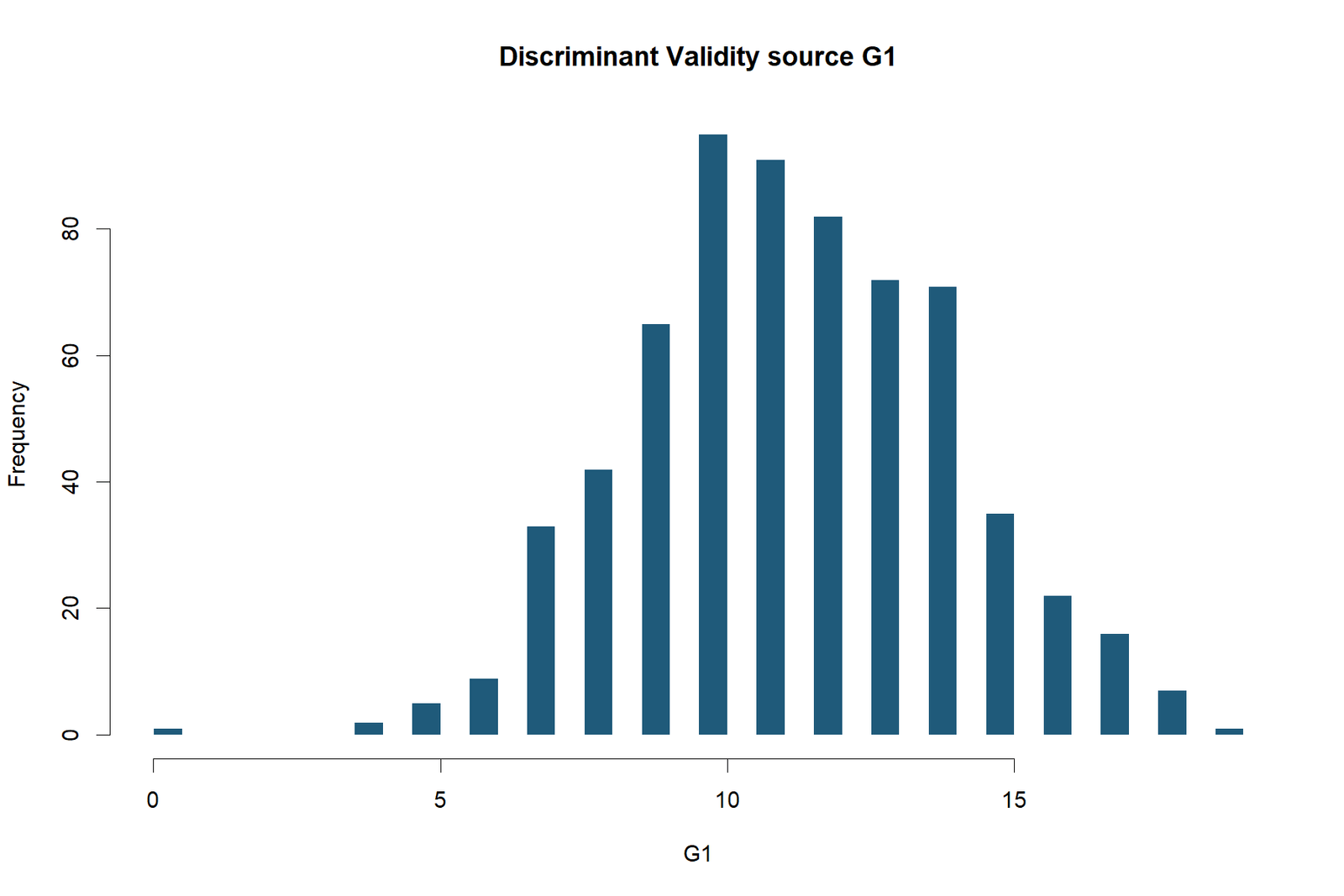

04 Discriminant-Validity Source G1
This panel checks measurement quality before a broader conclusion is made for Discriminant Validity. Read Academic Achievement CR = 0.953517 beside Educational Advantage CR = 0.696353; the first quantity is not replaced by the second.
The chart is used to inspect the bootstrap upper bound, not only point estimates. Its interpretation remains valid only when the correlation type matches the item scales. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Discriminant-Validity Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Discriminant Validity. Read Educational Advantage CR = 0.696353 beside Social-Alcohol Exposure CR = 0.724808; the first quantity is not replaced by the second.
The chart is used to compare results with latent correlations and cross-loadings. Its interpretation remains valid only when HTMT uses absolute cross- and within-construct correlations correctly. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
Discriminant Validity verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Discriminant Validity.
1. Calculate every construct pair rather than only the largest
Begin by calculate every construct pair rather than only the largest. For the construct-separation evidence, this operation directly connects HTMT Academic Achievement vs Educational Advantage = 0.361500 with HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231. HTMT Academic Achievement vs Educational Advantage = 0.361500 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
The governing condition is that constructs are reflectively measured. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with HTMT Ratio, because HTMT is the primary numerical ratio used in this discriminant-validity assessment.
2. Verify the geometric-mean denominator of within-construct correlations
Next, verify the geometric-mean denominator of within-construct correlations. For the construct-separation evidence, this operation directly connects HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 with HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550. HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
The governing condition is that indicator blocks are correctly assigned. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Fornell–Larcker Criterion, because Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary.
3. Inspect the bootstrap upper bound, not only point estimates
The third verification is to inspect the bootstrap upper bound, not only point estimates. For the construct-separation evidence, this operation directly connects HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 with Academic–Education factor correlation = 0.313995. HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
The governing condition is that the correlation type matches the item scales. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Convergent Validity, because Discriminant validity concerns separation between constructs; convergent validity concerns coherence within each construct.
4. Compare results with latent correlations and cross-loadings
After the core arithmetic is stable, compare results with latent correlations and cross-loadings. For the construct-separation evidence, this operation directly connects HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 with Academic Achievement AVE = 0.872614. HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
The governing condition is that HTMT uses absolute cross- and within-construct correlations correctly. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with HTMT Ratio, because HTMT is the primary numerical ratio used in this discriminant-validity assessment.
5. Avoid treating Fornell–Larcker as the sole test
A robustness review must avoid treating Fornell–Larcker as the sole test. For the construct-separation evidence, this operation directly connects Academic–Education factor correlation = 0.313995 with Educational Advantage AVE = 0.467009. Academic–Education factor correlation = 0.313995 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.
The governing condition is that bootstrap intervals use enough resamples. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Fornell–Larcker Criterion, because Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary.
6. Check whether near-duplicate item wording artificially raises monotrait correlations
The final reconciliation should check whether near-duplicate item wording artificially raises monotrait correlations. For the construct-separation evidence, this operation directly connects Academic Achievement AVE = 0.872614 with Social-Alcohol Exposure AVE = 0.490896. Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
The governing condition is that method effects and cross-loadings are examined. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Convergent Validity, because Discriminant validity concerns separation between constructs; convergent validity concerns coherence within each construct.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | calculate every construct pair rather than only the largest | constructs are reflectively measured | HTMT Academic Achievement vs Educational Advantage = 0.361500 |
| 2 | verify the geometric-mean denominator of within-construct correlations | indicator blocks are correctly assigned | HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 |
| 3 | inspect the bootstrap upper bound, not only point estimates | the correlation type matches the item scales | HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 |
| 4 | compare results with latent correlations and cross-loadings | HTMT uses absolute cross- and within-construct correlations correctly | HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 |
| 5 | avoid treating Fornell–Larcker as the sole test | bootstrap intervals use enough resamples | Academic–Education factor correlation = 0.313995 |
| 6 | check whether near-duplicate item wording artificially raises monotrait correlations | method effects and cross-loadings are examined | Academic Achievement AVE = 0.872614 |
Discriminant Validity compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Discriminant Validity formula and output rather than a nearby procedure.
HTMT Ratio
HTMT is the primary numerical ratio used in this discriminant-validity assessment.
In the current analysis, HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 remains evidence for the construct-separation evidence; it is not relabeled as a HTMT Ratio result. HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
Fornell–Larcker Criterion
Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary.
In the current analysis, HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 remains evidence for the construct-separation evidence; it is not relabeled as a Fornell–Larcker Criterion result. HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
Convergent Validity
Discriminant validity concerns separation between constructs; convergent validity concerns coherence within each construct.
In the current analysis, HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 remains evidence for the construct-separation evidence; it is not relabeled as a Convergent Validity result. HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
How to report Discriminant Validity
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
Discriminant Validity was evaluated using the declared data, specification, and software settings. The primary result was HTMT Academic Achievement vs Educational Advantage = 0.361500; HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 and HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 supplied supporting context. All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
The report then states the limitation explicitly: Passing Fornell–Larcker alone is not sufficient evidence because that criterion can miss overlap. Low factor correlations do not compensate for cross-loadings, wording effects, or poor content distinctions.
Settings that must accompany the result
constructs are reflectively measured; indicator blocks are correctly assigned; the correlation type matches the item scales; HTMT uses absolute cross- and within-construct correlations correctly.
For Discriminant Validity, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
calculate every construct pair rather than only the largest; verify the geometric-mean denominator of within-construct correlations; inspect the bootstrap upper bound, not only point estimates; compare results with latent correlations and cross-loadings.
The final wording is revised only after those operations reproduce the saved values.
Discriminant Validity decision scenarios
For Discriminant Validity, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Calculate every construct pair rather than only the largest
Consider a review in which HTMT Academic Achievement vs Educational Advantage = 0.361500 is reproduced but HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to calculate every construct pair rather than only the largest and verify that constructs are reflectively measured.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with HTMT Ratio only for method selection: HTMT is the primary numerical ratio used in this discriminant-validity assessment. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Input-definition sensitivity: Verify the geometric-mean denominator of within-construct correlations
Consider a review in which HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is reproduced but HTMT upper 95% Academic Achievement vs Educational Advantage = 0.446550 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the geometric-mean denominator of within-construct correlations and verify that indicator blocks are correctly assigned.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Fornell–Larcker Criterion only for method selection: Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Software-definition reconciliation: Inspect the bootstrap upper bound, not only point estimates
Consider a review in which Academic–Education factor correlation = 0.313995 is reproduced but Academic Achievement AVE = 0.872614 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect the bootstrap upper bound, not only point estimates and verify that the correlation type matches the item scales.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Discriminant validity concerns separation between constructs; convergent validity concerns coherence within each construct. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Local-chart conflict: Compare results with latent correlations and cross-loadings
Consider a review in which Educational Advantage AVE = 0.467009 is reproduced but Social-Alcohol Exposure AVE = 0.490896 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to compare results with latent correlations and cross-loadings and verify that HTMT uses absolute cross- and within-construct correlations correctly.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with HTMT Ratio only for method selection: HTMT is the primary numerical ratio used in this discriminant-validity assessment. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Alternative-method challenge: Avoid treating Fornell–Larcker as the sole test
Consider a review in which Academic Achievement CR = 0.953517 is reproduced but Educational Advantage CR = 0.696353 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to avoid treating Fornell–Larcker as the sole test and verify that bootstrap intervals use enough resamples.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Fornell–Larcker Criterion only for method selection: Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Replication and reporting decision: Check whether near-duplicate item wording artificially raises monotrait correlations
Consider a review in which Social-Alcohol Exposure CR = 0.724808 is reproduced but Academic sqrt AVE = 0.934138 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to check whether near-duplicate item wording artificially raises monotrait correlations and verify that method effects and cross-loadings are examined.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Discriminant validity concerns separation between constructs; convergent validity concerns coherence within each construct. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Boundary-case interpretation: Calculate every construct pair rather than only the largest
Consider a review in which Educational sqrt AVE = 0.683380 is reproduced but Social-Alcohol sqrt AVE = 0.700640 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to calculate every construct pair rather than only the largest and verify that constructs are reflectively measured.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with HTMT Ratio only for method selection: HTMT is the primary numerical ratio used in this discriminant-validity assessment. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Input-definition sensitivity: Verify the geometric-mean denominator of within-construct correlations
Consider a review in which Academic–Social factor correlation = 0.200278 is reproduced but HTMT Academic Achievement vs Educational Advantage = 0.361500 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the geometric-mean denominator of within-construct correlations and verify that indicator blocks are correctly assigned.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Fornell–Larcker Criterion only for method selection: Fornell–Larcker is an older, less sensitive diagonal AVE comparison and is best treated as supplementary. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Software-definition reconciliation: Inspect the bootstrap upper bound, not only point estimates
Consider a review in which HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is reproduced but HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231 is not. For the construct-separation evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect the bootstrap upper bound, not only point estimates and verify that the correlation type matches the item scales.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Discriminant validity concerns separation between constructs; convergent validity concerns coherence within each construct. The published conclusion remains All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
Discriminant Validity downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one Discriminant Validity analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
Discriminant Validity frequently asked questions
Answers use the worked result and the exact method boundary.
What does Discriminant Validity measure?
Discriminant validity evaluates whether theoretically distinct reflective constructs are empirically distinguishable. The principal evidence here is HTMT and its bootstrap upper bound, with Fornell–Larcker and cross-loading information treated as supplementary checks.
What is the main result in this Discriminant Validity analysis?
HTMT Academic Achievement vs Educational Advantage = 0.361500. All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
What does the result not prove?
Passing Fornell–Larcker alone is not sufficient evidence because that criterion can miss overlap. Low factor correlations do not compensate for cross-loadings, wording effects, or poor content distinctions.
Which supporting value should be reported with the primary result?
HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is the first companion quantity. HTMT Academic Achievement vs Social-Alcohol Exposure = 0.244980 is a pairwise construct-separation ratio; a bootstrap interval is preferable when the result lies near the selected boundary.
Which assumption is most likely to change the interpretation?
The first requirement is that constructs are reflectively measured. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must calculate every construct pair rather than only the largest. That operation traces HTMT Academic Achievement vs Educational Advantage = 0.361500 to the formula and saved inputs.
Why can software packages disagree on Discriminant Validity?
Disagreement can arise because indicator blocks are correctly assigned or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is Discriminant Validity different from HTMT Ratio?
HTMT is the primary numerical ratio used in this discriminant-validity assessment.
How should a chart be interpreted?
Each chart is tied to a named output such as HTMT Educational Advantage vs Social-Alcohol Exposure = 0.087231. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should Discriminant Validity be reported?
Report HTMT Academic Achievement vs Educational Advantage = 0.361500, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: All pairwise HTMT estimates and the reported upper confidence bound are well below conservative references, supporting separation among the three constructs. This conclusion still depends on correct indicator blocks and reflective specifications.
