Criterion Validity: Formula, Verified Results, Charts and Interpretation
Criterion validity evidence evaluates whether scores relate to an external criterion in the theoretically expected way. This post uses a continuous association with final grade and a classification AUC for a defined success threshold, so the correlation and AUC must be interpreted as different quantities. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Criterion correlation = 0.434292 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.
What Criterion Validity measures
The exact estimand and the result this method is allowed to support.
Criterion Validity addresses one defined analytical target: Criterion validity evidence evaluates whether scores relate to an external criterion in the theoretically expected way. This post uses a continuous association with final grade and a classification AUC for a defined success threshold, so the correlation and AUC must be interpreted as different quantities.
Quantity estimated in this analysis
The external-criterion evidence is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is Criterion correlation = 0.434292; Criterion AUC = 0.767687 supplies the first supporting check. Criterion correlation = 0.434292 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.
For Criterion Validity, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
A criterion correlation is not a loading, reliability coefficient, or causal effect. AUC does not indicate calibration or the size of a continuous association. The criterion must be independently meaningful and should not reuse the same information that created the predictor score.
For Criterion Validity, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use Criterion Validity
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the external-criterion evidence supports the result stated for the declared dataset and analytical specification. It is answered by verify the construction and standardization of the engagement index, followed by report the correlation with its uncertainty and p-value. The evidence is bounded by Criterion correlation = 0.434292 and its named companion quantities.
For Criterion Validity, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
Convergent Validity: Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark.
Predictive Validity: Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time.
These distinctions determine which formula, output table, and chart can legitimately appear in a Criterion Validity post.
Real data used for Criterion Validity
Variables, coding, sample or panel size, and the role each input plays.
For Criterion Validity, the worked measurement evidence uses 649 complete records unless the method is based on expert ratings. The reflective blocks are Academic Achievement, Educational Advantage, and Social-Alcohol Exposure, with TravelAccess reverse-coded so that higher values indicate easier travel.
The external-criterion evidence is evaluated from the loadings, residual variances, construct correlations, external criterion, or expert judgments appropriate to this method. The post does not transfer a coefficient from another evidence source simply because the same scale names appear.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|
| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
Criterion Validity assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. The external criterion is measured reliably
This condition determines whether the input object matches the formula. In the current Criterion Validity analysis, the check is to verify the construction and standardization of the engagement index while preserving Criterion correlation = 0.434292.
For Criterion Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. Criterion timing matches concurrent or predictive claims
This requirement controls whether the numerical estimate has the interpretation claimed. In the current Criterion Validity analysis, the check is to report the correlation with its uncertainty and p-value while preserving Criterion AUC = 0.767687.
For Criterion Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. The predictor does not contain the criterion itself
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Criterion Validity analysis, the check is to square the correlation only when explaining shared linear variance while preserving Academic Achievement AVE = 0.872614.
For Criterion Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. Linearity is reasonable for Pearson correlation
This specification rule keeps the software routes numerically comparable. In the current Criterion Validity analysis, the check is to confirm the G3 threshold used for AUC while preserving G2 standardized loading = 0.979897.
For Criterion Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. AUC uses an explicitly coded binary outcome
This diagnostic requirement is checked before a benchmark is applied. In the current Criterion Validity analysis, the check is to inspect calibration and sensitivity-specificity if classification is emphasized while preserving G3 standardized loading = 0.937215.
For Criterion Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. Independence and missing-data handling are documented
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Criterion Validity analysis, the check is to test whether the relation persists under alternative defensible criterion definitions while preserving Educational Advantage AVE = 0.467009.
For Criterion Validity, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
Criterion Validity hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
For Criterion Validity, the decision is defined by the named coefficient or evidence criterion. When a bootstrap interval or parameter test is available, its null concerns that exact coefficient or construct pair.
For Criterion Validity, a threshold result is one component of a validity argument and cannot by itself establish the intended score interpretation.
Decision for the worked analysis
The calculation yields Criterion correlation = 0.434292. Criterion correlation = 0.434292 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.
The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Criterion Validity formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for Criterion Validity. Its symbols are connected to the saved inputs and to Criterion correlation = 0.434292, Criterion AUC = 0.767687, Academic Achievement AVE = 0.872614, G2 standardized loading = 0.979897.
The criterion must be independently meaningful and measured at a defensible time and scale.
The predictor has a moderate continuous association and useful, though not perfect, classification performance.
Symbol and denominator control
Criterion validity evidence evaluates whether scores relate to an external criterion in the theoretically expected way. This post uses a continuous association with final grade and a classification AUC for a defined success threshold, so the correlation and AUC must be interpreted as different quantities.
For Criterion Validity, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
The spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with Criterion correlation = 0.434292 and Criterion AUC = 0.767687.
A criterion correlation is not a loading, reliability coefficient, or causal effect. AUC does not indicate calibration or the size of a continuous association. The criterion must be independently meaningful and should not reuse the same information that created the predictor score.
Step-by-step Criterion Validity calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the external-criterion evidence. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Verify the construction and standardization of the engagement index.
Numerical trace: Criterion correlation = 0.434292; Criterion AUC = 0.767687.
Condition: the external criterion is measured reliably. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Report the correlation with its uncertainty and p-value.
Numerical trace: Criterion AUC = 0.767687; Academic Achievement AVE = 0.872614.
Condition: criterion timing matches concurrent or predictive claims. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Square the correlation only when explaining shared linear variance.
Numerical trace: Academic Achievement AVE = 0.872614; G2 standardized loading = 0.979897.
Condition: the predictor does not contain the criterion itself. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Confirm the G3 threshold used for AUC.
Numerical trace: G2 standardized loading = 0.979897; G3 standardized loading = 0.937215.
Condition: linearity is reasonable for Pearson correlation. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Inspect calibration and sensitivity-specificity if classification is emphasized.
Numerical trace: G3 standardized loading = 0.937215; Educational Advantage AVE = 0.467009.
Condition: AUC uses an explicitly coded binary outcome. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Test whether the relation persists under alternative defensible criterion definitions.
Numerical trace: Educational Advantage AVE = 0.467009; Social-Alcohol Exposure AVE = 0.490896.
Condition: independence and missing-data handling are documented. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Criterion Validity results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
Criterion correlation
The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Why the result is internally coherent
Criterion correlation = 0.434292 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.
Criterion AUC = 0.767687 measures ranking discrimination for the stated binary criterion and must be separated from calibration.
For Criterion Validity, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| Criterion correlation | 0.434292 | Criterion correlation = 0.434292 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect. |
| Criterion AUC | 0.767687 | Criterion AUC = 0.767687 measures ranking discrimination for the stated binary criterion and must be separated from calibration. |
| Academic Achievement AVE | 0.872614 | Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| G2 standardized loading | 0.979897 | G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit. |
| G3 standardized loading | 0.937215 | G3 standardized loading = 0.937215 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit. |
| Educational Advantage AVE | 0.467009 | Educational Advantage AVE = 0.467009 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Social-Alcohol Exposure AVE | 0.490896 | Social-Alcohol Exposure AVE = 0.490896 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument. |
| Academic Achievement CR | 0.953517 | Academic Achievement CR = 0.953517 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Educational Advantage CR | 0.696353 | Educational Advantage CR = 0.696353 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Social-Alcohol Exposure CR | 0.724808 | Social-Alcohol Exposure CR = 0.724808 summarizes loading-weighted consistency; it is interpreted with the loadings and residual variances used in the same fitted measurement model. |
| Academic sqrt AVE | 0.934138 | Academic sqrt AVE = 0.934138 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Educational sqrt AVE | 0.683380 | Educational sqrt AVE = 0.683380 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Social-Alcohol sqrt AVE | 0.700640 | Social-Alcohol sqrt AVE = 0.700640 is a diagonal construct value that must exceed the absolute interconstruct correlations in its row and column. |
| Academic–Education factor correlation | 0.313995 | Academic–Education factor correlation = 0.313995 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect. |
Criterion Validity in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses scipy, pearsonr, sklearn to calculate or extract the external-criterion evidence from the declared data and analytical specification. It must reproduce Criterion correlation = 0.434292 and retain Criterion AUC = 0.767687 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to verify the construction and standardization of the engagement index; the associated design condition is that the external criterion is measured reliably. A criterion correlation is not a loading, reliability coefficient, or causal effect. AUC does not indicate calibration or the size of a continuous association. The criterion must be independently meaningful and should not reuse the same information that created the predictor score.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
from scipy.stats import pearsonr
from sklearn.metrics import roc_auc_score
eng=(df.studytime-df.studytime.mean())/df.studytime.std()-(df.failures-df.failures.mean())/df.failures.std()-(df.absences-df.absences.mean())/df.absences.std()+(df.higher.eq("yes").astype(int)-df.higher.eq("yes").mean())/df.higher.eq("yes").std()
r,p=pearsonr(eng,df.G3); auc=roc_auc_score((df.G3>=10).astype(int),eng)
print(r,p,auc)
Criterion Validity in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses pROC and the displayed arguments to estimate the external-criterion evidence. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with Criterion correlation = 0.434292 after the analyst report the correlation with its uncertainty and p-value. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
eng <- scale(d$studytime)-scale(d$failures)-scale(d$absences)+scale(d$higher=="yes")
cor.test(as.numeric(eng),d$G3)
library(pROC); auc(roc(d$G3>=10,as.numeric(eng)))Criterion Validity in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the external-criterion evidence. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify Criterion correlation = 0.434292 and the settings needed to reproduce it. The software review specifically square the correlation only when explaining shared linear variance, while preserving the requirement that the predictor does not contain the criterion itself.
DESCRIPTIVES VARIABLES=studytime failures absences.
COMPUTE Engagement=Zstudytime-Zfailures-Zabsences+(higher="yes").
CORRELATIONS /VARIABLES=Engagement G3.
ROC Engagement BY success(1) /PLOT=CURVE /PRINT=SE COORDINATES.
* success is coded 1 when G3 >= 10.Criterion Validity in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the external-criterion evidence. Named cells retain the inputs, intermediate components, and final formula leading to Criterion correlation = 0.434292; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to confirm the G3 threshold used for AUC and documents Criterion AUC = 0.767687 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by Criterion Validity.
Calculation: =CORREL(Engagement_Index,G3_Range)
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.Criterion Validity charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same Criterion Validity analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

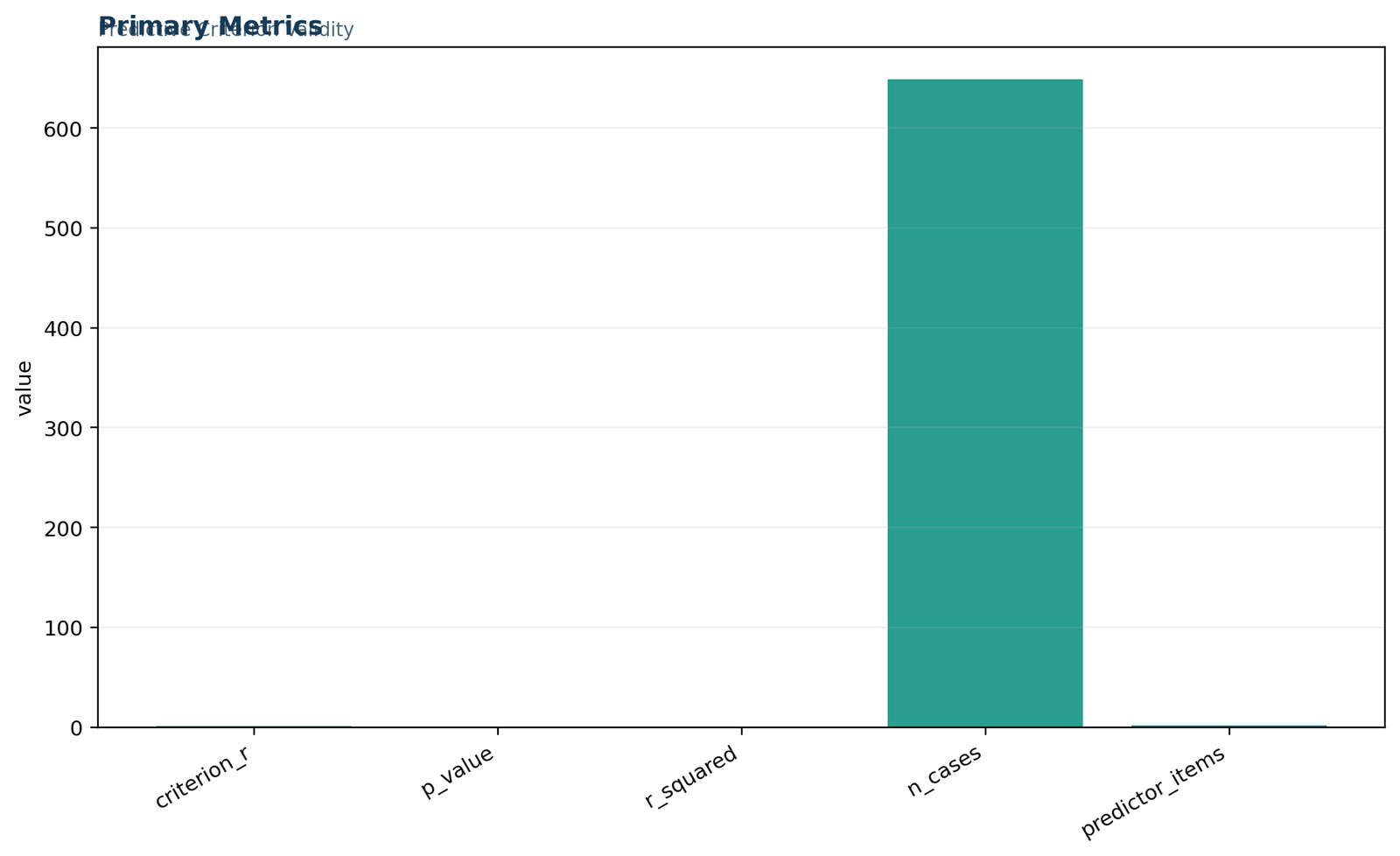

01 Criterion-Validity Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Criterion Validity. Read Criterion correlation = 0.434292 beside Criterion AUC = 0.767687; the first quantity is not replaced by the second.
The chart is used to verify the construction and standardization of the engagement index. Its interpretation remains valid only when the external criterion is measured reliably. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

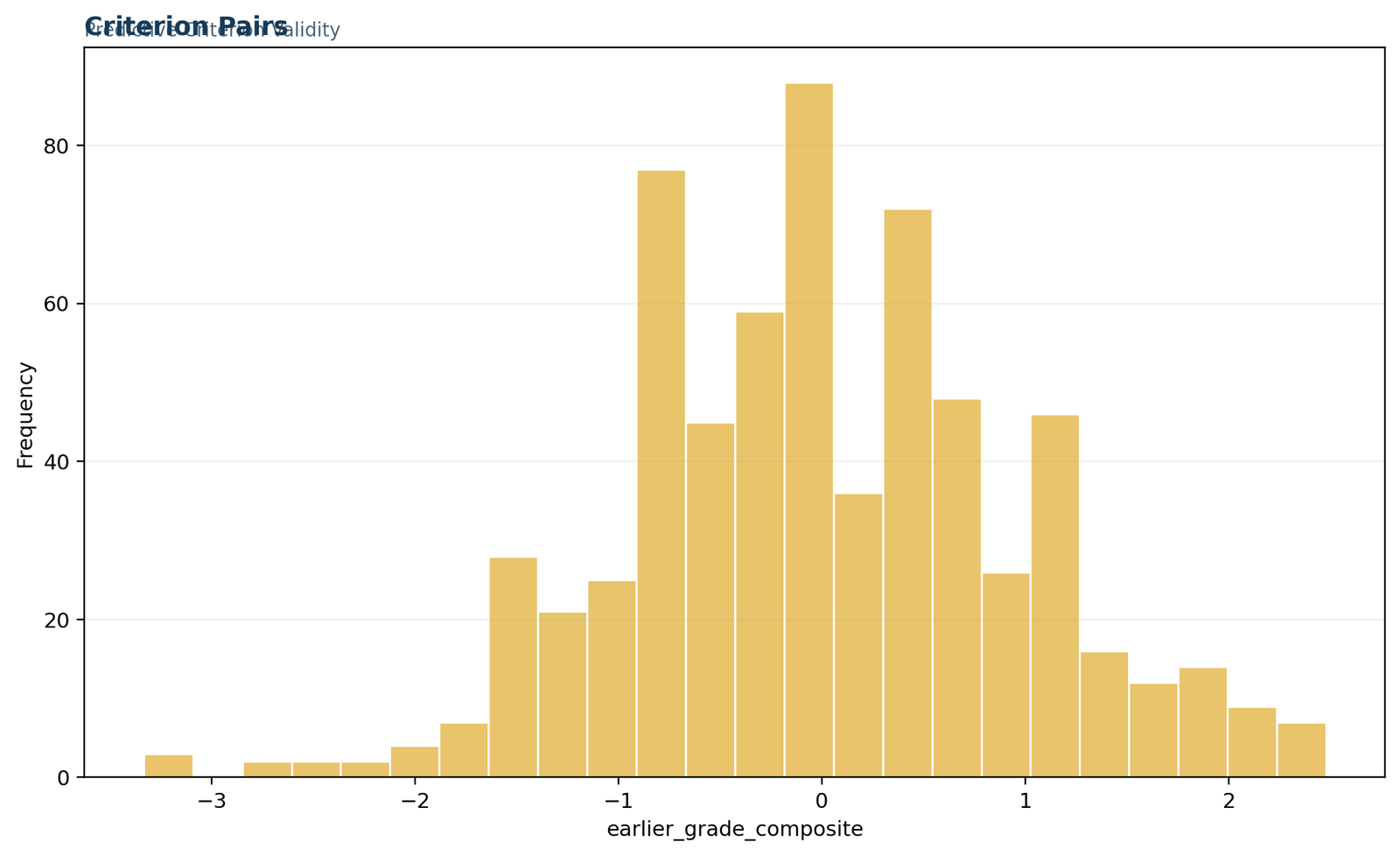

02 Criterion-Validity Criterion Pairs
This panel checks measurement quality before a broader conclusion is made for Criterion Validity. Read Criterion AUC = 0.767687 beside Academic Achievement AVE = 0.872614; the first quantity is not replaced by the second.
The chart is used to report the correlation with its uncertainty and p-value. Its interpretation remains valid only when criterion timing matches concurrent or predictive claims. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

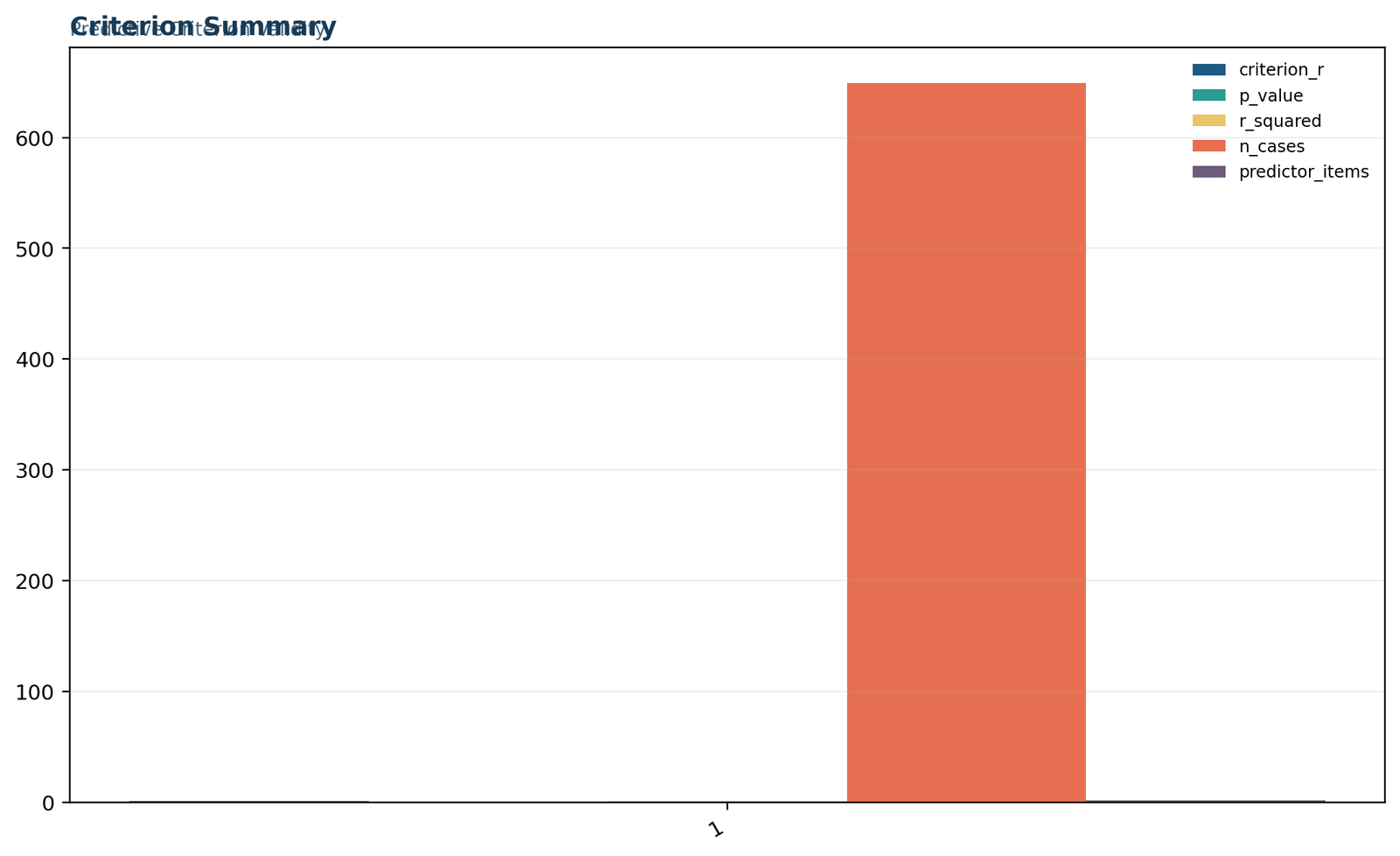

03 Criterion-Validity Criterion Summary
This panel reconciles the headline estimate with its principal supporting values for Criterion Validity. Read Academic Achievement AVE = 0.872614 beside G2 standardized loading = 0.979897; the first quantity is not replaced by the second.
The chart is used to square the correlation only when explaining shared linear variance. Its interpretation remains valid only when the predictor does not contain the criterion itself. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

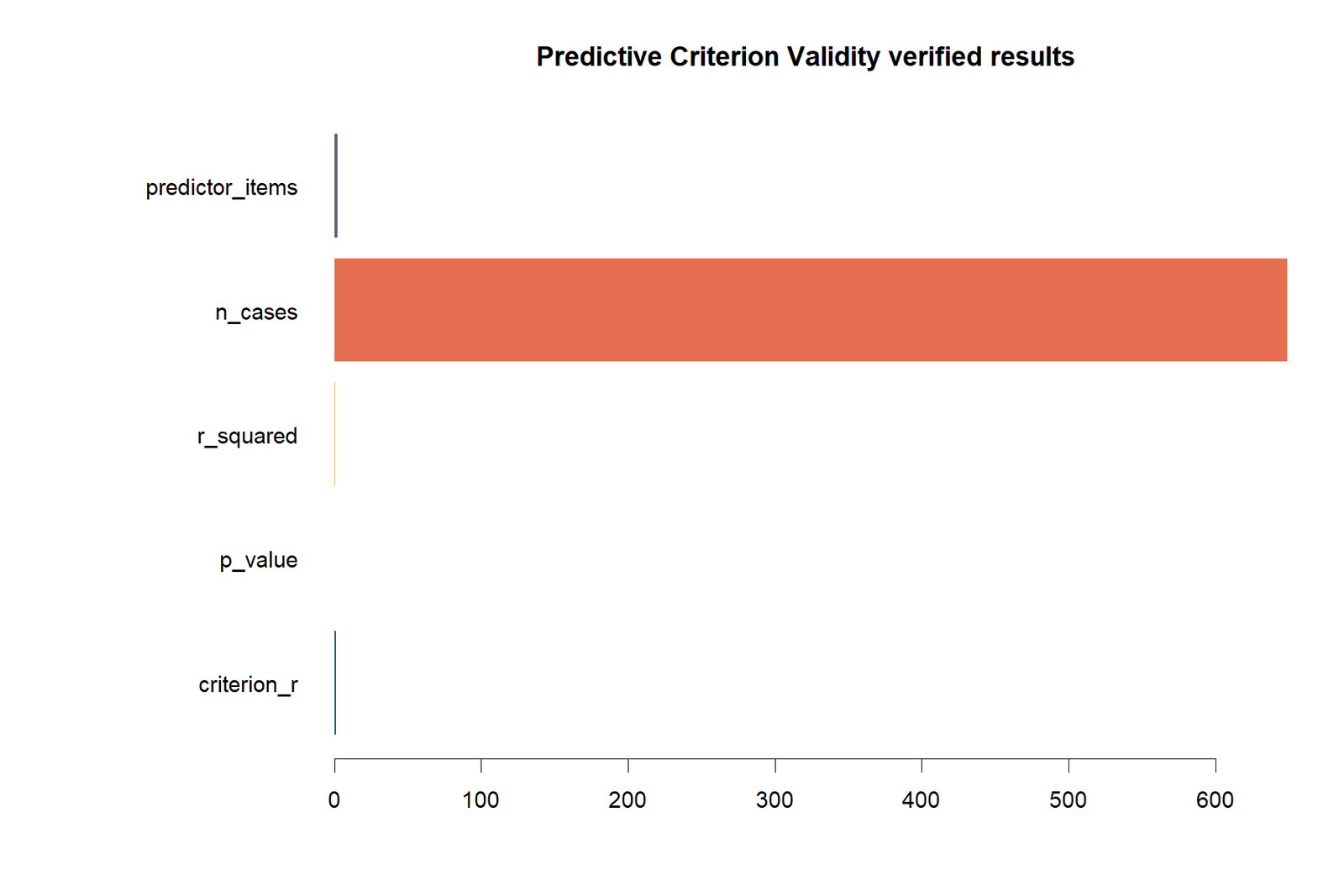

05 Criterion-Validity Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Criterion Validity. Read G2 standardized loading = 0.979897 beside G3 standardized loading = 0.937215; the first quantity is not replaced by the second.
The chart is used to confirm the G3 threshold used for AUC. Its interpretation remains valid only when linearity is reasonable for Pearson correlation. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Criterion-Validity Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Criterion Validity. Read G3 standardized loading = 0.937215 beside Educational Advantage AVE = 0.467009; the first quantity is not replaced by the second.
The chart is used to inspect calibration and sensitivity-specificity if classification is emphasized. Its interpretation remains valid only when AUC uses an explicitly coded binary outcome. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Criterion-Validity Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Criterion Validity. Read Educational Advantage AVE = 0.467009 beside Social-Alcohol Exposure AVE = 0.490896; the first quantity is not replaced by the second.
The chart is used to test whether the relation persists under alternative defensible criterion definitions. Its interpretation remains valid only when independence and missing-data handling are documented. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Criterion-Validity Criterion Pairs
This panel checks measurement quality before a broader conclusion is made for Criterion Validity. Read Social-Alcohol Exposure AVE = 0.490896 beside Academic Achievement CR = 0.953517; the first quantity is not replaced by the second.
The chart is used to verify the construction and standardization of the engagement index. Its interpretation remains valid only when the external criterion is measured reliably. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

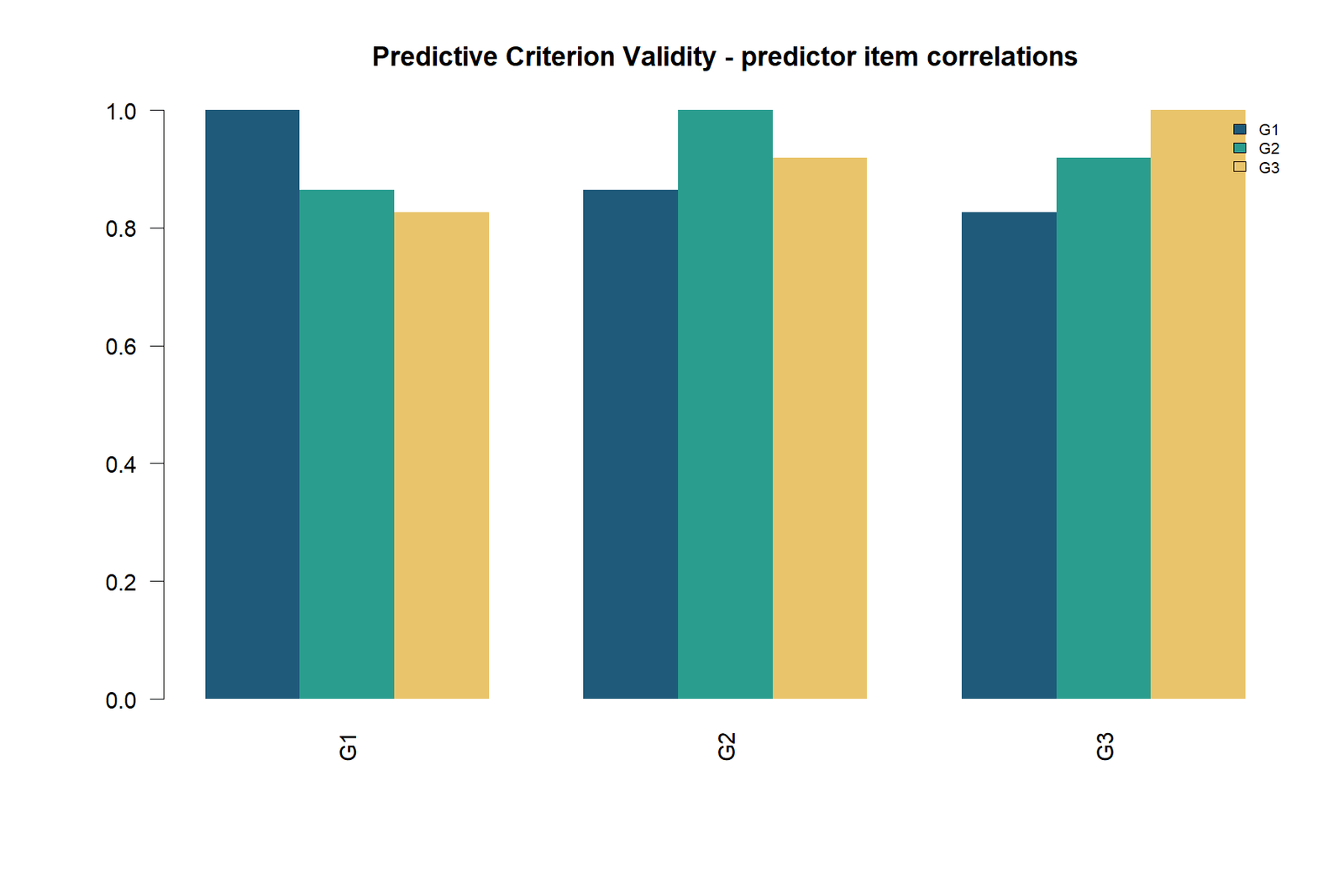

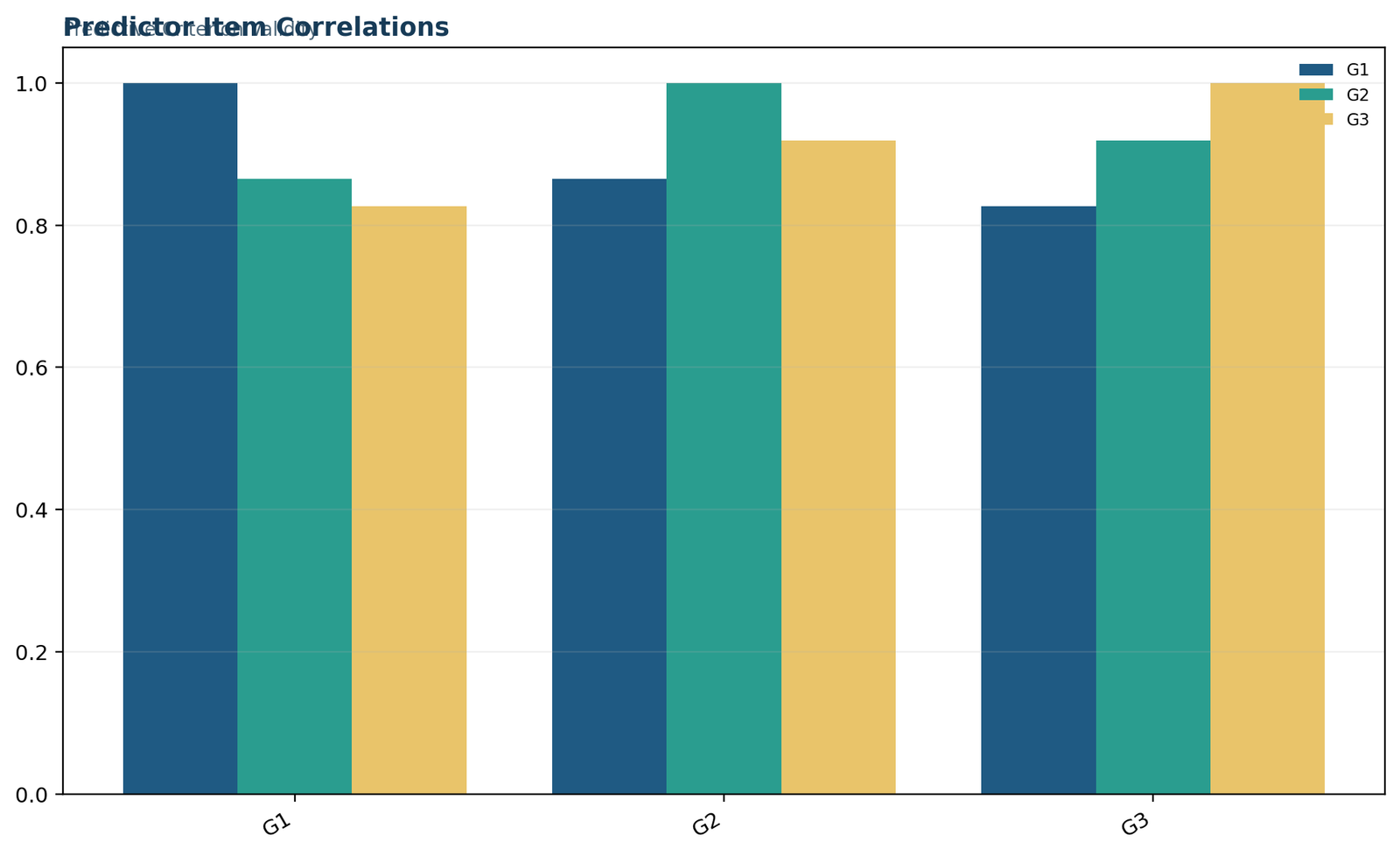

03 Criterion-Validity Predictor Item Correlations
This panel checks measurement quality before a broader conclusion is made for Criterion Validity. Read Academic Achievement CR = 0.953517 beside Educational Advantage CR = 0.696353; the first quantity is not replaced by the second.
The chart is used to report the correlation with its uncertainty and p-value. Its interpretation remains valid only when criterion timing matches concurrent or predictive claims. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

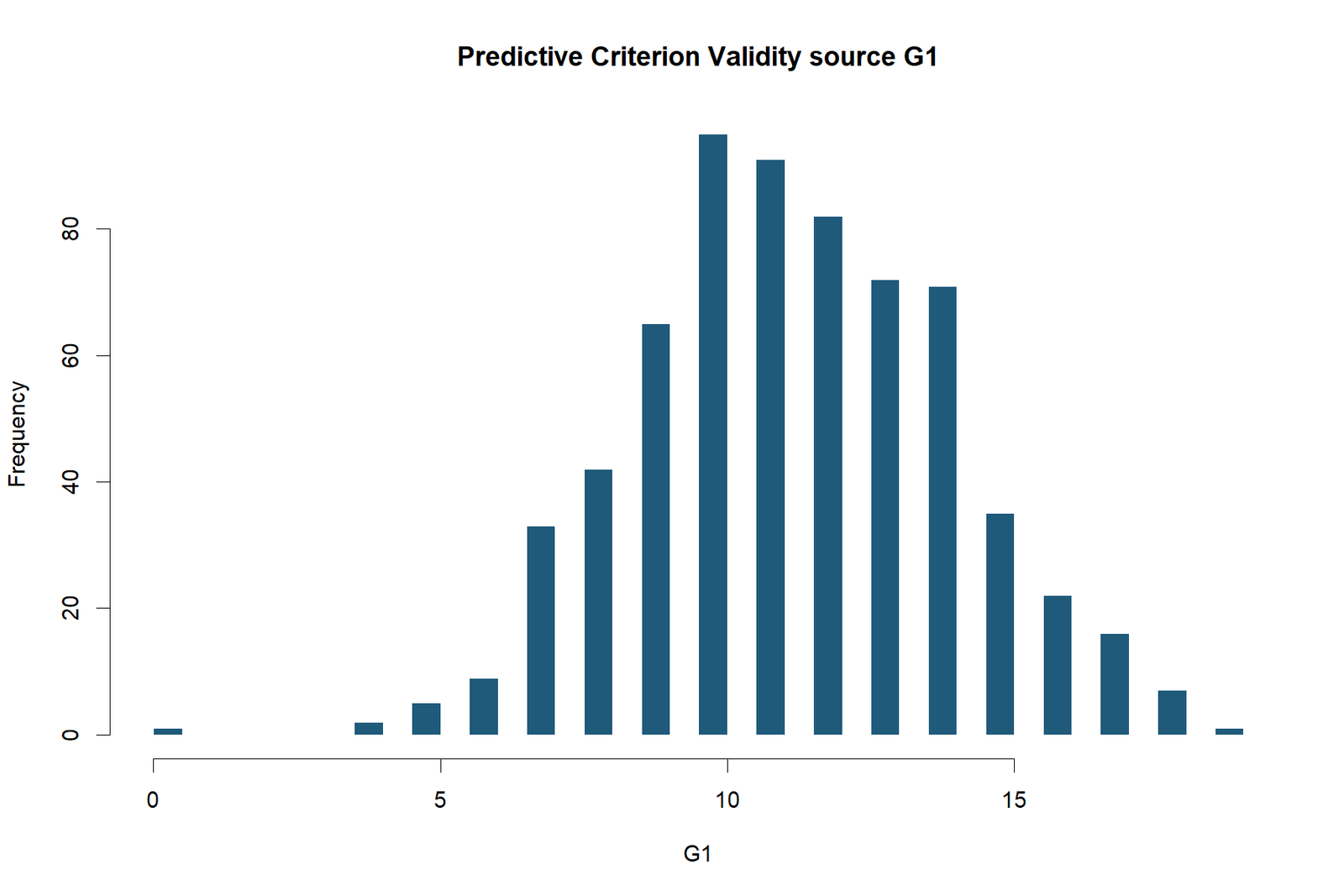

04 Criterion-Validity Source G1
This panel checks measurement quality before a broader conclusion is made for Criterion Validity. Read Educational Advantage CR = 0.696353 beside Social-Alcohol Exposure CR = 0.724808; the first quantity is not replaced by the second.
The chart is used to square the correlation only when explaining shared linear variance. Its interpretation remains valid only when the predictor does not contain the criterion itself. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
Criterion Validity verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Criterion Validity.
1. Verify the construction and standardization of the engagement index
Begin by verify the construction and standardization of the engagement index. For the external-criterion evidence, this operation directly connects Criterion correlation = 0.434292 with Academic Achievement AVE = 0.872614. Criterion correlation = 0.434292 is an association for the named variables or constructs; it is not a loading, reliability coefficient, or causal effect.
The governing condition is that the external criterion is measured reliably. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Convergent Validity, because Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark.
2. Report the correlation with its uncertainty and p-value
Next, report the correlation with its uncertainty and p-value. For the external-criterion evidence, this operation directly connects Criterion AUC = 0.767687 with G2 standardized loading = 0.979897. Criterion AUC = 0.767687 measures ranking discrimination for the stated binary criterion and must be separated from calibration.
The governing condition is that criterion timing matches concurrent or predictive claims. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Predictive Validity, because Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time.
3. Square the correlation only when explaining shared linear variance
The third verification is to square the correlation only when explaining shared linear variance. For the external-criterion evidence, this operation directly connects Academic Achievement AVE = 0.872614 with G3 standardized loading = 0.937215. Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
The governing condition is that the predictor does not contain the criterion itself. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Structural Path Coefficient, because A path coefficient belongs to a multivariable model and can differ from the bivariate criterion correlation.
4. Confirm the G3 threshold used for AUC
After the core arithmetic is stable, confirm the G3 threshold used for AUC. For the external-criterion evidence, this operation directly connects G2 standardized loading = 0.979897 with Educational Advantage AVE = 0.467009. G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
The governing condition is that linearity is reasonable for Pearson correlation. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Convergent Validity, because Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark.
5. Inspect calibration and sensitivity-specificity if classification is emphasized
A robustness review must inspect calibration and sensitivity-specificity if classification is emphasized. For the external-criterion evidence, this operation directly connects G3 standardized loading = 0.937215 with Social-Alcohol Exposure AVE = 0.490896. G3 standardized loading = 0.937215 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
The governing condition is that AUC uses an explicitly coded binary outcome. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Predictive Validity, because Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time.
6. Test whether the relation persists under alternative defensible criterion definitions
The final reconciliation should test whether the relation persists under alternative defensible criterion definitions. For the external-criterion evidence, this operation directly connects Educational Advantage AVE = 0.467009 with Academic Achievement CR = 0.953517. Educational Advantage AVE = 0.467009 is below the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
The governing condition is that independence and missing-data handling are documented. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Structural Path Coefficient, because A path coefficient belongs to a multivariable model and can differ from the bivariate criterion correlation.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | verify the construction and standardization of the engagement index | the external criterion is measured reliably | Criterion correlation = 0.434292 |
| 2 | report the correlation with its uncertainty and p-value | criterion timing matches concurrent or predictive claims | Criterion AUC = 0.767687 |
| 3 | square the correlation only when explaining shared linear variance | the predictor does not contain the criterion itself | Academic Achievement AVE = 0.872614 |
| 4 | confirm the G3 threshold used for AUC | linearity is reasonable for Pearson correlation | G2 standardized loading = 0.979897 |
| 5 | inspect calibration and sensitivity-specificity if classification is emphasized | AUC uses an explicitly coded binary outcome | G3 standardized loading = 0.937215 |
| 6 | test whether the relation persists under alternative defensible criterion definitions | independence and missing-data handling are documented | Educational Advantage AVE = 0.467009 |
Criterion Validity compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Criterion Validity formula and output rather than a nearby procedure.
Convergent Validity
Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark.
In the current analysis, Criterion AUC = 0.767687 remains evidence for the external-criterion evidence; it is not relabeled as a Convergent Validity result. Criterion AUC = 0.767687 measures ranking discrimination for the stated binary criterion and must be separated from calibration.
Predictive Validity
Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time.
In the current analysis, Academic Achievement AVE = 0.872614 remains evidence for the external-criterion evidence; it is not relabeled as a Predictive Validity result. Academic Achievement AVE = 0.872614 is above the .50 captured-variance reference; the judgment applies to the named construct rather than the whole instrument.
Structural Path Coefficient
A path coefficient belongs to a multivariable model and can differ from the bivariate criterion correlation.
In the current analysis, G2 standardized loading = 0.979897 remains evidence for the external-criterion evidence; it is not relabeled as a Structural Path Coefficient result. G2 standardized loading = 0.979897 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
How to report Criterion Validity
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
Criterion Validity was evaluated using the declared data, specification, and software settings. The primary result was Criterion correlation = 0.434292; Criterion AUC = 0.767687 and Academic Achievement AVE = 0.872614 supplied supporting context. The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
The report then states the limitation explicitly: A criterion correlation is not a loading, reliability coefficient, or causal effect. AUC does not indicate calibration or the size of a continuous association. The criterion must be independently meaningful and should not reuse the same information that created the predictor score.
Settings that must accompany the result
the external criterion is measured reliably; criterion timing matches concurrent or predictive claims; the predictor does not contain the criterion itself; linearity is reasonable for Pearson correlation.
For Criterion Validity, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
verify the construction and standardization of the engagement index; report the correlation with its uncertainty and p-value; square the correlation only when explaining shared linear variance; confirm the G3 threshold used for AUC.
The final wording is revised only after those operations reproduce the saved values.
Criterion Validity decision scenarios
For Criterion Validity, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Verify the construction and standardization of the engagement index
Consider a review in which Criterion correlation = 0.434292 is reproduced but Criterion AUC = 0.767687 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the construction and standardization of the engagement index and verify that the external criterion is measured reliably.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Input-definition sensitivity: Report the correlation with its uncertainty and p-value
Consider a review in which Academic Achievement AVE = 0.872614 is reproduced but G2 standardized loading = 0.979897 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report the correlation with its uncertainty and p-value and verify that criterion timing matches concurrent or predictive claims.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Predictive Validity only for method selection: Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Software-definition reconciliation: Square the correlation only when explaining shared linear variance
Consider a review in which G3 standardized loading = 0.937215 is reproduced but Educational Advantage AVE = 0.467009 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to square the correlation only when explaining shared linear variance and verify that the predictor does not contain the criterion itself.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Path Coefficient only for method selection: A path coefficient belongs to a multivariable model and can differ from the bivariate criterion correlation. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Local-chart conflict: Confirm the G3 threshold used for AUC
Consider a review in which Social-Alcohol Exposure AVE = 0.490896 is reproduced but Academic Achievement CR = 0.953517 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to confirm the G3 threshold used for AUC and verify that linearity is reasonable for Pearson correlation.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Alternative-method challenge: Inspect calibration and sensitivity-specificity if classification is emphasized
Consider a review in which Educational Advantage CR = 0.696353 is reproduced but Social-Alcohol Exposure CR = 0.724808 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect calibration and sensitivity-specificity if classification is emphasized and verify that AUC uses an explicitly coded binary outcome.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Predictive Validity only for method selection: Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Replication and reporting decision: Test whether the relation persists under alternative defensible criterion definitions
Consider a review in which Academic sqrt AVE = 0.934138 is reproduced but Educational sqrt AVE = 0.683380 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to test whether the relation persists under alternative defensible criterion definitions and verify that independence and missing-data handling are documented.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Path Coefficient only for method selection: A path coefficient belongs to a multivariable model and can differ from the bivariate criterion correlation. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Boundary-case interpretation: Verify the construction and standardization of the engagement index
Consider a review in which Social-Alcohol sqrt AVE = 0.700640 is reproduced but Academic–Education factor correlation = 0.313995 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the construction and standardization of the engagement index and verify that the external criterion is measured reliably.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Input-definition sensitivity: Report the correlation with its uncertainty and p-value
Consider a review in which Academic–Social factor correlation = 0.200278 is reproduced but Criterion correlation = 0.434292 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report the correlation with its uncertainty and p-value and verify that criterion timing matches concurrent or predictive claims.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Predictive Validity only for method selection: Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Software-definition reconciliation: Square the correlation only when explaining shared linear variance
Consider a review in which Criterion AUC = 0.767687 is reproduced but Academic Achievement AVE = 0.872614 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to square the correlation only when explaining shared linear variance and verify that the predictor does not contain the criterion itself.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Structural Path Coefficient only for method selection: A path coefficient belongs to a multivariable model and can differ from the bivariate criterion correlation. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Local-chart conflict: Confirm the G3 threshold used for AUC
Consider a review in which G2 standardized loading = 0.979897 is reproduced but G3 standardized loading = 0.937215 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to confirm the G3 threshold used for AUC and verify that linearity is reasonable for Pearson correlation.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Convergent Validity only for method selection: Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Alternative-method challenge: Inspect calibration and sensitivity-specificity if classification is emphasized
Consider a review in which Educational Advantage AVE = 0.467009 is reproduced but Social-Alcohol Exposure AVE = 0.490896 is not. For the external-criterion evidence, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect calibration and sensitivity-specificity if classification is emphasized and verify that AUC uses an explicitly coded binary outcome.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Predictive Validity only for method selection: Predictive validity is criterion evidence where the score precedes a future criterion; concurrent evidence uses roughly the same time. The published conclusion remains The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
Criterion Validity downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one Criterion Validity analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
Criterion Validity frequently asked questions
Answers use the worked result and the exact method boundary.
What does Criterion Validity measure?
Criterion validity evidence evaluates whether scores relate to an external criterion in the theoretically expected way. This post uses a continuous association with final grade and a classification AUC for a defined success threshold, so the correlation and AUC must be interpreted as different quantities.
What is the main result in this Criterion Validity analysis?
Criterion correlation = 0.434292. The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
What does the result not prove?
A criterion correlation is not a loading, reliability coefficient, or causal effect. AUC does not indicate calibration or the size of a continuous association. The criterion must be independently meaningful and should not reuse the same information that created the predictor score.
Which supporting value should be reported with the primary result?
Criterion AUC = 0.767687 is the first companion quantity. Criterion AUC = 0.767687 measures ranking discrimination for the stated binary criterion and must be separated from calibration.
Which assumption is most likely to change the interpretation?
The first requirement is that the external criterion is measured reliably. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must verify the construction and standardization of the engagement index. That operation traces Criterion correlation = 0.434292 to the formula and saved inputs.
Why can software packages disagree on Criterion Validity?
Disagreement can arise because criterion timing matches concurrent or predictive claims or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is Criterion Validity different from Convergent Validity?
Convergent validity concerns indicators of the same construct; criterion validity uses an external outcome or benchmark.
How should a chart be interpreted?
Each chart is tied to a named output such as Academic Achievement AVE = 0.872614. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should Criterion Validity be reported?
Report Criterion correlation = 0.434292, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: The engagement index has a moderate association with G3 and useful but imperfect discrimination of the success threshold. The evidence supports criterion relevance, not deterministic prediction or causal impact.
