Covariance Based SEM: Formula, Verified Results, Charts and Interpretation

Covariance-based SEM estimates parameters so that the model-implied covariance matrix reproduces the observed covariance matrix under a stated fitting function. It combines a measurement model with structural regressions and is primarily suited to theory testing and parameter inference. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.

Measurement firstStructural pathsFit or predictionReal data

CFI0.997823

TLI0.996735

RMSEA0.020492

SRMR0.035876

Verified result

The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

For Covariance Based SEM, cFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

Interpretive limit: CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

What Covariance Based SEM measures

The exact estimand and the result this method is allowed to support.

Covariance Based SEM addresses one defined analytical target: Covariance-based SEM estimates parameters so that the model-implied covariance matrix reproduces the observed covariance matrix under a stated fitting function. It combines a measurement model with structural regressions and is primarily suited to theory testing and parameter inference.

Quantity estimated in this analysis

The covariance-reproduction sem is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is CFI = 0.997823; TLI = 0.996735 supplies the first supporting check. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

For Covariance Based SEM, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.

Interpretation that is not permitted

CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

For Covariance Based SEM, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.

Worked conclusion: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

When to use Covariance Based SEM

Research scope, neighboring methods, and excluded claims.

Research question answered

The defensible question is whether the covariance-reproduction SEM supports the result stated for the declared dataset and analytical specification. It is answered by verify the model-implied covariance equation, followed by reconcile parameter count with model degrees of freedom. The evidence is bounded by CFI = 0.997823 and its named companion quantities.

For Covariance Based SEM, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.

Nearest methods that answer different questions

PLS-SEM: CB-SEM prioritizes covariance reproduction and global fit; PLS-SEM emphasizes composites, explained variance, and prediction.

Path Analysis: Path analysis uses observed variables and does not correct structural coefficients for latent measurement error.

These distinctions determine which formula, output table, and chart can legitimately appear in a Covariance Based SEM post.

Scope limit: CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

Real data used for Covariance Based SEM

Variables, coding, sample or panel size, and the role each input plays.

For Covariance Based SEM, the model-based analysis uses 649 complete student records and the declared indicator blocks shown in the table. G1, G2, and G3 define Academic Achievement; Medu, Fedu, and reverse-coded TravelAccess define Educational Advantage; goout, Dalc, and Walc define Social-Alcohol Exposure.

For the covariance-reproduction SEM, these variables enter a prespecified covariance, composite, or path model. Their order, scaling, factor membership, and missing-data treatment must match the model syntax because CFI = 0.997823 is conditional on that exact specification.

Variable	Meaning	Mean	SD	Range	Construct
G1	first-period grade	11.3991	2.7453	0–19	Academic Achievement
G2	second-period grade	11.5701	2.9136	0–19	Academic Achievement
G3	final grade	11.9060	3.2307	0–19	Academic Achievement
Medu	mother’s education	2.5146	1.1346	0–4	Educational Advantage
Fedu	father’s education	2.3066	1.0999	0–4	Educational Advantage
TravelAccess	reverse-coded travel accessibility	3.4314	0.7487	1–4	Educational Advantage
goout	frequency of going out	3.1849	1.1758	1–5	Social-Alcohol Exposure
Dalc	workday alcohol use	1.5023	0.9248	1–5	Social-Alcohol Exposure
Walc	weekend alcohol use	2.2804	1.2844	1–5	Social-Alcohol Exposure

Data-to-result trace: Verify the model-implied covariance equation is the first data-integrity check, followed by reconcile parameter count with model degrees of freedom. Both checks are performed before the primary coefficient is interpreted.

Covariance Based SEM assumptions and design requirements

Six conditions checked before the coefficient or decision rule is interpreted.

1. The full model is identified

This condition determines whether the input object matches the formula. In the current Covariance Based SEM analysis, the check is to verify the model-implied covariance equation while preserving CFI = 0.997823.

For Covariance Based SEM, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.

2. The covariance estimator is appropriate

This requirement controls whether the numerical estimate has the interpretation claimed. In the current Covariance Based SEM analysis, the check is to reconcile parameter count with model degrees of freedom while preserving TLI = 0.996735.

3. The sample size supports the parameter count

This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Covariance Based SEM analysis, the check is to report target and baseline fit statistics consistently while preserving RMSEA = 0.020492.

4. Missingness and nonnormality are handled explicitly

This specification rule keeps the software routes numerically comparable. In the current Covariance Based SEM analysis, the check is to inspect standardized residuals and modification indices while preserving SRMR = 0.035876.

5. Measurement quality is established before structural interpretation

This diagnostic requirement is checked before a benchmark is applied. In the current Covariance Based SEM analysis, the check is to separate measurement and structural conclusions while preserving Latent Education path = 0.382401.

6. The model reflects a prespecified theory

This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Covariance Based SEM analysis, the check is to avoid causal wording without design-based identification while preserving Latent Social-Alcohol path = -0.477804.

Assumption consequence: CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

Covariance Based SEM hypotheses or decision rule

The statistical question is stated at the correct level for this method.

Statistical question

For Covariance Based SEM, global model hypotheses concern covariance reproduction, while parameter hypotheses concern individual loadings, paths, covariances, weights, or indirect effects.

The two levels are reported separately so that a favorable global result does not conceal an unsupported parameter claim in Covariance Based SEM.

Decision for the worked analysis

For Covariance Based SEM, the calculation yields CFI = 0.997823 . CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Language rule: the conclusion names the tested model, construct pair, item set, retained dimensions, or expert panel. It does not convert nonrejection into proof or a benchmark into a universal pass.

Covariance Based SEM formula and worked substitution

Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.

The equation below is the defining mathematical object for Covariance Based SEM. Its symbols are connected to the saved inputs and to CFI = 0.997823, TLI = 0.996735, RMSEA = 0.020492, SRMR = 0.035876.

covariance structural model equationsNative MathML · no external script

CB-SEM estimation target

$\begin{array}{rcl} θ_{ML} & = & arg min F_{ML} (S, Σ (θ)) \\ Σ & (θ) & = & Λ Φ Λ^{'} + Θ \end{array}$

The covariance structure is generated from loadings, latent covariances, and residual covariance.

Verified model summary

$\begin{array}{rcl} CFI & = & 0.9978 \\ RMSEA & = & 0.0205 \\ R^{2} & = & 0.1673 \end{array}$

Global covariance fit is strong, while the structural model explains 16.7% of Academic Achievement variance.

Symbol and denominator control

For Covariance Based SEM, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.

Full-precision substitution

For Covariance Based SEM, the spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with CFI = 0.997823 and TLI = 0.996735 .

Step-by-step Covariance Based SEM calculation

Every stage is tied to a saved value and a method-specific condition.

The worked calculation follows six operations specific to the covariance-reproduction SEM. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.

Establish the analytical object

Action: Verify the model-implied covariance equation.

Numerical trace: CFI = 0.997823; TLI = 0.996735.

Condition: the full model is identified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Reconstruct the first required quantity

Action: Reconcile parameter count with model degrees of freedom.

Numerical trace: TLI = 0.996735; RMSEA = 0.020492.

Condition: the covariance estimator is appropriate. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Verify the companion quantity

Action: Report target and baseline fit statistics consistently.

Numerical trace: RMSEA = 0.020492; SRMR = 0.035876.

Condition: the sample size supports the parameter count. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Apply the decision rule

Action: Inspect standardized residuals and modification indices.

Numerical trace: SRMR = 0.035876; Latent Education path = 0.382401.

Condition: missingness and nonnormality are handled explicitly. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Inspect local evidence

Action: Separate measurement and structural conclusions.

Numerical trace: Latent Education path = 0.382401; Latent Social-Alcohol path = -0.477804.

Condition: measurement quality is established before structural interpretation. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Reconcile and report

Action: Avoid causal wording without design-based identification.

Numerical trace: Latent Social-Alcohol path = -0.477804; Latent structural R squared = 0.167253.

Condition: the model reflects a prespecified theory. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.

Final reconciliation: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Covariance Based SEM results and interpretation

Primary and supporting statistics are kept separate and precisely labeled.

Primary result

0.997823

CFI

Why the result is internally coherent

For Covariance Based SEM, cFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

For Covariance Based SEM, tLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

For Covariance Based SEM, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.

Result item	Exact value	Interpretation restricted to this method
CFI	0.997823	CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
TLI	0.996735	TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
RMSEA	0.020492	RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
SRMR	0.035876	SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
Latent Education path	0.382401	Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Latent Social-Alcohol path	-0.477804	Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Latent structural R squared	0.167253	Latent structural R squared = 0.167253 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction.
PLS Education path	0.282066	PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
PLS Social-Alcohol path	-0.197452	PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
PLS R squared	0.120424	PLS R squared = 0.120424 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction.
PLS Q squared	0.112273	PLS Q squared = 0.112273 indicates predictive relevance under the declared omission or prediction procedure, not automatically strong out-of-sample accuracy.
Observed path R squared	0.850714	Observed path R squared = 0.850714 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Observed path adjusted R squared	0.849084	Observed path adjusted R squared = 0.849084 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Observed path RMSE	1.247283	Observed path RMSE = 1.247283 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.

Maximum defensible claim: CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

Covariance Based SEM in Python

The Python route calculates or reconstructs the exact named result.

The Python workflow uses semopy, Model to calculate or extract the covariance-reproduction SEM from the declared data and analytical specification. It must reproduce CFI = 0.997823 and retain TLI = 0.996735 as a separate supporting quantity.

The code is read as an executable analysis, not as a printed answer. Its critical verification is to verify the model-implied covariance equation; the associated design condition is that the full model is identified. CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

Python — Covariance Based SEM

import pandas as pd

import numpy as np

df = pd.read_csv("student-por.csv", sep=";") df["TravelAccess"] = 5 - df["traveltime"] vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"] X = df[vars9].dropna() from semopy import Model, calc_stats model = Model(""" Achievement =~ G1 + G2 + G3 Education =~ Medu + Fedu + TravelAccess SocialAlcohol =~ goout + Dalc + Walc Achievement ~ Education + SocialAlcohol """) model.fit(df) stats = calc_stats(model) print("Covariance Based SEM") print(stats.T if "all" == "all" else stats.T.loc[["ALL"]]) print(model.inspect(std_est=True))

Python interpretation: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Covariance Based SEM in R

The R route declares package, estimator, extraction, rotation, or resampling settings.

The R route uses lavaan and the displayed arguments to estimate the covariance-reproduction SEM. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.

R output is reconciled with CFI = 0.997823 after the analyst reconcile parameter count with model degrees of freedom. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.

R — Covariance Based SEM

d <- read.csv2("student-por.csv")

d$TravelAccess <- 5 - d$traveltime

vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")

X <- d[vars9]

library(lavaan)

model <- '

Achievement =~ G1 + G2 + G3

Education =~ Medu + Fedu + TravelAccess

SocialAlcohol =~ goout + Dalc + Walc

Achievement ~ Education + SocialAlcohol

'

fit <- sem(model,data=d,estimator="ML")

fitMeasures(fit,c("chisq","df","pvalue","cfi","tli","nfi","rmsea","srmr","gfi","agfi"))

standardizedSolution(fit)

R interpretation: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Covariance Based SEM in SPSS or AMOS

The procedure is labeled honestly when base SPSS does not expose the coefficient.

The SPSS or AMOS section shows the procedure that is actually available for the covariance-reproduction SEM. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.

The output must identify CFI = 0.997823 and the settings needed to reproduce it. The software review specifically report target and baseline fit statistics consistently, while preserving the requirement that the sample size supports the parameter count.

SPSS or AMOS — Covariance Based SEM

* Covariance Based SEM is obtained from the prespecified AMOS covariance model.

* Three factors: G1 G2 G3; Medu Fedu TravelAccess; goout Dalc Walc.

* Maximum likelihood, N=649, df=24.

* Request standardized estimates, residual moments, squared multiple correlations, and fit measures.

* Reconcile the exact Covariance Based SEM value with the formula and result ledger in this draft.

SPSS or AMOS interpretation: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Covariance Based SEM in Excel

The workbook exposes source values, intermediate arithmetic, and the final formula.

The Excel workbook is an arithmetic audit for the covariance-reproduction SEM. Named cells retain the inputs, intermediate components, and final formula leading to CFI = 0.997823; no rounded constant is pasted over a formula cell.

Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to inspect standardized residuals and modification indices and documents TLI = 0.996735 independently.

Excel — Covariance Based SEM

Data: 649 rows with documented coding.

Inputs: named cells or ranges required only by Covariance Based SEM.

Calculation: Use the native MathML formula shown above with named ranges for every input

Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.

Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.

Excel interpretation: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Covariance Based SEM charts and visual diagnostics

Each supplied image is interpreted through its own values and analytical purpose.

Every image below is interpreted as part of the same Covariance Based SEM analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

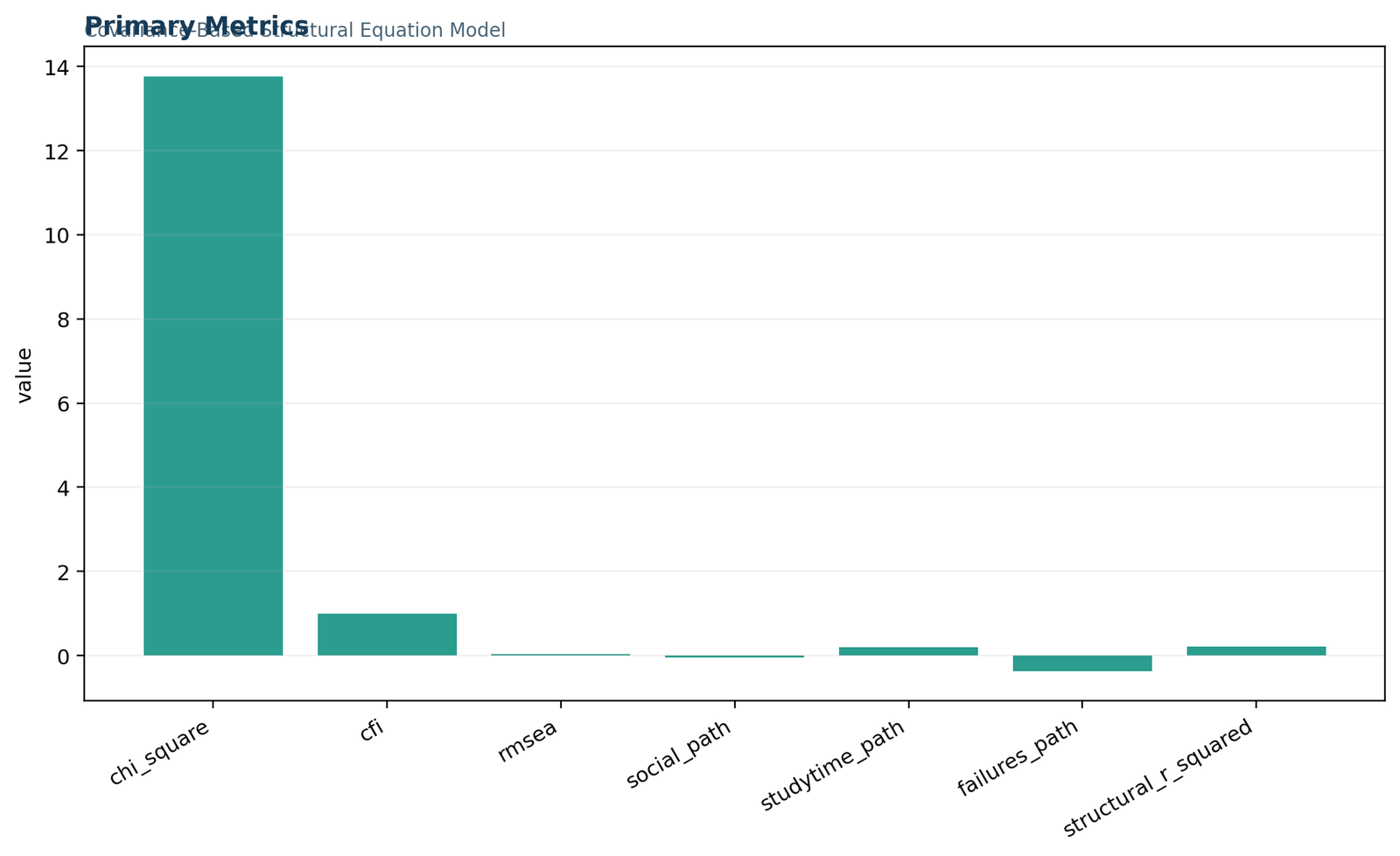

Covariance Based SEM — 01 Covariance-Based-Sem Primary Metrics — 01 Covariance-Based-Sem Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for **Covariance Based SEM**. Read **CFI = 0.997823** beside **TLI = 0.996735**; the first quantity is not replaced by the second.
The chart is used to verify the model-implied covariance equation. Its interpretation remains valid only when the full model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

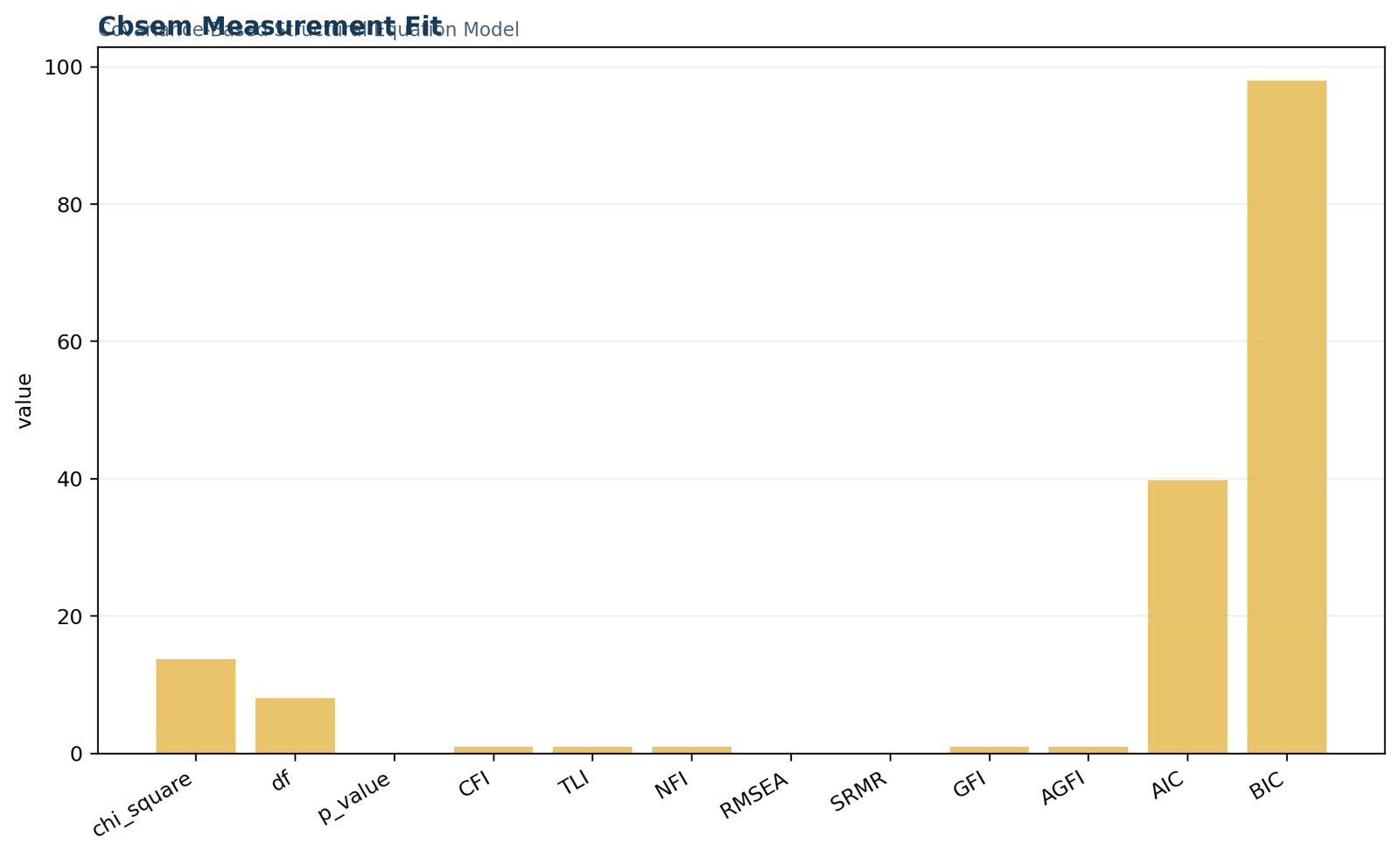

Covariance Based SEM — 02 Covariance-Based-Sem Cbsem Measurement Fit — 02 Covariance-Based-Sem Cbsem Measurement Fit
This panel provides a visual diagnostic tied to the method’s exact decision rule for **Covariance Based SEM**. Read **TLI = 0.996735** beside **RMSEA = 0.020492**; the first quantity is not replaced by the second.
The chart is used to reconcile parameter count with model degrees of freedom. Its interpretation remains valid only when the covariance estimator is appropriate. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

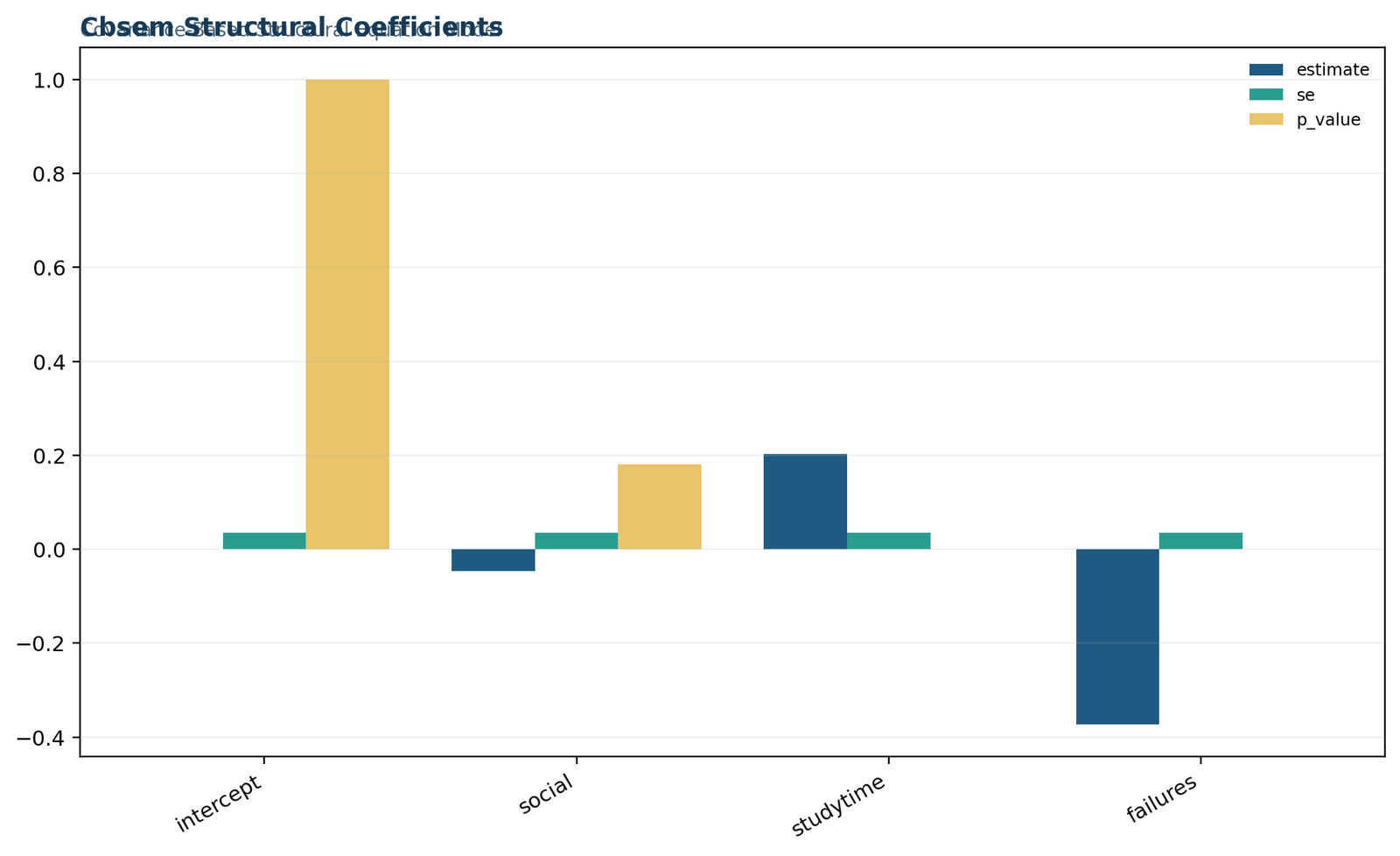

Covariance Based SEM — 03 Covariance-Based-Sem Cbsem Structural Coefficients — 03 Covariance-Based-Sem Cbsem Structural Coefficients
This panel shows the direction and relative magnitude of the declared structural relations for **Covariance Based SEM**. Read **RMSEA = 0.020492** beside **SRMR = 0.035876**; the first quantity is not replaced by the second.
The chart is used to report target and baseline fit statistics consistently. Its interpretation remains valid only when the sample size supports the parameter count. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

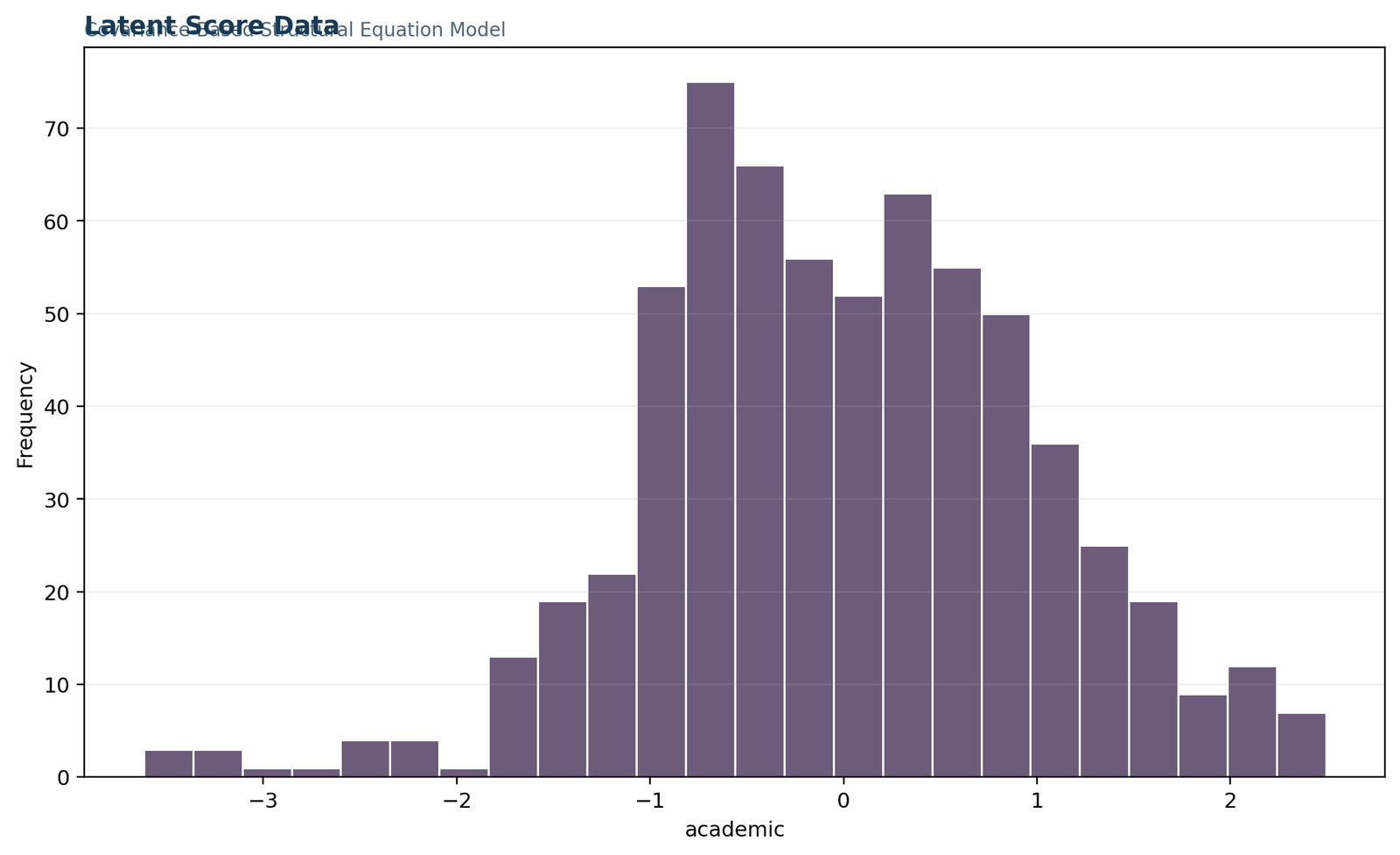

Covariance Based SEM — 04 Covariance-Based-Sem Latent Score Data — 04 Covariance-Based-Sem Latent Score Data
This panel provides a visual diagnostic tied to the method’s exact decision rule for **Covariance Based SEM**. Read **SRMR = 0.035876** beside **Latent Education path = 0.382401**; the first quantity is not replaced by the second.
The chart is used to inspect standardized residuals and modification indices. Its interpretation remains valid only when missingness and nonnormality are handled explicitly. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

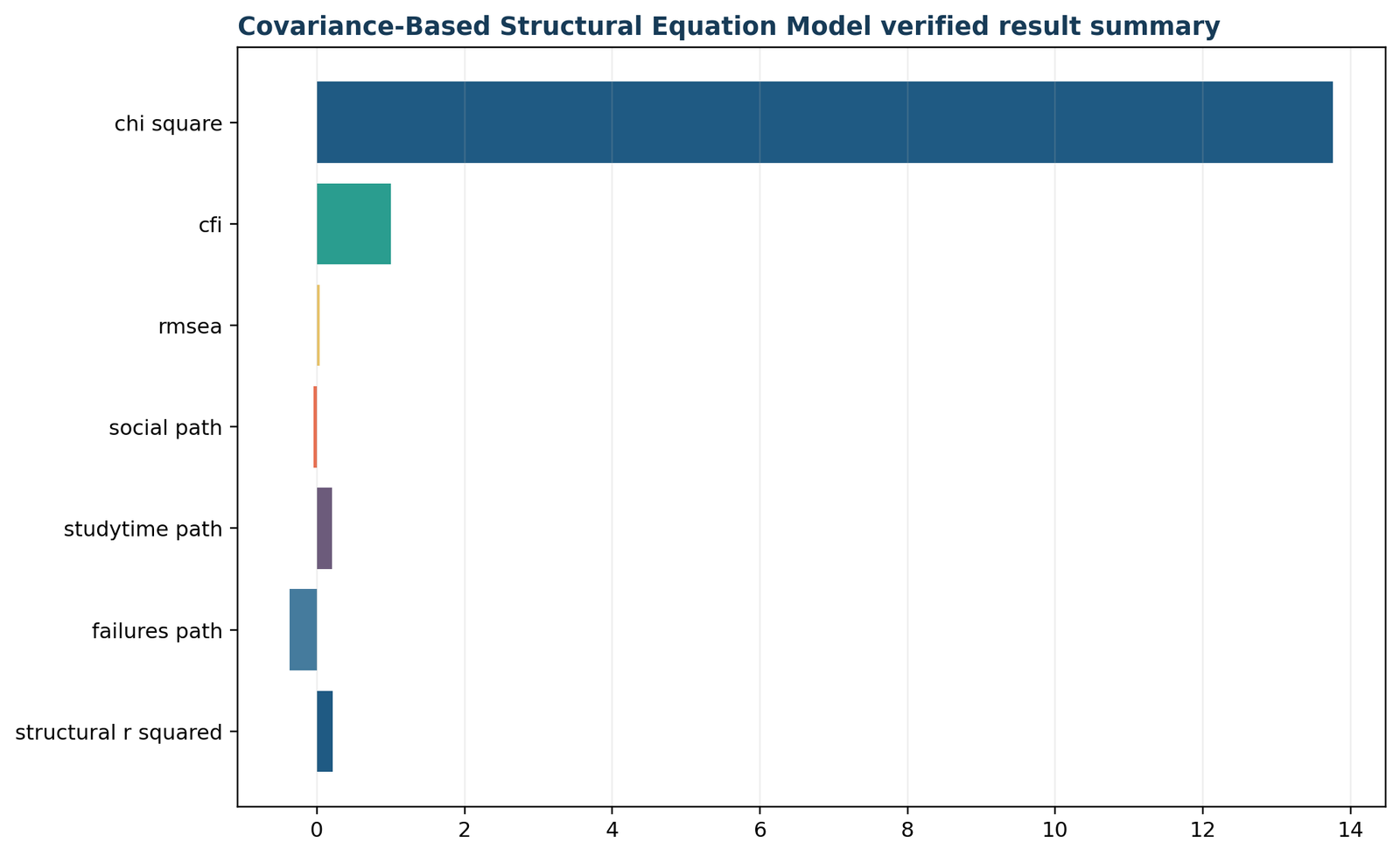

Covariance Based SEM — 05 Covariance-Based-Sem Verified Result Summary — 05 Covariance-Based-Sem Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for **Covariance Based SEM**. Read **Latent Education path = 0.382401** beside **Latent Social-Alcohol path = -0.477804**; the first quantity is not replaced by the second.
The chart is used to separate measurement and structural conclusions. Its interpretation remains valid only when measurement quality is established before structural interpretation. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

Covariance Based SEM verification and sensitivity analysis

Six failure modes are checked against the formula, data, output, and charts.

The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Covariance Based SEM.

1. Verify the model-implied covariance equation

Begin by verify the model-implied covariance equation. For the covariance-reproduction SEM, this operation directly connects CFI = 0.997823 with RMSEA = 0.020492. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

The governing condition is that the full model is identified. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with PLS-SEM, because CB-SEM prioritizes covariance reproduction and global fit; PLS-SEM emphasizes composites, explained variance, and prediction.

2. Reconcile parameter count with model degrees of freedom

Next, reconcile parameter count with model degrees of freedom. For the covariance-reproduction SEM, this operation directly connects TLI = 0.996735 with SRMR = 0.035876. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

The governing condition is that the covariance estimator is appropriate. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Path Analysis, because Path analysis uses observed variables and does not correct structural coefficients for latent measurement error.

3. Report target and baseline fit statistics consistently

The third verification is to report target and baseline fit statistics consistently. For the covariance-reproduction SEM, this operation directly connects RMSEA = 0.020492 with Latent Education path = 0.382401. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.

The governing condition is that the sample size supports the parameter count. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Confirmatory Factor Analysis, because CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables.

4. Inspect standardized residuals and modification indices

After the core arithmetic is stable, inspect standardized residuals and modification indices. For the covariance-reproduction SEM, this operation directly connects SRMR = 0.035876 with Latent Social-Alcohol path = -0.477804. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.

The governing condition is that missingness and nonnormality are handled explicitly. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with PLS-SEM, because CB-SEM prioritizes covariance reproduction and global fit; PLS-SEM emphasizes composites, explained variance, and prediction.

5. Separate measurement and structural conclusions

A robustness review must separate measurement and structural conclusions. For the covariance-reproduction SEM, this operation directly connects Latent Education path = 0.382401 with Latent structural R squared = 0.167253. Latent Education path = 0.382401 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.

The governing condition is that measurement quality is established before structural interpretation. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Path Analysis, because Path analysis uses observed variables and does not correct structural coefficients for latent measurement error.

6. Avoid causal wording without design-based identification

The final reconciliation should avoid causal wording without design-based identification. For the covariance-reproduction SEM, this operation directly connects Latent Social-Alcohol path = -0.477804 with PLS Education path = 0.282066. Latent Social-Alcohol path = -0.477804 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.

The governing condition is that the model reflects a prespecified theory. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Confirmatory Factor Analysis, because CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables.

#	Verification operation	Condition protected	Saved quantity traced
1	verify the model-implied covariance equation	the full model is identified	CFI = 0.997823
2	reconcile parameter count with model degrees of freedom	the covariance estimator is appropriate	TLI = 0.996735
3	report target and baseline fit statistics consistently	the sample size supports the parameter count	RMSEA = 0.020492
4	inspect standardized residuals and modification indices	missingness and nonnormality are handled explicitly	SRMR = 0.035876
5	separate measurement and structural conclusions	measurement quality is established before structural interpretation	Latent Education path = 0.382401
6	avoid causal wording without design-based identification	the model reflects a prespecified theory	Latent Social-Alcohol path = -0.477804

Diagnostic conclusion: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Failure boundary: CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

Covariance Based SEM compared with related methods

Differences in estimand, formula, and conclusion determine the correct choice.

Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Covariance Based SEM formula and output rather than a nearby procedure.

PLS-SEM

CB-SEM prioritizes covariance reproduction and global fit; PLS-SEM emphasizes composites, explained variance, and prediction.

In the current analysis, TLI = 0.996735 remains evidence for the covariance-reproduction SEM; it is not relabeled as a PLS-SEM result. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

Path Analysis

Path analysis uses observed variables and does not correct structural coefficients for latent measurement error.

In the current analysis, RMSEA = 0.020492 remains evidence for the covariance-reproduction SEM; it is not relabeled as a Path Analysis result. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.

Confirmatory Factor Analysis

CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables.

In the current analysis, SRMR = 0.035876 remains evidence for the covariance-reproduction SEM; it is not relabeled as a Confirmatory Factor Analysis result. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.

Selection rule: Covariance-based SEM estimates parameters so that the model-implied covariance matrix reproduces the observed covariance matrix under a stated fitting function. It combines a measurement model with structural regressions and is primarily suited to theory testing and parameter inference.

How to report Covariance Based SEM

A complete result paragraph includes the value, analytical object, settings, and limitation.

Results paragraph

Covariance Based SEM was evaluated using the declared data, specification, and software settings. The primary result was CFI = 0.997823; TLI = 0.996735 and RMSEA = 0.020492 supplied supporting context. The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

The report then states the limitation explicitly: CB-SEM is not interchangeable with PLS-SEM, score regression, or ordinary path analysis. Good fit does not establish causal identification, and poor fit cannot be repaired by reporting only selected favorable indices.

Settings that must accompany the result

the full model is identified; the covariance estimator is appropriate; the sample size supports the parameter count; missingness and nonnormality are handled explicitly.

For Covariance Based SEM, these details identify the exact version of the analysis and make cross-software reconciliation possible.

Verification actions retained in the record

verify the model-implied covariance equation; reconcile parameter count with model degrees of freedom; report target and baseline fit statistics consistently; inspect standardized residuals and modification indices.

The final wording is revised only after those operations reproduce the saved values.

Reporting standard: name the statistic, value, analytical object, sample or panel size, method settings, and limitation in the same result paragraph.

16A

Covariance Based SEM decision scenarios

For Covariance Based SEM, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.

Boundary-case interpretation: Verify the model-implied covariance equation

Consider a review in which CFI = 0.997823 is reproduced but TLI = 0.996735 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the model-implied covariance equation and verify that the full model is identified.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with PLS-SEM only for method selection: CB-SEM prioritizes covariance reproduction and global fit; PLS-SEM emphasizes composites, explained variance, and prediction. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Input-definition sensitivity: Reconcile parameter count with model degrees of freedom

Consider a review in which RMSEA = 0.020492 is reproduced but SRMR = 0.035876 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to reconcile parameter count with model degrees of freedom and verify that the covariance estimator is appropriate.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Path analysis uses observed variables and does not correct structural coefficients for latent measurement error. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Software-definition reconciliation: Report target and baseline fit statistics consistently

Consider a review in which Latent Education path = 0.382401 is reproduced but Latent Social-Alcohol path = -0.477804 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report target and baseline fit statistics consistently and verify that the sample size supports the parameter count.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Local-chart conflict: Inspect standardized residuals and modification indices

Consider a review in which Latent structural R squared = 0.167253 is reproduced but PLS Education path = 0.282066 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect standardized residuals and modification indices and verify that missingness and nonnormality are handled explicitly.

Alternative-method challenge: Separate measurement and structural conclusions

Consider a review in which PLS Social-Alcohol path = -0.197452 is reproduced but PLS R squared = 0.120424 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to separate measurement and structural conclusions and verify that measurement quality is established before structural interpretation.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Path analysis uses observed variables and does not correct structural coefficients for latent measurement error. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Replication and reporting decision: Avoid causal wording without design-based identification

Consider a review in which PLS Q squared = 0.112273 is reproduced but Observed path R squared = 0.850714 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to avoid causal wording without design-based identification and verify that the model reflects a prespecified theory.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Boundary-case interpretation: Verify the model-implied covariance equation

Consider a review in which Observed path adjusted R squared = 0.849084 is reproduced but Observed path RMSE = 1.247283 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the model-implied covariance equation and verify that the full model is identified.

Input-definition sensitivity: Reconcile parameter count with model degrees of freedom

Consider a review in which G2 observed coefficient = 0.887127 is reproduced but CFI = 0.997823 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to reconcile parameter count with model degrees of freedom and verify that the covariance estimator is appropriate.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Path analysis uses observed variables and does not correct structural coefficients for latent measurement error. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Software-definition reconciliation: Report target and baseline fit statistics consistently

Consider a review in which TLI = 0.996735 is reproduced but RMSEA = 0.020492 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report target and baseline fit statistics consistently and verify that the sample size supports the parameter count.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Local-chart conflict: Inspect standardized residuals and modification indices

Consider a review in which SRMR = 0.035876 is reproduced but Latent Education path = 0.382401 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect standardized residuals and modification indices and verify that missingness and nonnormality are handled explicitly.

Alternative-method challenge: Separate measurement and structural conclusions

Consider a review in which Latent Social-Alcohol path = -0.477804 is reproduced but Latent structural R squared = 0.167253 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to separate measurement and structural conclusions and verify that measurement quality is established before structural interpretation.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Path Analysis only for method selection: Path analysis uses observed variables and does not correct structural coefficients for latent measurement error. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Replication and reporting decision: Avoid causal wording without design-based identification

Consider a review in which PLS Education path = 0.282066 is reproduced but PLS Social-Alcohol path = -0.197452 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to avoid causal wording without design-based identification and verify that the model reflects a prespecified theory.

If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Confirmatory Factor Analysis only for method selection: CFA contains only the measurement component, whereas CB-SEM adds structural relations among latent variables. The published conclusion remains The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

Boundary-case interpretation: Verify the model-implied covariance equation

Consider a review in which PLS R squared = 0.120424 is reproduced but PLS Q squared = 0.112273 is not. For the covariance-reproduction SEM, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the model-implied covariance equation and verify that the full model is identified.

Covariance Based SEM downloads and reproducibility files

All linked files belong to the same analysis and remain on onlineinternetcafe.com.

PYCovariance Based SEM Python reportReproduces CFI = 0.997823 and documents how to verify the model-implied covariance equation.Open file →RCovariance Based SEM R reportReproduces CFI = 0.997823 and documents how to reconcile parameter count with model degrees of freedom.Open file →SPSSCovariance Based SEM SPSS/AMOS outputReproduces CFI = 0.997823 and documents how to report target and baseline fit statistics consistently.Open file →XLSXCovariance Based SEM Excel workbookReproduces CFI = 0.997823 and documents how to inspect standardized residuals and modification indices.Open file →

The four files belong to one Covariance Based SEM analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.

Covariance Based SEM frequently asked questions

Answers use the worked result and the exact method boundary.

What does Covariance Based SEM measure?

What is the main result in this Covariance Based SEM analysis?

CFI = 0.997823. The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

What does the result not prove?

Which supporting value should be reported with the primary result?

For Covariance Based SEM, tLI = 0.996735 is the first companion quantity. TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.

Which assumption is most likely to change the interpretation?

The first requirement is that the full model is identified. The result is recomputed if that condition is not satisfied.

What is the most important numerical verification?

The analyst must verify the model-implied covariance equation. That operation traces CFI = 0.997823 to the formula and saved inputs.

Why can software packages disagree on Covariance Based SEM?

Disagreement can arise because the covariance estimator is appropriate or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.

How is Covariance Based SEM different from PLS-SEM?

CB-SEM prioritizes covariance reproduction and global fit; PLS-SEM emphasizes composites, explained variance, and prediction.

How should a chart be interpreted?

For Covariance Based SEM, each chart is tied to a named output such as RMSEA = 0.020492. It supports a local calculation or diagnostic and does not replace the full numerical result.

How should Covariance Based SEM be reported?

Report CFI = 0.997823, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

The covariance model shows excellent global fit and a modest latent structural R-squared. The paths are interpreted only after the measurement model, residuals, and estimator assumptions are accepted.

What Covariance Based SEM measures

Quantity estimated in this analysis

Interpretation that is not permitted

When to use Covariance Based SEM

Research question answered

Nearest methods that answer different questions

Real data used for Covariance Based SEM

Covariance Based SEM assumptions and design requirements

1. The full model is identified

2. The covariance estimator is appropriate

3. The sample size supports the parameter count

4. Missingness and nonnormality are handled explicitly

5. Measurement quality is established before structural interpretation

6. The model reflects a prespecified theory

Covariance Based SEM hypotheses or decision rule

Statistical question

Decision for the worked analysis

Covariance Based SEM formula and worked substitution

Symbol and denominator control

Full-precision substitution

Step-by-step Covariance Based SEM calculation

Establish the analytical object

Reconstruct the first required quantity

Verify the companion quantity

Apply the decision rule

Inspect local evidence

Reconcile and report

Covariance Based SEM results and interpretation

Primary result

Why the result is internally coherent

Covariance Based SEM in Python

Covariance Based SEM in R

Covariance Based SEM in SPSS or AMOS

Covariance Based SEM in Excel

Covariance Based SEM charts and visual diagnostics

01 Covariance-Based-Sem Primary Metrics

02 Covariance-Based-Sem Cbsem Measurement Fit

03 Covariance-Based-Sem Cbsem Structural Coefficients

04 Covariance-Based-Sem Latent Score Data

05 Covariance-Based-Sem Verified Result Summary

01 Covariance-Based-Sem Primary Metrics

02 Covariance-Based-Sem Cbsem Measurement Fit

03 Covariance-Based-Sem Cbsem Structural Coefficients

04 Covariance-Based-Sem Latent Score Data

05 Covariance-Based-Sem Verified Result Summary

Covariance Based SEM verification and sensitivity analysis

1. Verify the model-implied covariance equation

2. Reconcile parameter count with model degrees of freedom

3. Report target and baseline fit statistics consistently

4. Inspect standardized residuals and modification indices

5. Separate measurement and structural conclusions

6. Avoid causal wording without design-based identification

Covariance Based SEM compared with related methods

PLS-SEM

Path Analysis

Confirmatory Factor Analysis

How to report Covariance Based SEM

Results paragraph

Settings that must accompany the result

Verification actions retained in the record

Covariance Based SEM decision scenarios

Boundary-case interpretation: Verify the model-implied covariance equation

Input-definition sensitivity: Reconcile parameter count with model degrees of freedom

Software-definition reconciliation: Report target and baseline fit statistics consistently

Local-chart conflict: Inspect standardized residuals and modification indices

Alternative-method challenge: Separate measurement and structural conclusions

Replication and reporting decision: Avoid causal wording without design-based identification

Boundary-case interpretation: Verify the model-implied covariance equation

Input-definition sensitivity: Reconcile parameter count with model degrees of freedom

Software-definition reconciliation: Report target and baseline fit statistics consistently

Local-chart conflict: Inspect standardized residuals and modification indices

Alternative-method challenge: Separate measurement and structural conclusions

Replication and reporting decision: Avoid causal wording without design-based identification

Boundary-case interpretation: Verify the model-implied covariance equation

Covariance Based SEM downloads and reproducibility files

Covariance Based SEM frequently asked questions

Need help understanding your data?
