Chi Square Fit Test: Formula, Verified Results, Charts and Interpretation
The SEM chi-square fit test evaluates the exact-fit null that the population covariance matrix equals the covariance matrix implied by the specified model. It is a test of the complete model, not a test of an individual loading or path. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
For Chi Square Fit Test, target chi-square = 30.530 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size.
What Chi Square Fit Test measures
The exact estimand and the result this method is allowed to support.
Chi Square Fit Test addresses one defined analytical target: The SEM chi-square fit test evaluates the exact-fit null that the population covariance matrix equals the covariance matrix implied by the specified model. It is a test of the complete model, not a test of an individual loading or path.
Quantity estimated in this analysis
The sem exact-fit chi-square is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is Target chi-square = 30.530; Target degrees of freedom = 24 supplies the first supporting check. Target chi-square = 30.530 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size.
For Chi Square Fit Test, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
Failure to reject exact fit is not proof that the model is true, and rejection at a large sample size does not automatically imply practically serious misspecification. The statistic is sensitive to sample size, estimator, nonnormality, and model constraints.
For Chi Square Fit Test, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use Chi Square Fit Test
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the SEM exact-fit chi-square supports the result stated for the declared dataset and analytical specification. It is answered by reconstruct chi-square from the minimized fitting function when available, followed by verify the 24 model degrees of freedom. The evidence is bounded by Target chi-square = 30.530 and its named companion quantities.
For Chi Square Fit Test, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
Bartlett’s Test of Sphericity: Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure.
RMSEA: RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation.
These distinctions determine which formula, output table, and chart can legitimately appear in a Chi Square Fit Test post.
Real data used for Chi Square Fit Test
Variables, coding, sample or panel size, and the role each input plays.
For Chi Square Fit Test, the worked analysis preserves the exact sample, variables, coding, and model declaration recorded in the supplied reports.
Those inputs are the only basis for Target chi-square = 30.530 and the accompanying interpretation of the SEM exact-fit chi-square.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|
| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
Chi Square Fit Test assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. The model is identified
This condition determines whether the input object matches the formula. In the current Chi Square Fit Test analysis, the check is to reconstruct chi-square from the minimized fitting function when available while preserving Target chi-square = 30.530.
For Chi Square Fit Test, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. The estimator’s distributional assumptions are defensible
This requirement controls whether the numerical estimate has the interpretation claimed. In the current Chi Square Fit Test analysis, the check is to verify the 24 model degrees of freedom while preserving Target degrees of freedom = 24.
For Chi Square Fit Test, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. The reported statistic and df use the same fitted model
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current Chi Square Fit Test analysis, the check is to report the p-value rather than labeling the result only significant or nonsignificant while preserving Exact-fit p-value = 0.167787.
For Chi Square Fit Test, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. Missing-data handling is consistent
This specification rule keeps the software routes numerically comparable. In the current Chi Square Fit Test analysis, the check is to use the robust test if the estimator produced one while preserving RMSEA = 0.020492.
For Chi Square Fit Test, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. Robust or scaled corrections are reported when used
This diagnostic requirement is checked before a benchmark is applied. In the current Chi Square Fit Test analysis, the check is to separate global exact fit from local parameter tests while preserving SRMR = 0.035876.
For Chi Square Fit Test, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. The sample covariance matrix is correctly specified
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current Chi Square Fit Test analysis, the check is to inspect fit indices that quantify approximate and residual fit while preserving CFI = 0.997823.
For Chi Square Fit Test, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
Chi Square Fit Test hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
H₀: the population covariance matrix equals the covariance matrix implied by the specified model. H₁: the two covariance structures differ.
This is an exact-fit hypothesis for the complete model. Individual loading and path tests answer narrower parameter questions.
Decision for the worked analysis
The calculation yields Target chi-square = 30.530. Target chi-square = 30.530 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size.
For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Chi Square Fit Test formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for Chi Square Fit Test. Its symbols are connected to the saved inputs and to Target chi-square = 30.530, Target degrees of freedom = 24, Exact-fit p-value = 0.167787, RMSEA = 0.020492.
The exact-fit test evaluates whether the model-implied covariance matrix differs detectably from the observed covariance matrix.
At alpha .05, the exact-fit null is not rejected for this model.
Symbol and denominator control
The SEM chi-square fit test evaluates the exact-fit null that the population covariance matrix equals the covariance matrix implied by the specified model. It is a test of the complete model, not a test of an individual loading or path.
For Chi Square Fit Test, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
The spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with Target chi-square = 30.530 and Target degrees of freedom = 24.
Failure to reject exact fit is not proof that the model is true, and rejection at a large sample size does not automatically imply practically serious misspecification. The statistic is sensitive to sample size, estimator, nonnormality, and model constraints.
Step-by-step Chi Square Fit Test calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the SEM exact-fit chi-square. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Reconstruct chi-square from the minimized fitting function when available.
Numerical trace: Target chi-square = 30.530; Target degrees of freedom = 24.
Condition: the model is identified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Verify the 24 model degrees of freedom.
Numerical trace: Target degrees of freedom = 24; Exact-fit p-value = 0.167787.
Condition: the estimator’s distributional assumptions are defensible. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Report the p-value rather than labeling the result only significant or nonsignificant.
Numerical trace: Exact-fit p-value = 0.167787; RMSEA = 0.020492.
Condition: the reported statistic and df use the same fitted model. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Use the robust test if the estimator produced one.
Numerical trace: RMSEA = 0.020492; SRMR = 0.035876.
Condition: missing-data handling is consistent. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Separate global exact fit from local parameter tests.
Numerical trace: SRMR = 0.035876; CFI = 0.997823.
Condition: robust or scaled corrections are reported when used. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Inspect fit indices that quantify approximate and residual fit.
Numerical trace: CFI = 0.997823; AGFI = 0.989823.
Condition: the sample covariance matrix is correctly specified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Chi Square Fit Test results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
Target chi-square
For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Why the result is internally coherent
For Chi Square Fit Test, target chi-square = 30.530 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size.
Target degrees of freedom = 24 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result.
For Chi Square Fit Test, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| Target chi-square | 30.530 | Target chi-square = 30.530 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size. |
| Target degrees of freedom | 24 | Target degrees of freedom = 24 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result. |
| Exact-fit p-value | 0.167787 | Exact-fit p-value = 0.167787 is a probability under the stated null model and does not quantify practical magnitude. |
| RMSEA | 0.020492 | RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting. |
| SRMR | 0.035876 | SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells. |
| CFI | 0.997823 | CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| AGFI | 0.989823 | AGFI = 0.989823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| GFI | 0.994572 | GFI = 0.994572 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| TLI | 0.996735 | TLI = 0.996735 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| NFI | 0.989945 | NFI = 0.989945 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula. |
| Baseline chi-square | 3036.199 | Baseline chi-square = 3036.199 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size. |
| Baseline degrees of freedom | 36 | Baseline degrees of freedom = 36 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result. |
| Sample size | 649 | Sample size = 649 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result. |
| Observed indicators | 9 | Observed indicators = 9 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result. |
Chi Square Fit Test in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses semopy, Model to calculate or extract the SEM exact-fit chi-square from the declared data and analytical specification. It must reproduce Target chi-square = 30.530 and retain Target degrees of freedom = 24 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to reconstruct chi-square from the minimized fitting function when available; the associated design condition is that the model is identified. Failure to reject exact fit is not proof that the model is true, and rejection at a large sample size does not automatically imply practically serious misspecification. The statistic is sensitive to sample size, estimator, nonnormality, and model constraints.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
from semopy import Model, calc_stats
model = Model("""
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
""")
model.fit(df)
stats = calc_stats(model)
print("Chi Square Fit Test")
print(stats.T if "chi2" == "all" else stats.T.loc[["chi2"]])
print(model.inspect(std_est=True))
Chi Square Fit Test in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses lavaan and the displayed arguments to estimate the SEM exact-fit chi-square. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with Target chi-square = 30.530 after the analyst verify the 24 model degrees of freedom. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
library(lavaan)
model <- '
Achievement =~ G1 + G2 + G3
Education =~ Medu + Fedu + TravelAccess
SocialAlcohol =~ goout + Dalc + Walc
Achievement ~ Education + SocialAlcohol
'
fit <- sem(model,data=d,estimator="ML")
fitMeasures(fit,c("chi2"))
standardizedSolution(fit)Chi Square Fit Test in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the SEM exact-fit chi-square. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify Target chi-square = 30.530 and the settings needed to reproduce it. The software review specifically report the p-value rather than labeling the result only significant or nonsignificant, while preserving the requirement that the reported statistic and df use the same fitted model.
* Chi Square Fit Test is obtained from the prespecified AMOS covariance model.
* Three factors: G1 G2 G3; Medu Fedu TravelAccess; goout Dalc Walc.
* Maximum likelihood, N=649, df=24.
* Request standardized estimates, residual moments, squared multiple correlations, and fit measures.
* Reconcile the exact Chi Square Fit Test value with the formula and result ledger in this draft.Chi Square Fit Test in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the SEM exact-fit chi-square. Named cells retain the inputs, intermediate components, and final formula leading to Target chi-square = 30.530; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to use the robust test if the estimator produced one and documents Target degrees of freedom = 24 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by Chi Square Fit Test.
Calculation: =(N-1)*Fmin
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.Chi Square Fit Test charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same Chi Square Fit Test analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

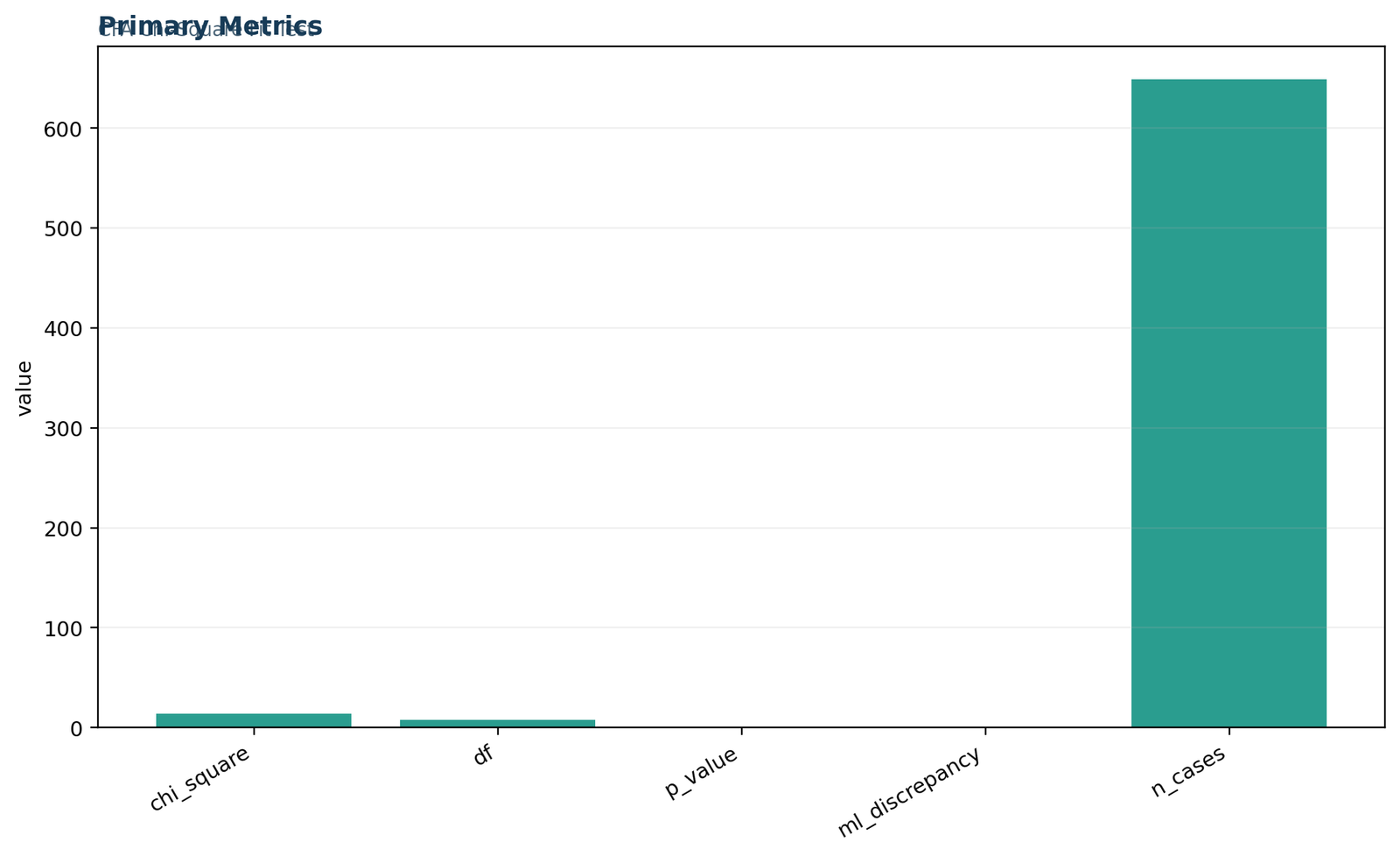

01 Chi-Square-Fit-Test Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Chi Square Fit Test. Read Target chi-square = 30.530 beside Target degrees of freedom = 24; the first quantity is not replaced by the second.
The chart is used to reconstruct chi-square from the minimized fitting function when available. Its interpretation remains valid only when the model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

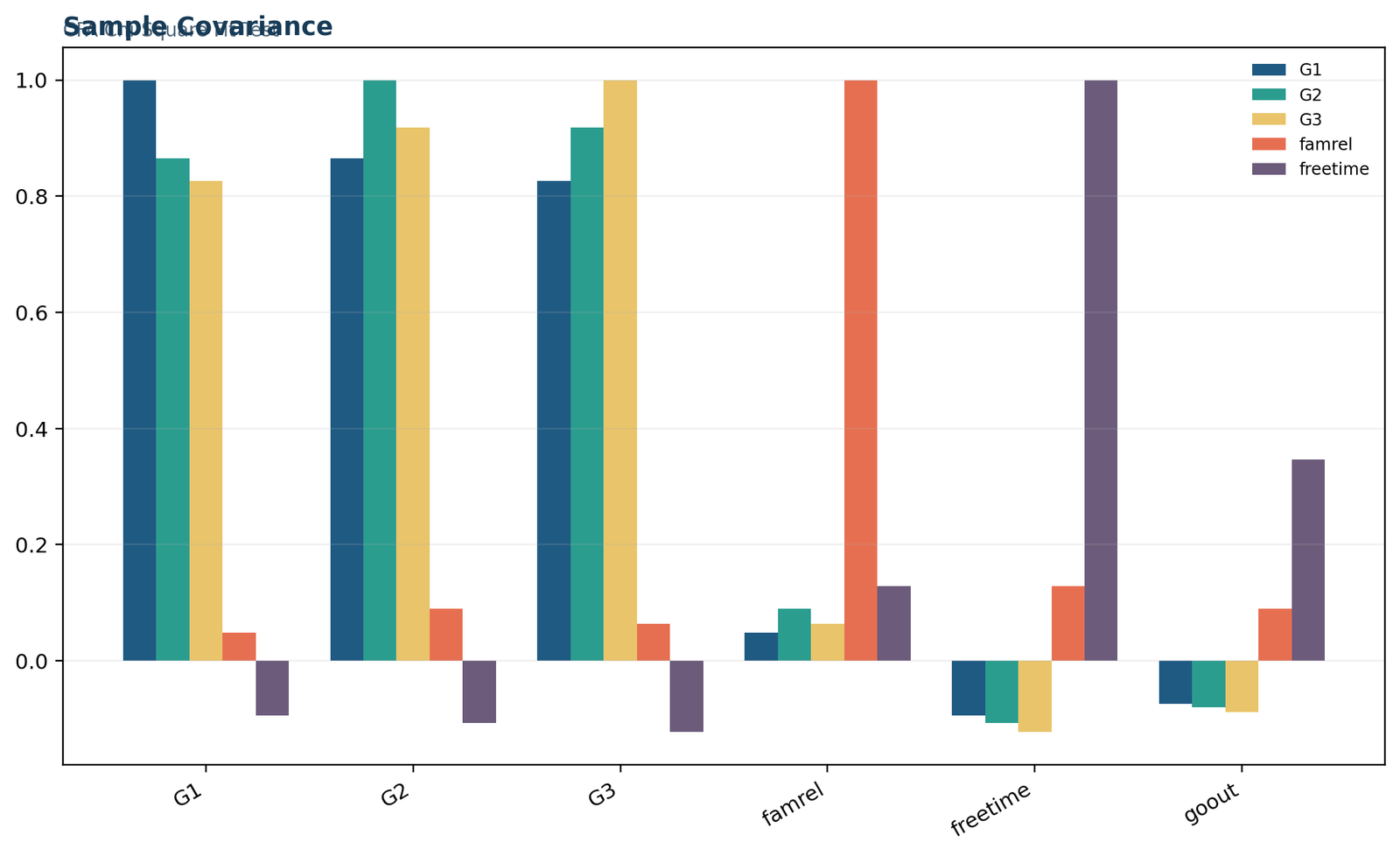

02 Chi-Square-Fit-Test Sample Covariance
This panel provides a visual diagnostic tied to the method’s exact decision rule for Chi Square Fit Test. Read Target degrees of freedom = 24 beside Exact-fit p-value = 0.167787; the first quantity is not replaced by the second.
The chart is used to verify the 24 model degrees of freedom. Its interpretation remains valid only when the estimator’s distributional assumptions are defensible. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

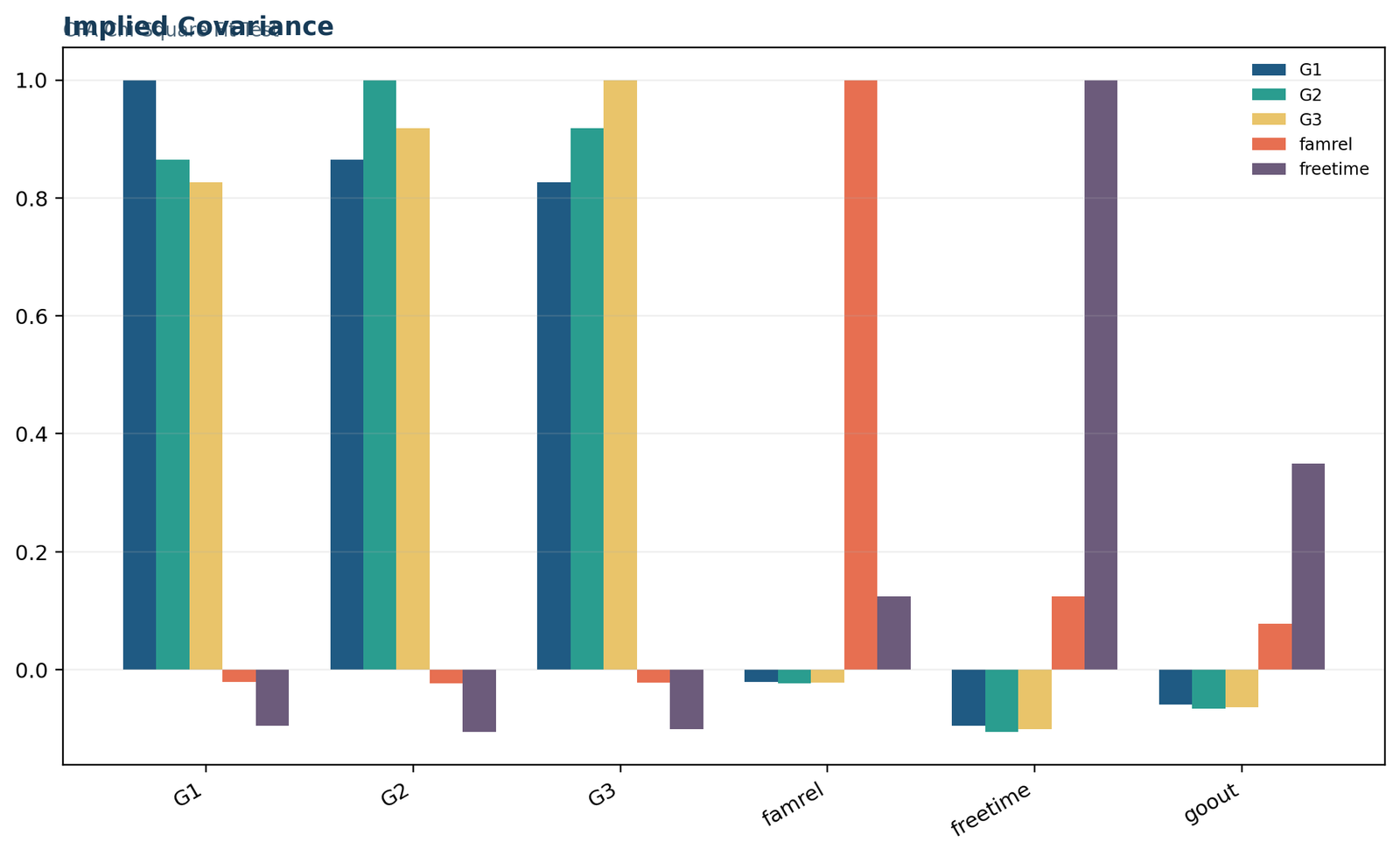

03 Chi-Square-Fit-Test Implied Covariance
This panel provides a visual diagnostic tied to the method’s exact decision rule for Chi Square Fit Test. Read Exact-fit p-value = 0.167787 beside RMSEA = 0.020492; the first quantity is not replaced by the second.
The chart is used to report the p-value rather than labeling the result only significant or nonsignificant. Its interpretation remains valid only when the reported statistic and df use the same fitted model. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

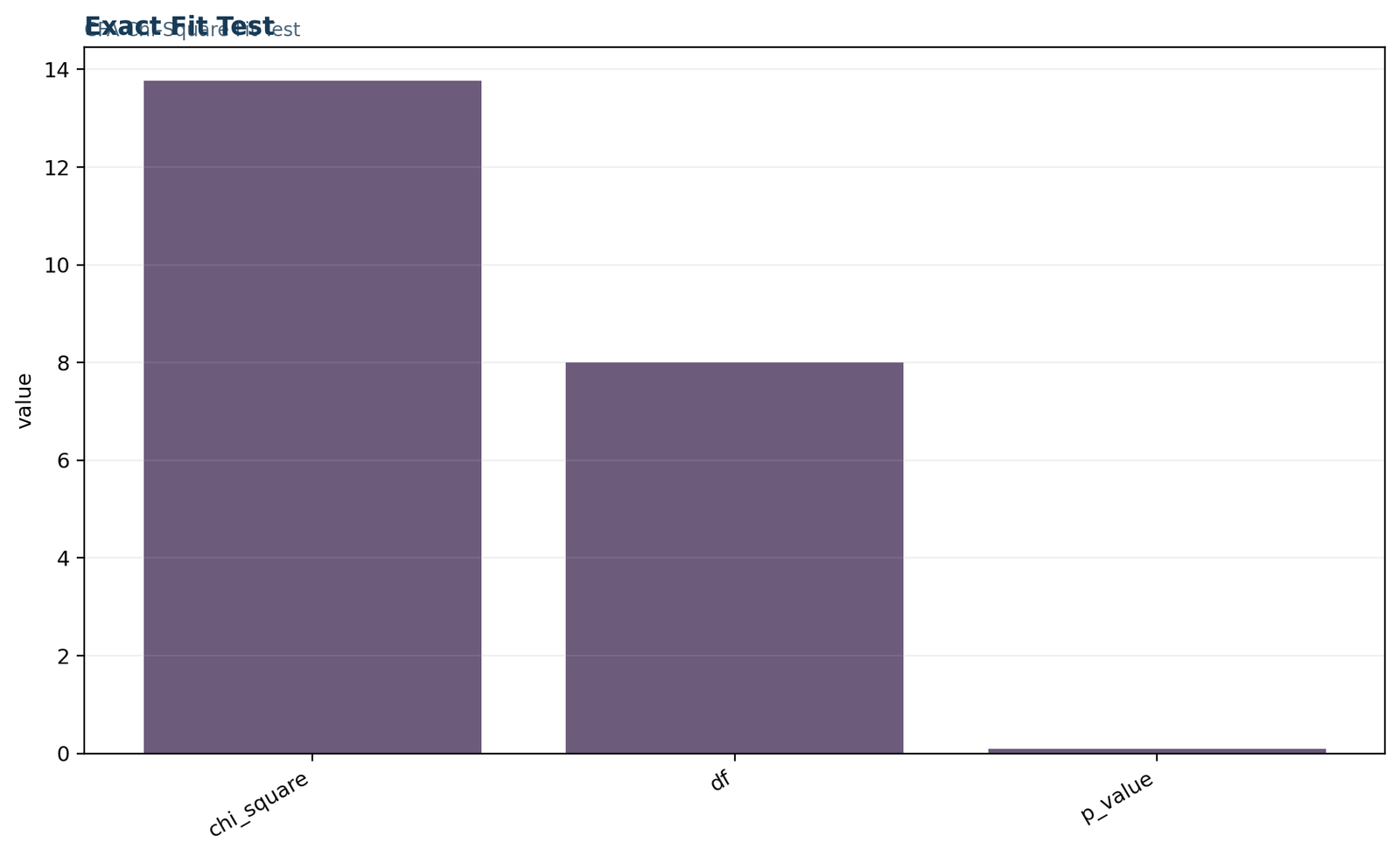

04 Chi-Square-Fit-Test Exact Fit Test
This panel provides a visual diagnostic tied to the method’s exact decision rule for Chi Square Fit Test. Read RMSEA = 0.020492 beside SRMR = 0.035876; the first quantity is not replaced by the second.
The chart is used to use the robust test if the estimator produced one. Its interpretation remains valid only when missing-data handling is consistent. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

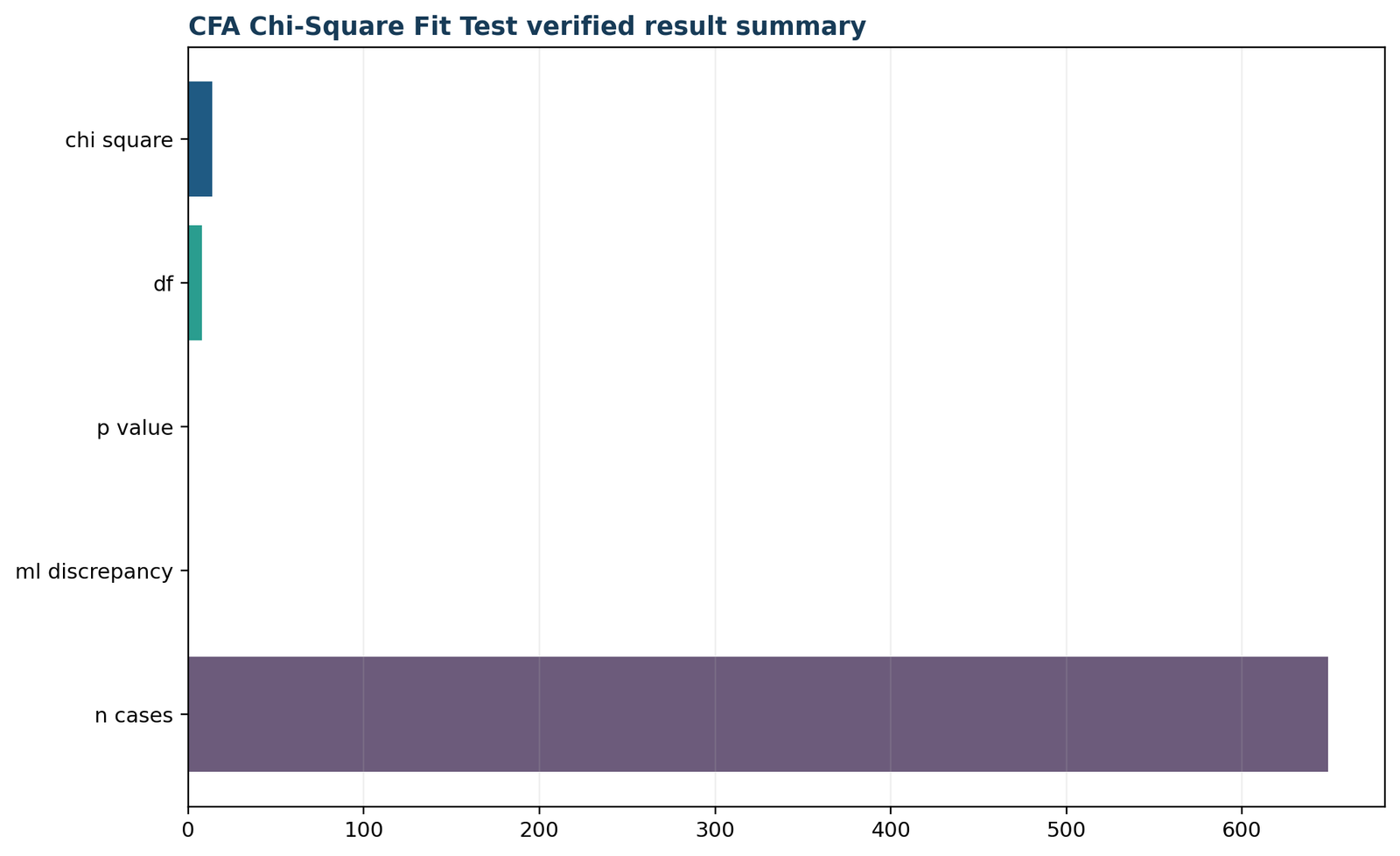

05 Chi-Square-Fit-Test Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Chi Square Fit Test. Read SRMR = 0.035876 beside CFI = 0.997823; the first quantity is not replaced by the second.
The chart is used to separate global exact fit from local parameter tests. Its interpretation remains valid only when robust or scaled corrections are reported when used. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Chi-Square-Fit-Test Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for Chi Square Fit Test. Read CFI = 0.997823 beside AGFI = 0.989823; the first quantity is not replaced by the second.
The chart is used to inspect fit indices that quantify approximate and residual fit. Its interpretation remains valid only when the sample covariance matrix is correctly specified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Chi-Square-Fit-Test Sample Covariance
This panel provides a visual diagnostic tied to the method’s exact decision rule for Chi Square Fit Test. Read AGFI = 0.989823 beside GFI = 0.994572; the first quantity is not replaced by the second.
The chart is used to reconstruct chi-square from the minimized fitting function when available. Its interpretation remains valid only when the model is identified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
03 Chi-Square-Fit-Test Implied Covariance
This panel provides a visual diagnostic tied to the method’s exact decision rule for Chi Square Fit Test. Read GFI = 0.994572 beside TLI = 0.996735; the first quantity is not replaced by the second.
The chart is used to verify the 24 model degrees of freedom. Its interpretation remains valid only when the estimator’s distributional assumptions are defensible. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
04 Chi-Square-Fit-Test Exact Fit Test
This panel provides a visual diagnostic tied to the method’s exact decision rule for Chi Square Fit Test. Read TLI = 0.996735 beside NFI = 0.989945; the first quantity is not replaced by the second.
The chart is used to report the p-value rather than labeling the result only significant or nonsignificant. Its interpretation remains valid only when the reported statistic and df use the same fitted model. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Chi-Square-Fit-Test Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for Chi Square Fit Test. Read NFI = 0.989945 beside Baseline chi-square = 3036.199; the first quantity is not replaced by the second.
The chart is used to use the robust test if the estimator produced one. Its interpretation remains valid only when missing-data handling is consistent. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
Chi Square Fit Test verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of Chi Square Fit Test.
1. Reconstruct chi-square from the minimized fitting function when available
Begin by reconstruct chi-square from the minimized fitting function when available. For the SEM exact-fit chi-square, this operation directly connects Target chi-square = 30.530 with Exact-fit p-value = 0.167787. Target chi-square = 30.530 is read with its degrees of freedom, estimator, sample size, and p-value; it is not a stand-alone effect size.
The governing condition is that the model is identified. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Bartlett’s Test of Sphericity, because Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure.
2. Verify the 24 model degrees of freedom
Next, verify the 24 model degrees of freedom. For the SEM exact-fit chi-square, this operation directly connects Target degrees of freedom = 24 with RMSEA = 0.020492. Target degrees of freedom = 24 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result.
The governing condition is that the estimator’s distributional assumptions are defensible. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with RMSEA, because RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation.
3. Report the p-value rather than labeling the result only significant or nonsignificant
The third verification is to report the p-value rather than labeling the result only significant or nonsignificant. For the SEM exact-fit chi-square, this operation directly connects Exact-fit p-value = 0.167787 with SRMR = 0.035876. Exact-fit p-value = 0.167787 is a probability under the stated null model and does not quantify practical magnitude.
The governing condition is that the reported statistic and df use the same fitted model. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Likelihood-Ratio Model Comparison, because A nested-model difference test compares two fitted models; the single-model chi-square tests the target against a saturated model.
4. Use the robust test if the estimator produced one
After the core arithmetic is stable, use the robust test if the estimator produced one. For the SEM exact-fit chi-square, this operation directly connects RMSEA = 0.020492 with CFI = 0.997823. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
The governing condition is that missing-data handling is consistent. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Bartlett’s Test of Sphericity, because Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure.
5. Separate global exact fit from local parameter tests
A robustness review must separate global exact fit from local parameter tests. For the SEM exact-fit chi-square, this operation directly connects SRMR = 0.035876 with AGFI = 0.989823. SRMR = 0.035876 is the root mean square of standardized residuals; the average must be checked against the largest individual residual cells.
The governing condition is that robust or scaled corrections are reported when used. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with RMSEA, because RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation.
6. Inspect fit indices that quantify approximate and residual fit
The final reconciliation should inspect fit indices that quantify approximate and residual fit. For the SEM exact-fit chi-square, this operation directly connects CFI = 0.997823 with GFI = 0.994572. CFI = 0.997823 belongs to the declared covariance model and estimator; its baseline, complexity adjustment, or residual weighting must match the displayed formula.
The governing condition is that the sample covariance matrix is correctly specified. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Likelihood-Ratio Model Comparison, because A nested-model difference test compares two fitted models; the single-model chi-square tests the target against a saturated model.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | reconstruct chi-square from the minimized fitting function when available | the model is identified | Target chi-square = 30.530 |
| 2 | verify the 24 model degrees of freedom | the estimator’s distributional assumptions are defensible | Target degrees of freedom = 24 |
| 3 | report the p-value rather than labeling the result only significant or nonsignificant | the reported statistic and df use the same fitted model | Exact-fit p-value = 0.167787 |
| 4 | use the robust test if the estimator produced one | missing-data handling is consistent | RMSEA = 0.020492 |
| 5 | separate global exact fit from local parameter tests | robust or scaled corrections are reported when used | SRMR = 0.035876 |
| 6 | inspect fit indices that quantify approximate and residual fit | the sample covariance matrix is correctly specified | CFI = 0.997823 |
Chi Square Fit Test compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the Chi Square Fit Test formula and output rather than a nearby procedure.
Bartlett’s Test of Sphericity
Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure.
In the current analysis, Target degrees of freedom = 24 remains evidence for the SEM exact-fit chi-square; it is not relabeled as a Bartlett’s Test of Sphericity result. Target degrees of freedom = 24 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result.
RMSEA
RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation.
In the current analysis, Exact-fit p-value = 0.167787 remains evidence for the SEM exact-fit chi-square; it is not relabeled as a RMSEA result. Exact-fit p-value = 0.167787 is a probability under the stated null model and does not quantify practical magnitude.
Likelihood-Ratio Model Comparison
A nested-model difference test compares two fitted models; the single-model chi-square tests the target against a saturated model.
In the current analysis, RMSEA = 0.020492 remains evidence for the SEM exact-fit chi-square; it is not relabeled as a Likelihood-Ratio Model Comparison result. RMSEA = 0.020492 expresses approximate discrepancy per degree of freedom and requires the corresponding confidence interval and estimator correction for complete reporting.
How to report Chi Square Fit Test
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
Chi Square Fit Test was evaluated using the declared data, specification, and software settings. The primary result was Target chi-square = 30.530; Target degrees of freedom = 24 and Exact-fit p-value = 0.167787 supplied supporting context. For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
The report then states the limitation explicitly: Failure to reject exact fit is not proof that the model is true, and rejection at a large sample size does not automatically imply practically serious misspecification. The statistic is sensitive to sample size, estimator, nonnormality, and model constraints.
Settings that must accompany the result
the model is identified; the estimator’s distributional assumptions are defensible; the reported statistic and df use the same fitted model; missing-data handling is consistent.
For Chi Square Fit Test, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
reconstruct chi-square from the minimized fitting function when available; verify the 24 model degrees of freedom; report the p-value rather than labeling the result only significant or nonsignificant; use the robust test if the estimator produced one.
The final wording is revised only after those operations reproduce the saved values.
Chi Square Fit Test decision scenarios
For Chi Square Fit Test, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Reconstruct chi-square from the minimized fitting function when available
Consider a review in which Target chi-square = 30.530 is reproduced but Target degrees of freedom = 24 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to reconstruct chi-square from the minimized fitting function when available and verify that the model is identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Bartlett’s Test of Sphericity only for method selection: Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Input-definition sensitivity: Verify the 24 model degrees of freedom
Consider a review in which Exact-fit p-value = 0.167787 is reproduced but RMSEA = 0.020492 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the 24 model degrees of freedom and verify that the estimator’s distributional assumptions are defensible.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with RMSEA only for method selection: RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Software-definition reconciliation: Report the p-value rather than labeling the result only significant or nonsignificant
Consider a review in which SRMR = 0.035876 is reproduced but CFI = 0.997823 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report the p-value rather than labeling the result only significant or nonsignificant and verify that the reported statistic and df use the same fitted model.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Likelihood-Ratio Model Comparison only for method selection: A nested-model difference test compares two fitted models; the single-model chi-square tests the target against a saturated model. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Local-chart conflict: Use the robust test if the estimator produced one
Consider a review in which AGFI = 0.989823 is reproduced but GFI = 0.994572 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to use the robust test if the estimator produced one and verify that missing-data handling is consistent.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Bartlett’s Test of Sphericity only for method selection: Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Alternative-method challenge: Separate global exact fit from local parameter tests
Consider a review in which TLI = 0.996735 is reproduced but NFI = 0.989945 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to separate global exact fit from local parameter tests and verify that robust or scaled corrections are reported when used.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with RMSEA only for method selection: RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Replication and reporting decision: Inspect fit indices that quantify approximate and residual fit
Consider a review in which Baseline chi-square = 3036.199 is reproduced but Baseline degrees of freedom = 36 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to inspect fit indices that quantify approximate and residual fit and verify that the sample covariance matrix is correctly specified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Likelihood-Ratio Model Comparison only for method selection: A nested-model difference test compares two fitted models; the single-model chi-square tests the target against a saturated model. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Boundary-case interpretation: Reconstruct chi-square from the minimized fitting function when available
Consider a review in which Sample size = 649 is reproduced but Observed indicators = 9 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to reconstruct chi-square from the minimized fitting function when available and verify that the model is identified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Bartlett’s Test of Sphericity only for method selection: Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Input-definition sensitivity: Verify the 24 model degrees of freedom
Consider a review in which Target chi-square = 30.530 is reproduced but Target degrees of freedom = 24 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to verify the 24 model degrees of freedom and verify that the estimator’s distributional assumptions are defensible.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with RMSEA only for method selection: RMSEA transforms chi-square and degrees of freedom into an approximate-fit index with a different interpretation. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Software-definition reconciliation: Report the p-value rather than labeling the result only significant or nonsignificant
Consider a review in which Exact-fit p-value = 0.167787 is reproduced but RMSEA = 0.020492 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report the p-value rather than labeling the result only significant or nonsignificant and verify that the reported statistic and df use the same fitted model.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Likelihood-Ratio Model Comparison only for method selection: A nested-model difference test compares two fitted models; the single-model chi-square tests the target against a saturated model. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Local-chart conflict: Use the robust test if the estimator produced one
Consider a review in which SRMR = 0.035876 is reproduced but CFI = 0.997823 is not. For the SEM exact-fit chi-square, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to use the robust test if the estimator produced one and verify that missing-data handling is consistent.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Bartlett’s Test of Sphericity only for method selection: Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure. The published conclusion remains For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
Chi Square Fit Test downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one Chi Square Fit Test analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
Chi Square Fit Test frequently asked questions
Answers use the worked result and the exact method boundary.
What does Chi Square Fit Test measure?
The SEM chi-square fit test evaluates the exact-fit null that the population covariance matrix equals the covariance matrix implied by the specified model. It is a test of the complete model, not a test of an individual loading or path.
What is the main result in this Chi Square Fit Test analysis?
Target chi-square = 30.530. For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
What does the result not prove?
Failure to reject exact fit is not proof that the model is true, and rejection at a large sample size does not automatically imply practically serious misspecification. The statistic is sensitive to sample size, estimator, nonnormality, and model constraints.
Which supporting value should be reported with the primary result?
Target degrees of freedom = 24 is the first companion quantity. Target degrees of freedom = 24 is retained as a distinct supporting quantity for the SEM exact-fit chi-square; it is not substituted for the primary result.
Which assumption is most likely to change the interpretation?
The first requirement is that the model is identified. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must reconstruct chi-square from the minimized fitting function when available. That operation traces Target chi-square = 30.530 to the formula and saved inputs.
Why can software packages disagree on Chi Square Fit Test?
Disagreement can arise because the estimator’s distributional assumptions are defensible or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is Chi Square Fit Test different from Bartlett’s Test of Sphericity?
Bartlett tests whether the observed correlation matrix is identity; SEM chi-square tests a specified model-implied covariance structure.
How should a chart be interpreted?
Each chart is tied to a named output such as Exact-fit p-value = 0.167787. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should Chi Square Fit Test be reported?
Report Target chi-square = 30.530, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: For chi-square = 30.530 with 24 degrees of freedom, p = 0.167787 does not reject exact fit at .05. That favorable test should be read together with RMSEA, SRMR, CFI, parameter estimates, and residuals.
