SEM in SmartPLS: Formula, Verified Results, Charts and Interpretation
SEM in SmartPLS is a PLS-SEM workflow built around measurement-model assessment, bootstrapped structural paths, explained variance, effect size, predictive relevance, and prediction. The current post must use SmartPLS terminology and outputs rather than importing CB-SEM fit indices as if native. This guide uses the supplied real-data results, native MathML equations, matching charts, and separate Python, R, SPSS or AMOS, and Excel verification.
The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
For SEM in SmartPLS, pLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
What SEM in SmartPLS measures
The exact estimand and the result this method is allowed to support.
SEM in SmartPLS addresses one defined analytical target: SEM in SmartPLS is a PLS-SEM workflow built around measurement-model assessment, bootstrapped structural paths, explained variance, effect size, predictive relevance, and prediction. The current post must use SmartPLS terminology and outputs rather than importing CB-SEM fit indices as if native.
Quantity estimated in this analysis
The smartpls composite-model workflow is reconstructed from the exact variables, matrix, model, panel, or resampling design shown below. The primary output is PLS Education path = 0.282066; PLS Social-Alcohol path = -0.197452 supplies the first supporting check. PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
For SEM in SmartPLS, the calculation retains full precision until the final display. That matters because the software reports, spreadsheet formulas, chart labels, and narrative must refer to one identical result rather than separately rounded approximations.
Interpretation that is not permitted
CFI, TLI, and RMSEA from a separate covariance model are not SmartPLS path-model results. A fixed-score regression can audit saved composite scores but cannot replace the SmartPLS algorithm, bootstrapping, or PLSpredict.
For SEM in SmartPLS, this boundary is substantive. A nearby coefficient may share the same data or model, yet it answers a different question. The article therefore names every supporting statistic instead of using broad labels such as “valid,” “good,” or “significant” without the object being evaluated.
When to use SEM in SmartPLS
Research scope, neighboring methods, and excluded claims.
Research question answered
The defensible question is whether the SmartPLS composite-model workflow supports the result stated for the declared dataset and analytical specification. It is answered by run the PLS algorithm with the declared indicator blocks, followed by bootstrap path coefficients and outer weights. The evidence is bounded by PLS Education path = 0.282066 and its named companion quantities.
For SEM in SmartPLS, changing the case set, expert panel, item block, estimator, factor count, rotation, baseline model, bootstrap design, or criterion definition changes the question. Such a change requires a new result rather than a revision of the wording around the old value.
Nearest methods that answer different questions
SEM in AMOS: AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria.
SEM in R: lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation.
These distinctions determine which formula, output table, and chart can legitimately appear in a SEM in SmartPLS post.
Real data used for SEM in SmartPLS
Variables, coding, sample or panel size, and the role each input plays.
For SEM in SmartPLS, the model-based analysis uses 649 complete student records and the declared indicator blocks shown in the table. G1, G2, and G3 define Academic Achievement; Medu, Fedu, and reverse-coded TravelAccess define Educational Advantage; goout, Dalc, and Walc define Social-Alcohol Exposure.
For the SmartPLS composite-model workflow, these variables enter a prespecified covariance, composite, or path model. Their order, scaling, factor membership, and missing-data treatment must match the model syntax because PLS Education path = 0.282066 is conditional on that exact specification.
| Variable | Meaning | Mean | SD | Range | Construct |
|---|---|---|---|---|---|
| G1 | first-period grade | 11.3991 | 2.7453 | 0–19 | Academic Achievement |
| G2 | second-period grade | 11.5701 | 2.9136 | 0–19 | Academic Achievement |
| G3 | final grade | 11.9060 | 3.2307 | 0–19 | Academic Achievement |
| Medu | mother’s education | 2.5146 | 1.1346 | 0–4 | Educational Advantage |
| Fedu | father’s education | 2.3066 | 1.0999 | 0–4 | Educational Advantage |
| TravelAccess | reverse-coded travel accessibility | 3.4314 | 0.7487 | 1–4 | Educational Advantage |
| goout | frequency of going out | 3.1849 | 1.1758 | 1–5 | Social-Alcohol Exposure |
| Dalc | workday alcohol use | 1.5023 | 0.9248 | 1–5 | Social-Alcohol Exposure |
| Walc | weekend alcohol use | 2.2804 | 1.2844 | 1–5 | Social-Alcohol Exposure |
SEM in SmartPLS assumptions and design requirements
Six conditions checked before the coefficient or decision rule is interpreted.
1. Measurement modes are correctly assigned
This condition determines whether the input object matches the formula. In the current SEM in SmartPLS analysis, the check is to run the PLS algorithm with the declared indicator blocks while preserving PLS Education path = 0.282066.
For SEM in SmartPLS, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
2. Outer loadings or weights are assessed first
This requirement controls whether the numerical estimate has the interpretation claimed. In the current SEM in SmartPLS analysis, the check is to bootstrap path coefficients and outer weights while preserving PLS Social-Alcohol path = -0.197452.
For SEM in SmartPLS, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
3. Collinearity is checked
This design condition prevents an attractive coefficient from being attached to the wrong population or model. In the current SEM in SmartPLS analysis, the check is to report reliability, AVE, and HTMT for reflective blocks while preserving PLS R squared = 0.120424.
For SEM in SmartPLS, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
4. Bootstrapping uses adequate resamples
This specification rule keeps the software routes numerically comparable. In the current SEM in SmartPLS analysis, the check is to report VIF and weights for formative blocks while preserving PLS Q squared = 0.112273.
For SEM in SmartPLS, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
5. Structural paths are prespecified
This diagnostic requirement is checked before a benchmark is applied. In the current SEM in SmartPLS analysis, the check is to evaluate R-squared, f-squared, and Q-squared while preserving Academic Achievement outer loading 2 = 0.971500.
For SEM in SmartPLS, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
6. Prediction settings are documented
This final condition governs whether the conclusion can survive replication or sensitivity analysis. In the current SEM in SmartPLS analysis, the check is to add PLSpredict rather than relying only on in-sample metrics while preserving Educational Advantage outer loading 3 = 0.522726.
For SEM in SmartPLS, if the condition is not met, the affected matrix, coefficient, cutoff, or path is recomputed from the corrected inputs. The result is not repaired by changing a label or selecting a more favorable software output.
SEM in SmartPLS hypotheses or decision rule
The statistical question is stated at the correct level for this method.
Statistical question
For SEM in SmartPLS, global model hypotheses concern covariance reproduction, while parameter hypotheses concern individual loadings, paths, covariances, weights, or indirect effects.
The two levels are reported separately so that a favorable global result does not conceal an unsupported parameter claim in SEM in SmartPLS.
Decision for the worked analysis
For SEM in SmartPLS, the calculation yields PLS Education path = 0.282066 . PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
SEM in SmartPLS formula and worked substitution
Native MathML preserves fractions, roots, summations, matrices, subscripts, and superscripts.
The equation below is the defining mathematical object for SEM in SmartPLS. Its symbols are connected to the saved inputs and to PLS Education path = 0.282066, PLS Social-Alcohol path = -0.197452, PLS R squared = 0.120424, PLS Q squared = 0.112273.
Outer weights, outer loadings, path coefficients, R squared, and Q squared answer different parts of the model.
The endogenous construct has modest explained variance and positive predictive relevance.
Symbol and denominator control
SEM in SmartPLS is a PLS-SEM workflow built around measurement-model assessment, bootstrapped structural paths, explained variance, effect size, predictive relevance, and prediction. The current post must use SmartPLS terminology and outputs rather than importing CB-SEM fit indices as if native.
For SEM in SmartPLS, the numerator, denominator, matrix order, degrees of freedom, factor count, or panel size shown in the MathML card is retained exactly. A formula from a neighboring method is not substituted even when both produce values on a similar scale.
Full-precision substitution
For SEM in SmartPLS, the spreadsheet and software outputs retain unrounded inputs until the final displayed value. The arithmetic is then reconciled with PLS Education path = 0.282066 and PLS Social-Alcohol path = -0.197452 .
CFI, TLI, and RMSEA from a separate covariance model are not SmartPLS path-model results. A fixed-score regression can audit saved composite scores but cannot replace the SmartPLS algorithm, bootstrapping, or PLSpredict.
Step-by-step SEM in SmartPLS calculation
Every stage is tied to a saved value and a method-specific condition.
The worked calculation follows six operations specific to the SmartPLS composite-model workflow. Each operation produces a quantity used by the next step, so a discrepancy is resolved where it originates rather than hidden by rounding.
Establish the analytical object
Action: Run the PLS algorithm with the declared indicator blocks.
Numerical trace: PLS Education path = 0.282066; PLS Social-Alcohol path = -0.197452.
Condition: measurement modes are correctly assigned. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconstruct the first required quantity
Action: Bootstrap path coefficients and outer weights.
Numerical trace: PLS Social-Alcohol path = -0.197452; PLS R squared = 0.120424.
Condition: outer loadings or weights are assessed first. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Verify the companion quantity
Action: Report reliability, AVE, and HTMT for reflective blocks.
Numerical trace: PLS R squared = 0.120424; PLS Q squared = 0.112273.
Condition: collinearity is checked. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Apply the decision rule
Action: Report VIF and weights for formative blocks.
For SEM in SmartPLS, numerical trace: PLS Q squared = 0.112273; Academic Achievement outer loading 2 = 0.971500.
Condition: bootstrapping uses adequate resamples. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Inspect local evidence
Action: Evaluate R-squared, f-squared, and Q-squared.
For SEM in SmartPLS, numerical trace: Academic Achievement outer loading 2 = 0.971500; Educational Advantage outer loading 3 = 0.522726.
Condition: structural paths are prespecified. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
Reconcile and report
Action: Add PLSpredict rather than relying only on in-sample metrics.
For SEM in SmartPLS, numerical trace: Educational Advantage outer loading 3 = 0.522726; PLS Education path = 0.282066.
Condition: prediction settings are documented. This step is repeated after any correction to coding, matrix construction, model syntax, rotation, resampling, or expert-rating denominators.
SEM in SmartPLS results and interpretation
Primary and supporting statistics are kept separate and precisely labeled.
Primary result
PLS Education path
The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Why the result is internally coherent
For SEM in SmartPLS, pLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
For SEM in SmartPLS, pLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
For SEM in SmartPLS, the two quantities are reported together because one is primary and the other supplies context; neither is renamed as the other.
| Result item | Exact value | Interpretation restricted to this method |
|---|---|---|
| PLS Education path | 0.282066 | PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| PLS Social-Alcohol path | -0.197452 | PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits. |
| PLS R squared | 0.120424 | PLS R squared = 0.120424 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction. |
| PLS Q squared | 0.112273 | PLS Q squared = 0.112273 indicates predictive relevance under the declared omission or prediction procedure, not automatically strong out-of-sample accuracy. |
| Academic Achievement outer loading 2 | 0.971500 | Academic Achievement outer loading 2 = 0.971500 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit. |
| Educational Advantage outer loading 3 | 0.522726 | Educational Advantage outer loading 3 = 0.522726 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit. |
SEM in SmartPLS in Python
The Python route calculates or reconstructs the exact named result.
The Python workflow uses sklearn, PLSRegression, the to calculate or extract the SmartPLS composite-model workflow from the declared data and analytical specification. It must reproduce PLS Education path = 0.282066 and retain PLS Social-Alcohol path = -0.197452 as a separate supporting quantity.
The code is read as an executable analysis, not as a printed answer. Its critical verification is to run the PLS algorithm with the declared indicator blocks; the associated design condition is that measurement modes are correctly assigned. CFI, TLI, and RMSEA from a separate covariance model are not SmartPLS path-model results. A fixed-score regression can audit saved composite scores but cannot replace the SmartPLS algorithm, bootstrapping, or PLSpredict.
import pandas as pd
import numpy as npdf = pd.read_csv("student-por.csv", sep=";")
df["TravelAccess"] = 5 - df["traveltime"]
vars9 = ["G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc"]
X = df[vars9].dropna()
from sklearn.cross_decomposition import PLSRegression
# Construct scores use the verified outer weights from the post.
A=X[["G1","G2","G3"]]@np.array([.566384,.586852,.578631])
E=X[["Medu","Fedu","TravelAccess"]]@np.array([.658565,.643123,.390750])
S=X[["goout","Dalc","Walc"]]@np.array([.467550,.601818,.647466])
B=np.linalg.lstsq(np.c_[np.ones(len(X)),E,S],A,rcond=None)[0]
print("intercept, Education, SocialAlcohol",B)
SEM in SmartPLS in R
The R route declares package, estimator, extraction, rotation, or resampling settings.
The R route uses seminr and the displayed arguments to estimate the SmartPLS composite-model workflow. Package defaults are made explicit because estimator, matrix type, extraction, rotation, baseline, or bootstrap choices can change the result.
R output is reconciled with PLS Education path = 0.282066 after the analyst bootstrap path coefficients and outer weights. Agreement is expected only when the case set, variable order, and method settings match the Python and workbook calculations.
d <- read.csv2("student-por.csv")
d$TravelAccess <- 5 - d$traveltime
vars9 <- c("G1","G2","G3","Medu","Fedu","TravelAccess","goout","Dalc","Walc")
X <- d[vars9]
library(seminr)
# Define the three composite blocks with the exact indicators shown above, estimate the PLS model, and request outer weights, loadings, paths, R2, and PLSpredict/Q2.SEM in SmartPLS in SPSS or AMOS
The procedure is labeled honestly when base SPSS does not expose the coefficient.
The SPSS or AMOS section shows the procedure that is actually available for the SmartPLS composite-model workflow. When base SPSS does not expose the coefficient, the syntax prepares the correct matrix or model and the coefficient is obtained through AMOS, MATRIX operations, or a validated integration rather than by renaming a different test.
The output must identify PLS Education path = 0.282066 and the settings needed to reproduce it. The software review specifically report reliability, AVE, and HTMT for reflective blocks, while preserving the requirement that collinearity is checked.
* Prepare the standardized loading, residual-variance, construct-correlation, or expert-rating table required for SEM in SmartPLS.
* Use MATRIX, AMOS, or validated R/Python integration when base SPSS does not expose the coefficient.
* Do not rename a different SPSS statistic as SEM in SmartPLS.SEM in SmartPLS in Excel
The workbook exposes source values, intermediate arithmetic, and the final formula.
The Excel workbook is an arithmetic audit for the SmartPLS composite-model workflow. Named cells retain the inputs, intermediate components, and final formula leading to PLS Education path = 0.282066; no rounded constant is pasted over a formula cell.
Excel can verify visible calculations and cross-software agreement, but it does not replace estimation, optimization, rotation, or resampling that must occur in statistical software. The workbook therefore focuses on the check to report VIF and weights for formative blocks and documents PLS Social-Alcohol path = -0.197452 independently.
Data: 649 rows with documented coding.
Inputs: named cells or ranges required only by SEM in SmartPLS.
Calculation: Use the native MathML formula shown above with named ranges for every input
Audit: compare full-precision Excel output with the Python, R, and SPSS/AMOS values.
Decision: reference the exact result and diagnostics; never paste a rounded value over the formula cell.SEM in SmartPLS charts and visual diagnostics
Each supplied image is interpreted through its own values and analytical purpose.
Every image below is interpreted as part of the same SEM in SmartPLS analysis. The captions identify what the panel contributes, the exact values visible in the result set, and the condition that would invalidate the reading.

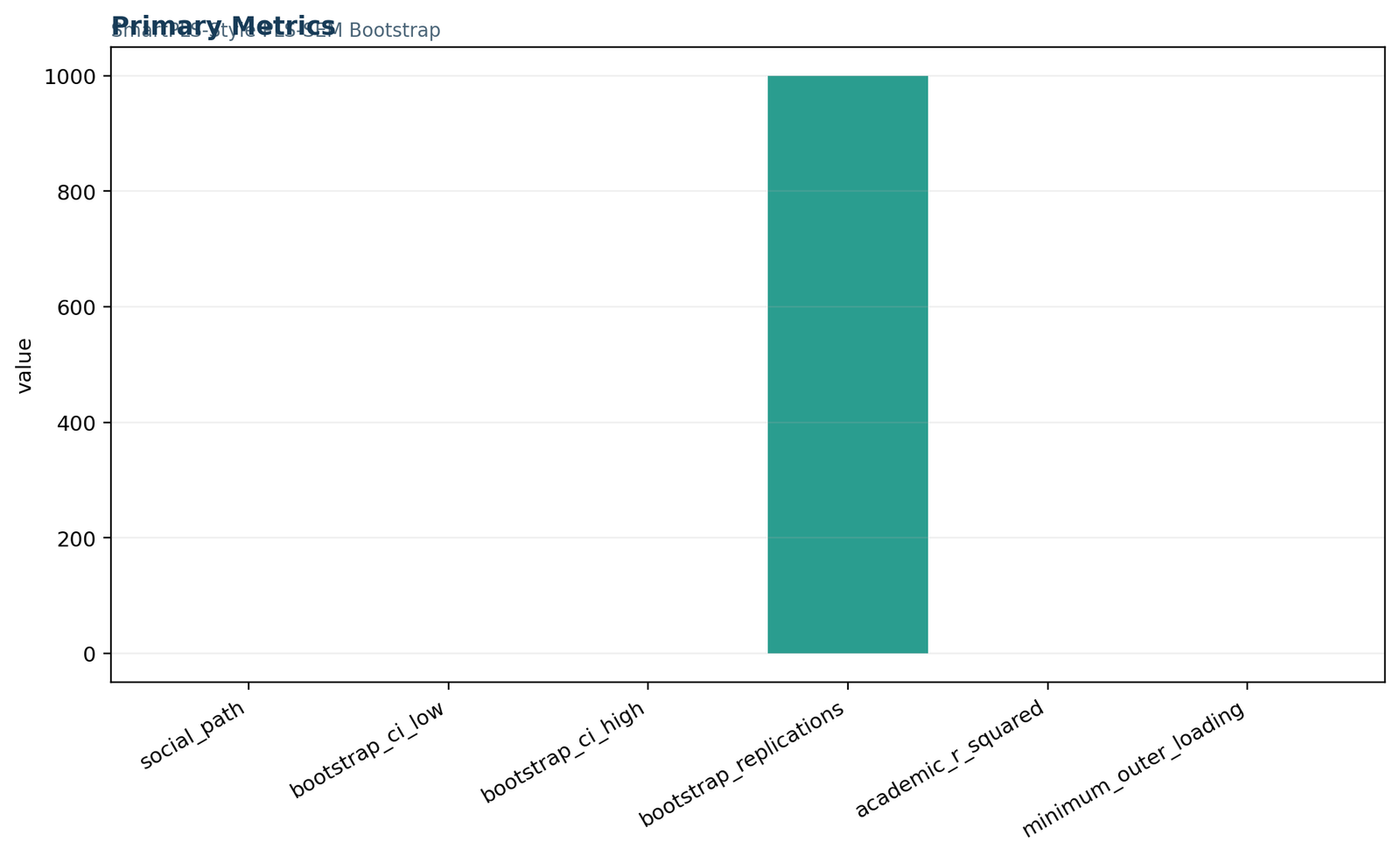

01 Sem-In-Smartpls Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for SEM in SmartPLS. Read PLS Education path = 0.282066 beside PLS Social-Alcohol path = -0.197452; the first quantity is not replaced by the second.
The chart is used to run the PLS algorithm with the declared indicator blocks. Its interpretation remains valid only when measurement modes are correctly assigned. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

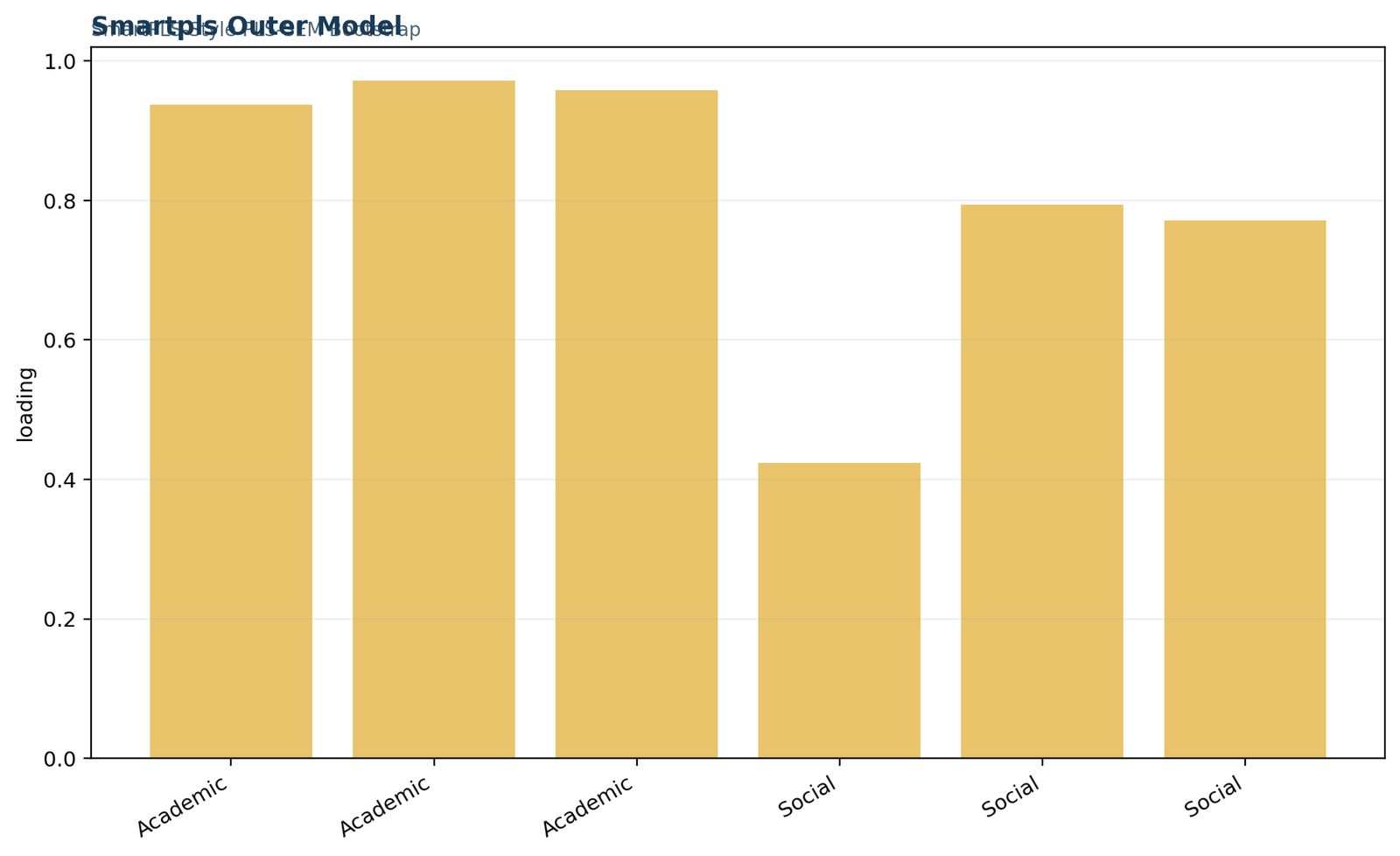

02 Sem-In-Smartpls Smartpls Outer Model
This panel checks measurement quality before a broader conclusion is made for SEM in SmartPLS. Read PLS Social-Alcohol path = -0.197452 beside PLS R squared = 0.120424; the first quantity is not replaced by the second.
The chart is used to bootstrap path coefficients and outer weights. Its interpretation remains valid only when outer loadings or weights are assessed first. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

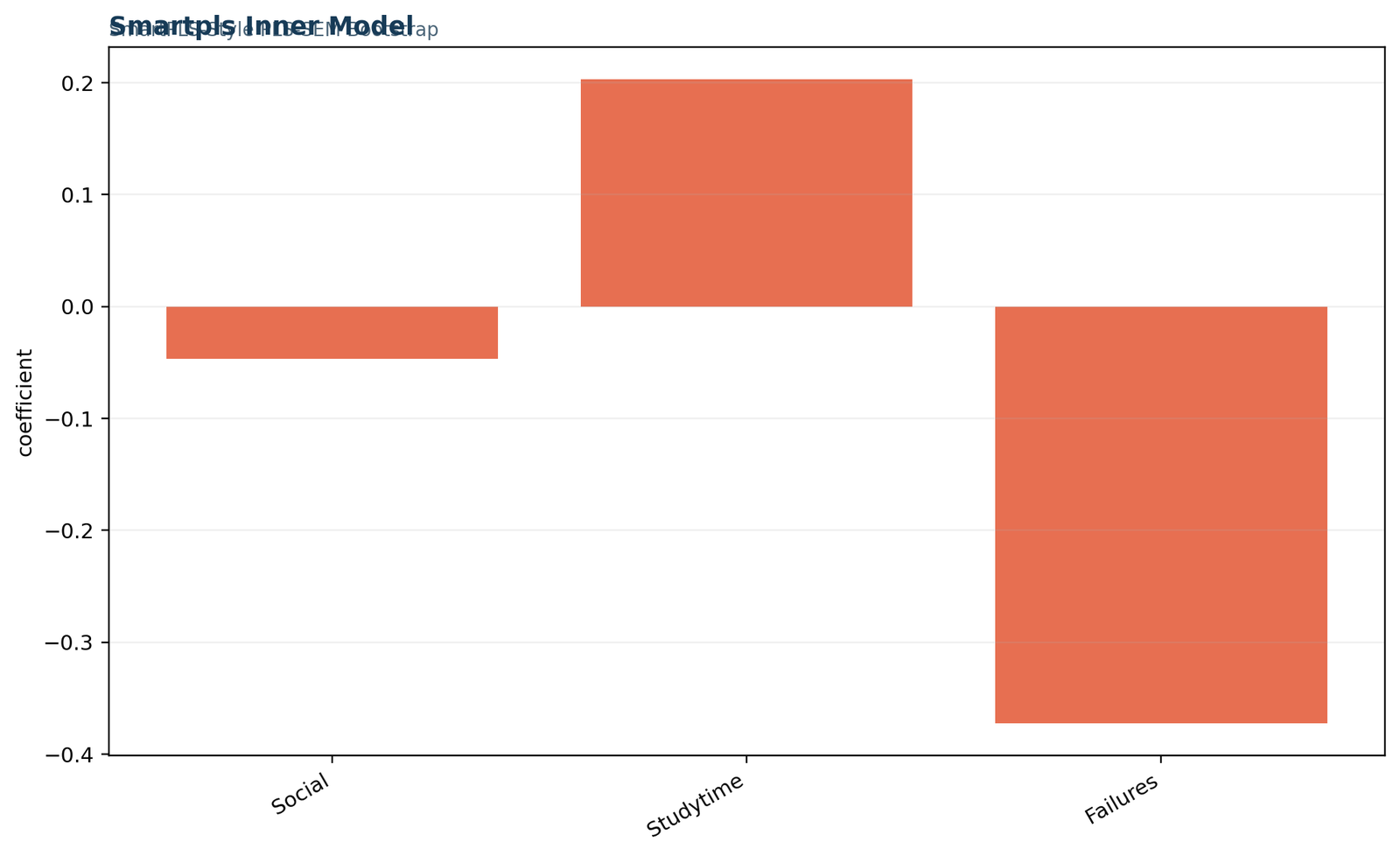

03 Sem-In-Smartpls Smartpls Inner Model
This panel shows the direction and relative magnitude of the declared structural relations for SEM in SmartPLS. Read PLS R squared = 0.120424 beside PLS Q squared = 0.112273; the first quantity is not replaced by the second.
The chart is used to report reliability, AVE, and HTMT for reflective blocks. Its interpretation remains valid only when collinearity is checked. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

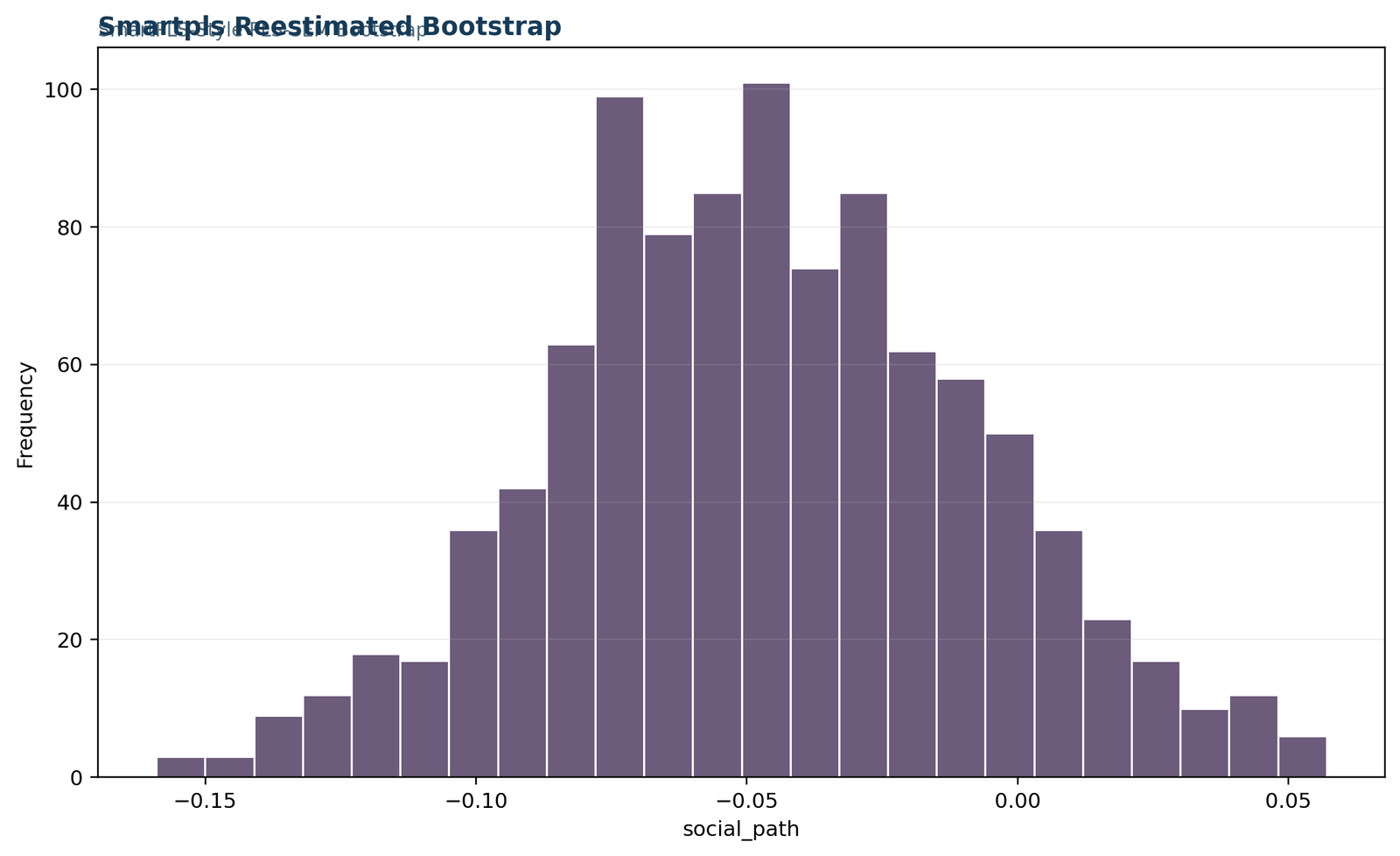

04 Sem-In-Smartpls Smartpls Reestimated Bootstrap
This panel shows sampling or resampling uncertainty around the reported estimate for SEM in SmartPLS. Read PLS Q squared = 0.112273 beside Academic Achievement outer loading 2 = 0.971500; the first quantity is not replaced by the second.
The chart is used to report VIF and weights for formative blocks. Its interpretation remains valid only when bootstrapping uses adequate resamples. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.

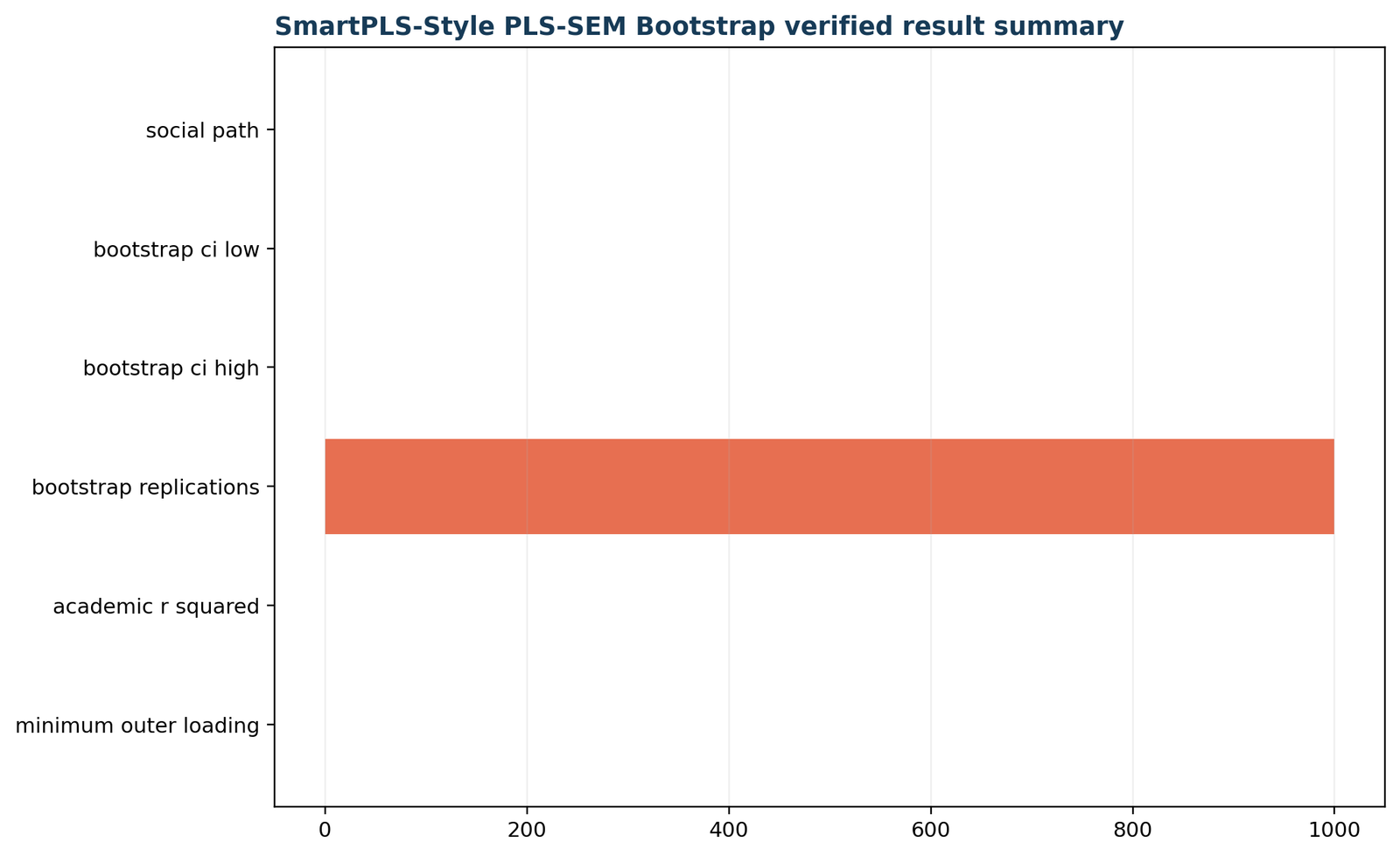

05 Sem-In-Smartpls Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for SEM in SmartPLS. Read Academic Achievement outer loading 2 = 0.971500 beside Educational Advantage outer loading 3 = 0.522726; the first quantity is not replaced by the second.
The chart is used to evaluate R-squared, f-squared, and Q-squared. Its interpretation remains valid only when structural paths are prespecified. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
01 Sem-In-Smartpls Primary Metrics
This panel reconciles the headline estimate with its principal supporting values for SEM in SmartPLS. Read Educational Advantage outer loading 3 = 0.522726 beside PLS Education path = 0.282066; the first quantity is not replaced by the second.
The chart is used to add PLSpredict rather than relying only on in-sample metrics. Its interpretation remains valid only when prediction settings are documented. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
02 Sem-In-Smartpls Smartpls Outer Model
This panel checks measurement quality before a broader conclusion is made for SEM in SmartPLS. Read PLS Education path = 0.282066 beside PLS Social-Alcohol path = -0.197452; the first quantity is not replaced by the second.
The chart is used to run the PLS algorithm with the declared indicator blocks. Its interpretation remains valid only when measurement modes are correctly assigned. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
03 Sem-In-Smartpls Smartpls Inner Model
This panel shows the direction and relative magnitude of the declared structural relations for SEM in SmartPLS. Read PLS Social-Alcohol path = -0.197452 beside PLS R squared = 0.120424; the first quantity is not replaced by the second.
The chart is used to bootstrap path coefficients and outer weights. Its interpretation remains valid only when outer loadings or weights are assessed first. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
04 Sem-In-Smartpls Smartpls Reestimated Bootstrap
This panel shows sampling or resampling uncertainty around the reported estimate for SEM in SmartPLS. Read PLS R squared = 0.120424 beside PLS Q squared = 0.112273; the first quantity is not replaced by the second.
The chart is used to report reliability, AVE, and HTMT for reflective blocks. Its interpretation remains valid only when collinearity is checked. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
05 Sem-In-Smartpls Verified Result Summary
This panel reconciles the headline estimate with its principal supporting values for SEM in SmartPLS. Read PLS Q squared = 0.112273 beside Academic Achievement outer loading 2 = 0.971500; the first quantity is not replaced by the second.
The chart is used to report VIF and weights for formative blocks. Its interpretation remains valid only when bootstrapping uses adequate resamples. A visual pattern that conflicts with the saved table triggers re-estimation or relabeling of the specific chart, not a broad claim that the method has passed.
SEM in SmartPLS verification and sensitivity analysis
Six failure modes are checked against the formula, data, output, and charts.
The following diagnostics are not a general checklist. Each one targets a failure mode that can change the calculation or interpretation of SEM in SmartPLS.
1. Run the PLS algorithm with the declared indicator blocks
Begin by run the PLS algorithm with the declared indicator blocks. For the SmartPLS composite-model workflow, this operation directly connects PLS Education path = 0.282066 with PLS R squared = 0.120424. PLS Education path = 0.282066 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
The governing condition is that measurement modes are correctly assigned. If it fails, the primary coefficient may be attached to the wrong input object. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with SEM in AMOS, because AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria.
2. Bootstrap path coefficients and outer weights
Next, bootstrap path coefficients and outer weights. For the SmartPLS composite-model workflow, this operation directly connects PLS Social-Alcohol path = -0.197452 with PLS Q squared = 0.112273. PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
The governing condition is that outer loadings or weights are assessed first. If it fails, the companion statistic may no longer describe the same model or sample. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with SEM in R, because lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation.
3. Report reliability, AVE, and HTMT for reflective blocks
The third verification is to report reliability, AVE, and HTMT for reflective blocks. For the SmartPLS composite-model workflow, this operation directly connects PLS R squared = 0.120424 with Academic Achievement outer loading 2 = 0.971500. PLS R squared = 0.120424 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction.
The governing condition is that collinearity is checked. If it fails, the decision boundary can move because the required quantity has changed. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Partial Least Squares SEM, because PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow.
4. Report VIF and weights for formative blocks
After the core arithmetic is stable, report VIF and weights for formative blocks. For the SmartPLS composite-model workflow, this operation directly connects PLS Q squared = 0.112273 with Educational Advantage outer loading 3 = 0.522726. PLS Q squared = 0.112273 indicates predictive relevance under the declared omission or prediction procedure, not automatically strong out-of-sample accuracy.
The governing condition is that bootstrapping uses adequate resamples. If it fails, software agreement can be artificial if unlike definitions are compared. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with SEM in AMOS, because AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria.
5. Evaluate R-squared, f-squared, and Q-squared
A robustness review must evaluate R-squared, f-squared, and Q-squared. For the SmartPLS composite-model workflow, this operation directly connects Academic Achievement outer loading 2 = 0.971500 with PLS Education path = 0.282066. Academic Achievement outer loading 2 = 0.971500 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
The governing condition is that structural paths are prespecified. If it fails, a favorable average can conceal a local failure. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with SEM in R, because lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation.
6. Add PLSpredict rather than relying only on in-sample metrics
The final reconciliation should add PLSpredict rather than relying only on in-sample metrics. For the SmartPLS composite-model workflow, this operation directly connects Educational Advantage outer loading 3 = 0.522726 with PLS Social-Alcohol path = -0.197452. Educational Advantage outer loading 3 = 0.522726 is tied to a named indicator and matrix; its sign, standardization, primary dimension, and cross-coefficients must remain explicit.
The governing condition is that prediction settings are documented. If it fails, the published conclusion can exceed the evidence actually reproduced. The remedy is to correct the relevant coding, matrix, model, rotation, resampling, or panel denominator and rerun the calculation. This check also prevents confusion with Partial Least Squares SEM, because PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow.
| # | Verification operation | Condition protected | Saved quantity traced |
|---|---|---|---|
| 1 | run the PLS algorithm with the declared indicator blocks | measurement modes are correctly assigned | PLS Education path = 0.282066 |
| 2 | bootstrap path coefficients and outer weights | outer loadings or weights are assessed first | PLS Social-Alcohol path = -0.197452 |
| 3 | report reliability, AVE, and HTMT for reflective blocks | collinearity is checked | PLS R squared = 0.120424 |
| 4 | report VIF and weights for formative blocks | bootstrapping uses adequate resamples | PLS Q squared = 0.112273 |
| 5 | evaluate R-squared, f-squared, and Q-squared | structural paths are prespecified | Academic Achievement outer loading 2 = 0.971500 |
| 6 | add PLSpredict rather than relying only on in-sample metrics | prediction settings are documented | Educational Advantage outer loading 3 = 0.522726 |
SEM in SmartPLS compared with related methods
Differences in estimand, formula, and conclusion determine the correct choice.
Method choice depends on the estimand, model, and data structure. These three comparisons explain why the post uses the SEM in SmartPLS formula and output rather than a nearby procedure.
SEM in AMOS
AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria.
In the current analysis, PLS Social-Alcohol path = -0.197452 remains evidence for the SmartPLS composite-model workflow; it is not relabeled as a SEM in AMOS result. PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
SEM in R
lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation.
In the current analysis, PLS R squared = 0.120424 remains evidence for the SmartPLS composite-model workflow; it is not relabeled as a SEM in R result. PLS R squared = 0.120424 is the in-sample share of endogenous variance explained by the declared predictors, not proof of causality or holdout prediction.
Partial Least Squares SEM
PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow.
In the current analysis, PLS Q squared = 0.112273 remains evidence for the SmartPLS composite-model workflow; it is not relabeled as a Partial Least Squares SEM result. PLS Q squared = 0.112273 indicates predictive relevance under the declared omission or prediction procedure, not automatically strong out-of-sample accuracy.
How to report SEM in SmartPLS
A complete result paragraph includes the value, analytical object, settings, and limitation.
Results paragraph
SEM in SmartPLS was evaluated using the declared data, specification, and software settings. The primary result was PLS Education path = 0.282066; PLS Social-Alcohol path = -0.197452 and PLS R squared = 0.120424 supplied supporting context. The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
The report then states the limitation explicitly: CFI, TLI, and RMSEA from a separate covariance model are not SmartPLS path-model results. A fixed-score regression can audit saved composite scores but cannot replace the SmartPLS algorithm, bootstrapping, or PLSpredict.
Settings that must accompany the result
measurement modes are correctly assigned; outer loadings or weights are assessed first; collinearity is checked; bootstrapping uses adequate resamples.
For SEM in SmartPLS, these details identify the exact version of the analysis and make cross-software reconciliation possible.
Verification actions retained in the record
run the PLS algorithm with the declared indicator blocks; bootstrap path coefficients and outer weights; report reliability, AVE, and HTMT for reflective blocks; report VIF and weights for formative blocks.
The final wording is revised only after those operations reproduce the saved values.
SEM in SmartPLS decision scenarios
For SEM in SmartPLS, worked conflicts show how the conclusion changes when an input, assumption, or supporting statistic fails.
Boundary-case interpretation: Run the PLS algorithm with the declared indicator blocks
Consider a review in which PLS Education path = 0.282066 is reproduced but PLS Social-Alcohol path = -0.197452 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to run the PLS algorithm with the declared indicator blocks and verify that measurement modes are correctly assigned.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in AMOS only for method selection: AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Input-definition sensitivity: Bootstrap path coefficients and outer weights
Consider a review in which PLS R squared = 0.120424 is reproduced but PLS Q squared = 0.112273 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to bootstrap path coefficients and outer weights and verify that outer loadings or weights are assessed first.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in R only for method selection: lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Software-definition reconciliation: Report reliability, AVE, and HTMT for reflective blocks
Consider a review in which Academic Achievement outer loading 2 = 0.971500 is reproduced but Educational Advantage outer loading 3 = 0.522726 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report reliability, AVE, and HTMT for reflective blocks and verify that collinearity is checked.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Partial Least Squares SEM only for method selection: PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Local-chart conflict: Report VIF and weights for formative blocks
Consider a review in which PLS Education path = 0.282066 is reproduced but PLS Social-Alcohol path = -0.197452 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report VIF and weights for formative blocks and verify that bootstrapping uses adequate resamples.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in AMOS only for method selection: AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Alternative-method challenge: Evaluate R-squared, f-squared, and Q-squared
Consider a review in which PLS R squared = 0.120424 is reproduced but PLS Q squared = 0.112273 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to evaluate R-squared, f-squared, and Q-squared and verify that structural paths are prespecified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in R only for method selection: lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Replication and reporting decision: Add PLSpredict rather than relying only on in-sample metrics
Consider a review in which Academic Achievement outer loading 2 = 0.971500 is reproduced but Educational Advantage outer loading 3 = 0.522726 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to add PLSpredict rather than relying only on in-sample metrics and verify that prediction settings are documented.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Partial Least Squares SEM only for method selection: PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Boundary-case interpretation: Run the PLS algorithm with the declared indicator blocks
Consider a review in which PLS Education path = 0.282066 is reproduced but PLS Social-Alcohol path = -0.197452 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to run the PLS algorithm with the declared indicator blocks and verify that measurement modes are correctly assigned.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in AMOS only for method selection: AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Input-definition sensitivity: Bootstrap path coefficients and outer weights
Consider a review in which PLS R squared = 0.120424 is reproduced but PLS Q squared = 0.112273 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to bootstrap path coefficients and outer weights and verify that outer loadings or weights are assessed first.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in R only for method selection: lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Software-definition reconciliation: Report reliability, AVE, and HTMT for reflective blocks
Consider a review in which Academic Achievement outer loading 2 = 0.971500 is reproduced but Educational Advantage outer loading 3 = 0.522726 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report reliability, AVE, and HTMT for reflective blocks and verify that collinearity is checked.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Partial Least Squares SEM only for method selection: PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Local-chart conflict: Report VIF and weights for formative blocks
Consider a review in which PLS Education path = 0.282066 is reproduced but PLS Social-Alcohol path = -0.197452 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to report VIF and weights for formative blocks and verify that bootstrapping uses adequate resamples.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in AMOS only for method selection: AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Alternative-method challenge: Evaluate R-squared, f-squared, and Q-squared
Consider a review in which PLS R squared = 0.120424 is reproduced but PLS Q squared = 0.112273 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to evaluate R-squared, f-squared, and Q-squared and verify that structural paths are prespecified.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with SEM in R only for method selection: lavaan fits covariance-based SEM unless a different package is used; SmartPLS follows PLS estimation. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
Replication and reporting decision: Add PLSpredict rather than relying only on in-sample metrics
Consider a review in which Academic Achievement outer loading 2 = 0.971500 is reproduced but Educational Advantage outer loading 3 = 0.522726 is not. For the SmartPLS composite-model workflow, the disagreement cannot be settled by averaging the two outputs because they describe different components of the analysis. The first action is to add PLSpredict rather than relying only on in-sample metrics and verify that prediction settings are documented.
If the discrepancy persists, the analyst identifies whether the cause is coding, matrix construction, model identification, estimator, rotation, baseline definition, resampling, or panel denominator. The result is compared with Partial Least Squares SEM only for method selection: PLS-SEM is the method; SmartPLS is the software implementation and reporting workflow. The published conclusion remains The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
SEM in SmartPLS downloads and reproducibility files
All linked files belong to the same analysis and remain on onlineinternetcafe.com.
The four files belong to one SEM in SmartPLS analysis. Their primary values, variable order, method settings, and chart labels must agree; a mismatch is resolved in the source calculation before the WordPress draft is published.
SEM in SmartPLS frequently asked questions
Answers use the worked result and the exact method boundary.
What does SEM in SmartPLS measure?
SEM in SmartPLS is a PLS-SEM workflow built around measurement-model assessment, bootstrapped structural paths, explained variance, effect size, predictive relevance, and prediction. The current post must use SmartPLS terminology and outputs rather than importing CB-SEM fit indices as if native.
What is the main result in this SEM in SmartPLS analysis?
PLS Education path = 0.282066. The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
What does the result not prove?
CFI, TLI, and RMSEA from a separate covariance model are not SmartPLS path-model results. A fixed-score regression can audit saved composite scores but cannot replace the SmartPLS algorithm, bootstrapping, or PLSpredict.
Which supporting value should be reported with the primary result?
For SEM in SmartPLS, pLS Social-Alcohol path = -0.197452 is the first companion quantity. PLS Social-Alcohol path = -0.197452 is a conditional model coefficient whose sign and magnitude are interpreted with uncertainty, collinearity, measurement quality, and design limits.
Which assumption is most likely to change the interpretation?
The first requirement is that measurement modes are correctly assigned. The result is recomputed if that condition is not satisfied.
What is the most important numerical verification?
The analyst must run the PLS algorithm with the declared indicator blocks. That operation traces PLS Education path = 0.282066 to the formula and saved inputs.
Why can software packages disagree on SEM in SmartPLS?
Disagreement can arise because outer loadings or weights are assessed first or because the packages implement different estimators, matrices, baselines, rotations, standardizations, bootstrap rules, or coefficient definitions. Matching labels alone is not enough.
How is SEM in SmartPLS different from SEM in AMOS?
AMOS is covariance-based and reports global covariance fit; SmartPLS estimates composite scores and prediction-oriented criteria.
How should a chart be interpreted?
For SEM in SmartPLS, each chart is tied to a named output such as PLS R squared = 0.120424. It supports a local calculation or diagnostic and does not replace the full numerical result.
How should SEM in SmartPLS be reported?
Report PLS Education path = 0.282066, the required supporting quantities, sample or panel size, exact method settings, and this qualified conclusion: The SmartPLS-style results show positive Educational Advantage and negative Social-Alcohol Exposure paths, modest R-squared, and positive Q-squared. The conclusion is limited explanatory and predictive relevance, conditional on measurement-model quality.
